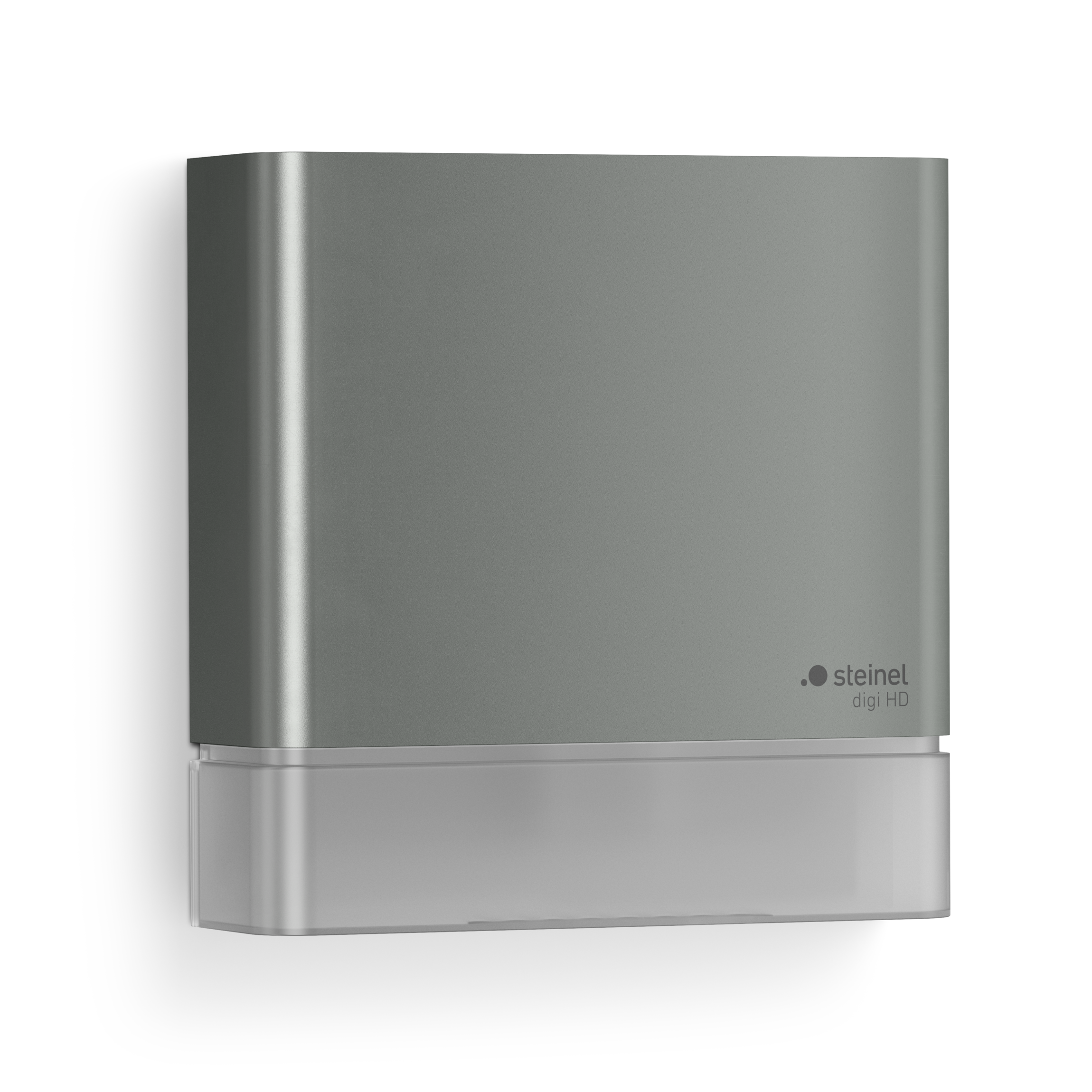

Steinel MD IR D180 COM1 - anthracite

Steinel MD IR D180 COM1 - anthracite

EAN-No. 4007841066079 · ELDAS® no. 066079

Steinel Bluetooth Mesh

Steinel MD IR D180 COM1 - anthracite

EAN-No. 4007841066079

ELDAS® no. 066079

Price: Please log in to see prices

Colour

White Anthracite

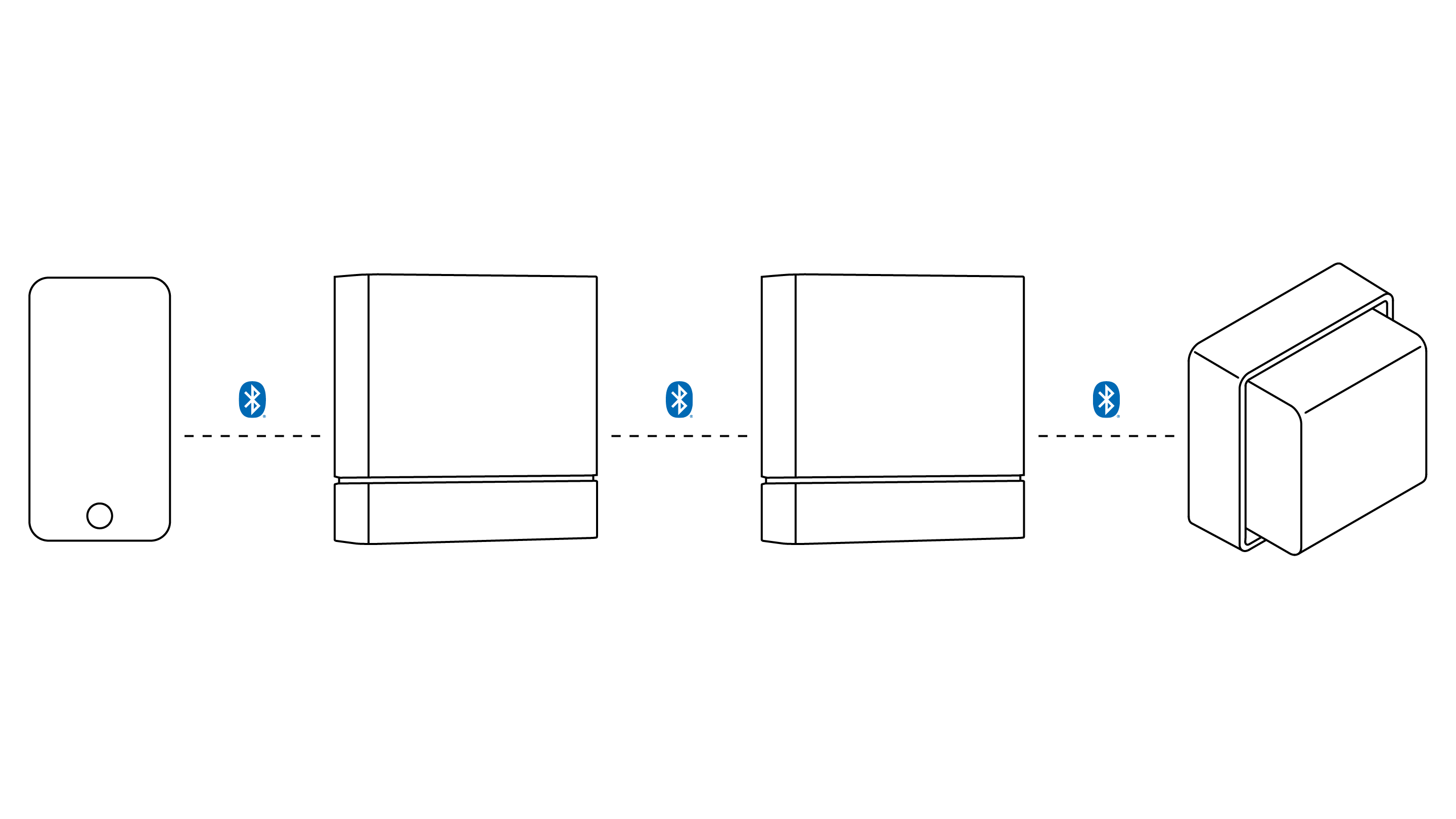

With a pleasantly inconspicuous appearance at the same time. That is the MD IR D180. Thanks to its discreet lens design and flat construction, it can be discreetly integrated into any environment. And thus stands out positively from conventional infrared sensors with their conspicuously protruding lens shapes. But the MD IR D180 does not only open a new chapter optically. The technology also makes the difference. The innovative motion detector finally puts an end to the time-consuming delimitation of the sensor area. And as a digitally adjustable 180-degree sensor, it raises infrared sensor technology to a completely new level. The nine detection zones can be activated or deactivated individually and digitally with ease. And the sensor sensitivity is also adjustable. The motion detector detects tangential and 6 m radial movements equally well in a radius of up to 9 m - completely independent of the walking direction. The sensor suitable for COM1 presents itself with a new mirror technology and five pyro sensors. Commissioning and adjustment, wireless networking of several digi sensors and integration of lights are child's play thanks to the STEINEL Connect App and Bluetooth.

  • formerly IS 180 digi HD now MD IR D180
  • the first digitally adjustable infrared sensor for outdoor use
  • flat rectilinear design for optimal adaptation to mounting location
  • lens integrated in the product outside the viewing area
  • detection quality is equally good in the detection area, regardless of the direction of walking
  • 9 detection areas digitally adjustable
  • all settings are easily made via Bluetooth using the STEINEL Connect App

Identification

Version Motion detectors
Manufacturer Steinel
E-number 535941410

Variants

Colour Anthracite

Dimensions

Dimensions L × W × H 42 x 116 x 116 mm
PU1 net weight 0.2500

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Switching output 1 resistive 2000 W
Fluorescent lamps ECG 500 W
Fluorescent lamps uncompensated 1000 VA
Fluorescent lamps series-compensated 400 VA
Fluorescent lamps parallel-compensated 400 VA
Switching output 1 low-voltage halogen lamps 2000 VA
LED lamps < 2 W 100 W
LED lamps > 2 W < 8 W 250 W
LED lamps > 8 W 500 W
Capacitive load in µF 176 µF
Own consumption 0,6 W
Switching output 1 potential-free No
Maximum inrush current 10 A

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Opening angle 90 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range r = 6 m (57 m²)
Tangential range r = 9 m (127 m²)
Mounting height 1,80 – 2,5 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh, On / Off

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 5 s – 60 Min.
Base light function No
Main light adjustable No
Functions Motions sensor Adjustable fade time when switching on and off Capture zone definition Feedback indicator Night economy mode Normal / test mode Neighbouring group function Relay output Light sensor
Settings via Smartphone Tablet Bluetooth Mesh App
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 40 °C
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room outdoors garden front door courtyard & driveway all round the building terrace / balcony corridor / aisle Indoors
Colour Anthracite
RAL colour 7039

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Cross-/up-selling

Accessories 27098,27099

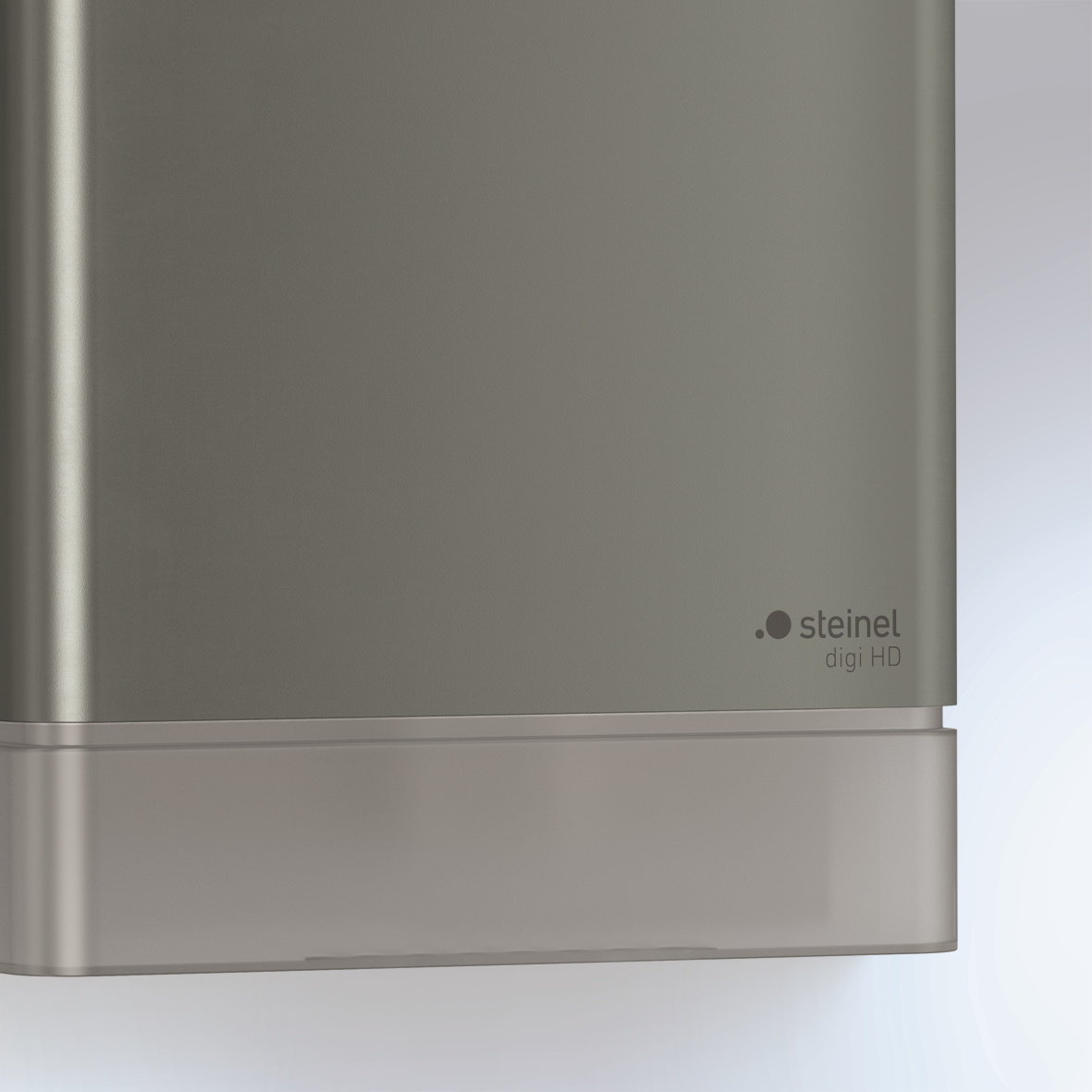

UV resistant material

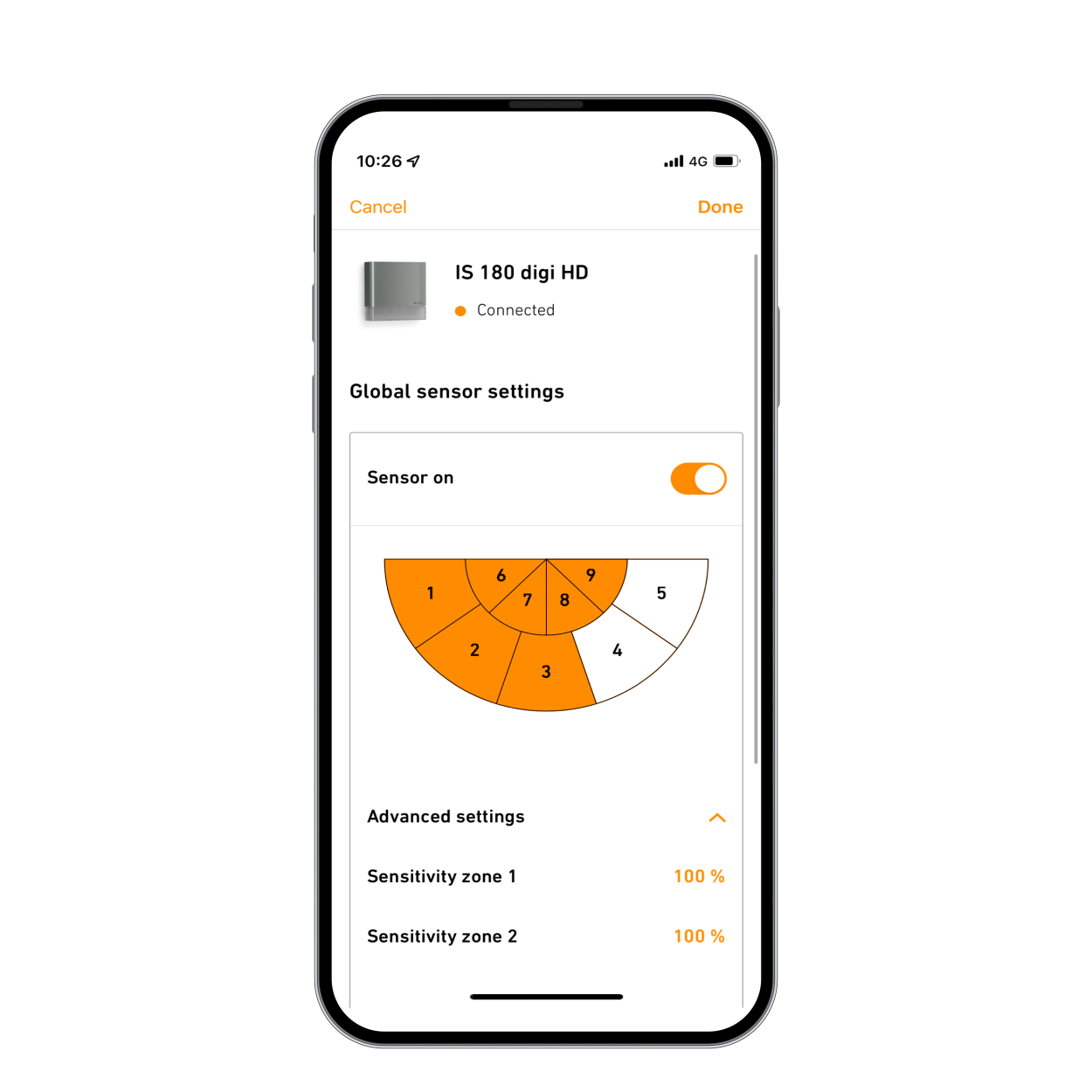

Operatable via app

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram with switched luminaire
