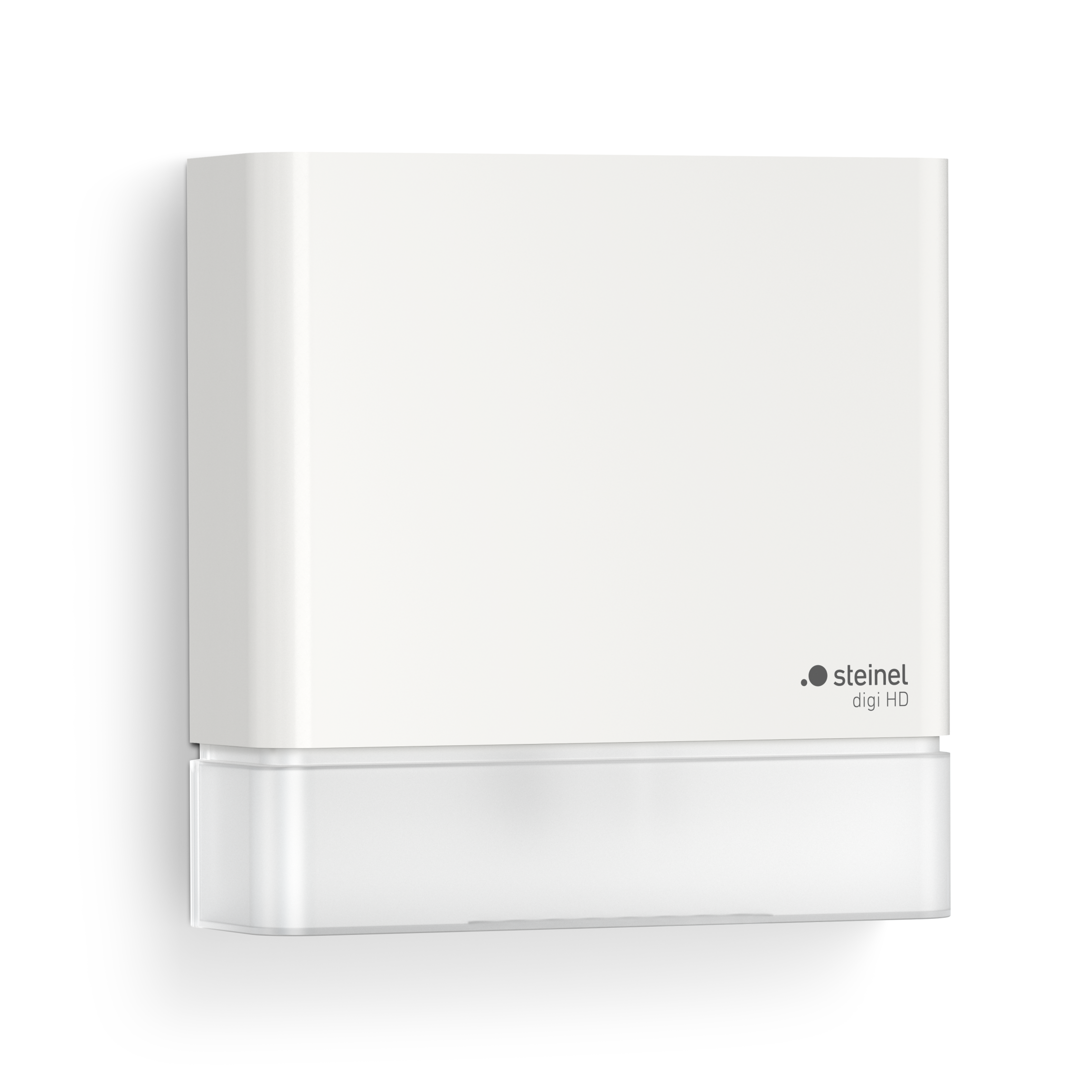

Steinel MD IR D180 COM1 - white
EAN-No. 4007841066109
ELDAS® no. 066109
Price: Please log in to see prices
Colour
With a pleasantly inconspicuous appearance at the same time. That is the MD IR D180. Thanks to its discreet lens design and flat construction, it can be discreetly integrated into any environment. And thus stands out positively from conventional infrared sensors with their conspicuously protruding lens shapes. But the MD IR D180 does not only open a new chapter optically. The technology also makes the difference. The innovative motion detector finally puts an end to the time-consuming delimitation of the sensor area. And as a digitally adjustable 180-degree sensor, it raises infrared sensor technology to a completely new level. The nine detection zones can be activated or deactivated individually and digitally with ease. And the sensor sensitivity is also adjustable. The motion detector detects tangential and 6 m radial movements equally well in a radius of up to 9 m - completely independent of the walking direction. The sensor suitable for COM1 presents itself with a new mirror technology and five pyro sensors. Commissioning and adjustment, wireless networking of several digi sensors and integration of lights are child's play thanks to the STEINEL Connect App and Bluetooth.
- formerly IS 180 digi HD now MD IR D180
- the first digitally adjustable infrared sensor for outdoor use
- flat rectilinear design for optimal adaptation to mounting location
- lens integrated in the product outside the viewing area
- detection quality is equally good in the detection area, regardless of the direction of walking
- 9 detection areas digitally adjustable

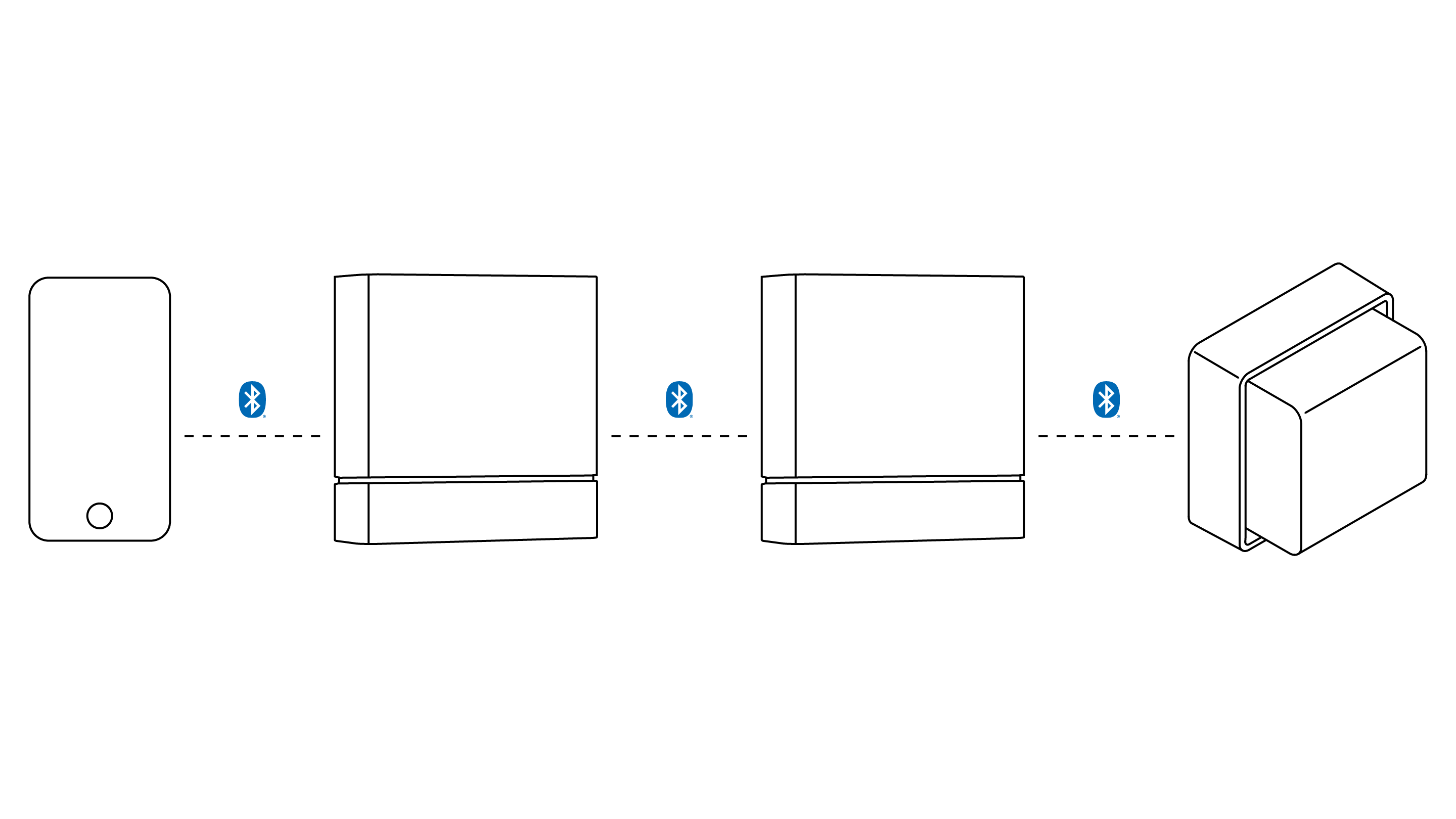

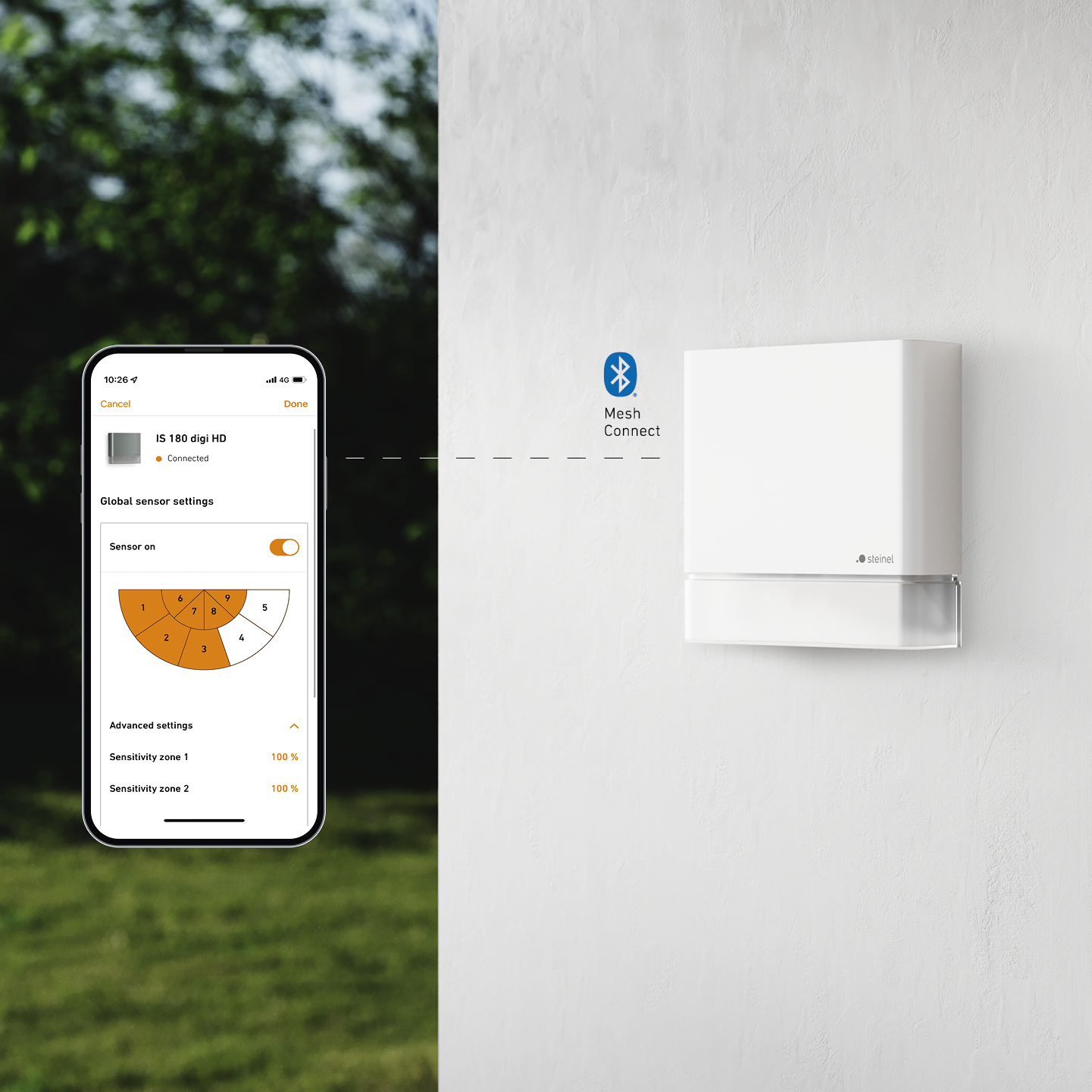

- all settings are easily made via Bluetooth using the STEINEL Connect App
Identification
Variants
Dimensions
Electrical
Sensor technology
Connectivity
Lighting technology
Settings
Housing & material
Scope of delivery & warranty
Cross-/up-selling
UV resistant material

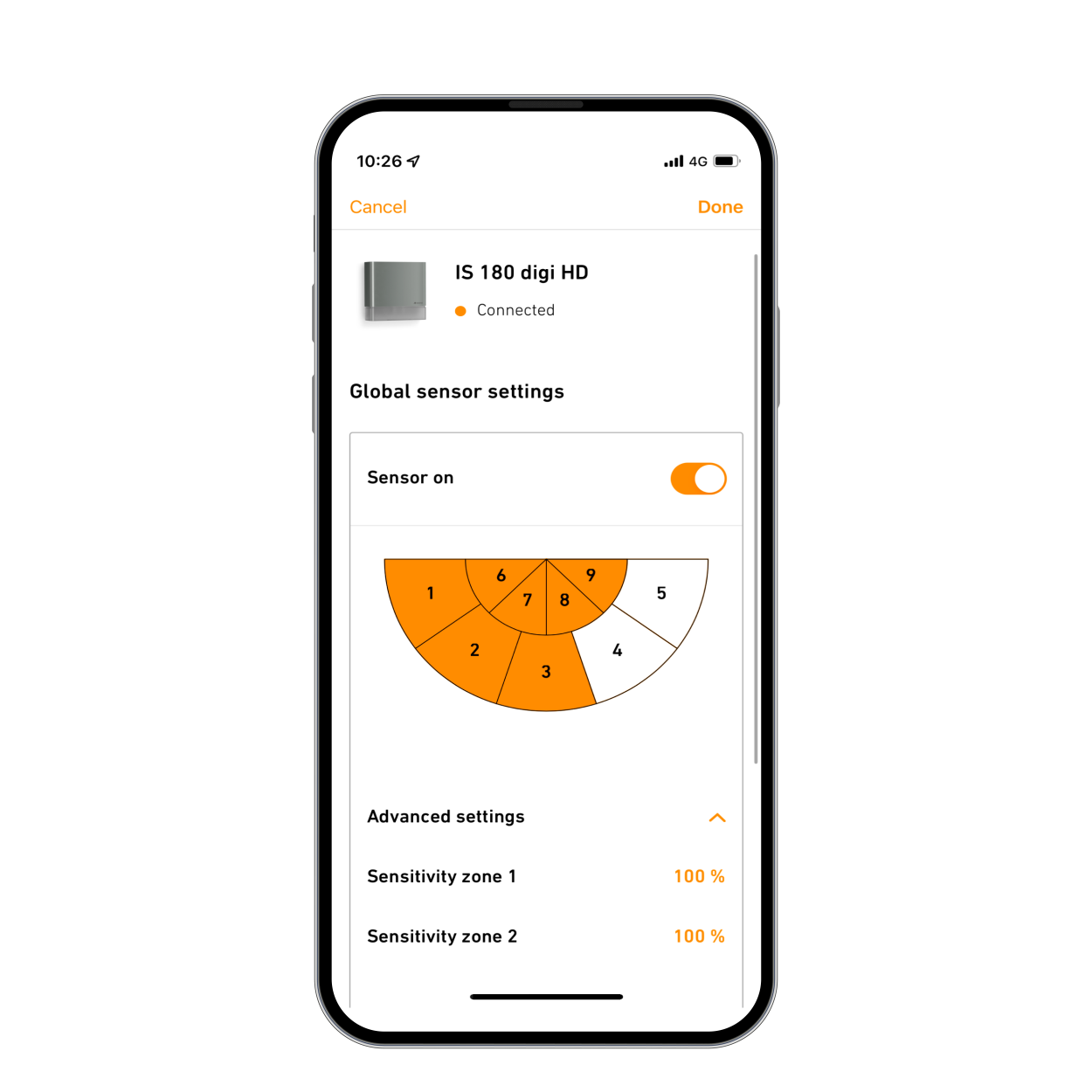

Operatable via app
Technical drawing
Sensor detection range
Wiring diagram 1
Master circuit diagram with switched luminaire
