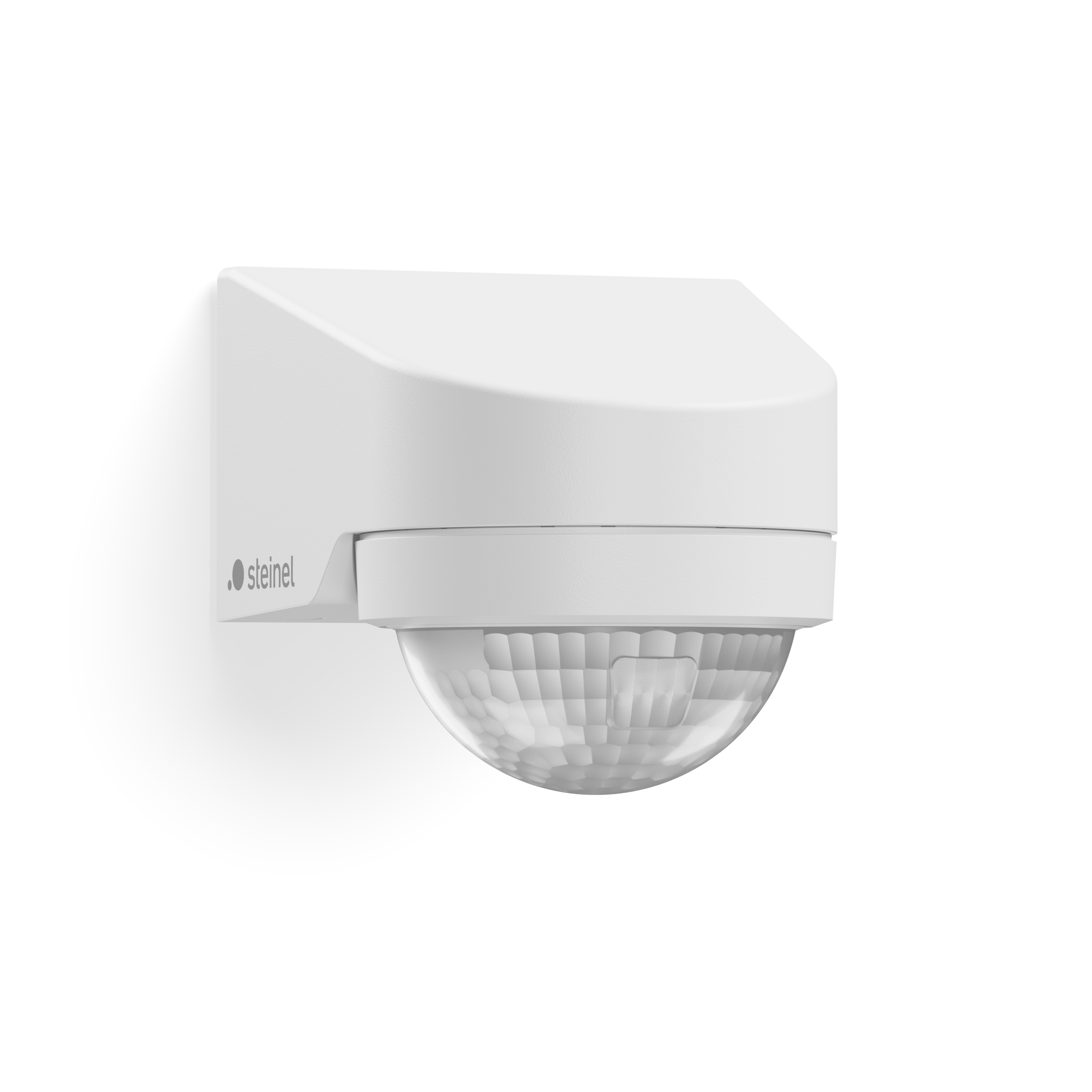

Steinel MD IR N130 COM1 - surface white

Steinel MD IR N130 COM1 - surface white

EAN-No. 4007841069056 · ELDAS® no. 069056

Steinel Bluetooth Mesh

Steinel MD IR N130 COM1 - surface white

EAN-No. 4007841069056

ELDAS® no. 069056

Price: Please log in to see prices

Version

Phase dimming COM1 (on/off)

Colour

White Anthracite

Mounting type

Surface-mounted Ceiling recessed

Detection range

360° 270° 130°

Our nexx.IS PRO series was specially developed for reliable outdoor detection applications and is the ideal solution for building entrances and façades. Thanks to innovative ‘Eagle Eye’ technology, a specific detection area can be improved by 200 per cent when the sensor is viewed from the front. This means that access areas, for example, can be monitored even more precisely. This is made possible by a small, individually positionable window in the lens. The sensors in the nexx.IS PRO series can be networked via Bluetooth Mesh and offer all Connect functionalities. For example, outdoor lights connected via Bluetooth Mesh can be controlled, timer programmes defined and wireless push-buttons connected. The innovative sensor family covers three different detection areas. A surface-mounted version with a detection range of 130° or 270° is available for wall mounting. A 360° solution is available for the ceiling, either as a surface-mounted or recessed version. All models are available in the colours white and anthracite. The nexx.IS PRO series is available with COM1 and uDIM interfaces (leading and trailing edge phase dimming). With uDIM, soft light start and ambient light can now also be used with conventional luminaires. Prerequisite: the light source must be dimmable.

  • An even closer view of access areas: ideal solution for building entrances and façades
  • Eagle Eye technology extends the individual detection area with frontal walking direction towards the sensor
  • Power max. 600 W (LED-ready)
  • Sensor family with three detection areas: Wall mounting 130° or 270° and ceiling mounting with 360°, optionally as surface-mounted or recessed version
  • Commissioning, settings and networking via Bluetooth Mesh
  • Extensive Connect functionalities, such as control of connected outdoor lights, definition of timer programmes and integration of wireless push-buttons
  • Corner wall bracket optionally available

Identification

Version Motion detectors
Manufacturer Steinel
E-number 535903088

Variants

Version COM1 (on/off)
Colour White
Mounting type Surface-mounted
Detection range 130°

Dimensions

Dimensions L × W × H 87 x 82 x 98 mm
PU1 net weight 0.1450

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 0,5 W
Switching output 1 resistive 2000 W
Own consumption 0,5 W
Switching output 1 number of LED/fluorescent lamps 10.0000

Sensor technology

Max. mounting height 6,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 130 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability Yes
Radial range r = 2.5 m (7 m²)
Tangential range r = 13 m (192 m²)
Switching zones 147 switching zones
Mounting height 1,80 – 6,00 m
Optimal mounting height 2 m
Nevalux sensor technology BT SIG Mesh, On / Off

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function No
Functions Motions sensor Light sensor Relay output Data monitoring
Settings via Bluetooth Smartphone Tablet
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material (scope of delivery) shrouds
Mounting location corner wall
Application location Outdoors Indoors
Mounting type Surface wiring
Material Plastic
Application room front door all round the building terrace / balcony outdoors courtyard & driveway Indoors
Colour white
RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Cross-/up-selling

Accessories 30563

Technical drawing

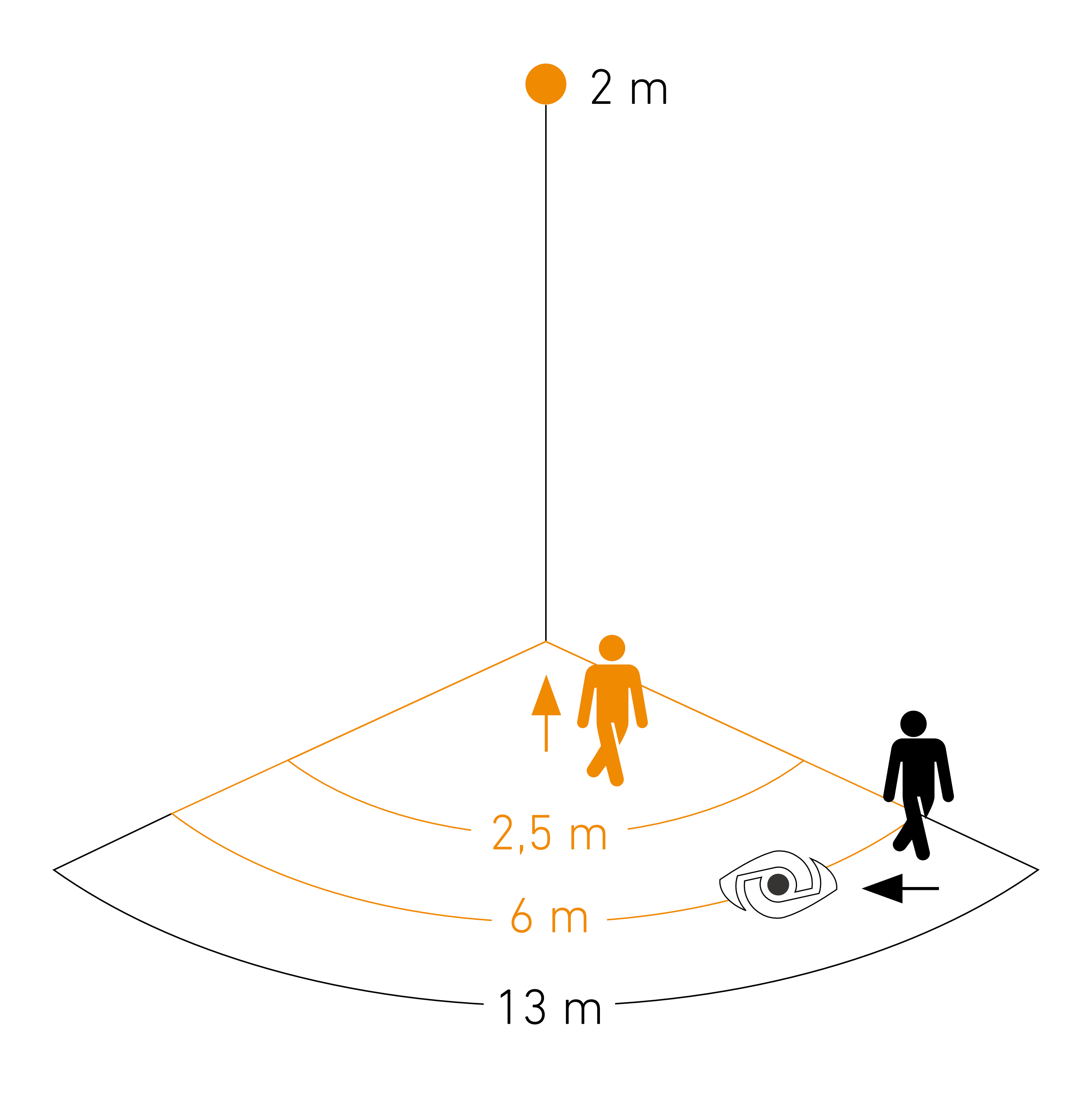

Sensor detection range

Wiring diagram 1

3-wire circuit diagram

Relay REL5A-Bluetooth

Relay REL5A-Bluetooth

Item no. 067335

PC4 Bluetooth push-button coupler

PC4 Bluetooth push-button coupler

Item no. 067342
