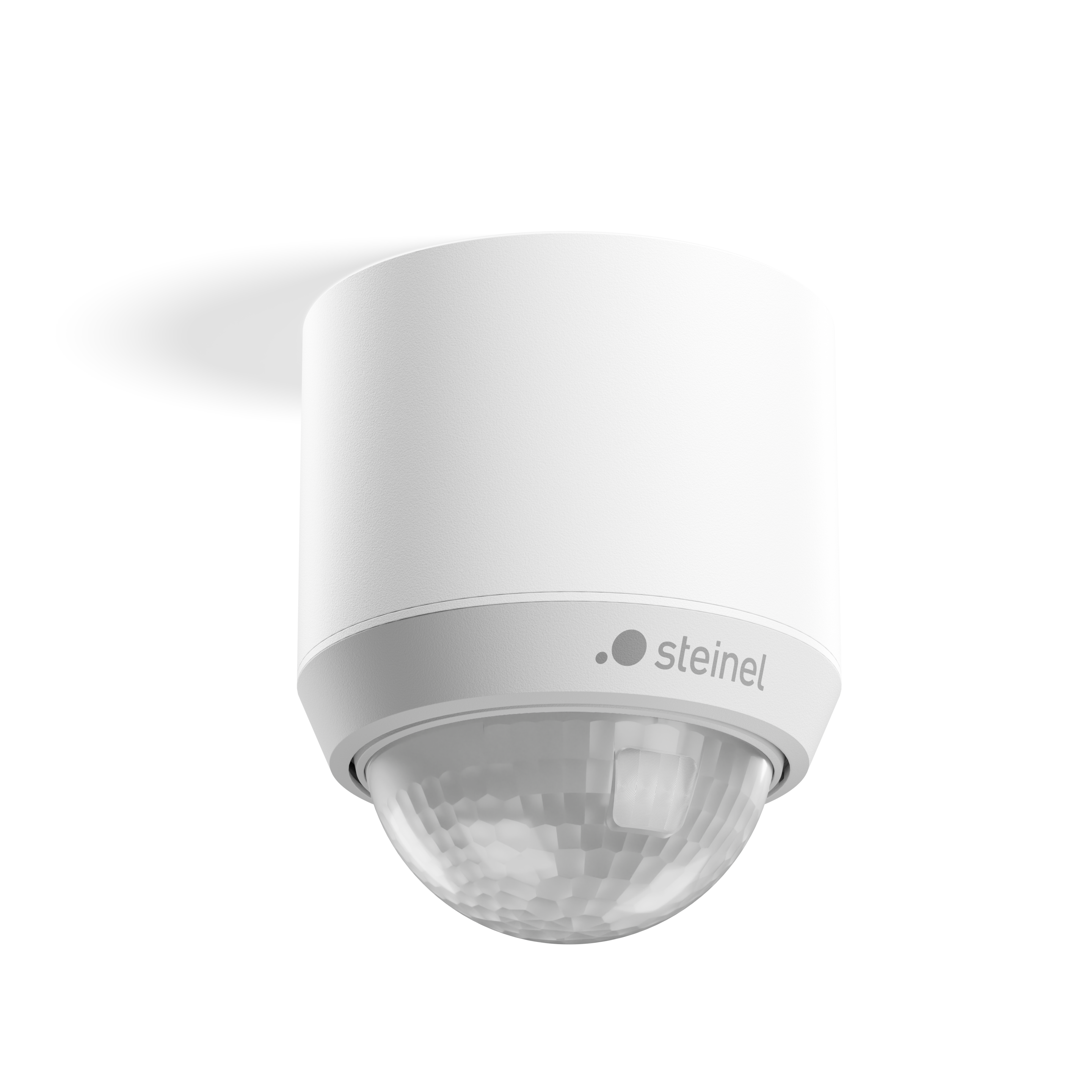

Steinel MD IR N360 COM1 - surface white

Steinel MD IR N360 COM1 - surface white

EAN-No. 4007841080006 · ELDAS® no. 080006

Steinel Bluetooth Mesh

Steinel MD IR N360 COM1 - surface white

EAN-No. 4007841080006

ELDAS® no. 080006

Price: Please log in to see prices

Version

Phase dimming COM1 (on/off)

Colour

White Anthracite

Mounting type

Surface-mounted Ceiling recessed

Detection range

360° 270° 130°

Our nexx.IS PRO series was specially developed for reliable outdoor detection applications and is the ideal solution for building entrances and façades. Thanks to innovative ‘Eagle Eye’ technology, a specific detection area can be improved by 200 per cent when the sensor is viewed from the front. This means that access areas, for example, can be monitored even more precisely. This is made possible by a small, individually positionable window in the lens. The sensors in the nexx.IS PRO series can be networked via Bluetooth Mesh and offer all Connect functionalities. For example, outdoor lights connected via Bluetooth Mesh can be controlled, timer programmes defined and wireless push-buttons connected. The innovative sensor family covers three different detection areas. A surface-mounted version with a detection range of 130° or 270° is available for wall mounting. A 360° solution is available for the ceiling, either as a surface-mounted or recessed version. All models are available in the colours white and anthracite. The nexx.IS PRO series is available with COM1 and uDIM interfaces (leading and trailing edge phase dimming). With uDIM, soft light start and ambient light can now also be used with conventional luminaires. Prerequisite: the light source must be dimmable.

  • An even closer view of access areas: ideal solution for building entrances and façades
  • Eagle Eye technology extends the individual detection area with frontal walking direction towards the sensor
  • Power max. 600 W (LED-ready)
  • Sensor family with three detection areas: Wall mounting 130° or 270° and ceiling mounting with 360°, optionally as surface-mounted or recessed version
  • Commissioning, settings and networking via Bluetooth Mesh
  • Comprehensive Connect functionalities, such as control of connected outdoor lights, definition of timer programmes and integration of wireless push-buttons

Identification

Version Motion detectors
Manufacturer Steinel
E-number 535903092

Variants

Version COM1 (on/off)
Colour White
Mounting type Surface-mounted
Detection range 360°

Dimensions

Dimensions L × W × H 93 x 80 x 80 mm
Dimensions Ø × H 80 x 93 mm
PU1 net weight 0.1650

Electrical

Mains connection 50 – 60 Hz
Power 0,5 W
Fluorescent lamps ECG 600 W
Fluorescent lamps series-compensated 1000 VA
Capacitive load in µF 176 µF

Sensor technology

Max. mounting height 6,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 7 m (38 m²)
Tangential range Ø 26 m (531 m²)
Switching zones 1179 switching zones
Mounting height 1,8 – 6,00 m
Optimal mounting height 2,5 m
Nevalux sensor technology BT SIG Mesh, On / Off

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Settings via Bluetooth App
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 40 °C
Cover material (scope of delivery) Cover clips
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Colour white
RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Technical drawing

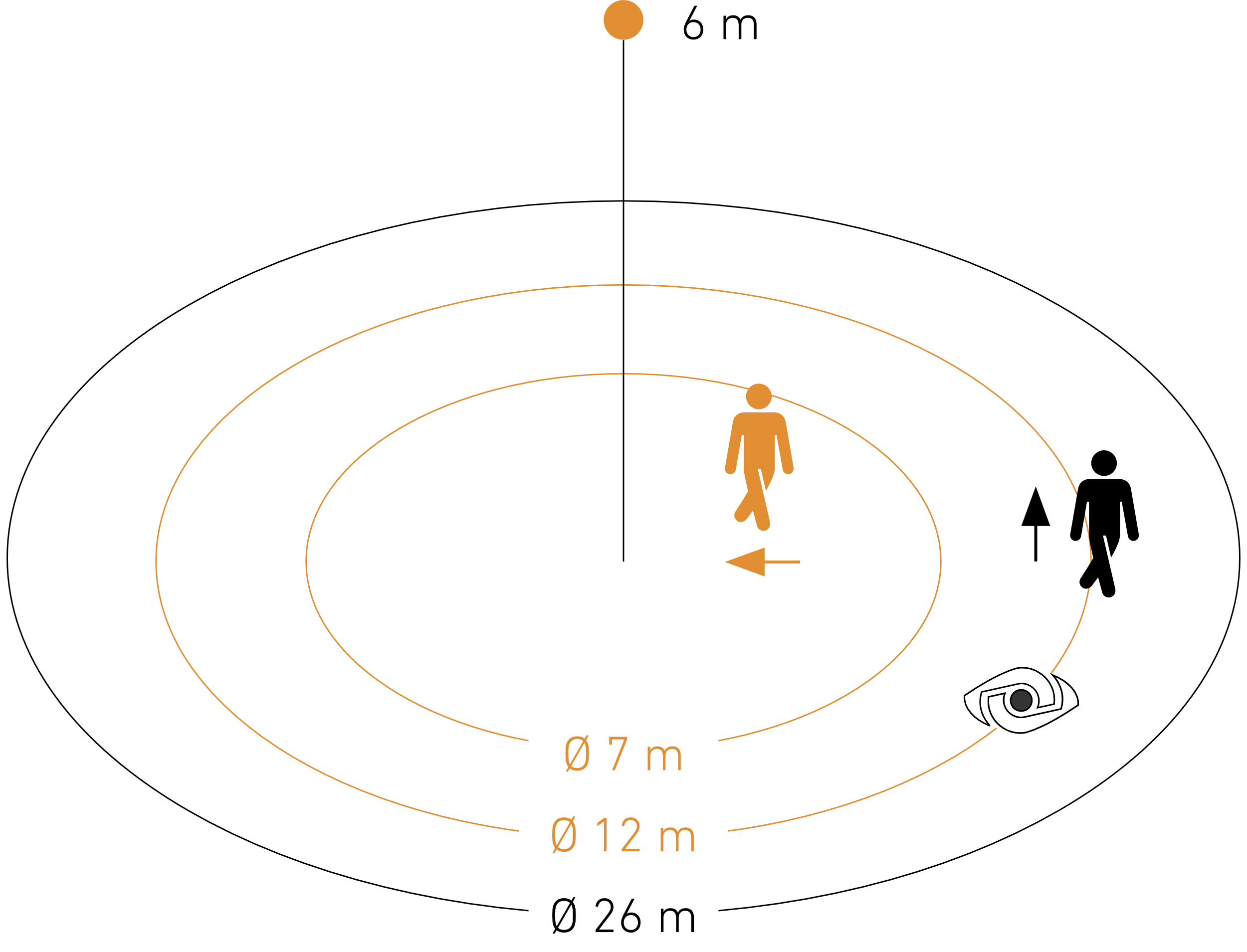

Sensor detection range

Wiring diagram 1

3-wire circuit diagram

Relay REL5A-Bluetooth

Relay REL5A-Bluetooth

Item no. 067335

PC4 Bluetooth push-button coupler

PC4 Bluetooth push-button coupler

Item no. 067342
