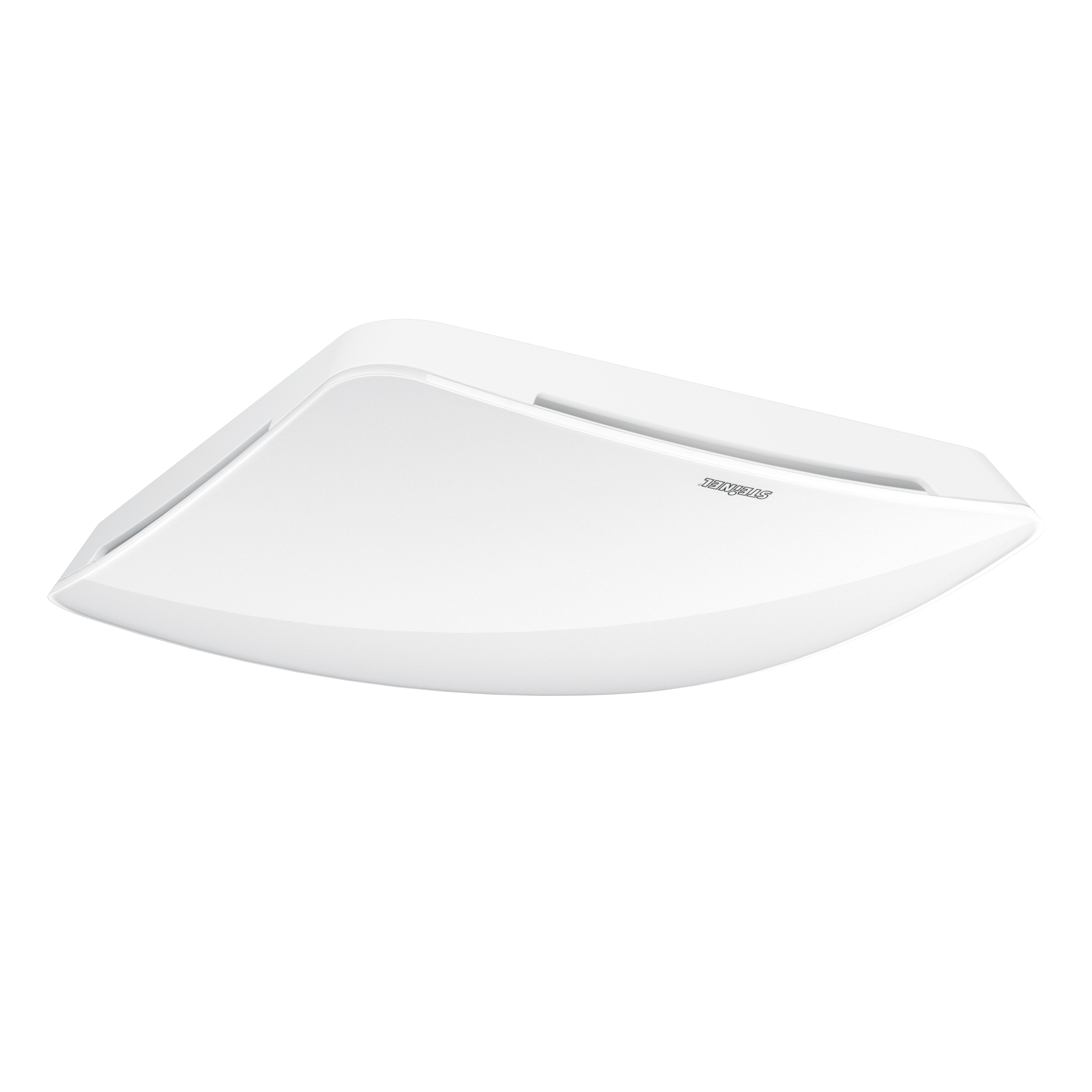

Steinel Multisensor True Presence KNX white

EAN-No. 4007841056353

ELDAS® no. 056353

Version

KNX IP (REST API, MQTT, BacNet) DALI-2 Input Device (Slave) Bluetooth Input Device (Slave) KNX Aerosol

Mounting type

Flush-mounted Surface-mounted

The most precise presence detector ever becomes the ultimate sensory organ. For the true detection of people, brightness, ambient temperature, humidity, air pressure, volatile organic compounds (VOC) and CO2 measurements are necessary. Information that brings the digitalisation of building automation a great deal further. This combination makes the Multisensor True Presence® KNX a good investment in building intelligence, a comfortable environment for people and real efficiency. The best comes from above – precise, digital information for modern building management.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535930001

Variants

Version KNX

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 33 x 123 x 123 mm

PU1 net weight 0.1560

Electrical

Mains connection 30 V

Own consumption 1 W

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 12,00 m

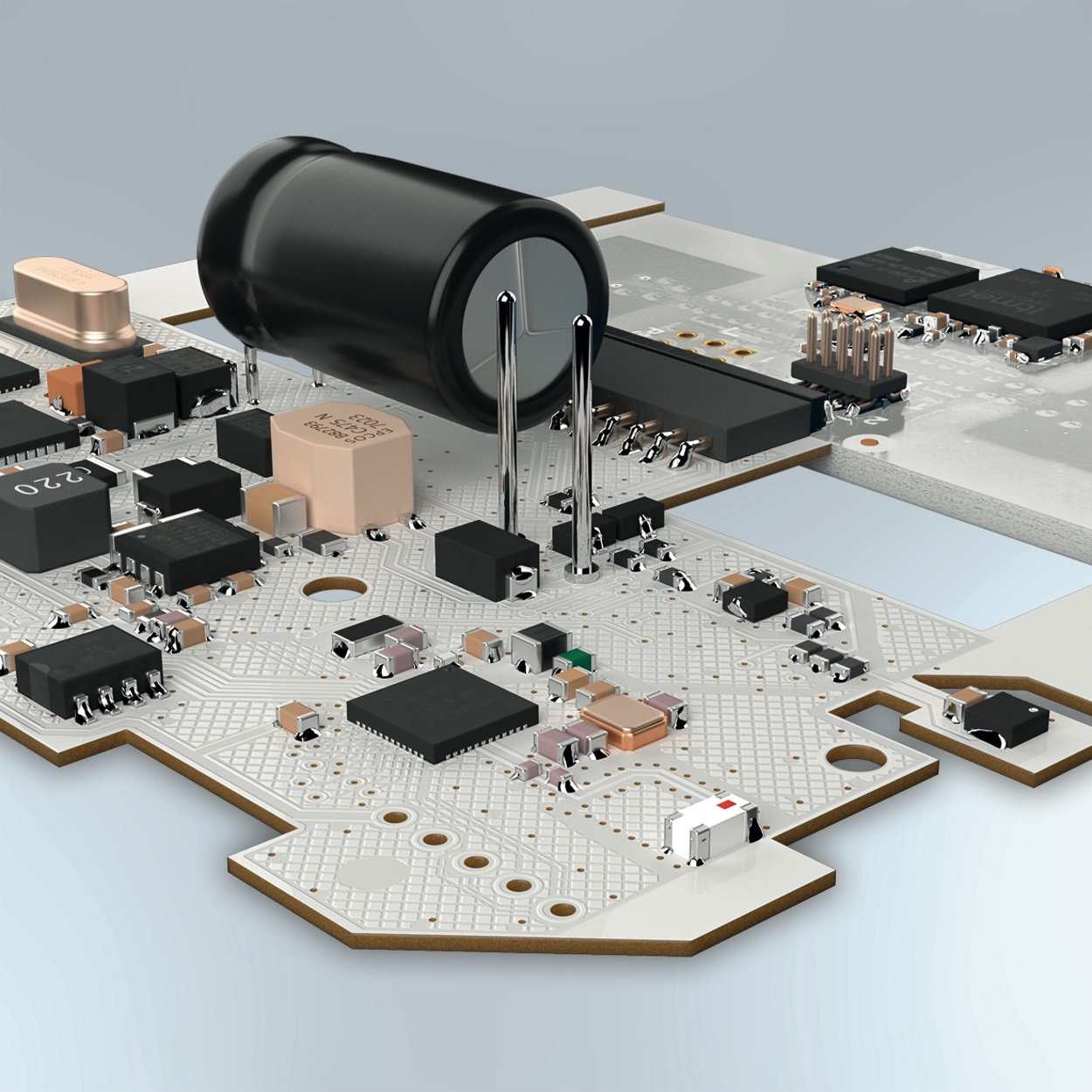

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Comfort CO2 Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Air pressure Humidity output Presence output Day / night function Dewpoint VOC Temperature output Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 30 s – 1092 Min.

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software Bluetooth Bus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

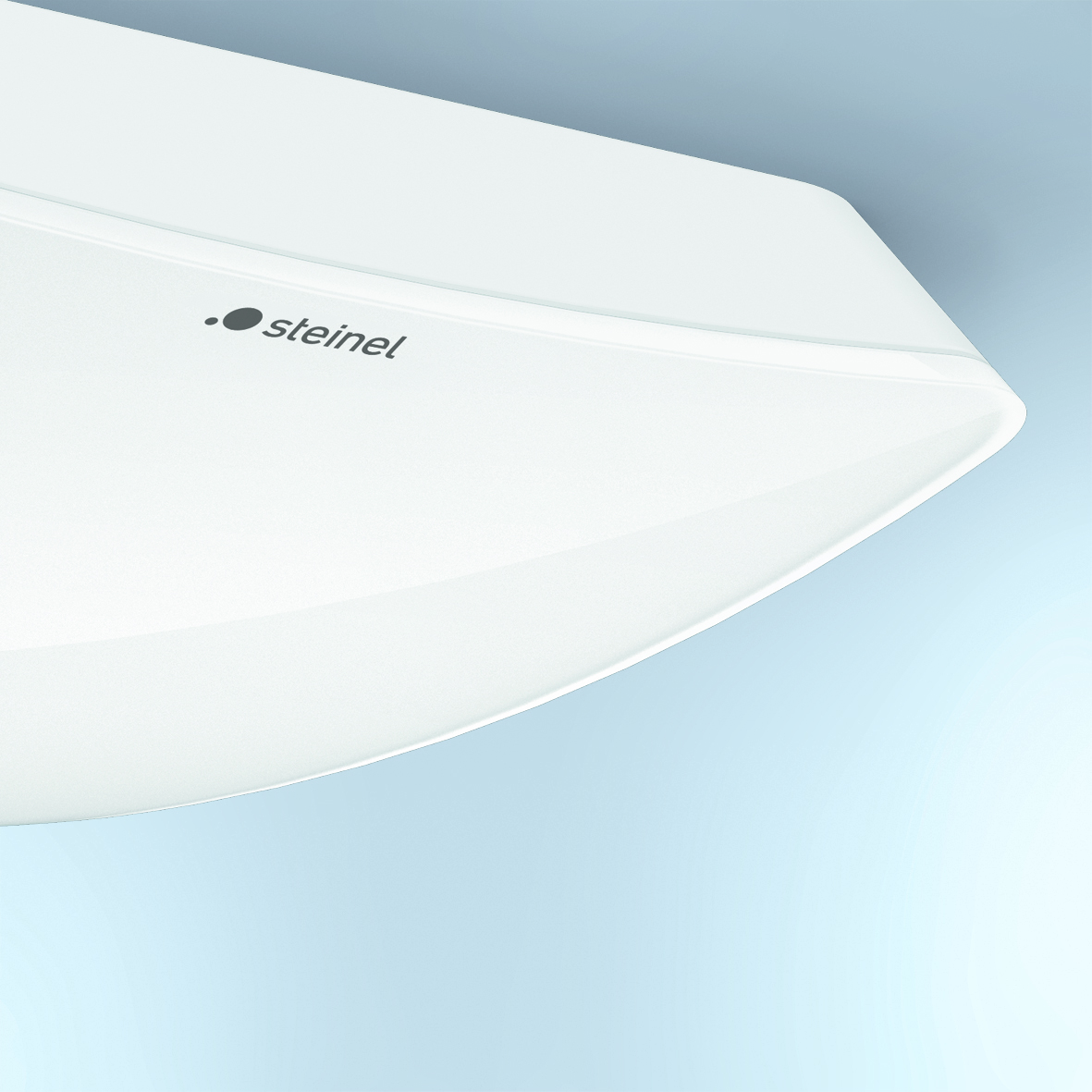

Material Plastic

Application room classroom lecture hall one-person office open-plan office conference room / meeting room hotel room care room duty room recreation room sports hall reception / lobby Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing
