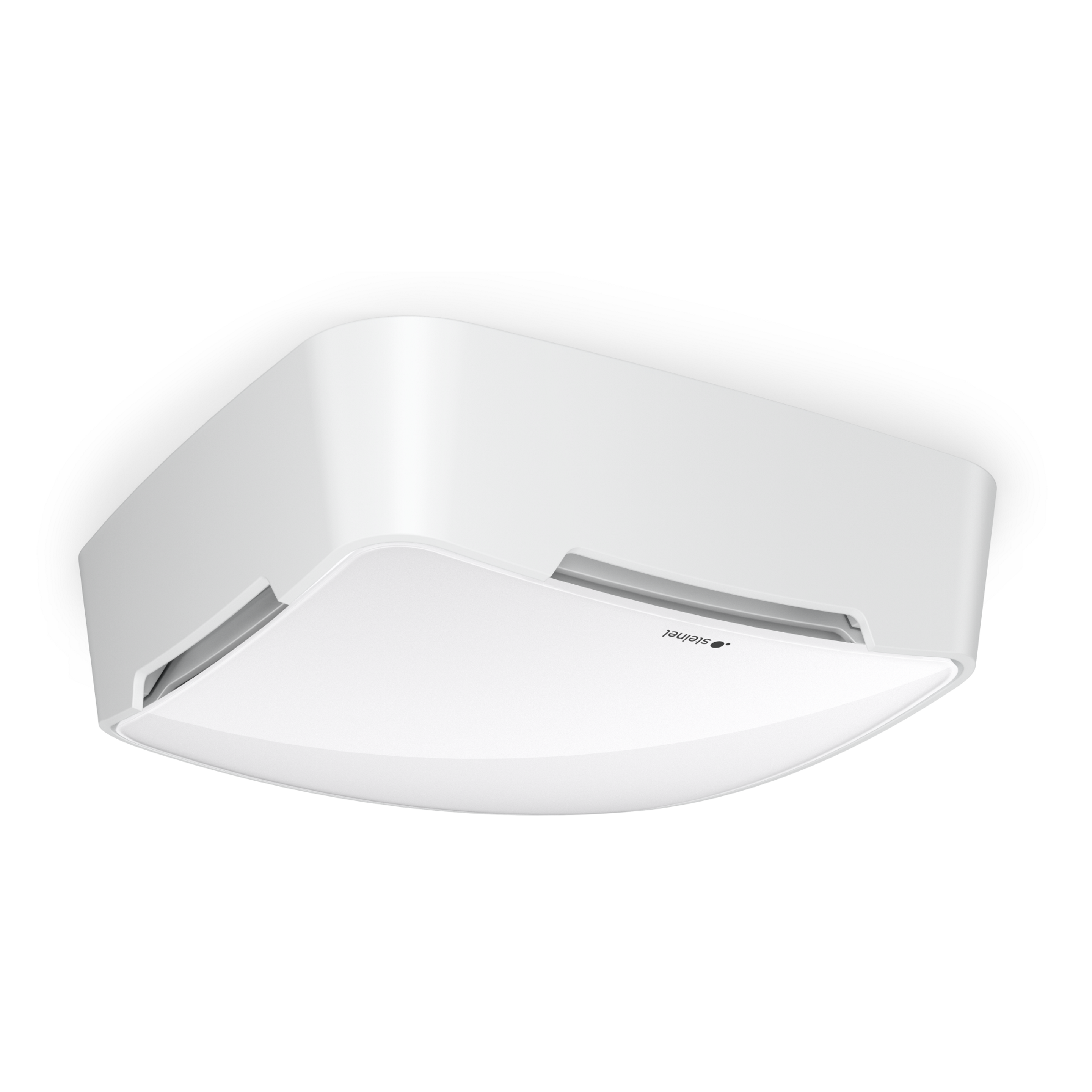

Steinel Multisensor True Presence DALI-2 Input Device - surface

Steinel Multisensor True Presence DALI-2 Input Device - surface

EAN-No. 4007841081812 · ELDAS® no. 081812

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel Bluetooth Mesh

Steinel Multisensor True Presence DALI-2 Input Device - surface

EAN-No. 4007841081812

ELDAS® no. 081812

Price: Please log in to see prices

Version

KNX IP (REST API, MQTT, BacNet) DALI-2 Input Device (Slave) Bluetooth Input Device (Slave) KNX Aerosol

Mounting type

Flush-mounted Surface-mounted

8 senses for intelligent buildings. Whether in an open-plan office, conference room or classroom. The True Presence® Multisensor makes a valuable contribution to more health, more safety, more efficiency and more comfort. With the Multisensor True Presence, human presence, brightness, room temperature, humidity, air pressure, volatile organic compounds (VOC), CO2 and the prevailing noise level can be detected. In addition, information about a possible risk of infection is derived from the determined values. Result: indoor air of unprecedented quality.

  • In our product portfolio of presence detectors with the most detection sizes
  • Focus application: school, office
  • Easy-to-install plug-in system with magnetic connection, integrated RBG LED traffic light and signal tone for visualising the room climate
  • Digitally adjustable detection of true presence in award-winning design
  • Additionally with DALI-2 IPD interface: noise level and aerosol measurement
  • Interface-dependent additional calculated values such as infection risk

Identification

Version Presence detector
Manufacturer Steinel
E-number 535900048

Variants

Version DALI-2 Input Device (Slave)
Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 45 x 142 x 142 mm
PU1 net weight 0.2550

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Own consumption 1 W
Control output DALI Addressable/slave
Max. current consumption per IEC 62386-101 2 mA

Sensor technology

Max. mounting height 12,00 m
Sensor technology High frequency
Transmission power < 10 mW
HF technology 7,2 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 15 m (177 m²)
Tangential range Ø 15 m (177 m²)
Mounting height 2 – 12 m
Presence range Ø 15 m (177 m²)
True Presence range Ø 9 m (64 m²)
Optimal mounting height 2,8 m
Max. mounting height True Presence detection 4,00 m
Nevalux sensor technology BT Open Mesh, DALI 2

Connectivity

Networking Yes
Networking via DALI bus Bluetooth Mesh
With bus coupler Yes

Lighting technology

Continuous light selectable

Settings

Twilight switch No
Twilight setting 2 – 2000 lx
Base light function No
Main light adjustable No
Functions Motions sensor Light sensor
Settings via Smartphone Tablet Bluetooth Mesh App Bus
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature from 0 up to 50 °C
Housing material Plastic
Mounting location ceiling
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room open-plan office hotel room classroom conference room / meeting room
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

UV-resistant plastic

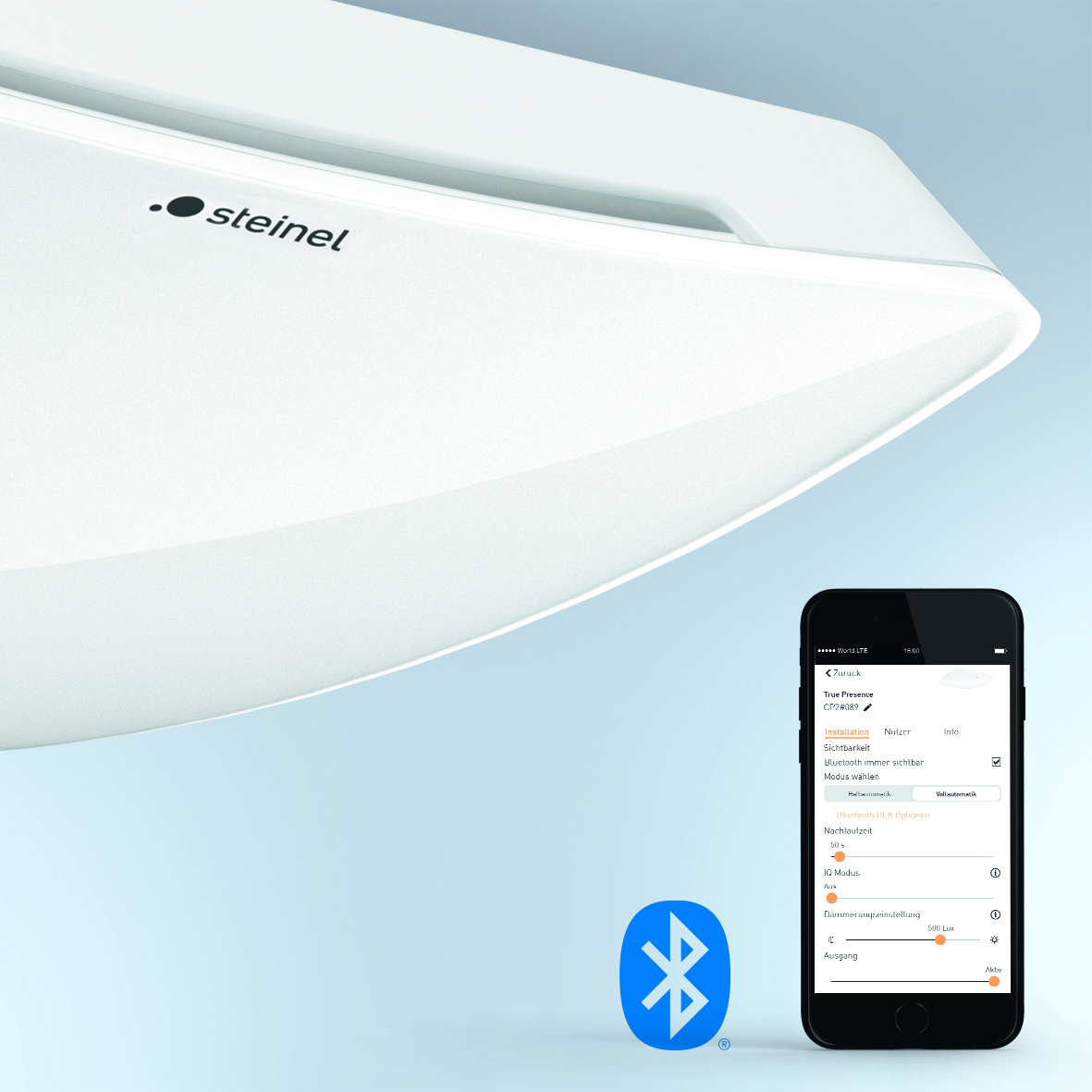

Interconnectable and adjustable via Bluetooth

Digital high frequency sensor

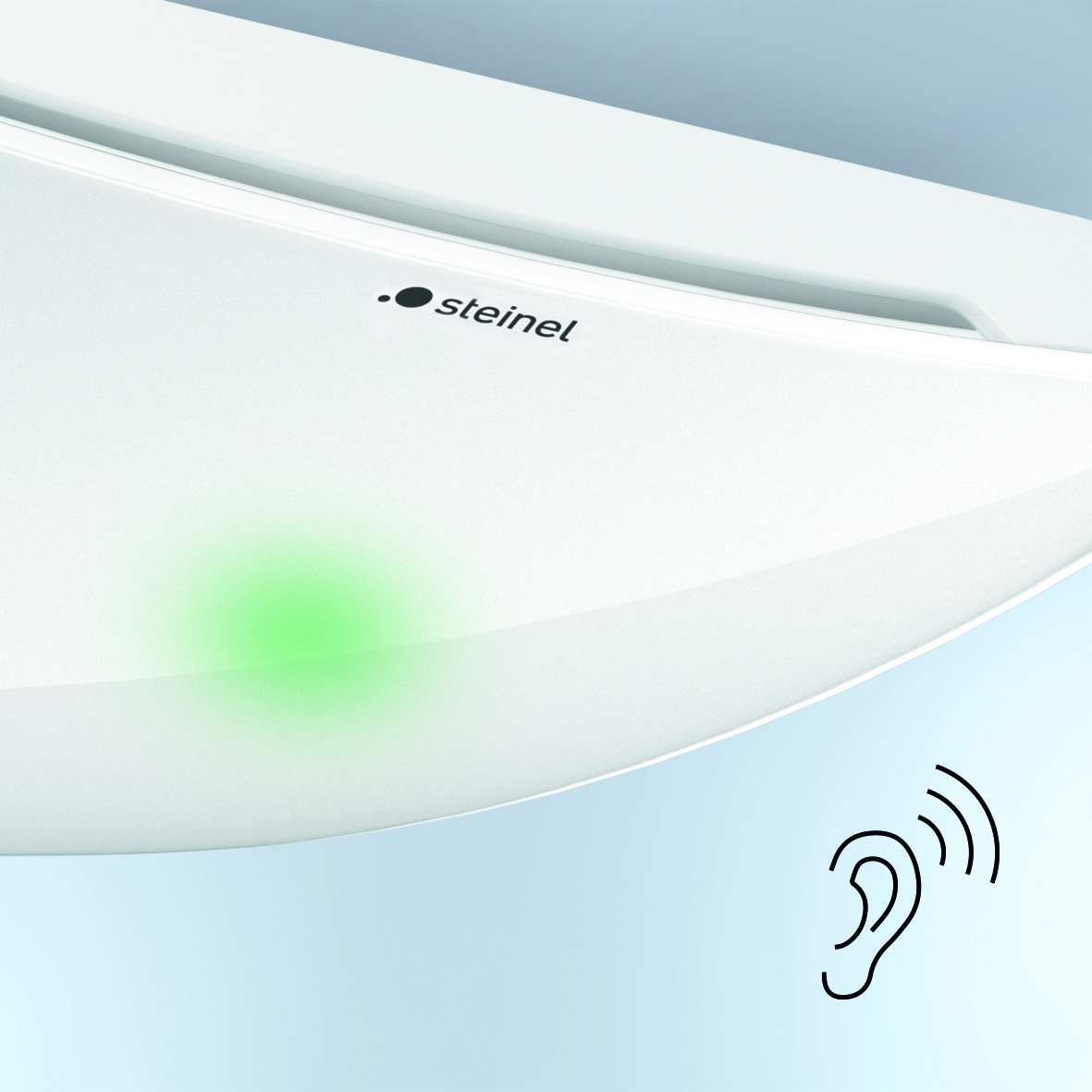

Visual and auditory signal on room climate

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
