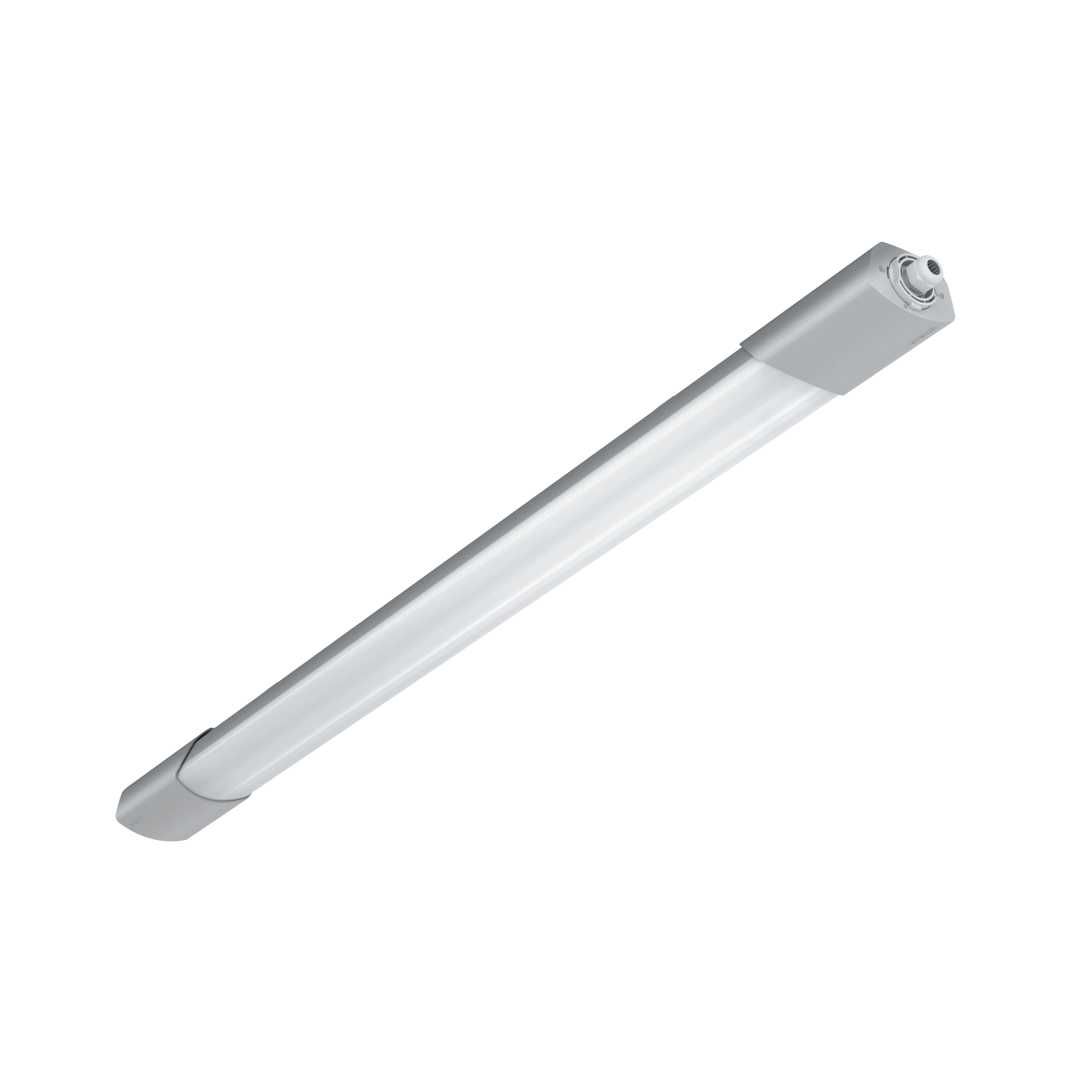

Steinel RS PRO 5100 SC with motion detector & Bluetooth

EAN-No. 4007841078881

ELDAS® no. 078881

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Dimensions

RS PRO 5150 Length 1500mm RS PRO 5100 Length 1370mm

The most modern linear luminaire for tackling renovation backlogs. Change of guard in car parks, basements, halls, garages, corridors and all rooms that are still equipped with old batten luminaires. It's really quite simple: you use the existing wiring, mount the luminaires on existing drill holes, connect the new installation wirelessly and set all parameters via an app. The result: the latest lighting technology on an existing basis, state-of-the-art ease of use with many features and direct cost savings thanks to maximum energy efficiency.

Identification

Manufacturer Steinel
E-number 941334979

Variants

Dimensions RS PRO 5100 Length 1370mm
Cable entry Lateral

Dimensions

Dimensions L × W × H 1370 x 87 x 58 mm
PU1 net weight 1.6700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 31 W
Own consumption 0,41 W
B10 fuse (pcs) 41.0000
B16 fuse (pcs) 65.0000
C10 fuse (pcs) 67.0000
C16 fuse (pcs) 108.0000
Maximum inrush current 14,8 A

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 10 m (79 m²)
Tangential range Ø 10 m (79 m²)
Mounting height 4,00 m
Nevalux sensor technology BT SIG Mesh

Connectivity

Networking Yes
Networking via Bluetooth Mesh

Lighting technology

Measured luminous flux 360° 4250 lm
Colour temperature 4000 K
LED colour deviation SDCM3
With illuminant Yes, LED lamp
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control
Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 60000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10
LED lifetime per IEC 62717 L70 100.000 h
LED lifetime per IEC 62717 L80 68.000 h
LED lifetime per IES TM-21 L70 >60.000 h
LED lifetime per IES TM-21 L80 >60.000 h

Settings

Twilight setting 2 – 2000 lx
Time setting 5 s – 60 Min.
Base light function Yes
Base light function time 1-60 min
Main light adjustable 0 - 100 %
Settings via Bluetooth
Base light function in percent 10 – 100 %
Base light function percent from 10.0000
Base light function percent to 100.0000

Housing & material

Impact resistance IK07
Protection class (IP) IP65
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, structured
Mounting location wall ceiling
Colour grey

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

Cross-/up-selling

Accessories 27098,27099

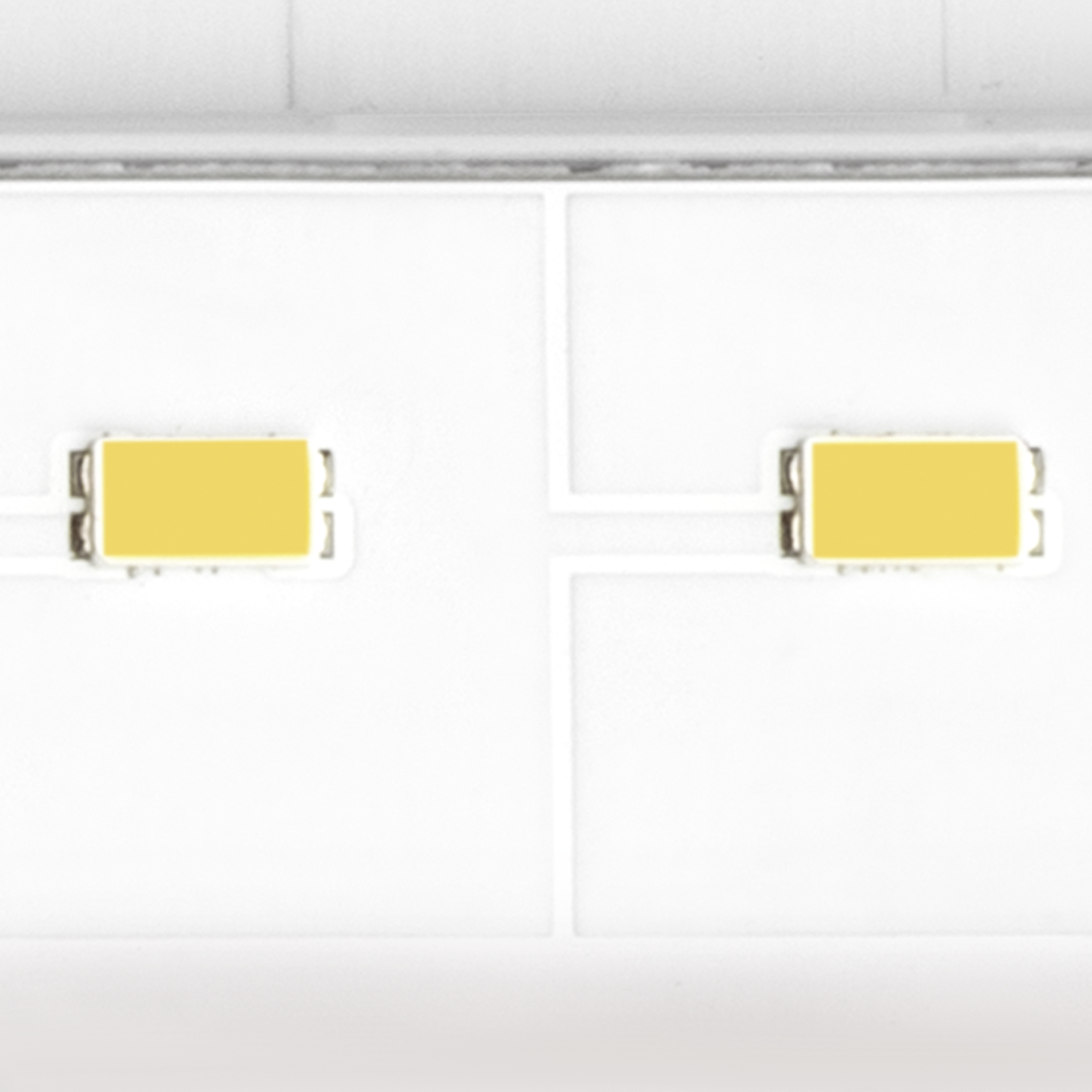

Including STEINEL LED system

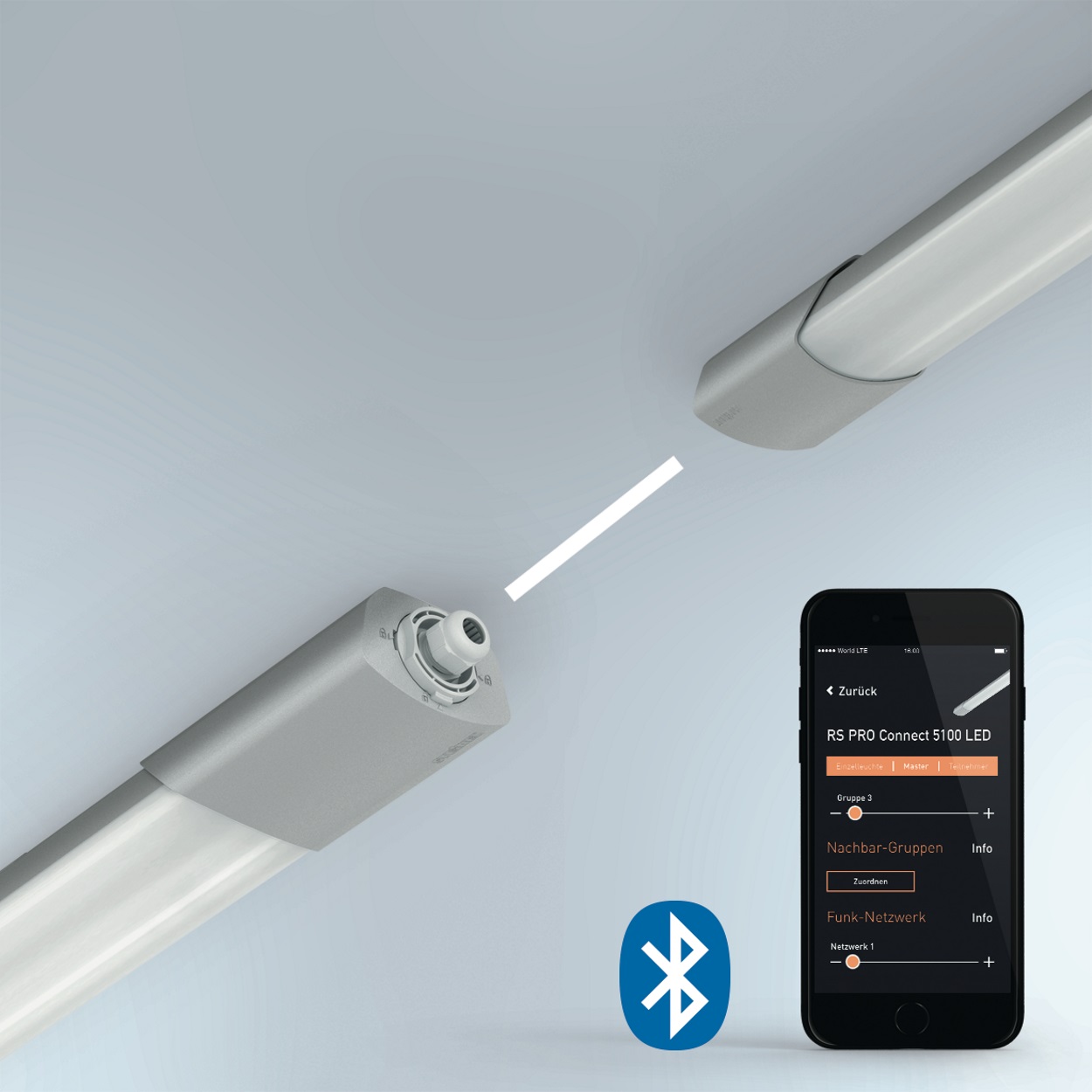

Interconnectable and adjustable via Bluetooth

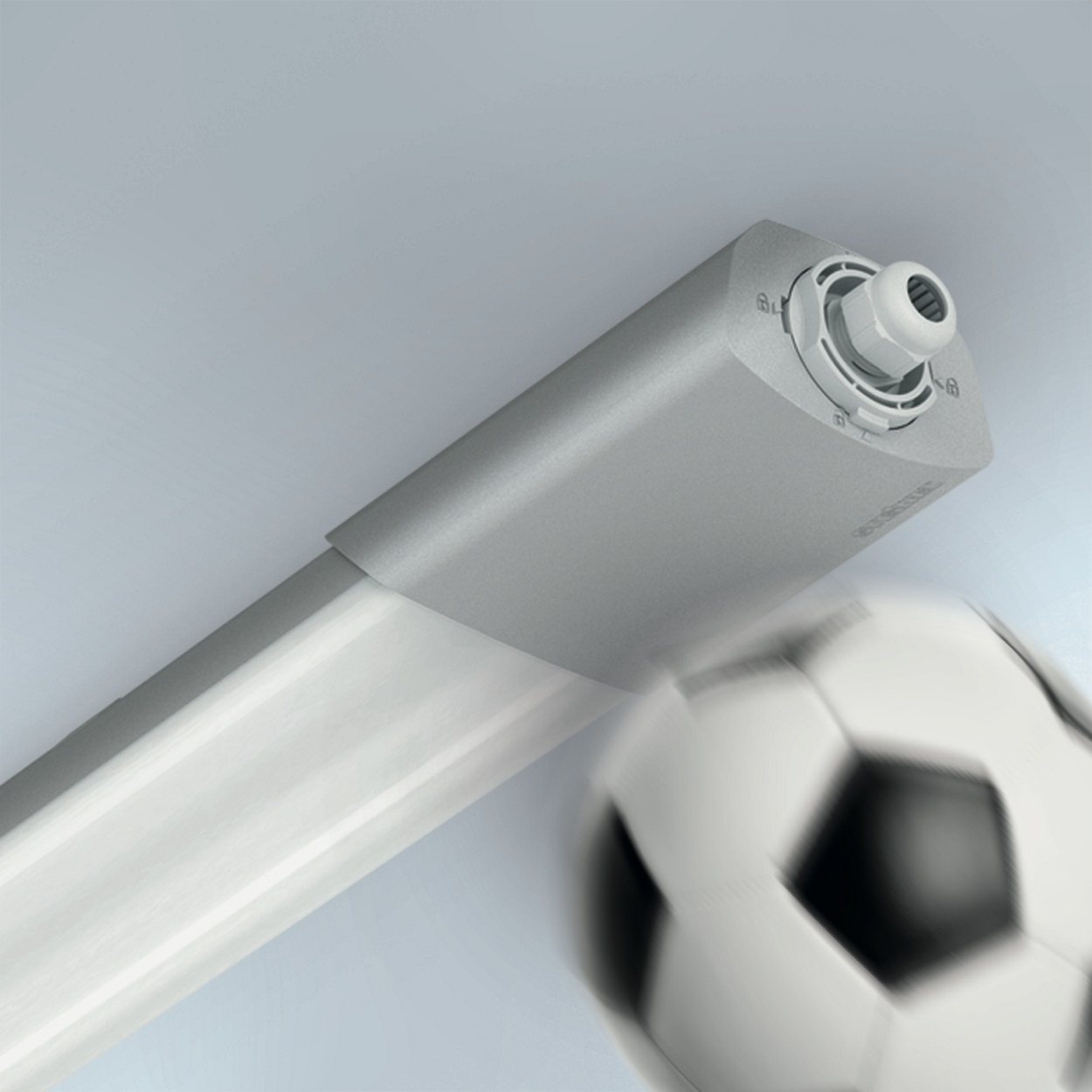

Impact-resistant material rated to IK07

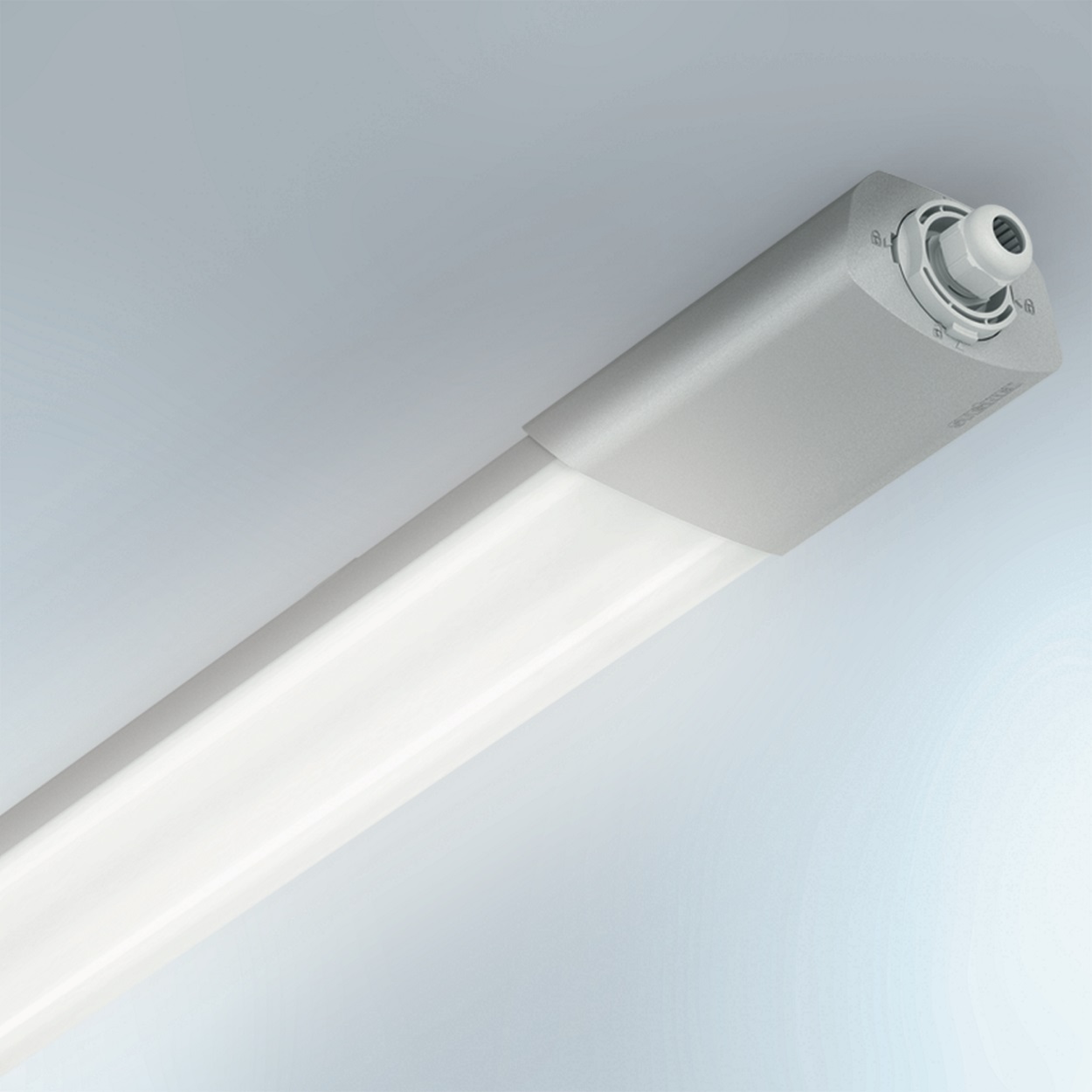

Optional basic lighting level 0 - 100 %

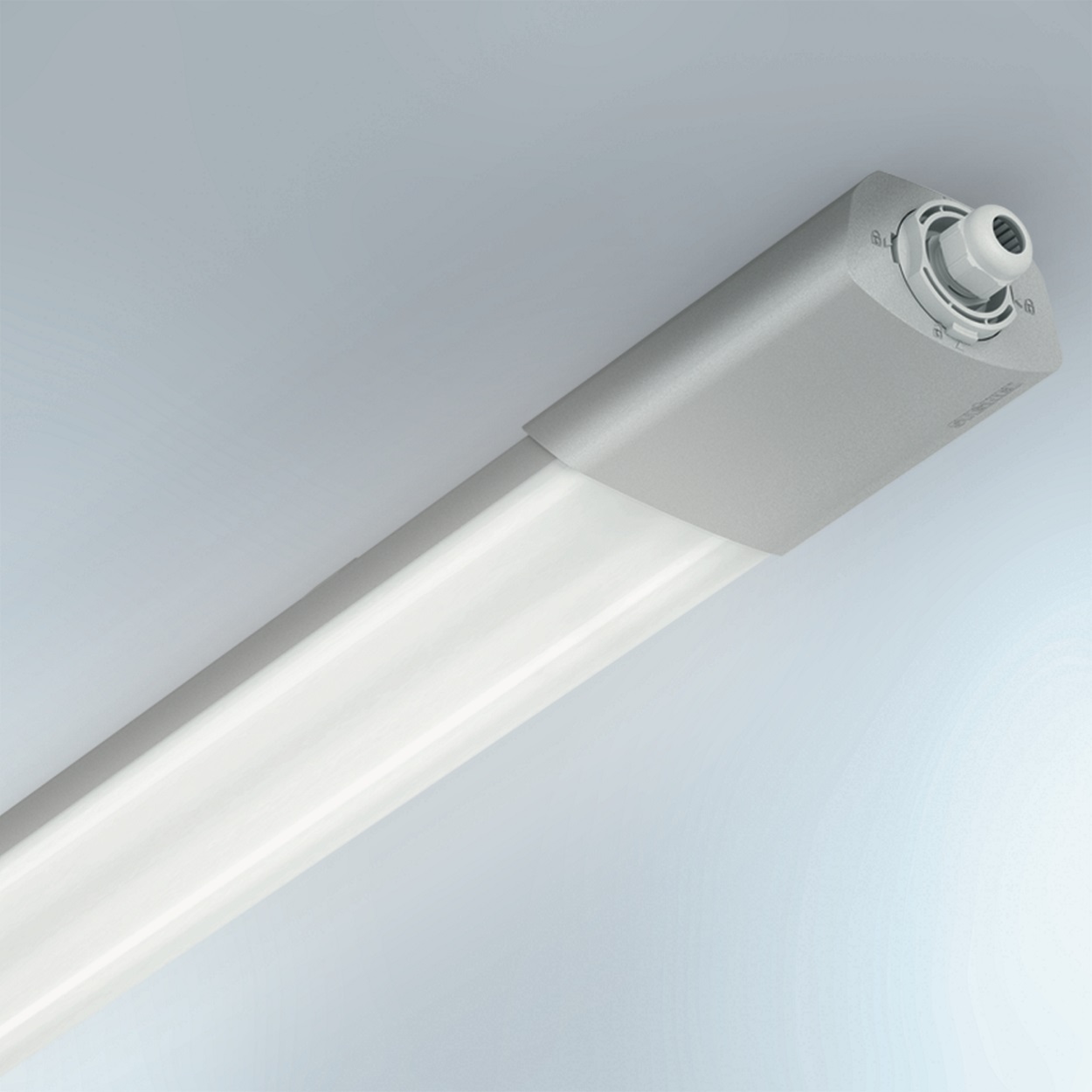

Adjustable main light brighness (0 - 100%)

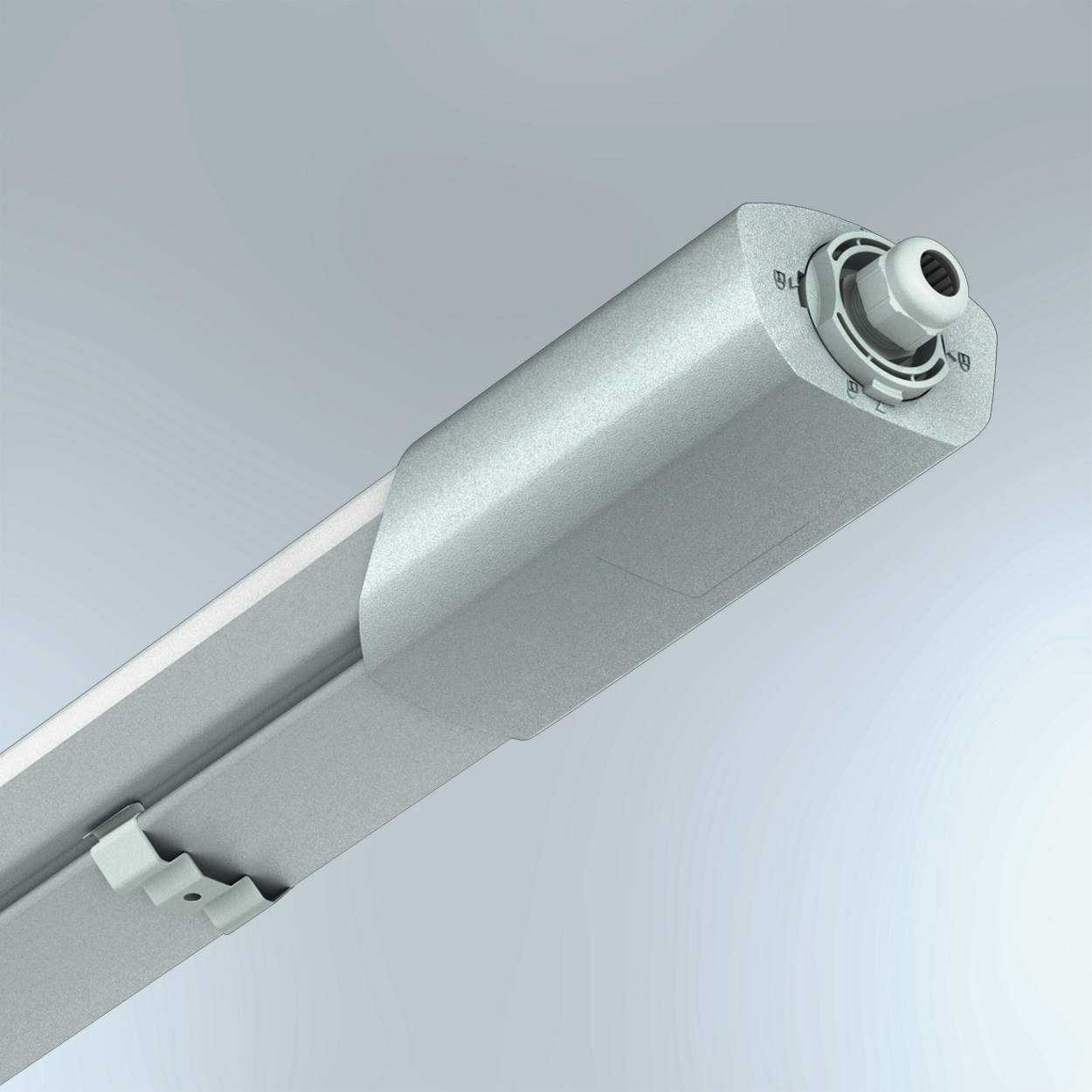

Adjustable mounts for easy installation

Technical drawings

Sensor detection areas

Wiring diagram 1

Master circuit diagram
