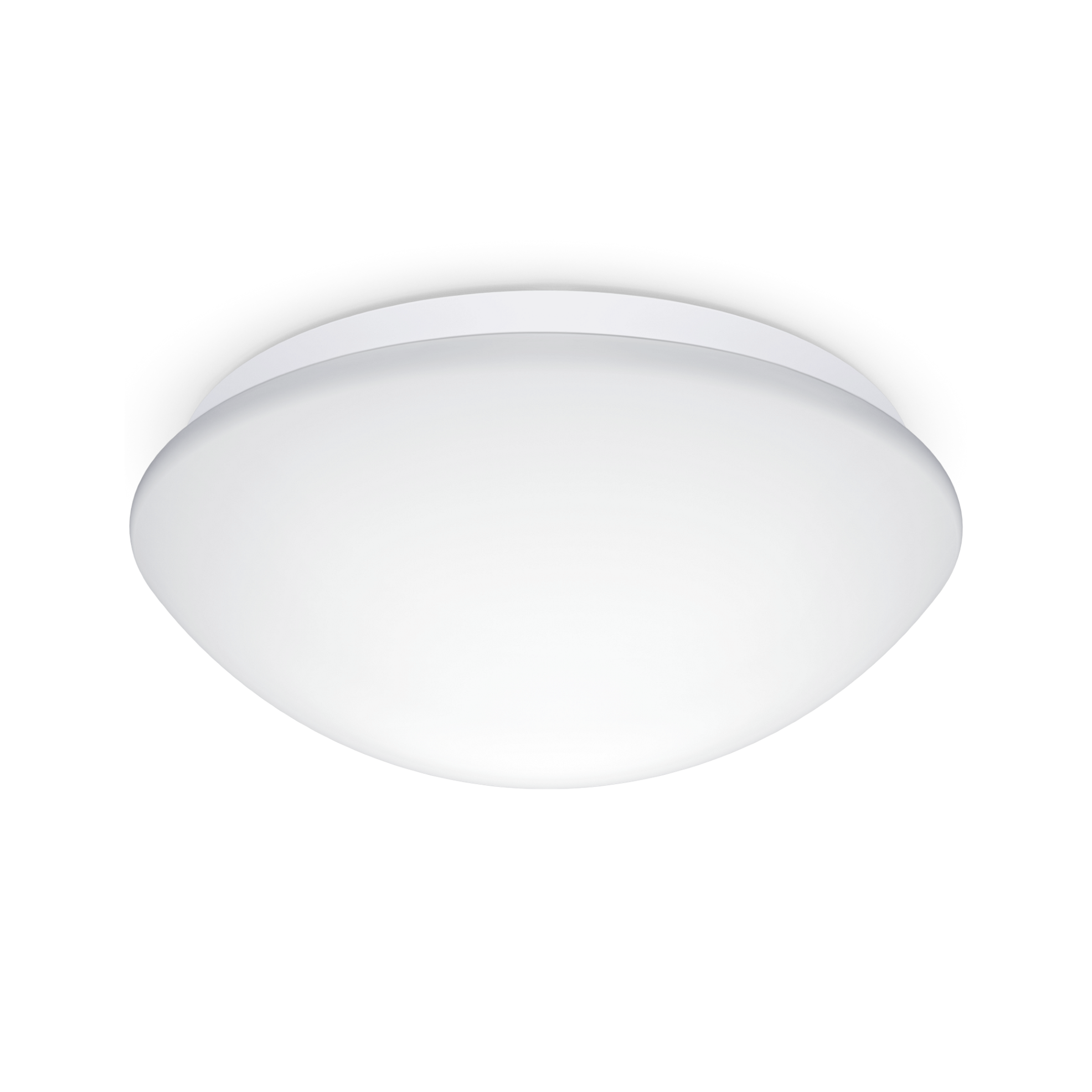

Steinel RS PRO P1 warm white

Steinel RS PRO P1 warm white

EAN-No. 4007841056056 · ELDAS® no. 056056

Steinel

Steinel RS PRO P1 warm white

EAN-No. 4007841056056

ELDAS® no. 056056

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Diameter

Ø320mm Ø400mm Ø280mm

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. Because with the virtually invisible 360-degree high-frequency sensor always switching the 8,3 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Identification

Manufacturer Steinel
E-number 941000179

Variants

Light colour 3000K Warm white
Diameter Ø280mm

Dimensions

Dimensions Ø × H 280 x 110 mm
PU1 net weight 0.3700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,3 W
B10 fuse (pcs) 54.0000
B16 fuse (pcs) 87.0000
C10 fuse (pcs) 90.0000
C16 fuse (pcs) 145.0000
Maximum inrush current 13 A

Sensor technology

With motion detector No

Connectivity

Networking via Cable

Lighting technology

Measured luminous flux 360° 953 lm
Colour temperature 3000 K
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Luminous flux decline per LM80 L80B10
LED lifetime per IEC 62717 L70 100.000 h
LED lifetime per IEC 62717 L80 73.000 h
LED lifetime per IES TM-21 L70 >60.000 h
LED lifetime per IES TM-21 L80 >60.000 h

Settings

Main light adjustable No

Housing & material

Impact resistance IK03
Protection class (IP) IP54
Protection class II
Ambient temperature from -10 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Mounting location wall ceiling
Colour white
Protection class ceiling IP54

Scope of delivery & warranty

Manufacturer warranty 5 years

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Certificates & EPREL

Certificates DEKRA
EPREL category Surrounded product with integrated light source

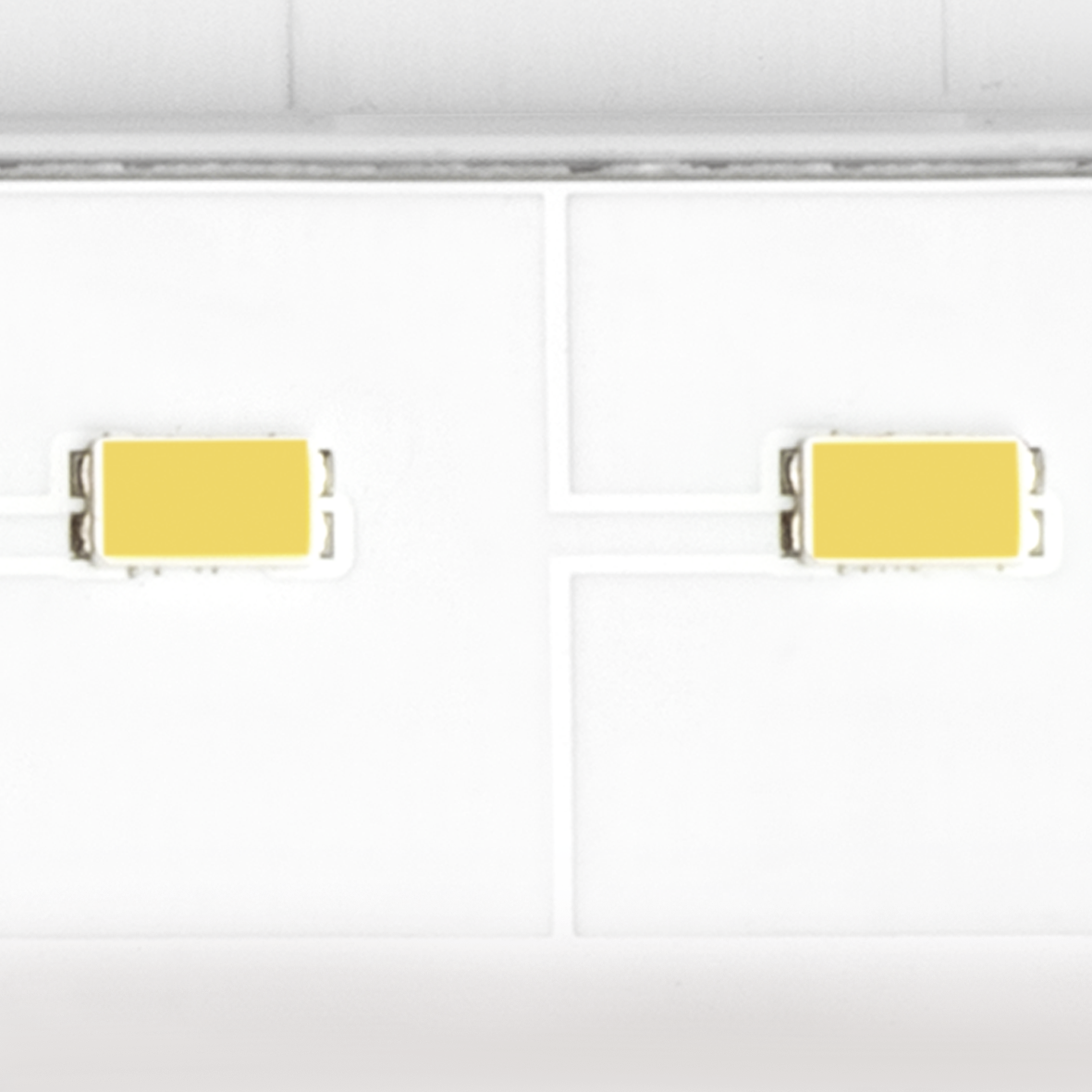

Including STEINEL LED system

Intelligent soft light start

Interconnectable by cable (maximum of 10 units)

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
