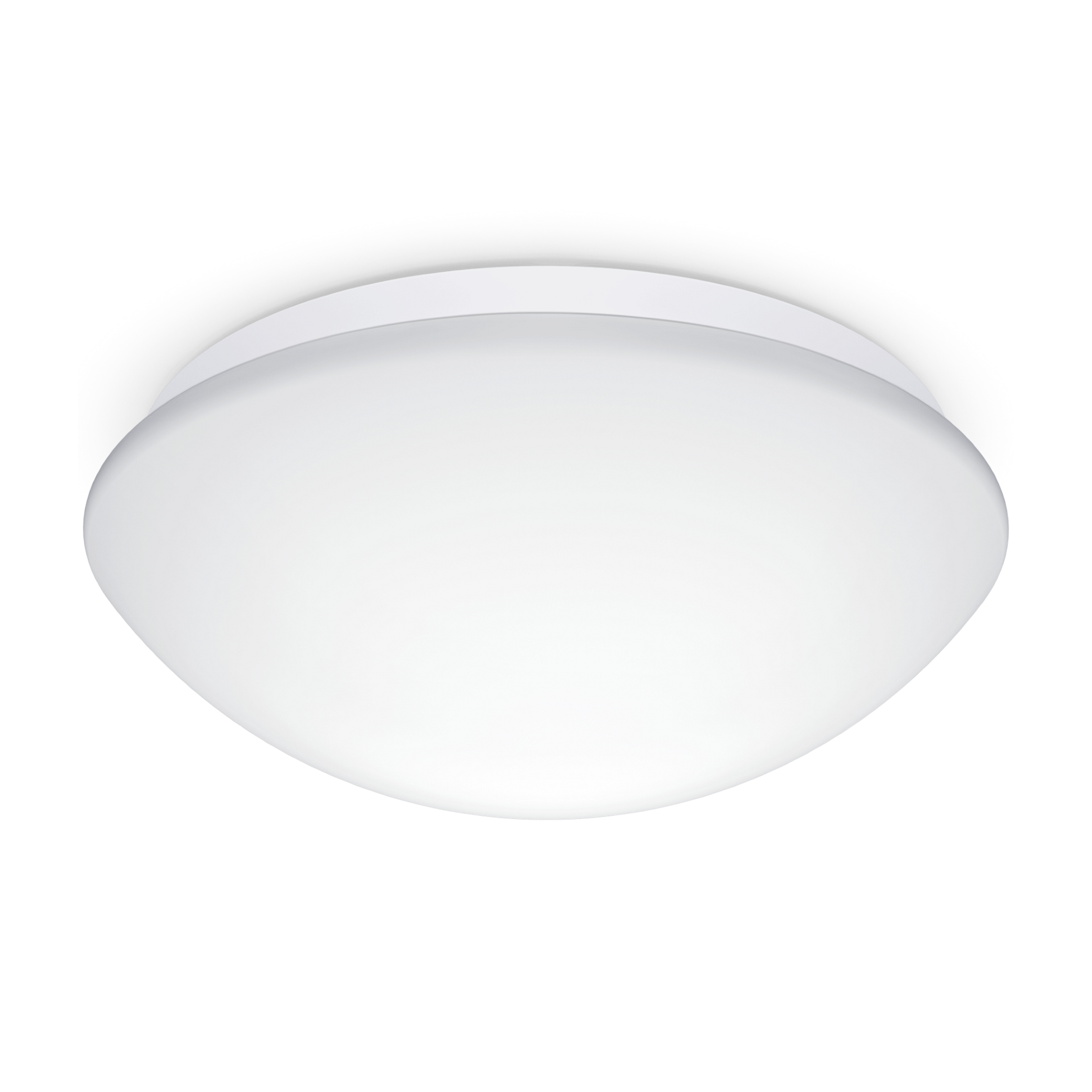

Steinel RS PRO P2 S Emergency light - warm white

EAN-No. 4007841058586

ELDAS® no. 058586

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Light colour

3000K Warm white 4000K Neutral white

Diameter

Ø320mm Ø400mm Ø280mm

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. Because with the virtually invisible 360-degree high-frequency sensor always switching the 15,1 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Identification

Manufacturer Steinel

E-number 941000219

Variants

Light colour 3000K Warm white

Diameter Ø320mm

Dimensions

Dimensions Ø × H 320 x 110 mm

PU1 net weight 0.6500

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 15,1 W

LED lamps > 8 W 250 W

Capacitive load in µF 88 µF

Own consumption 136 W

Switching output 1 number of LED/fluorescent lamps 50.0000

B10 fuse (pcs) 54.0000

B16 fuse (pcs) 87.0000

C10 fuse (pcs) 90.0000

C16 fuse (pcs) 145.0000

Maximum inrush current 13 A

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

With motion detector Yes

Detection angle 360 °

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2 – 4 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Networking via Cable

Lighting technology

Measured luminous flux 360° 1674 lm

Colour temperature 3000 K

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Luminous flux emergency light 38 lm

Photobiological safety per EN 62471 RG1

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L80B10

LED lifetime per IEC 62717 L70 100.000 h

LED lifetime per IEC 62717 L80 73.000 h

LED lifetime per IES TM-21 L70 60.000 h

LED lifetime per IES TM-21 L80 60.000 h

Settings

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Main light adjustable No

Functions Emergency light in compliance with EN 60598-2-22 for 3h

Base light function in percent 10 %

Base light function percent from 10.0000

Base light function percent to 10.0000

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class II

Ambient temperature from -10 up to 40 °C

Housing material Plastic

Cover material Plastic, opal

Mounting location wall ceiling

Colour white

Protection class ceiling IP54

Scope of delivery & warranty

Manufacturer warranty 5 years

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Certificates & EPREL

Certificates DEKRA

EPREL category Surrounded product with integrated light source

Cross-/up-selling

Spare parts 22412,12200

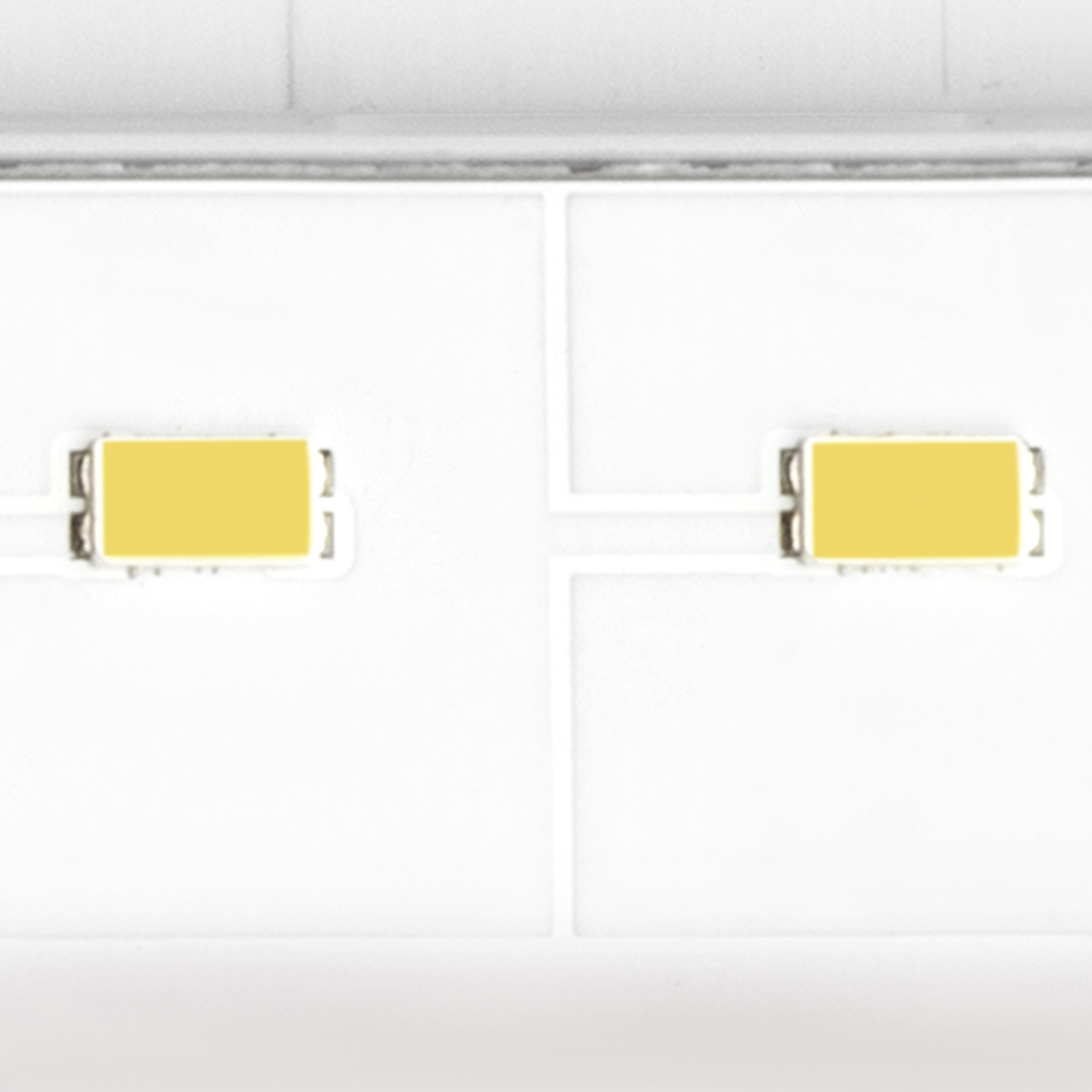

Including STEINEL LED system

Intelligent soft light start

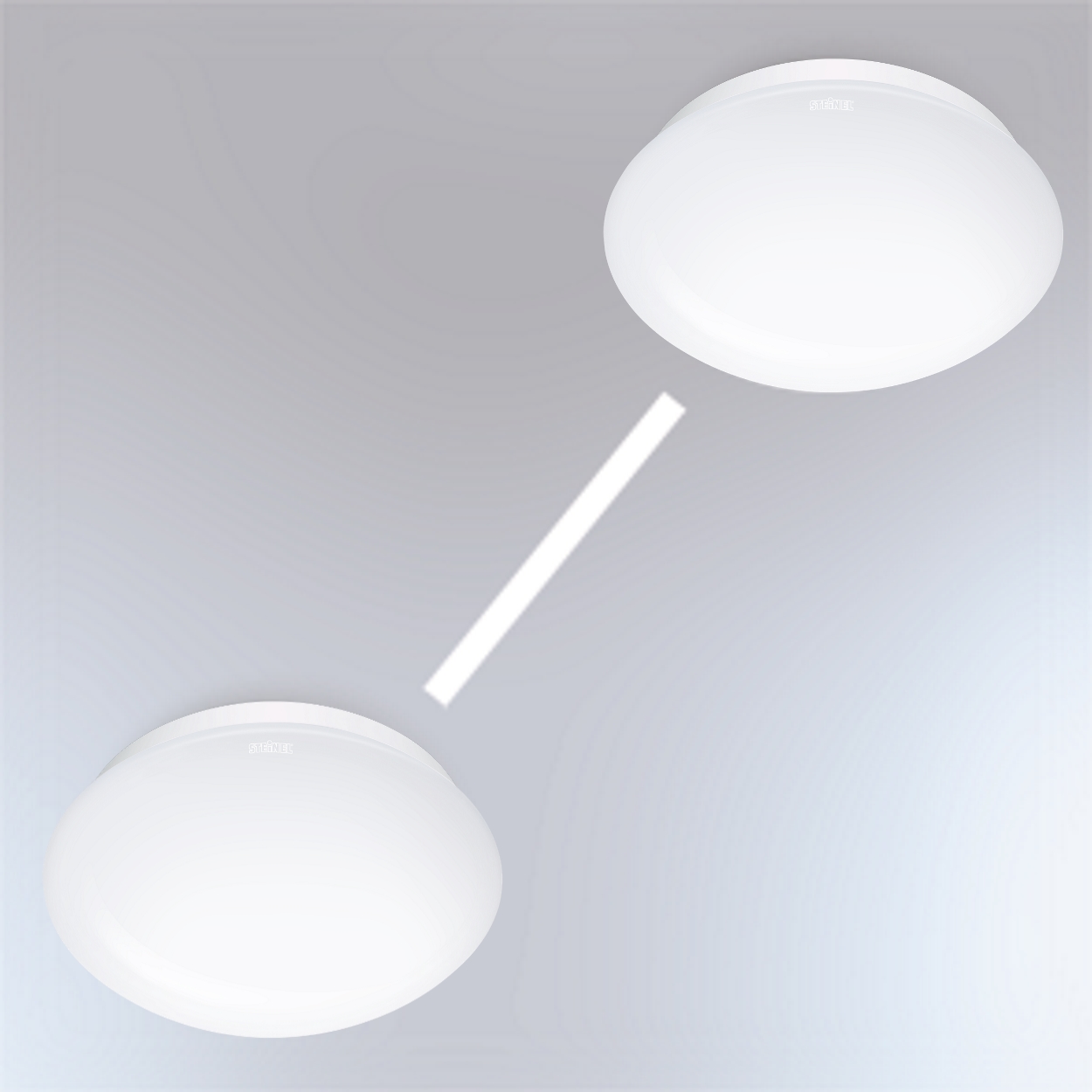

Interconnectable by cable (maximum of 10 units)

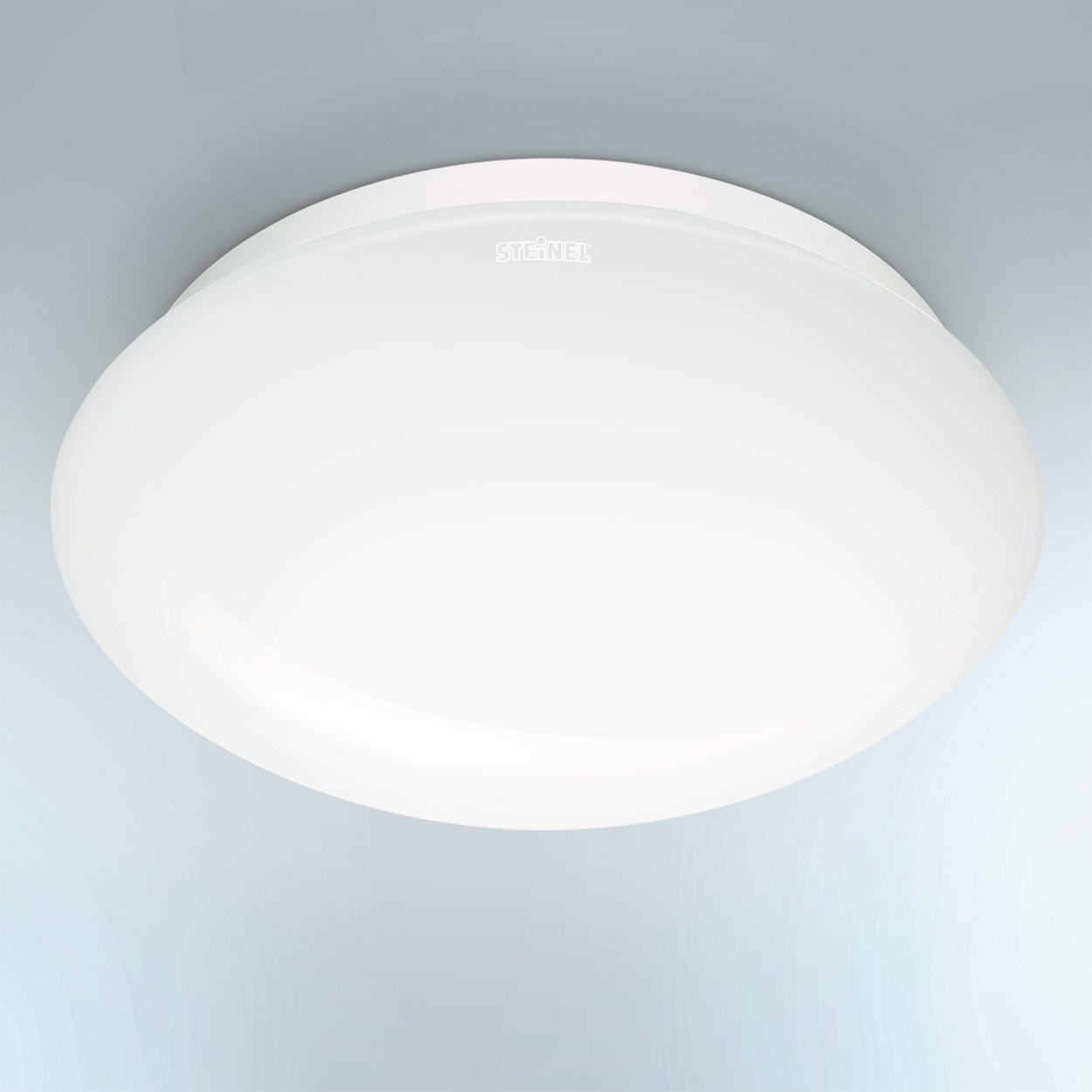

Optional basic lighting level 10 %

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Drilling template LDT file (light distribution)
