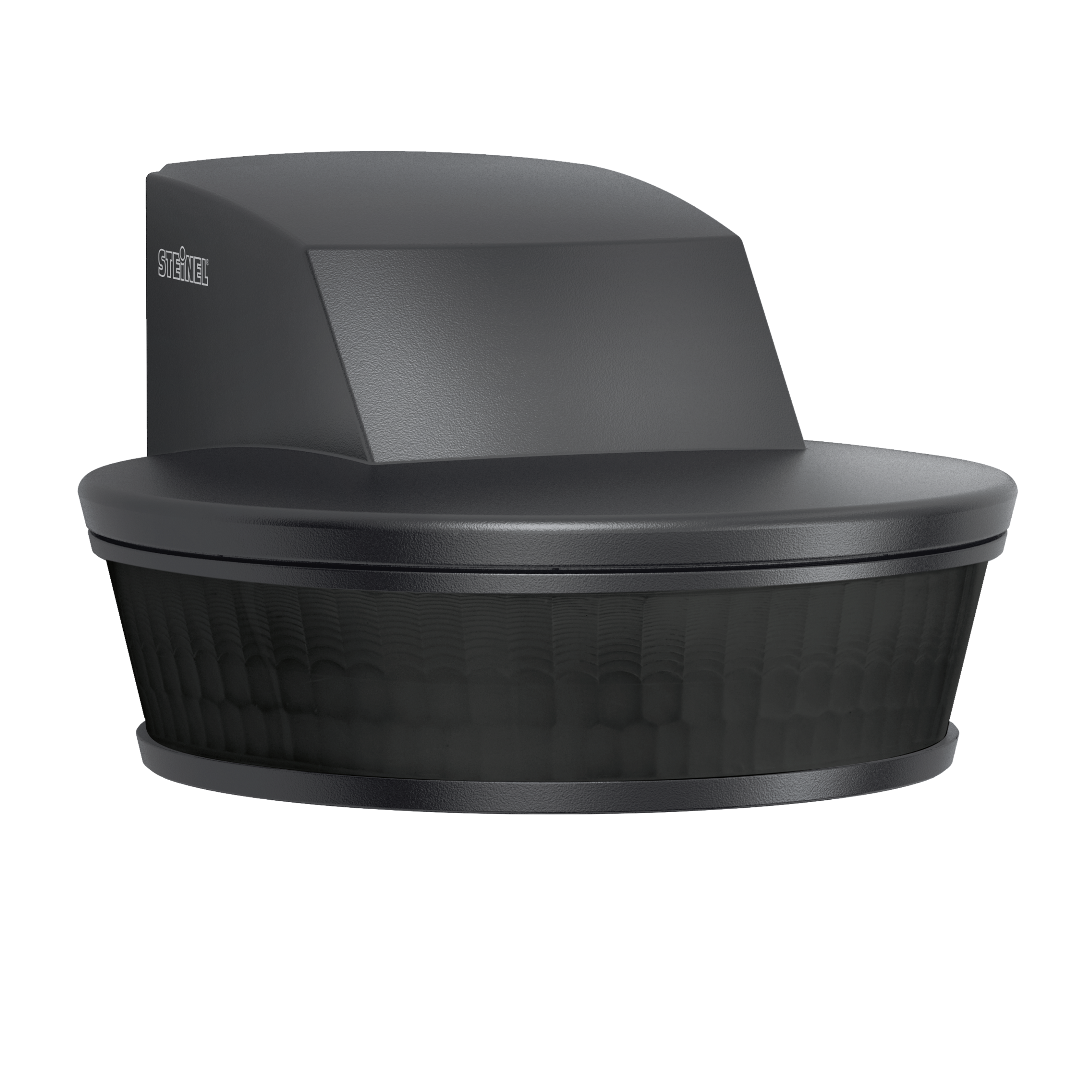

Steinel sensIQ S Anthracite

EAN-No. 4007841059583

ELDAS® no. 059583

Version

KNX 230V 1 channel

Colour

White Anthracite Black

The reference motion detector for use anywhere on the building is also available in a version for the world's only open standard for home and building control. The sensIQ S KNX is just as perfect in form and functional diversity as all other sensIQ models. But this designer motion detector also provides the benefits of KNX technology. The electronic detector was developed specifically for wall mounting, nestles up against any facade and harmonises perfectly with modern architecture. Thanks to KNX control, its inner values are spectacular too.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535940908

Variants

Version KNX

Colour Anthracite

Dimensions

Dimensions L × W × H 128 x 114 x 74 mm

PU1 net weight 0.2320

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

Detection angle 300 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

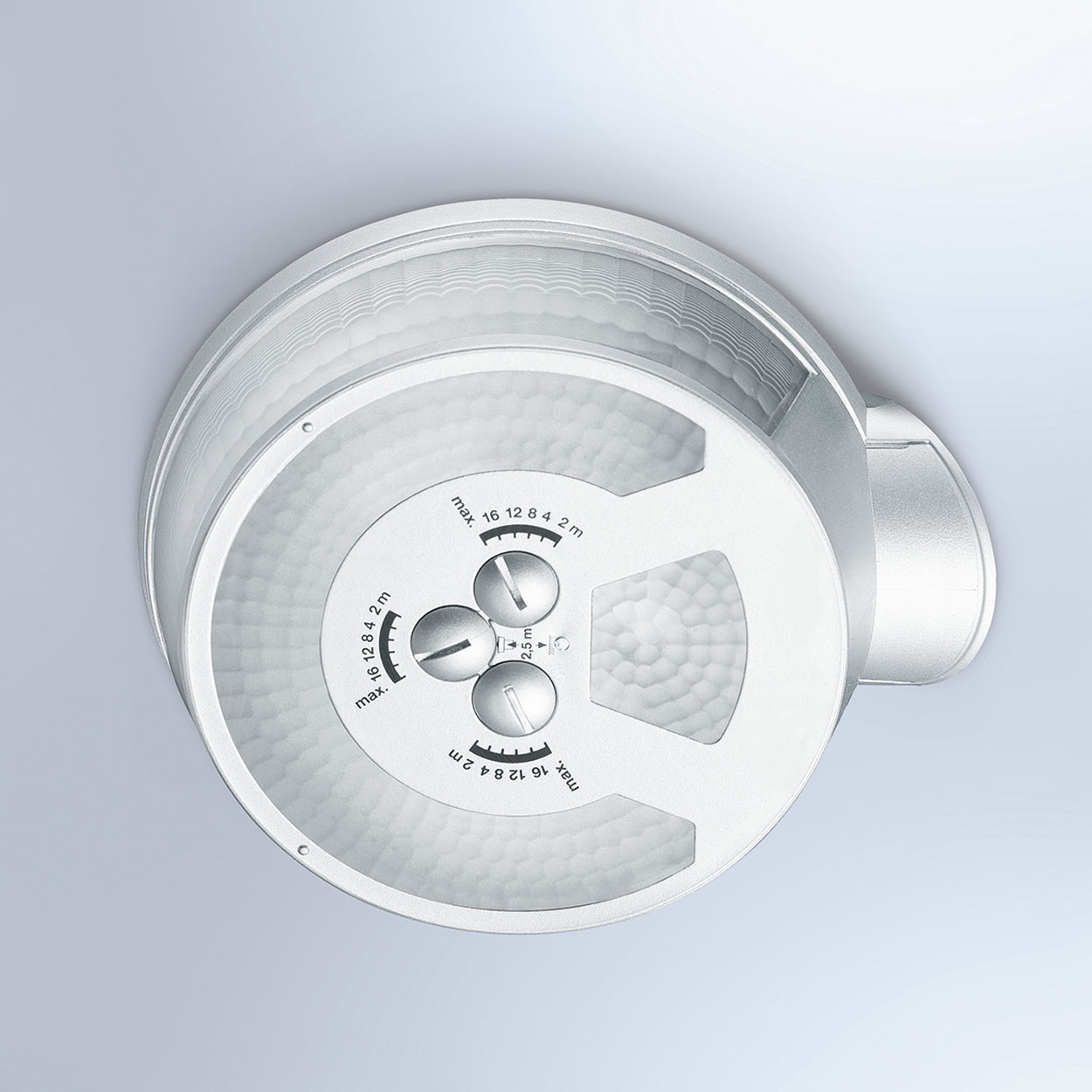

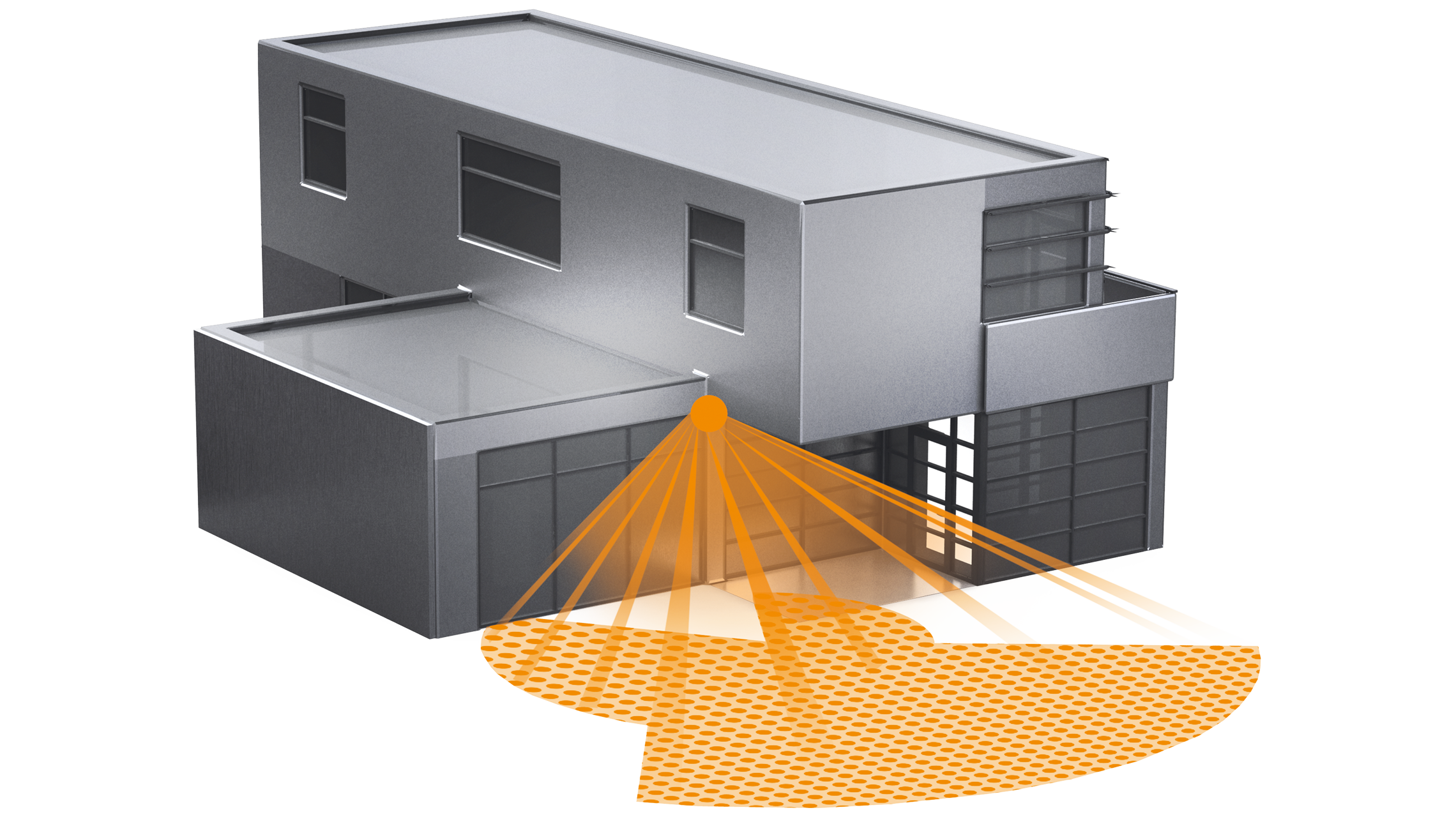

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Mounting height 2 – 5,00 m

Optimal mounting height 2 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Light output 2x Presence output Light level Constant-lighting control Basic light level function Photo-cell controller Close range Individual pyro evaluation Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 60 s – 15 Min.

Base light function Yes

Main light adjustable 0 - 100 %

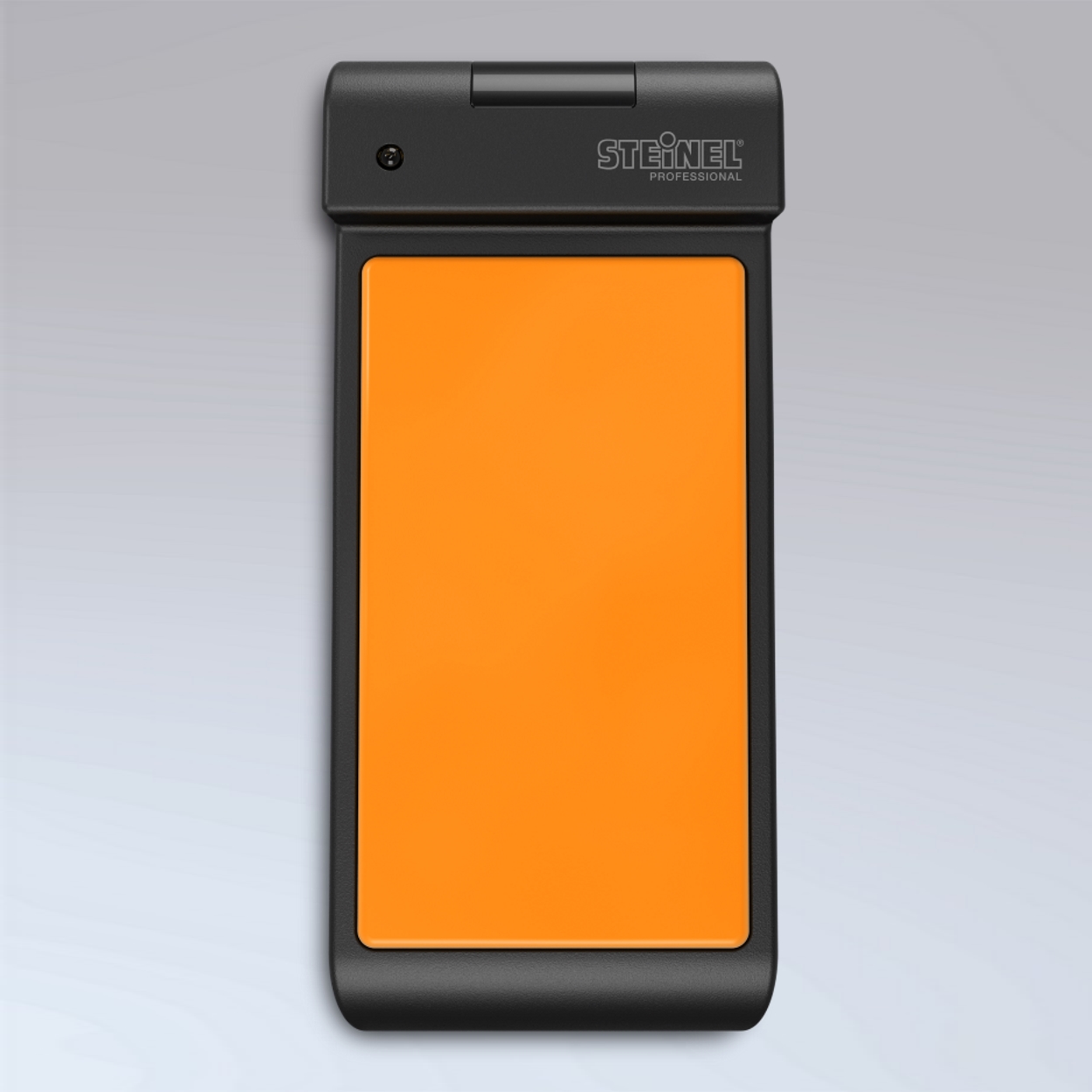

Settings via ETS software Remote control Bus Smart Remote

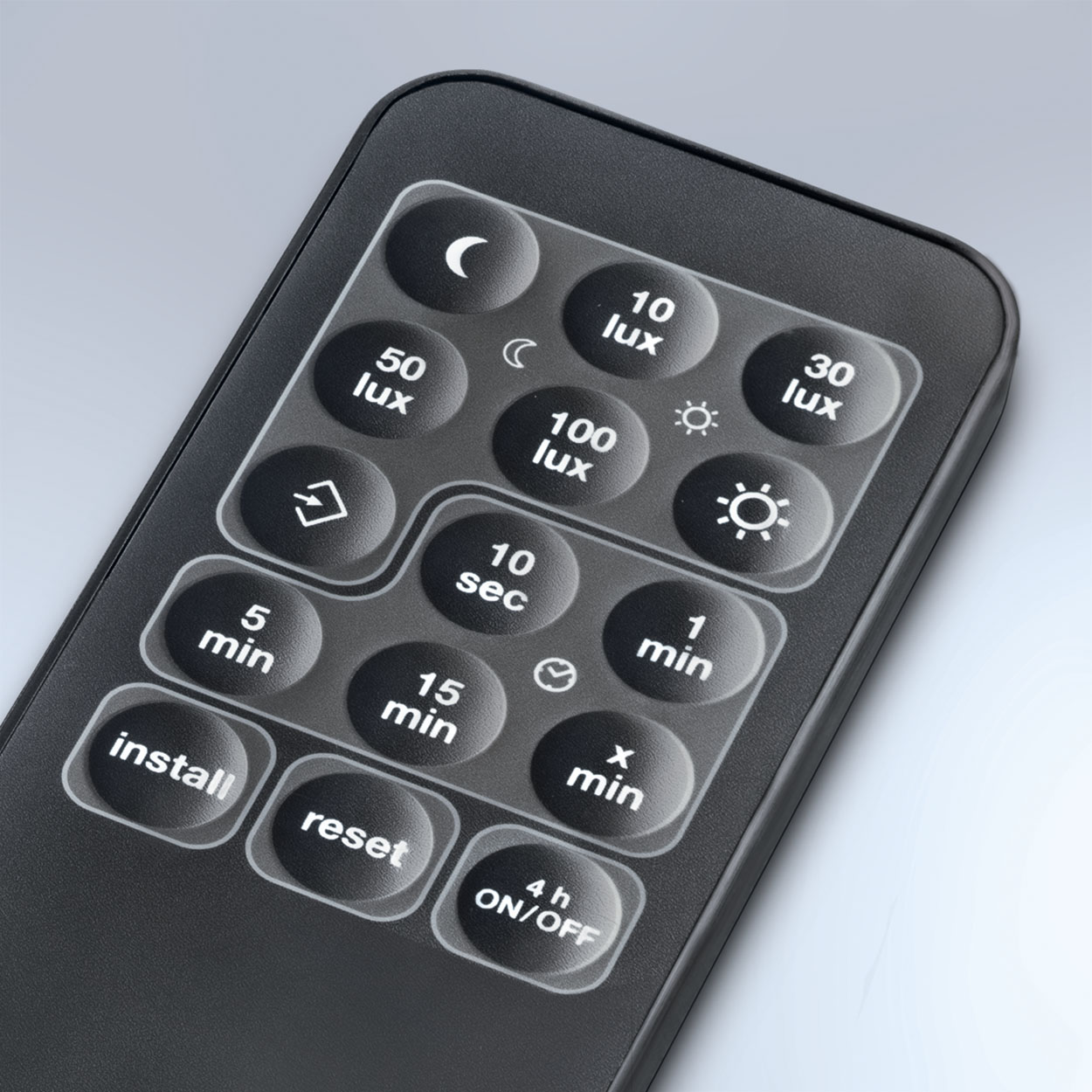

With remote control Yes

Twilight setting teach Yes

Housing & material

Ambient temperature from -20 up to 50 °C

Mounting location wall corner

Application location Indoors Outdoors

Mounting type Surface wiring

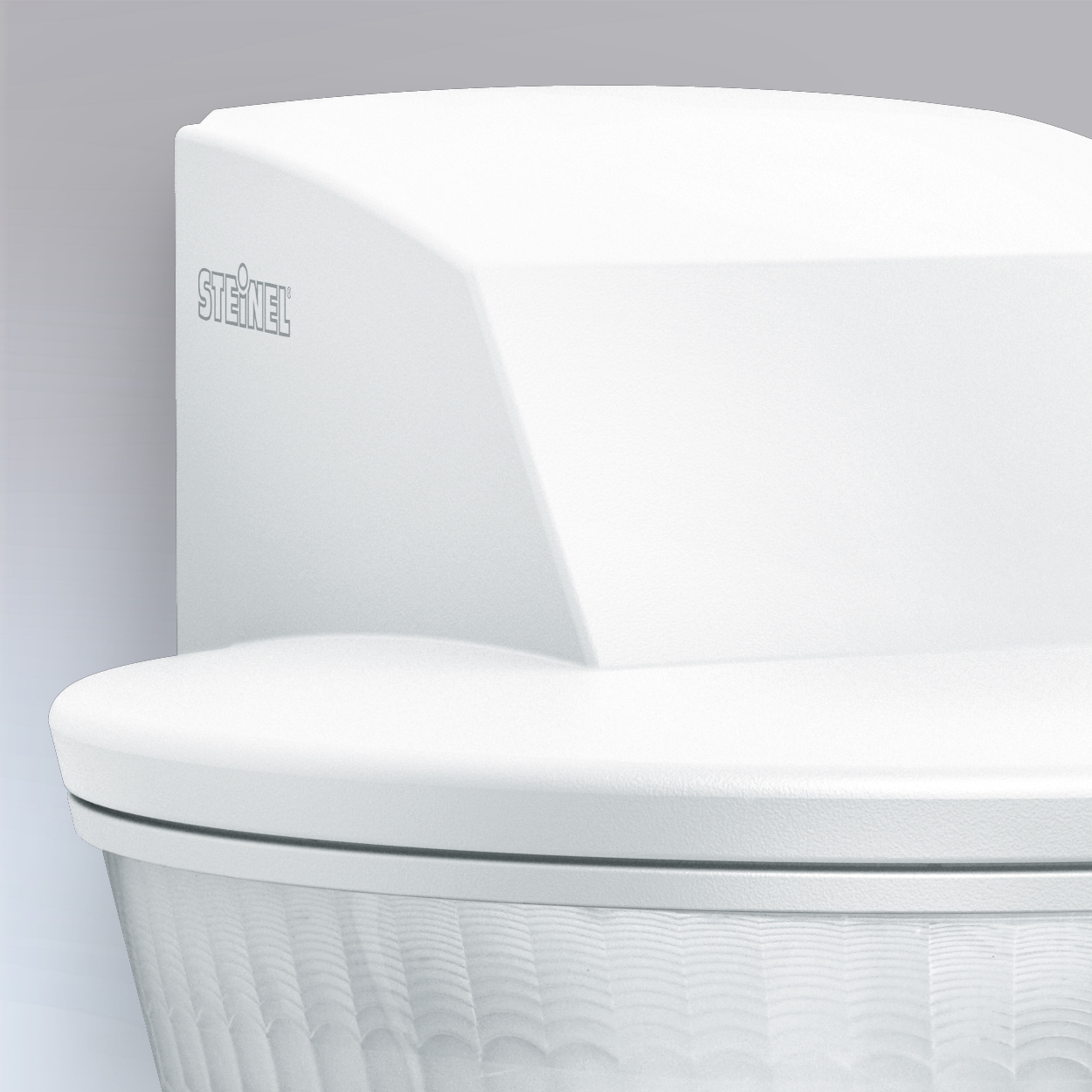

Material Plastic

Application room multi-storey / underground car park outdoors warehouse front door all round the building courtyard & driveway Indoors

Colour Anthracite

RAL colour 7016

Scope of delivery & warranty

Manufacturer warranty 5 years

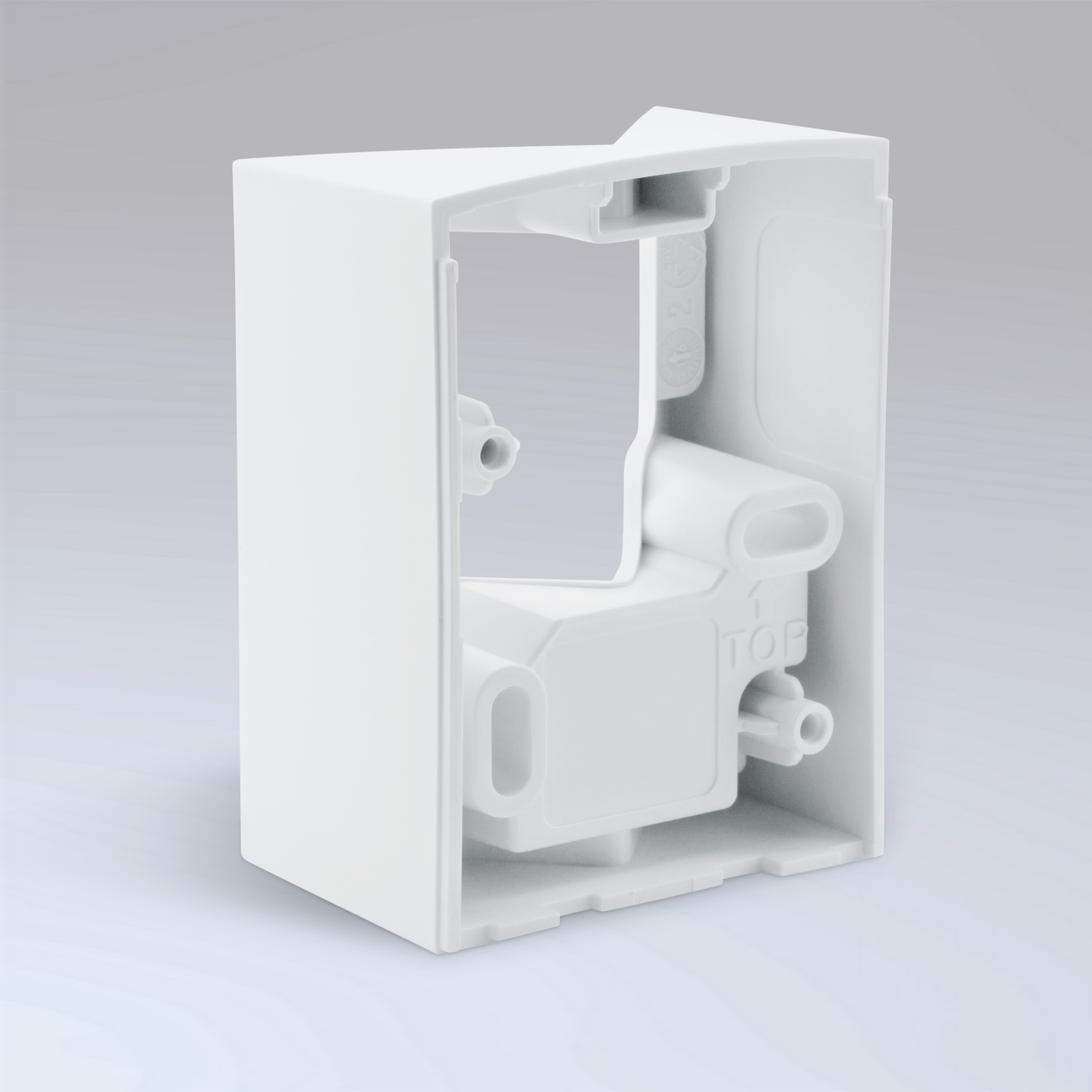

Corner wall bracket included Yes

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=dd1c6a150156@steinel&rand=4eb7f4f9c87f3ec6d2f81186c4709bac&lang=2&force=true&download=true&omitPreview=true

4x pyro system
