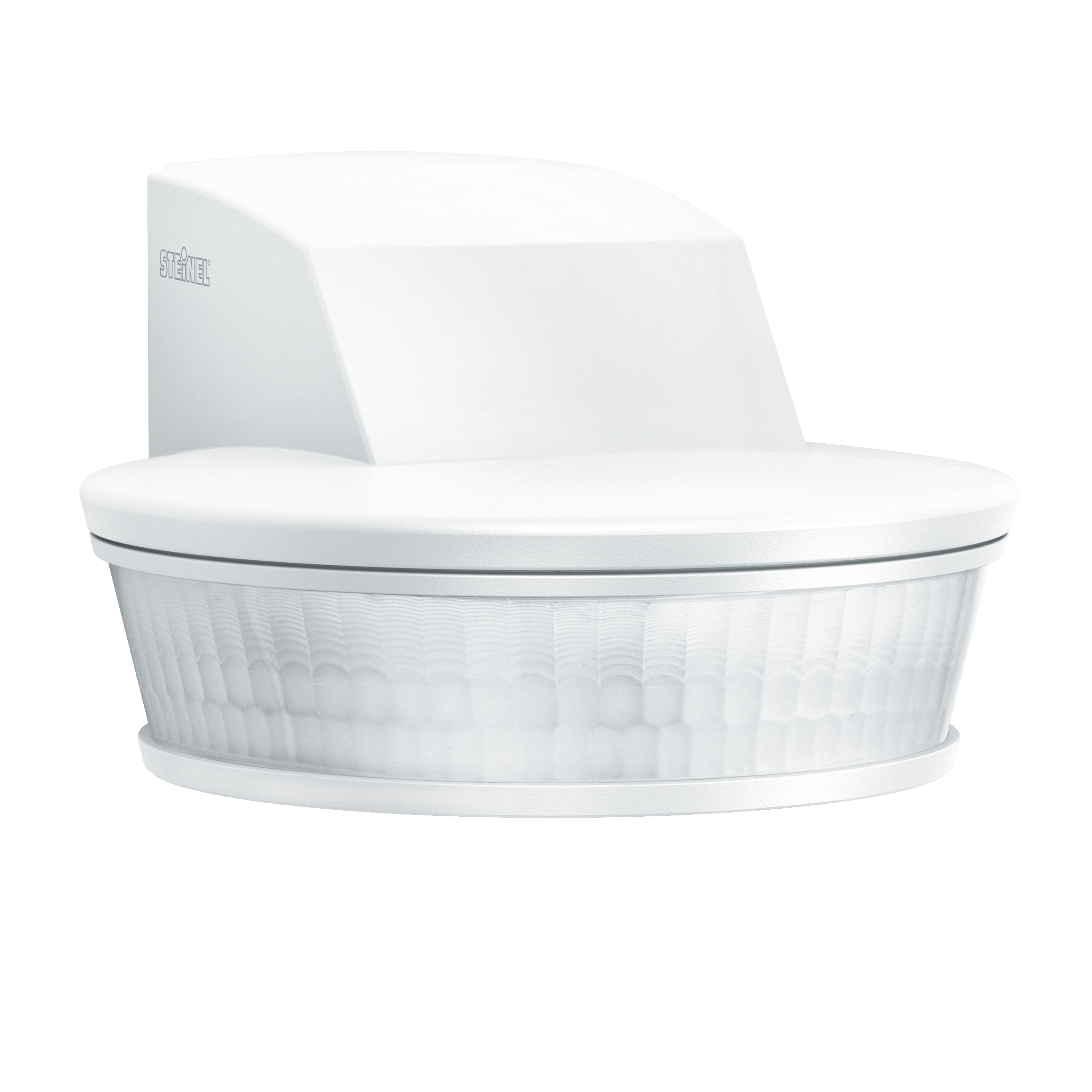

Steinel sensIQ S white

EAN-No. 4007841034955

ELDAS® no. 034955

Version

KNX 230V 1 channel

Colour

White Anthracite Black

Handsome addition! The sensIQ S is just as perfect in form and functional diversity as its larger role model. A look that architects like. This designer motion detector was developed specifically for wall mounting though. Being altogether more compact that its big brother, the sensIQ S nestles up against the facade, perfectly harmonising with modern, purist architecture. Its inner values are spectacular too because it comes with the same highly intelligent features and setting options as the sensIQ.

Identification

Version Other

Type of accessory Corner adapter

Manufacturer Steinel

E-number 535940620

Variants

Version 230V 1 channel

Colour White

Dimensions

Dimensions L × W × H 128 x 114 x 74 mm

PU1 net weight 0.2520

Electrical

Mains connection 100 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 700 VA

Fluorescent lamps parallel-compensated 1000 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Supply voltage detail 500 VA max., 120 V

Switching output 1 number of LED/fluorescent lamps 50.0000

Maximum inrush current 800 A

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 300 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Range detail Reach adjustable from 2 - 20 m in 3 directions (100° in each)

Radial range r = 4 m (42 m²)

Tangential range r = 20 m (1047 m²)

Detection planes 11

Switching zones 1360 switching zones

Mounting height 2,00 – 5,00 m

Optimal mounting height 2 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Manual ON / ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location wall corner

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room multi-storey / underground car park outdoors warehouse front door all round the building courtyard & driveway Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included Yes

Media & files

Wiring diagram 3 text Connection using two-circuit switch for manual and automatic operation

Wiring diagram 4 text Connection of 4-fold push-button coupler to DALI2 APC

Certificates & EPREL

Certificates VDE

Cross-/up-selling

Accessories 12359,12186,12188,12367,12187

4x pyro system

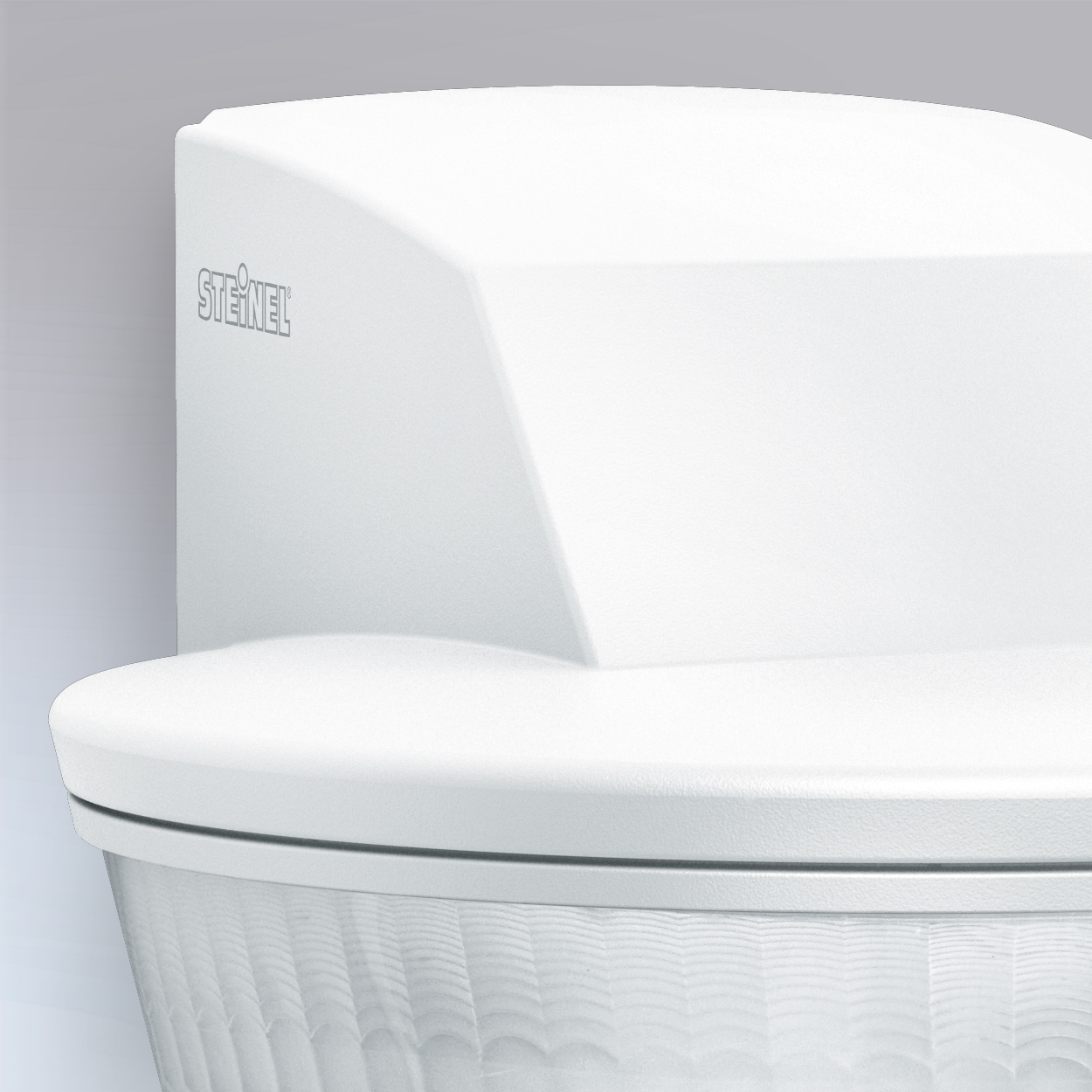

UV-resistant plastic

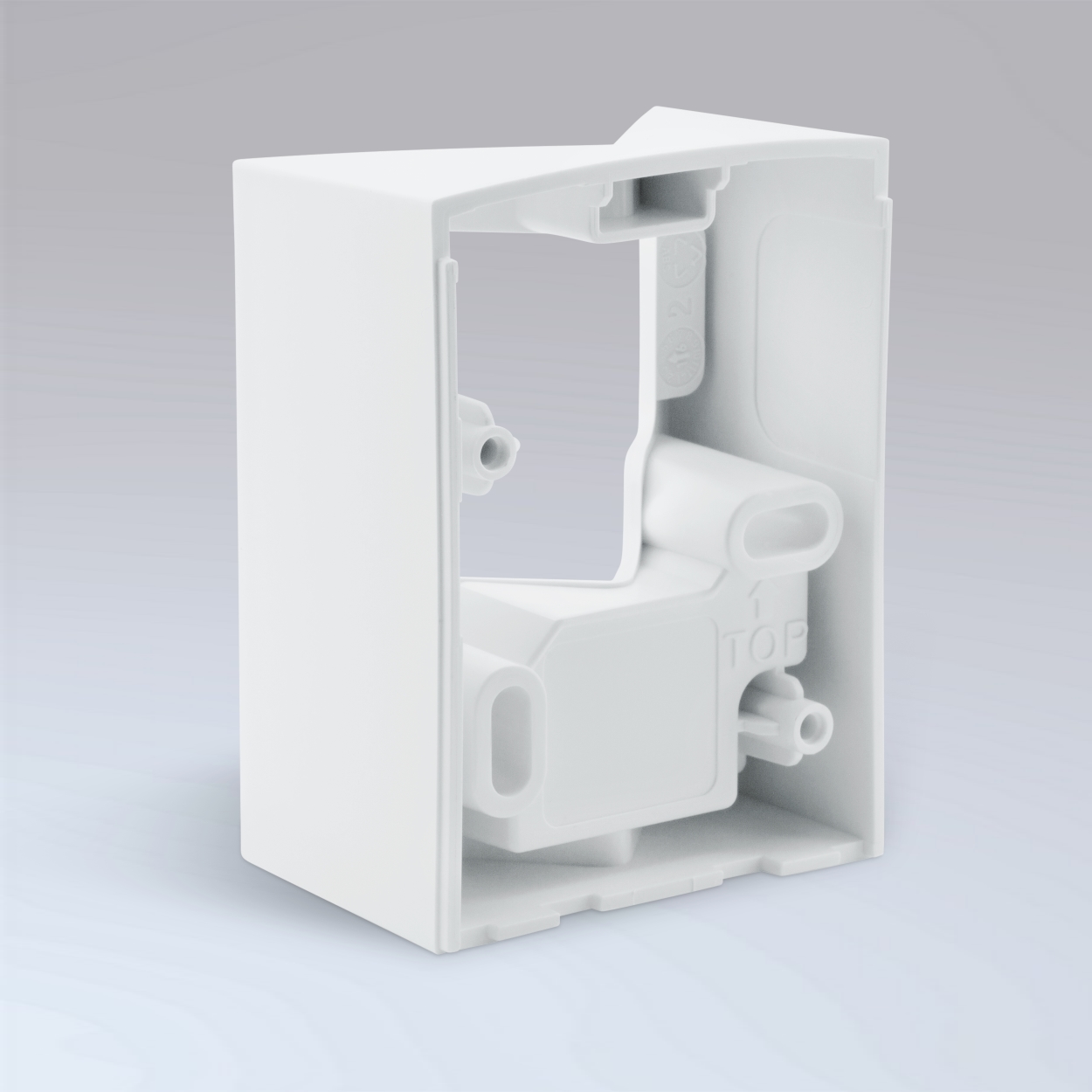

Including corner wall mount

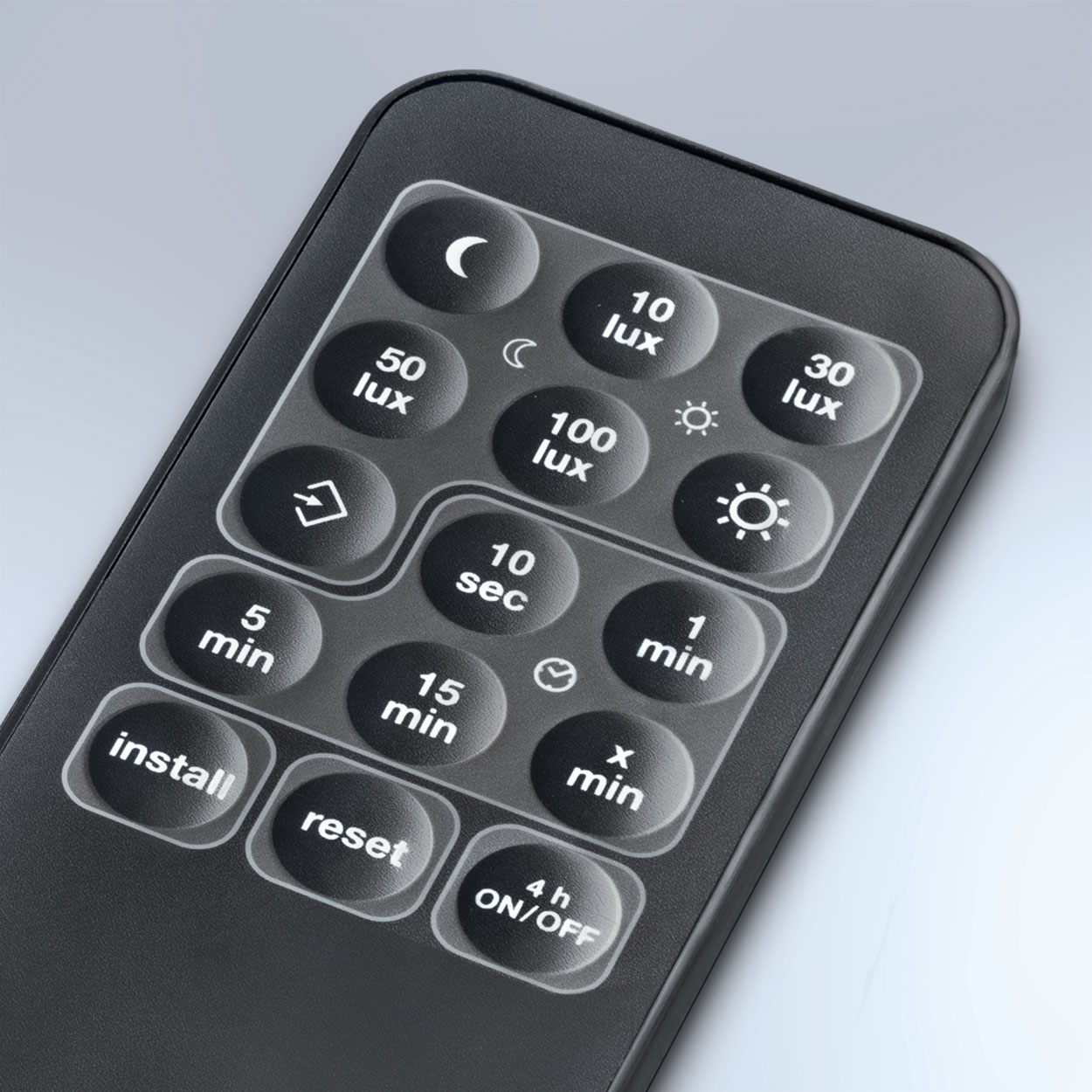

Remote control RC9 included

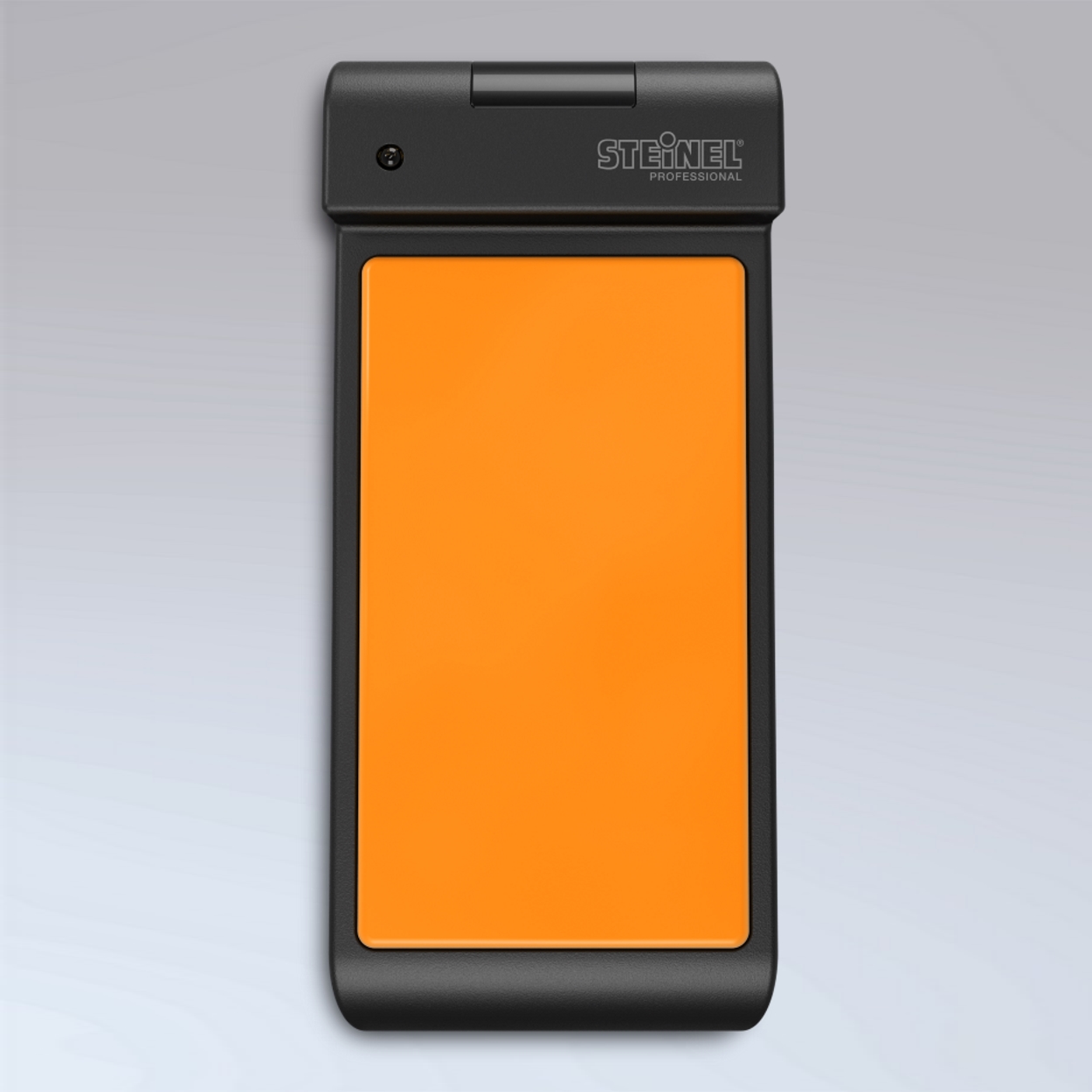

Smart Remote remote control optional

Technical drawing

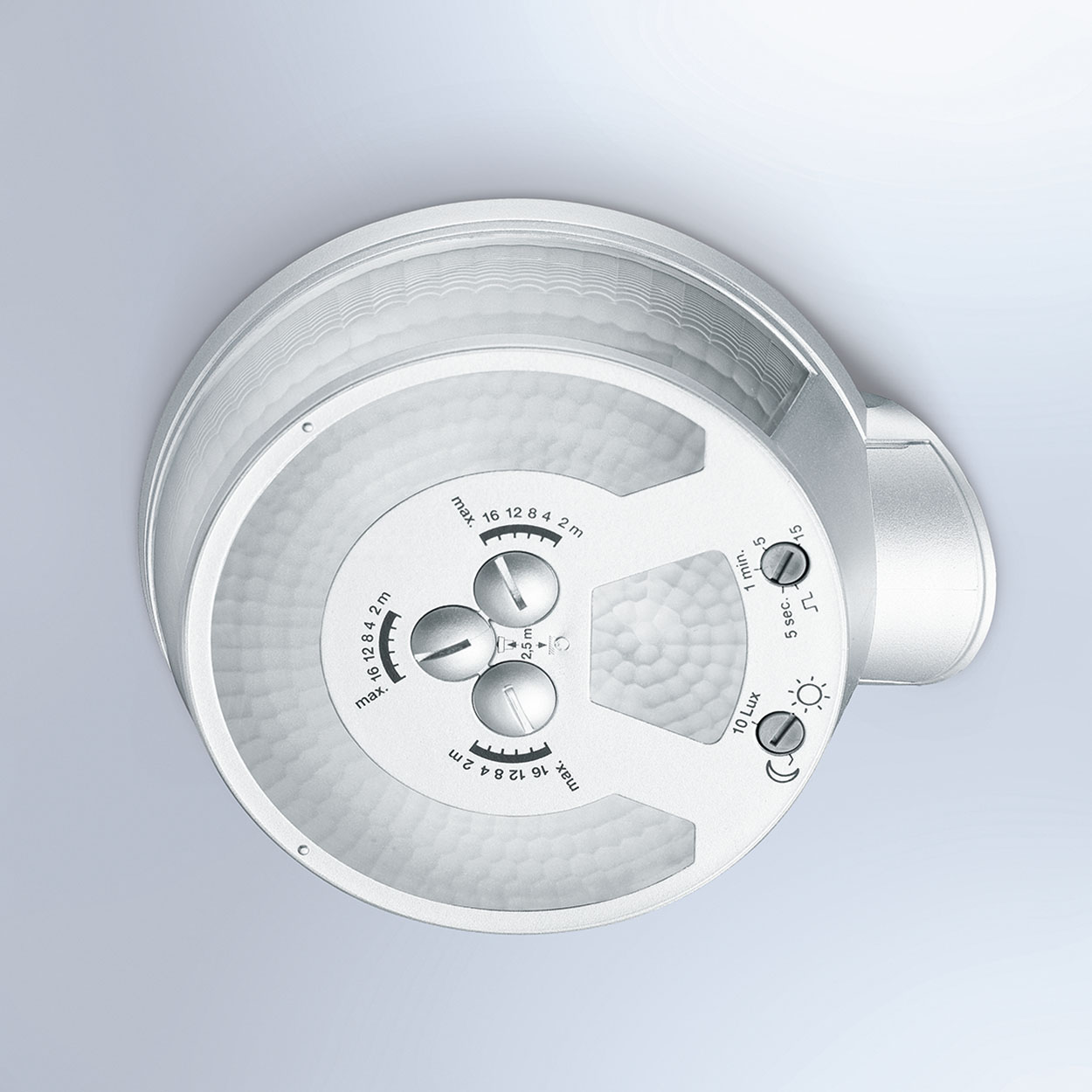

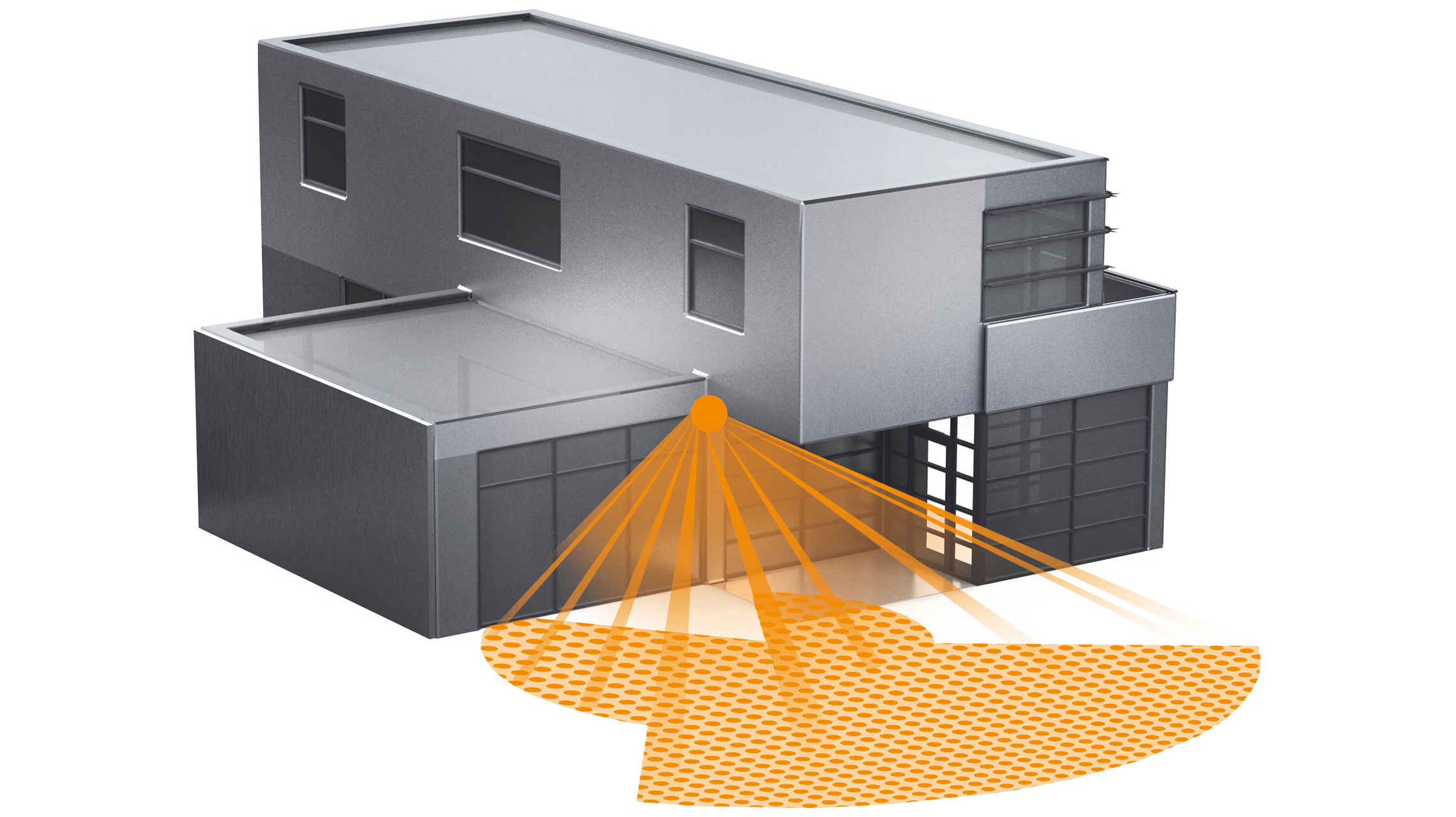

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor

Data sheet User manual Declaration of conformity Drilling template Product brochure

Fernbedienung RC9

Item no. 4007841007638

Remote control Smart Remote

Item no. 009151
