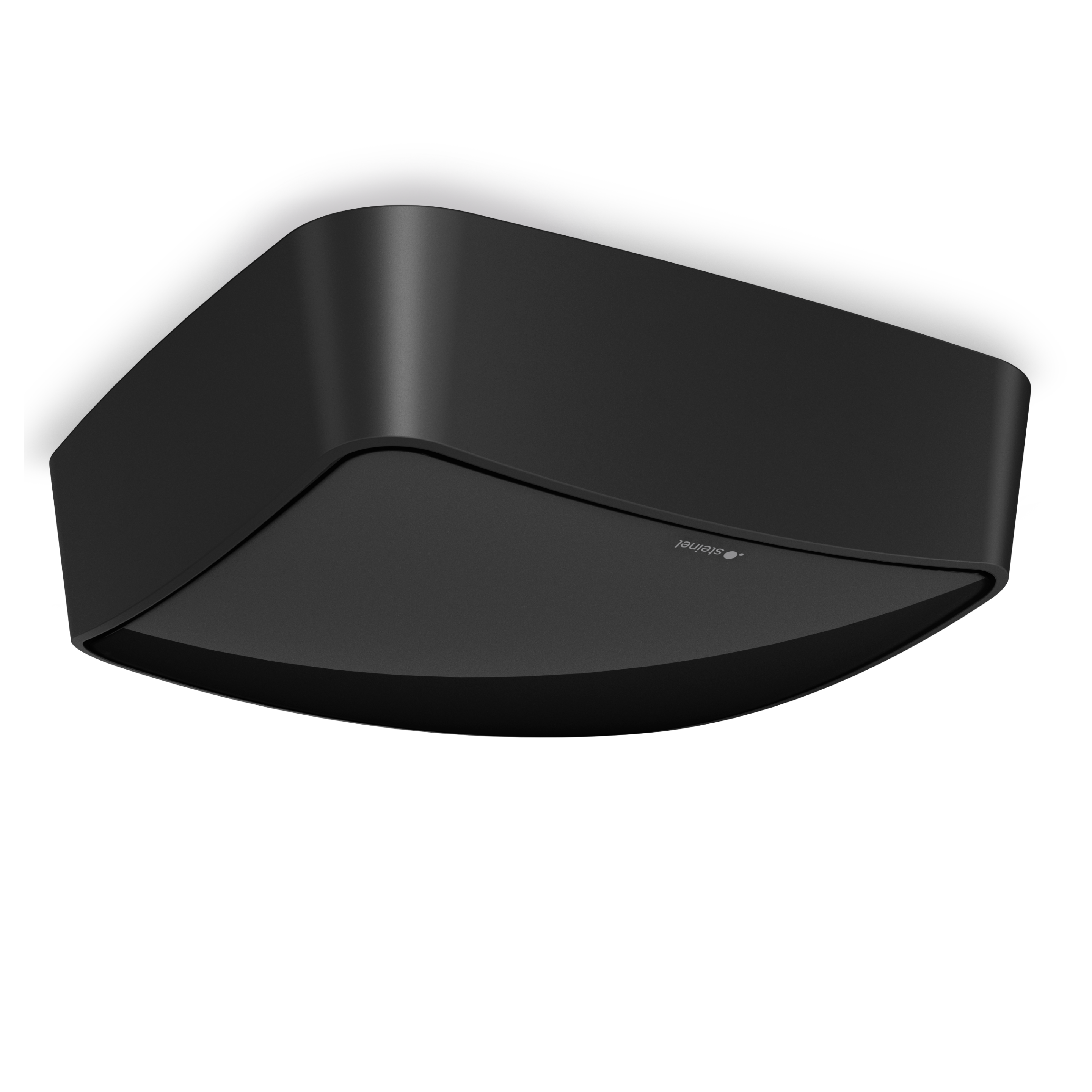

Steinel True Presence COM2 - surface black

EAN-No. 4007841086220

ELDAS® no. 086220

Price: Please log in to see prices

Version

230V COM1 IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535903112

Variants

Version 230V COM2

Colour Black

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 45 x 123 x 122 mm

PU1 net weight 0.2800

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Switching output 1 low-voltage halogen lamps 1000 VA

Own consumption 1 W

Switching output 1 number of LED/fluorescent lamps 8.0000

Switching output 1 potential-free No

Switching output 2 resistive 230 W

Switching output 2 potential-free Yes

Maximum inrush current 800 A

Sensor technology

Max. mounting height 12,00 m

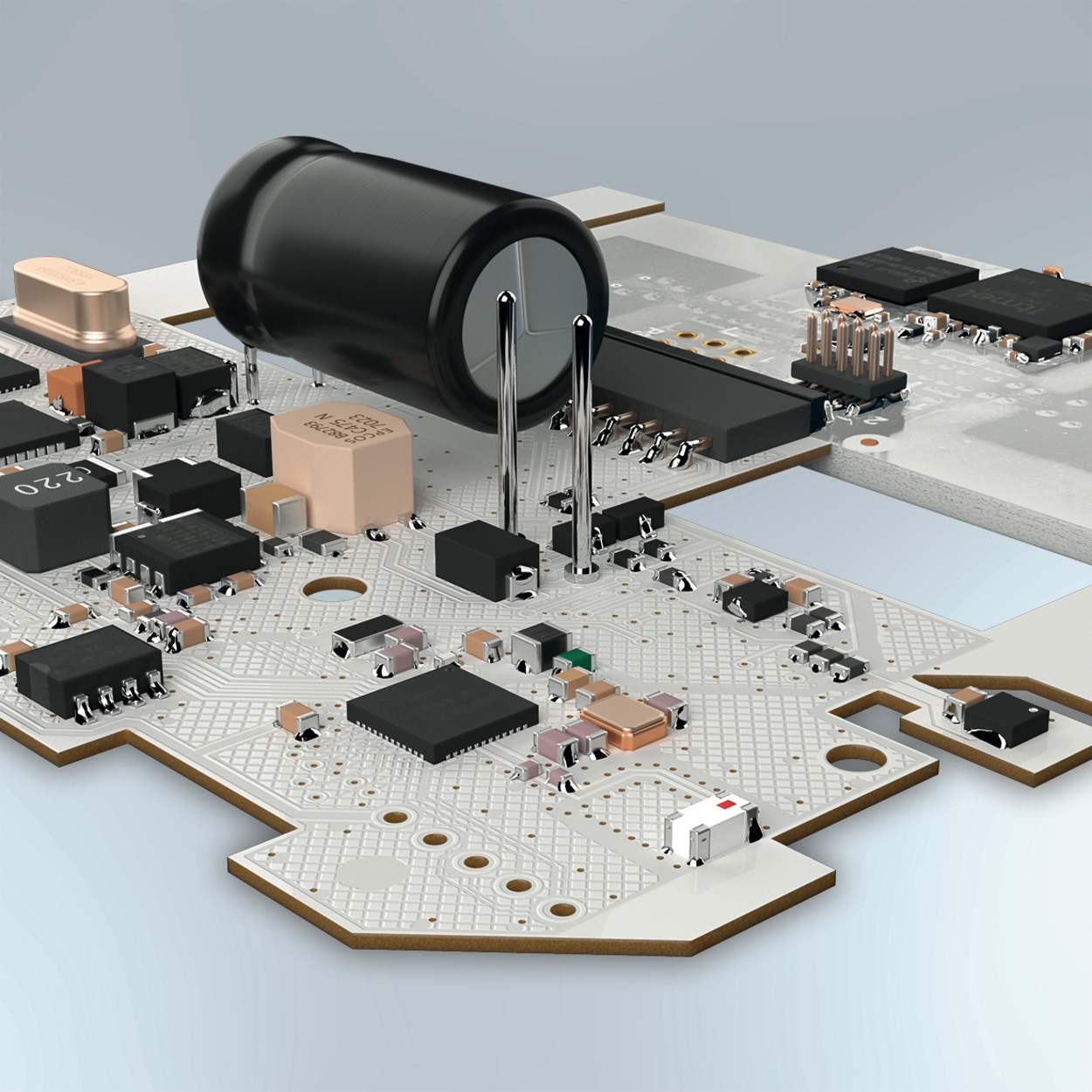

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

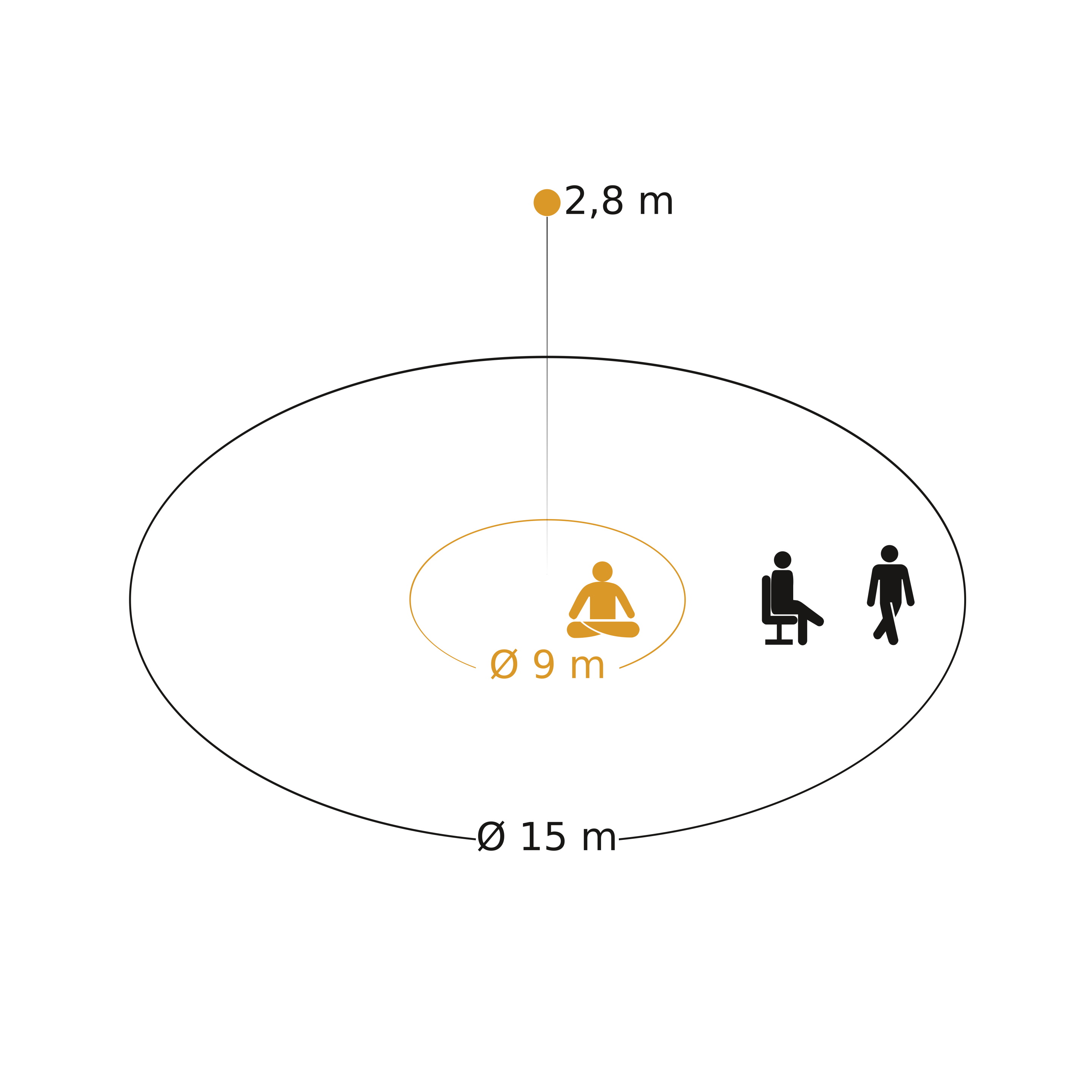

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2 – 12 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, On / Off

Connectivity

Networking Yes

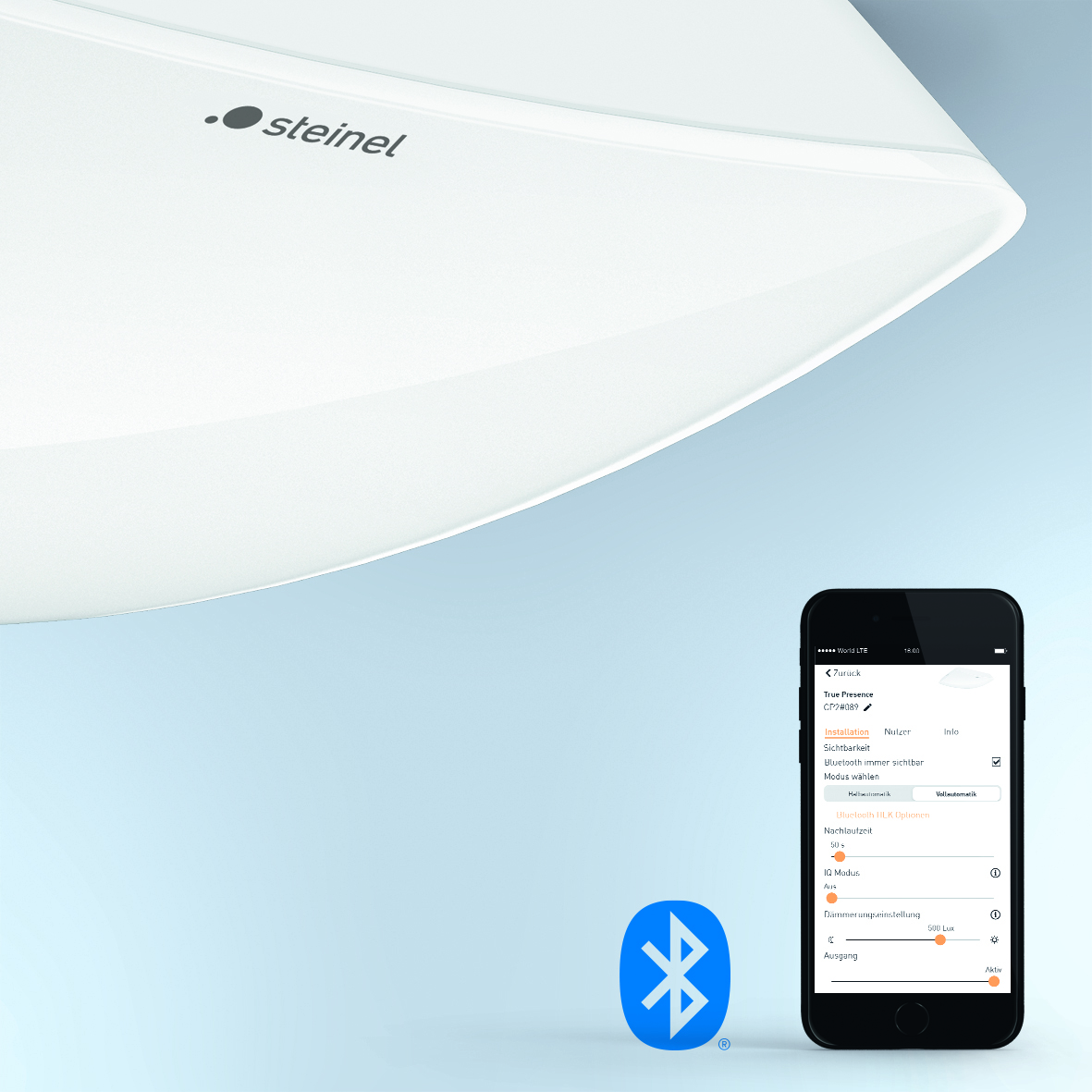

Networking via Bluetooth Mesh

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable Yes

Settings via Bluetooth Mesh

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

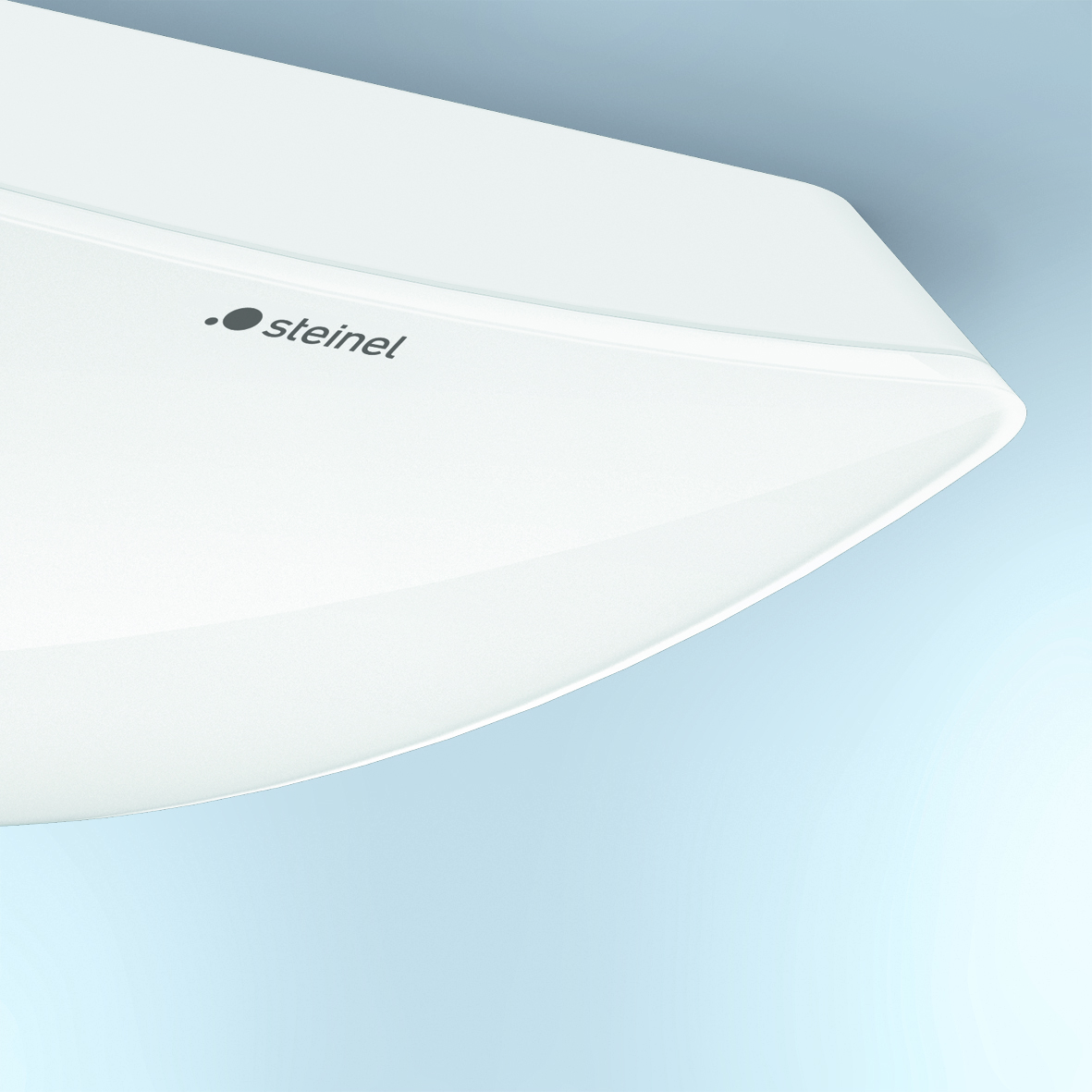

Material Plastic

Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors

Colour black

RAL colour 9005
