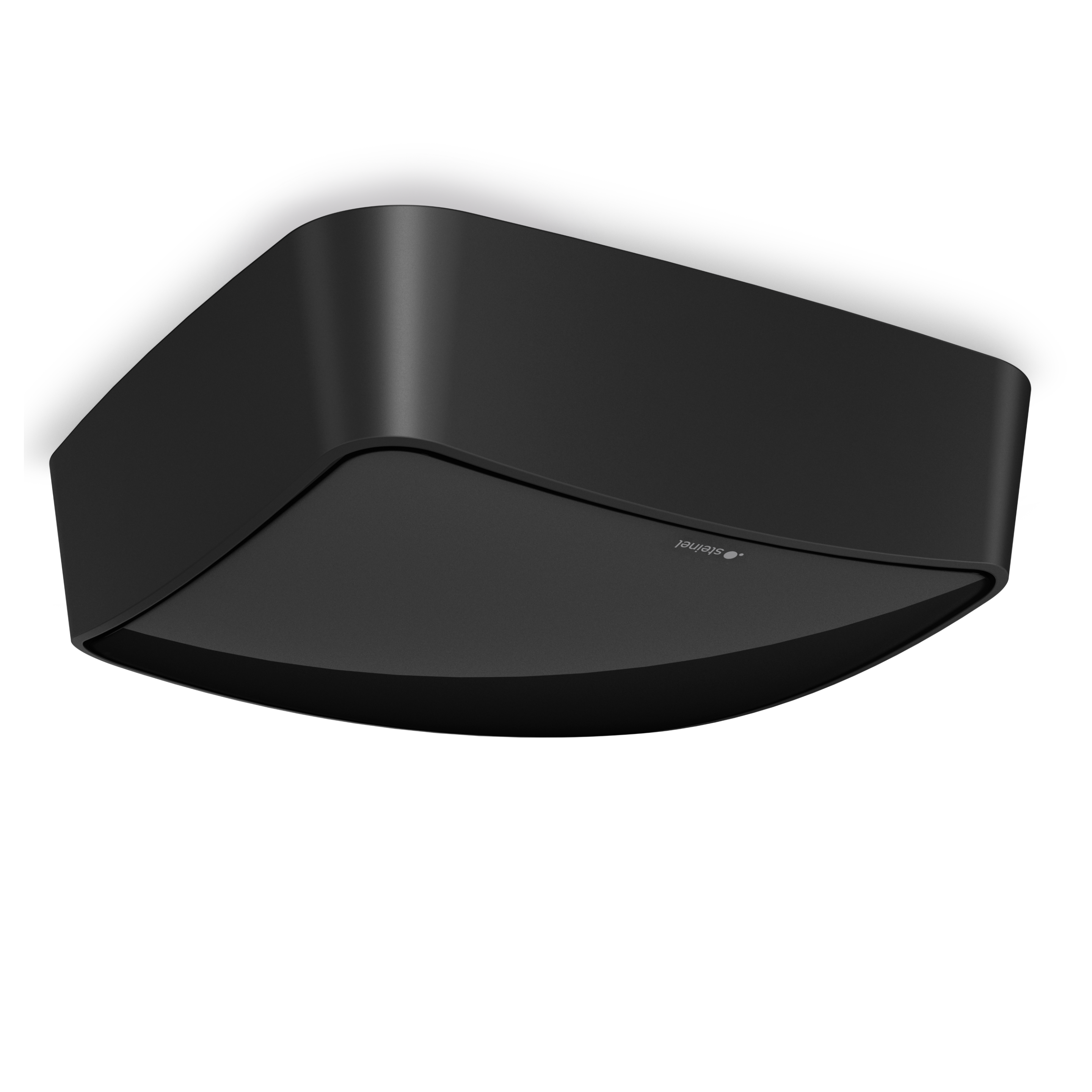

Steinel True Presence COM1 - surface black

EAN-No. 4007841068493

ELDAS® no. 068493

Price: Please log in to see prices

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535918109

Variants

Version 230V COM1

Colour Black

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 45 x 123 x 123 mm

PU1 net weight 0.2700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Switching output 1 resistive 2000 W

Switching output 1 low-voltage halogen lamps 2000 VA

Own consumption 1 W

Switching output 1 number of LED/fluorescent lamps 8.0000

Switching output 1 potential-free No

Maximum inrush current 800 A

Sensor technology

Max. mounting height 12,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, On / Off

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Bluetooth

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch No

Time setting 20 s – 60 Min.

Base light function No

Main light adjustable No

Settings via Bluetooth

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

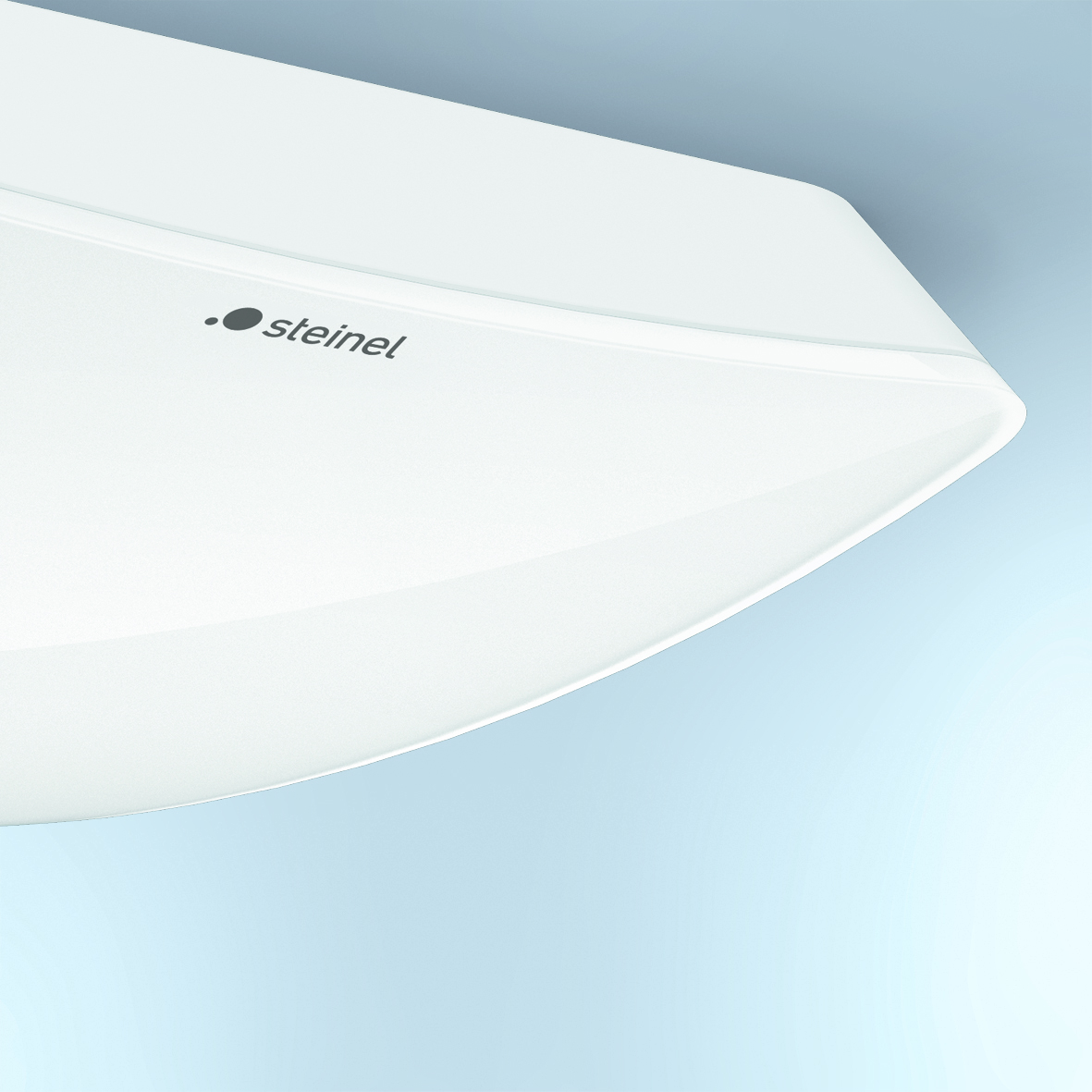

UV-resistant plastic

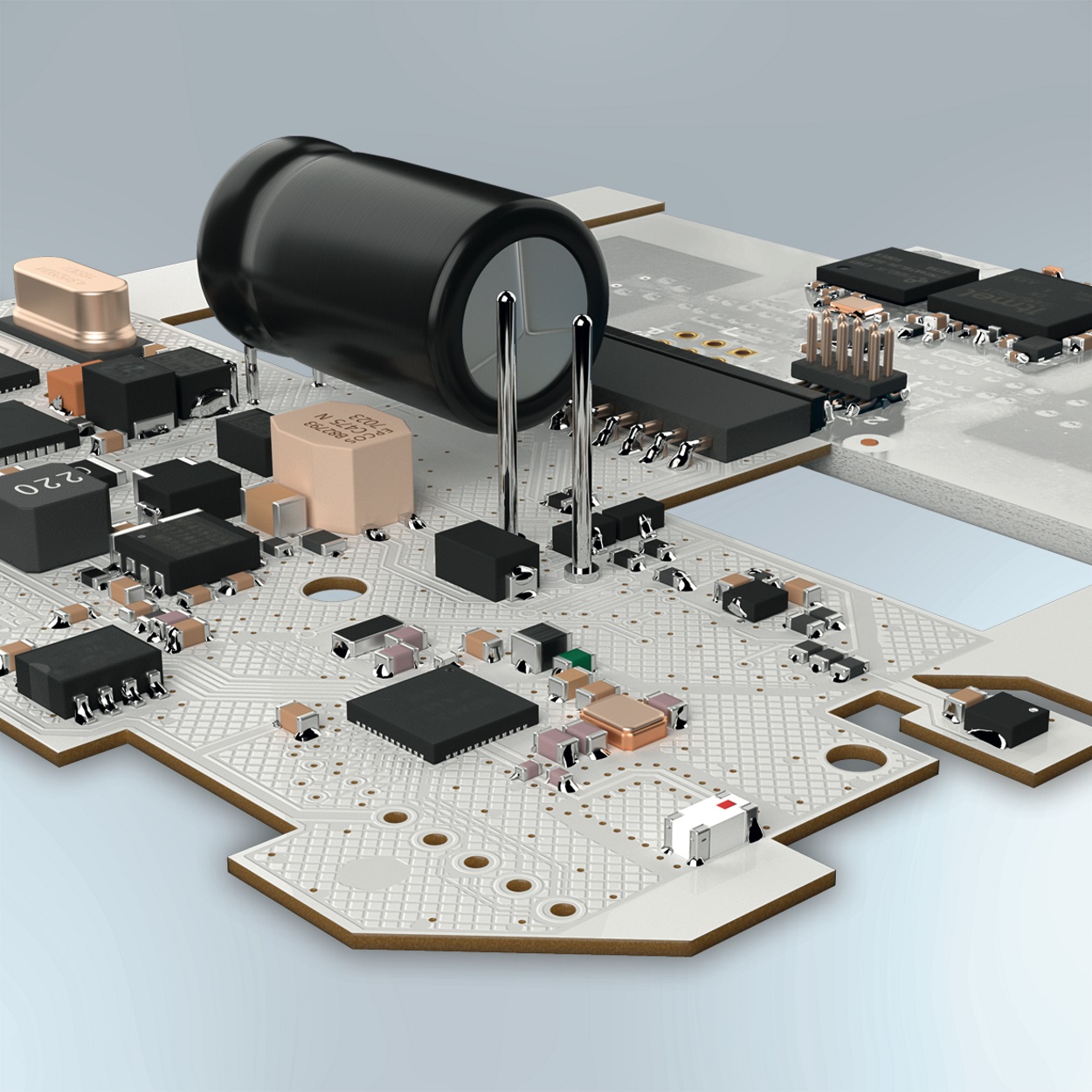

Digital high frequency sensor

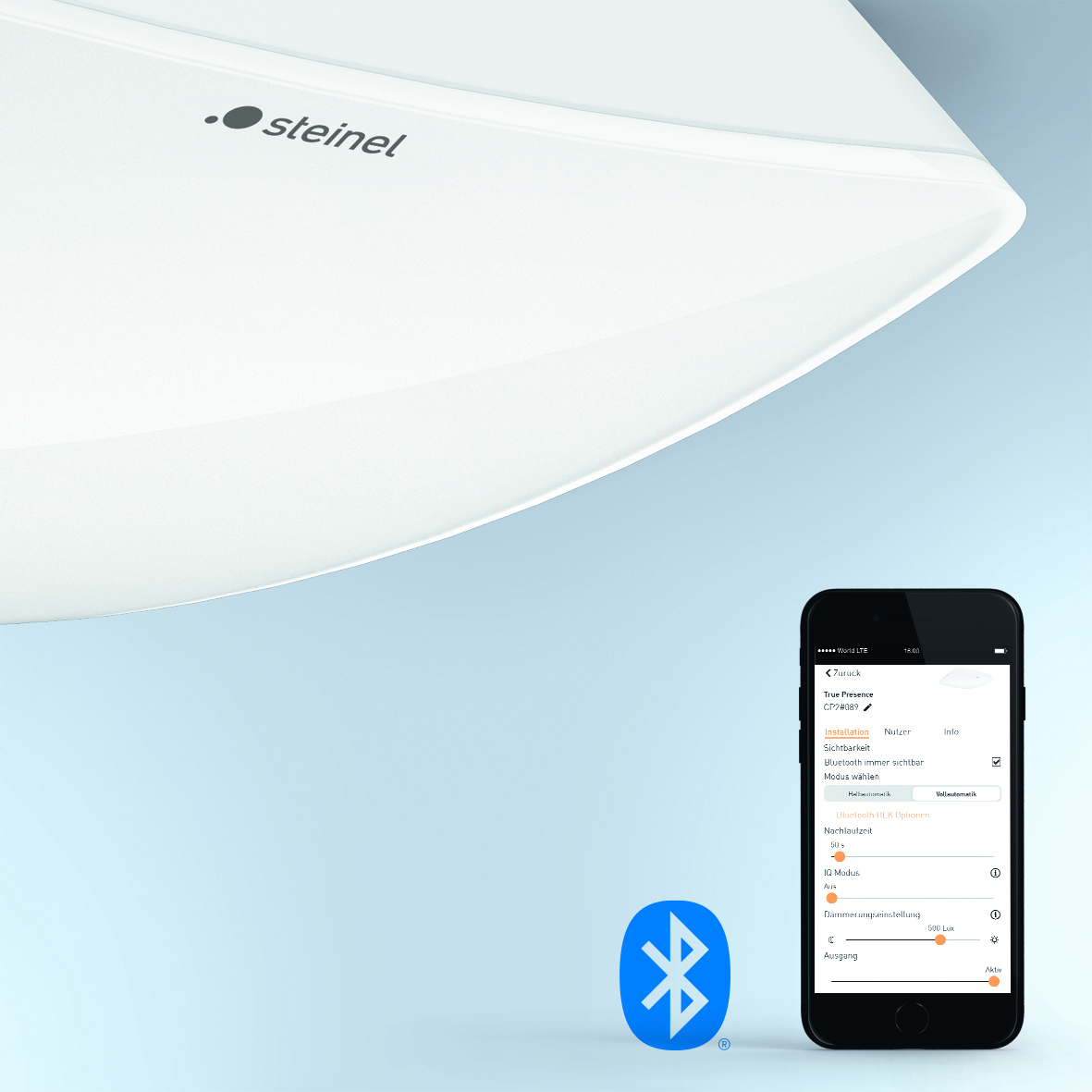

Interconnectable and adjustable via Bluetooth

Technical drawing

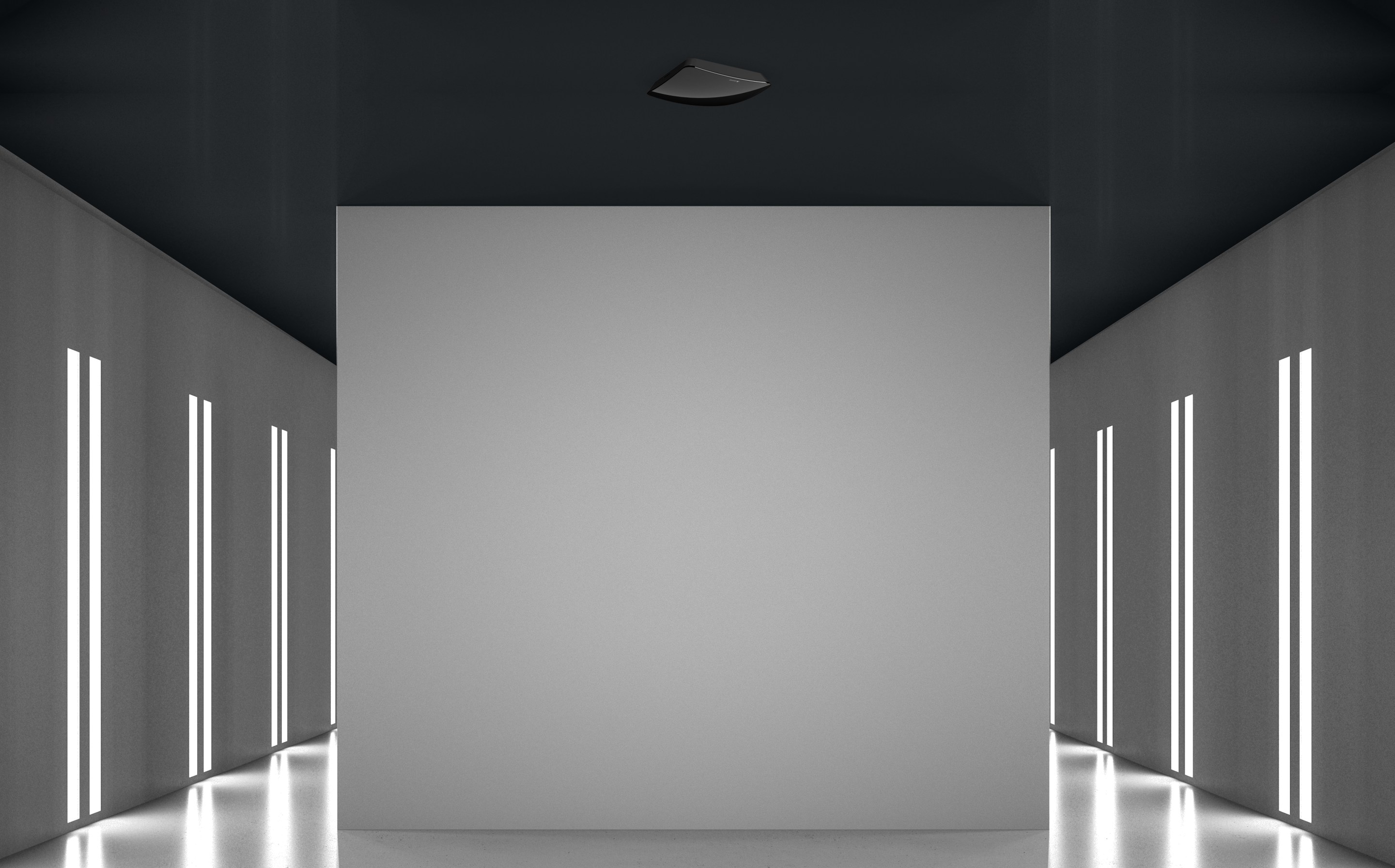

Sensor detection range

Wiring diagram 1

Master circuit diagram

Data sheet User manual Declaration of conformity Product brochure
