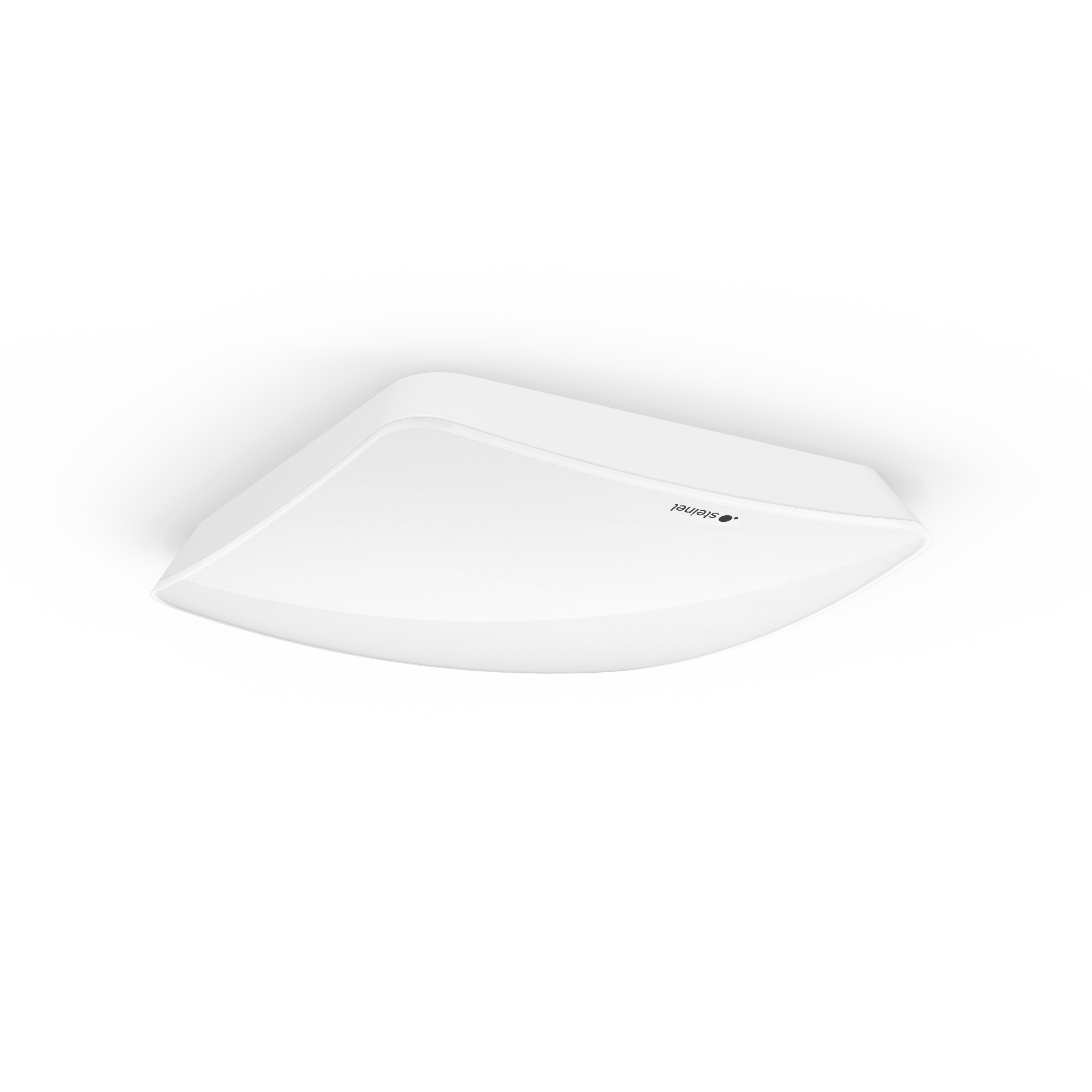

Steinel True Presence DALI-2 Input Device - concealed

Steinel True Presence DALI-2 Input Device - concealed

EAN-No. 4007841064495 · ELDAS® no. 064495

Highlights Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

Steinel True Presence DALI-2 Input Device - concealed

EAN-No. 4007841064495

ELDAS® no. 064495

Price: Please log in to see prices

Version

230V COM1 IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector
Manufacturer Steinel
E-number 535903073

Variants

Version DALI-2 Input Device
Colour White
Mounting type Flush-mounted

Dimensions

PU1 net weight 0.1480

Electrical

Mains connection 220 – 240 V
Control output DALI Addressable/slave
Max. current consumption per IEC 62386-101 2 mA

Sensor technology

Max. mounting height 12,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 7,2 GHz
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 15 m (177 m²)
Tangential range Ø 15 m (177 m²)
Mounting height 2 – 12 m
Presence range Ø 15 m (177 m²)
True Presence range Ø 9 m (64 m²)
Optimal mounting height 2,8 m
Max. mounting height True Presence detection 4,00 m
Nevalux sensor technology BT Open Mesh, DALI 2

Connectivity

Networking Yes
Networking via Bluetooth Mesh
Number of DALI participants 1.0000
With bus coupler Yes

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Base light function No
Main light adjustable No
Settings via Bluetooth Bus
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP20
Ambient temperature from -20 up to 50 °C
Mounting location ceiling
Application location Indoors
Mounting type Concealed wiring
Material Plastic
Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

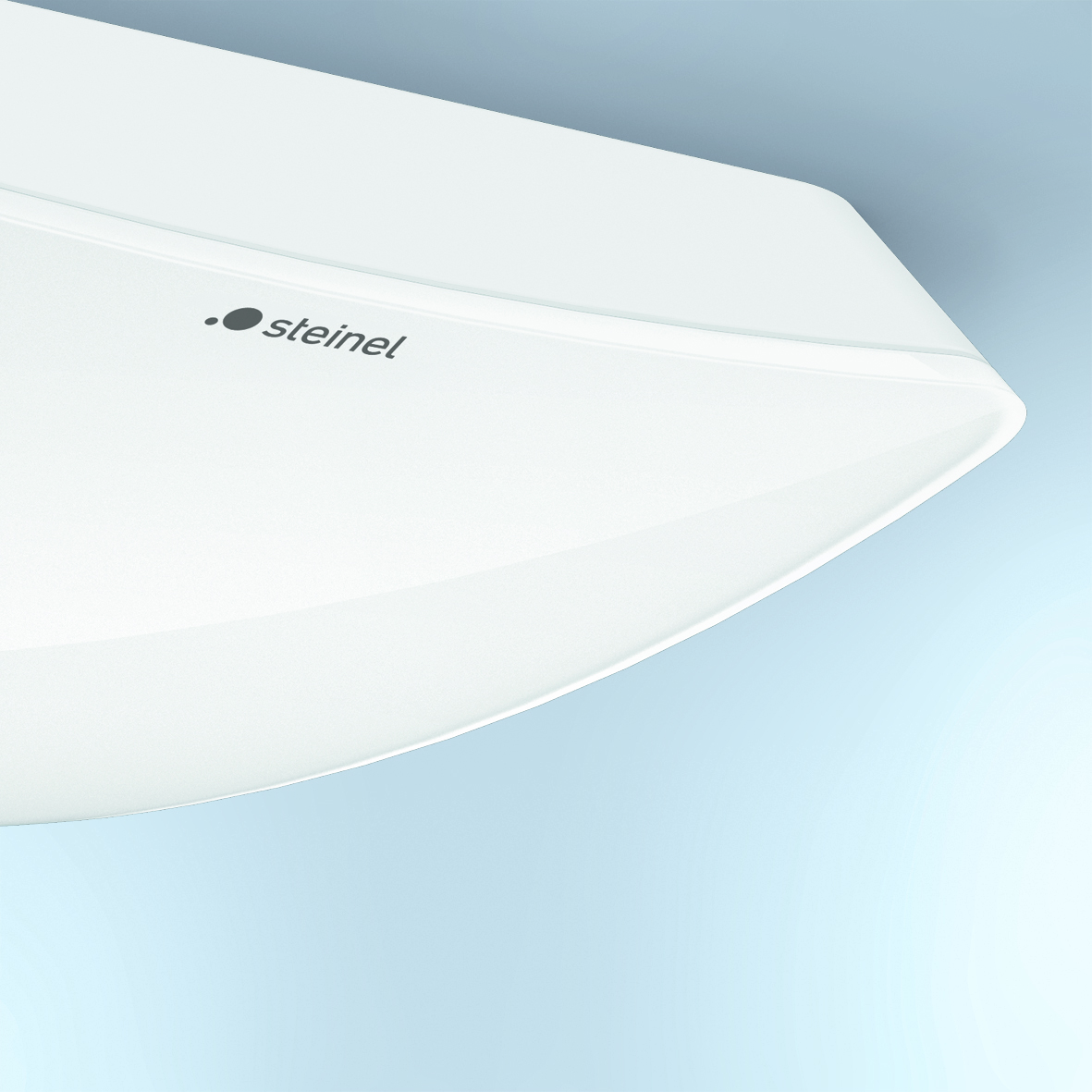

UV-resistant plastic

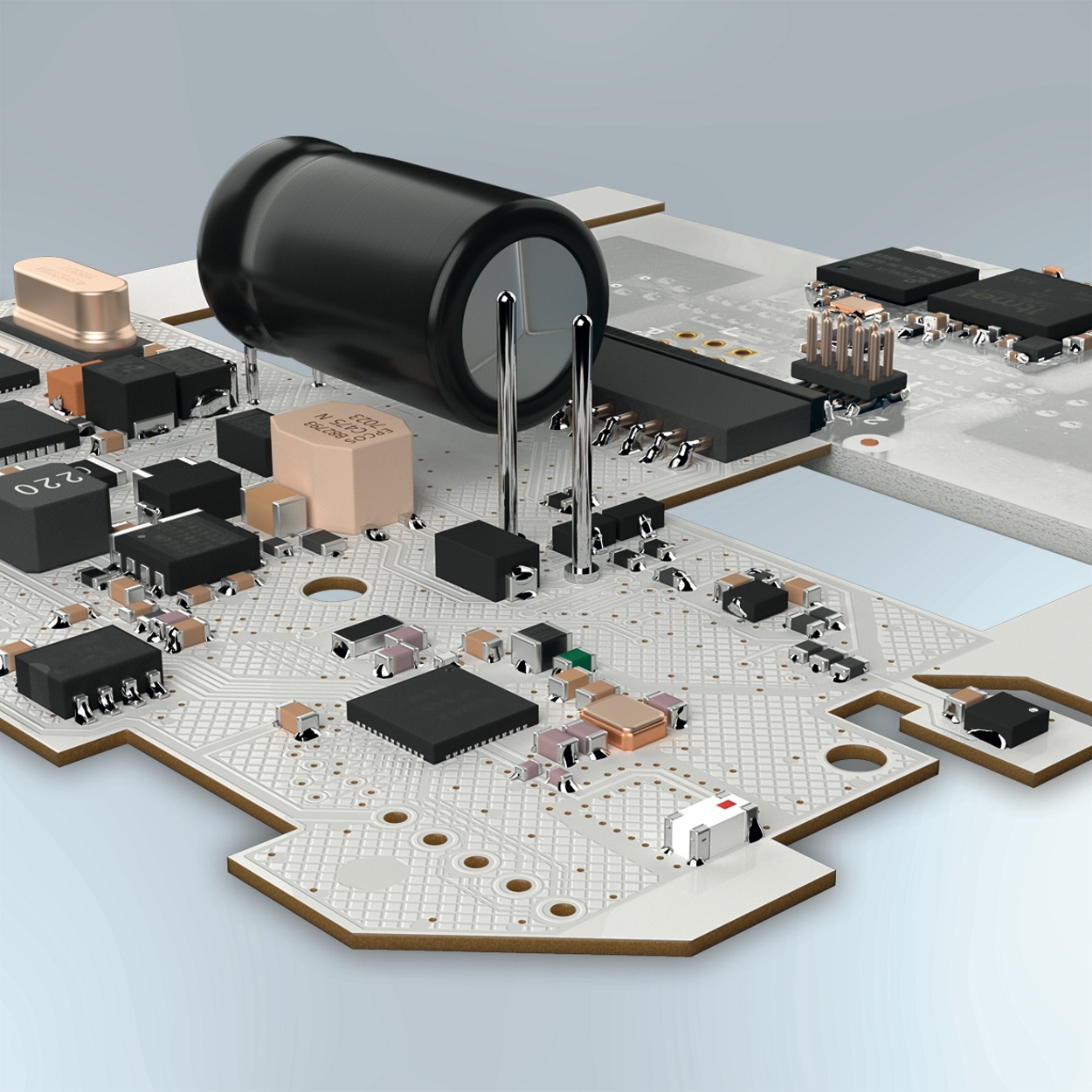

Digital high frequency sensor

Technical drawing

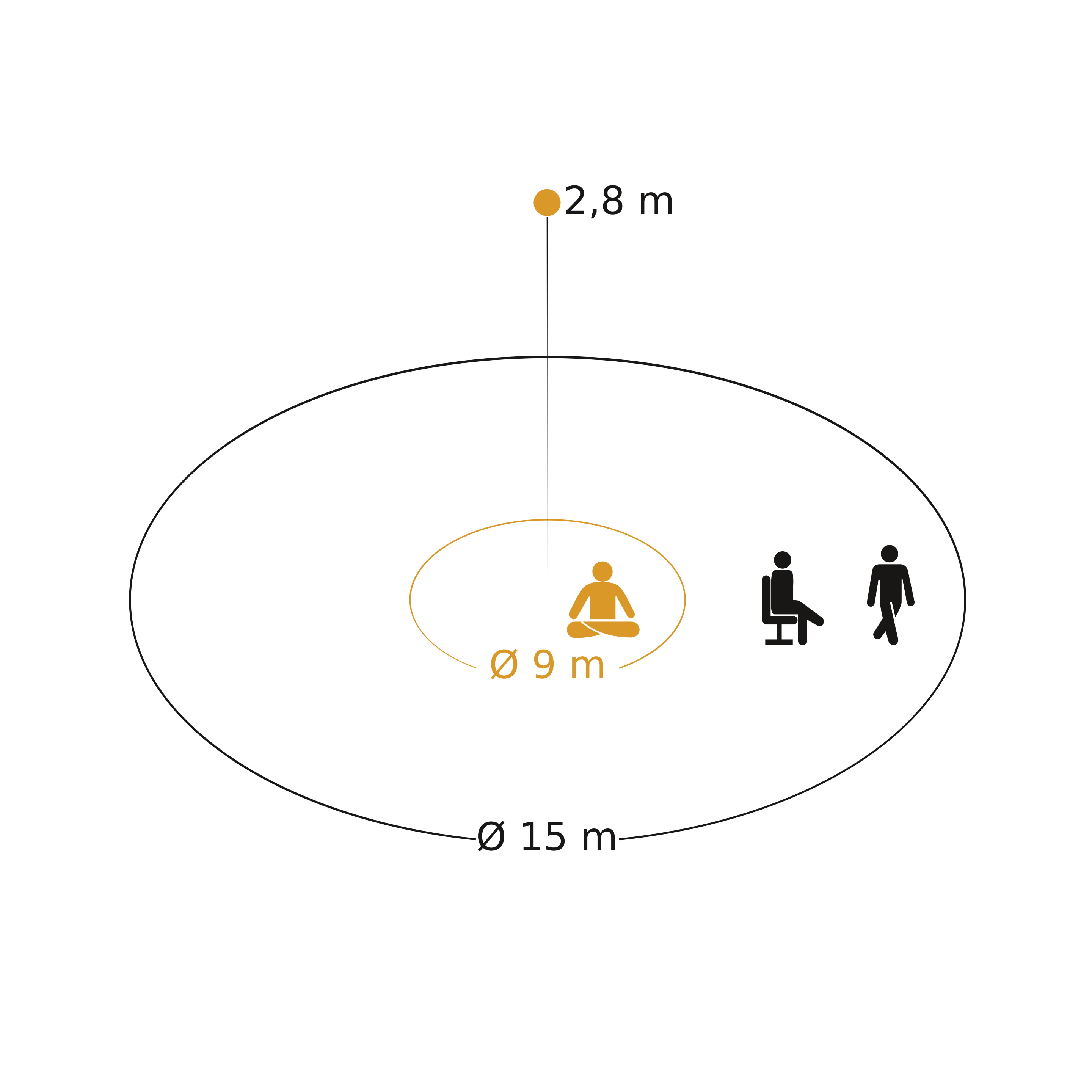

Sensor detection range

Wiring diagram 1

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD
