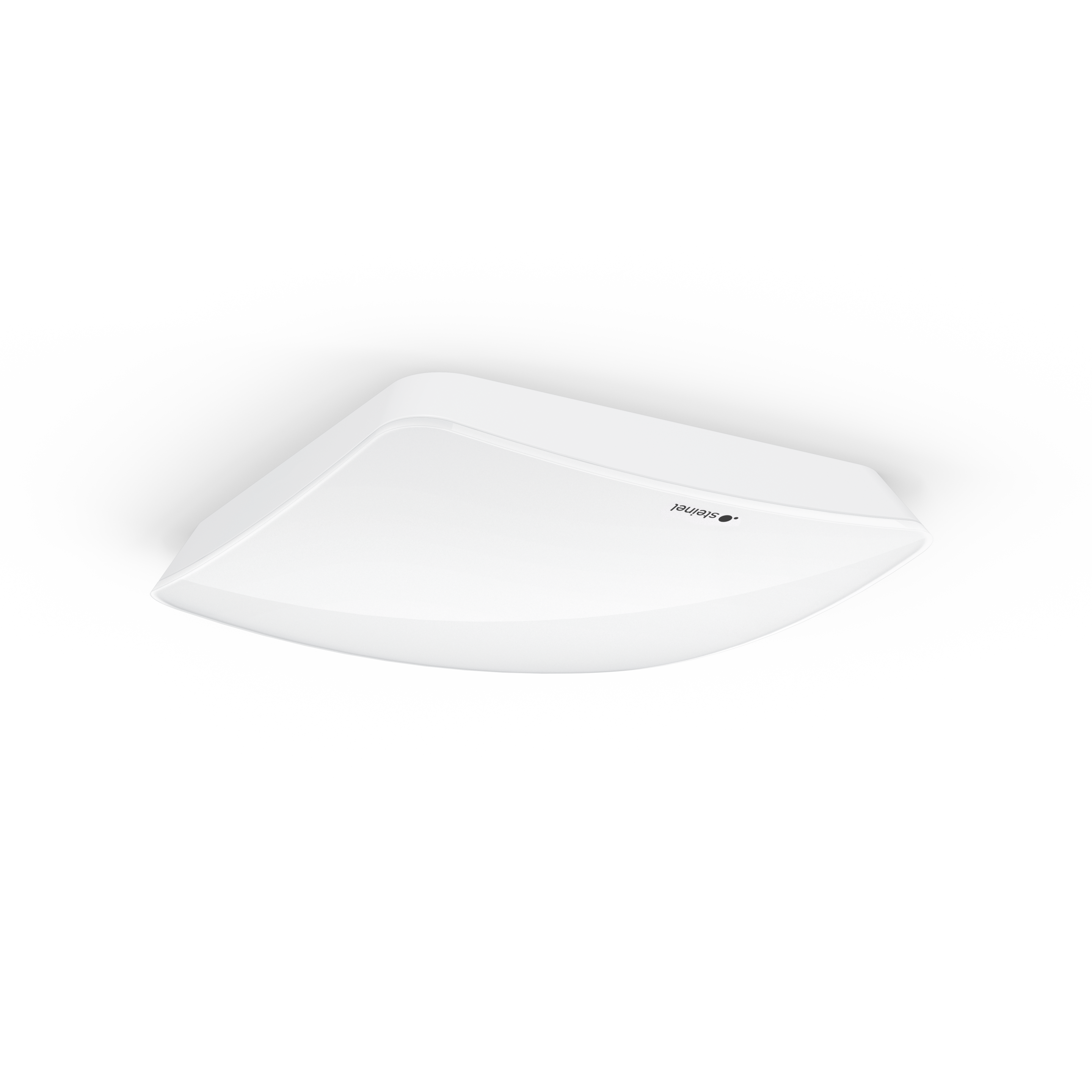

Steinel True Presence IP - concealed

EAN-No. 4007841085612

ELDAS® no. 085612

Price: Please log in to see prices

Version

230V COM1 IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535903111

Variants

Version IP (REST API, MQTT, BacNet)

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 52 x 103 x 103 mm

PU1 net weight 0.2500

Electrical

Mains connection 44 – 57 V

Power 1,1 W

Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 12,00 m

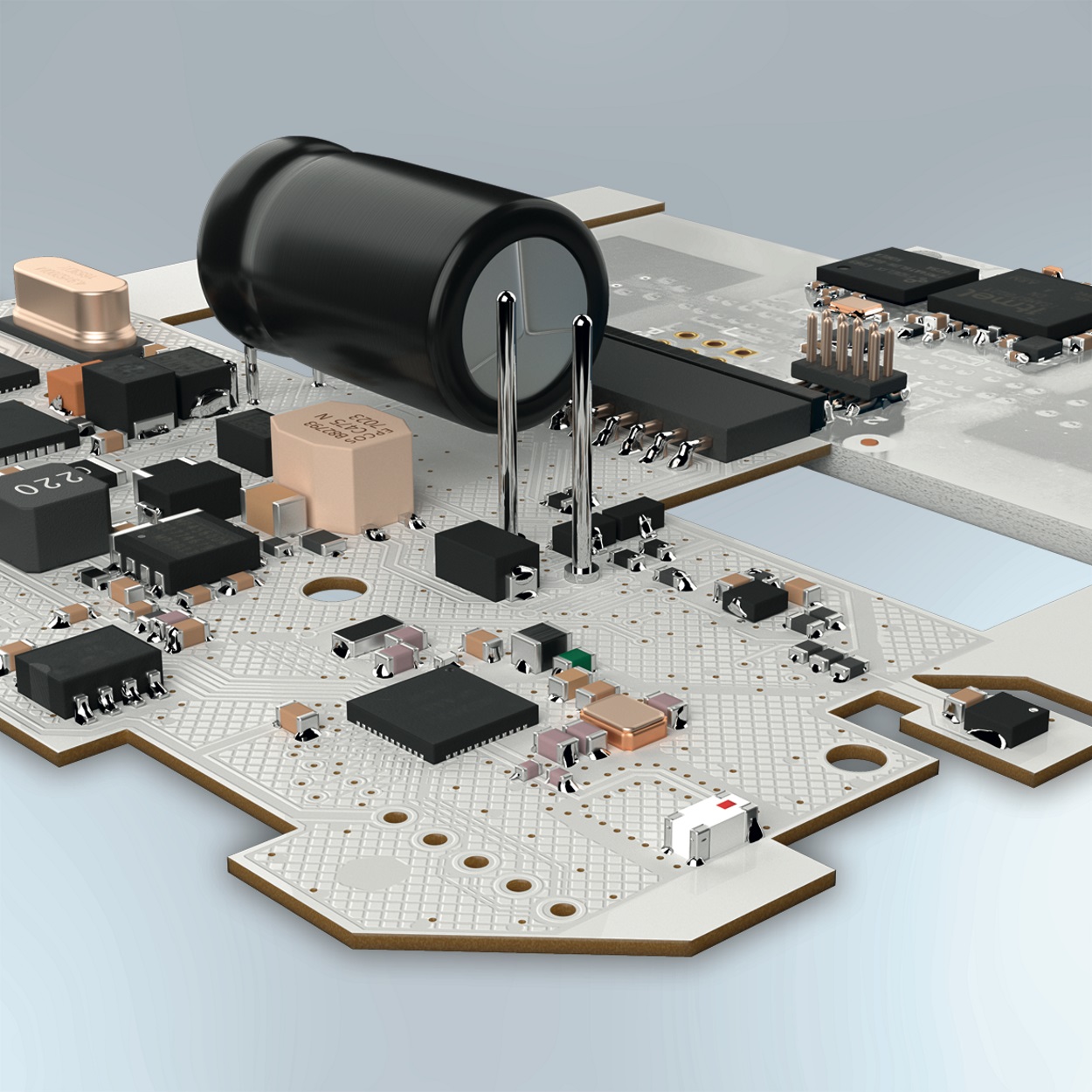

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

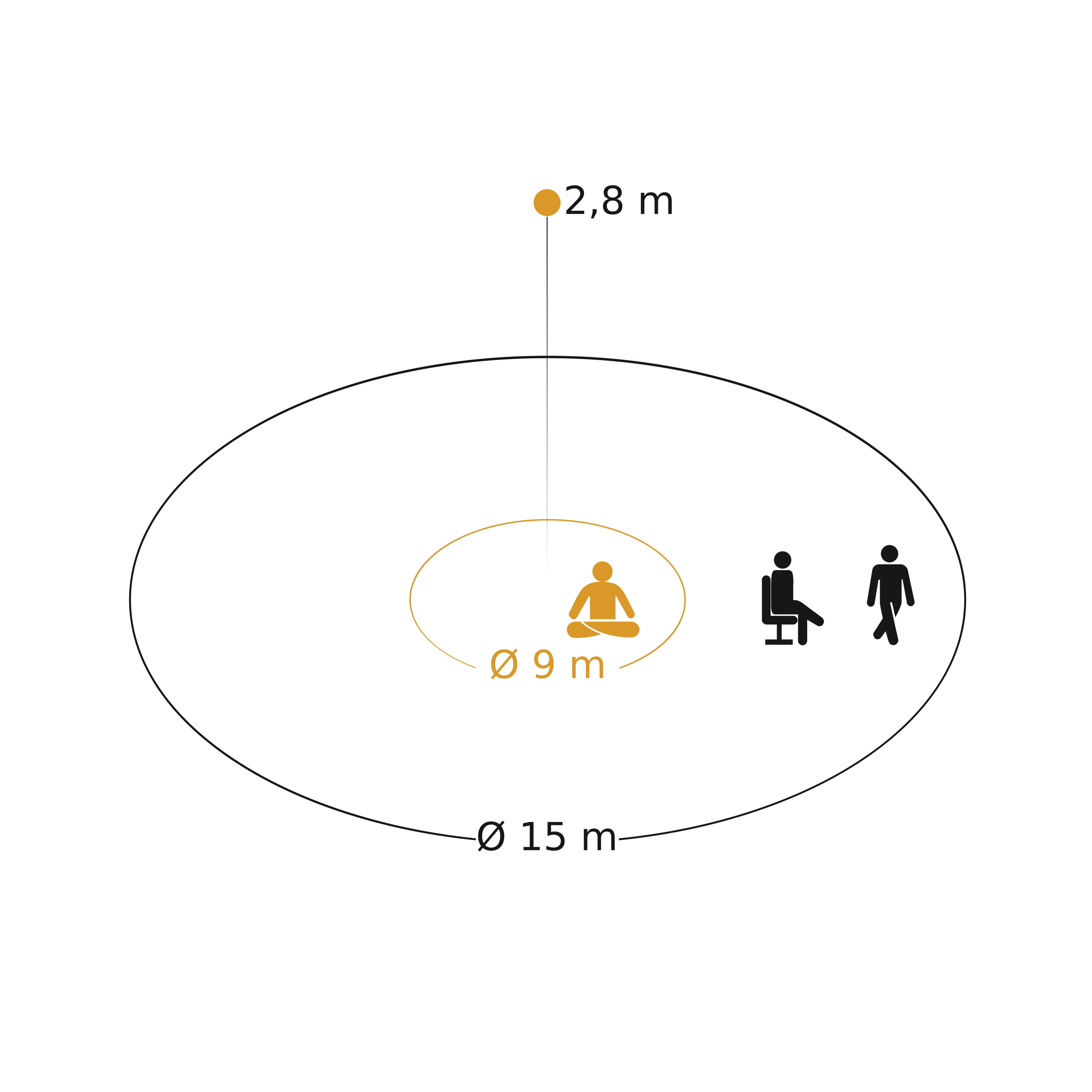

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, IP / IT

Connectivity

Networking Yes

Networking via Bluetooth Mesh

With bus coupler Yes

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bluetooth Mesh

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=0ee56a193683@steinel&rand=cdf6b1fbea74677fae6f38950421724e&lang=2&force=true&download=true&omitPreview=true

UV-resistant plastic
