Steinel XLED home 2 S black

EAN-No. 4007841033071

ELDAS® no. 033071

Price: Please log in to see prices

Version

Master Slave

Colour

White Black

Luminous flux

1484 lm 2120 lm

The moveable sensor-switched outdoor floodlight with fully swivelling LED panel in a classy opal look. The XLED home 2 S sensor-switched floodlight comes in a sophisticated design. It is not just an eye-catcher, but also a truly talented mover. Thanks to the fully swivelling LED panel, every corner of the entrance area can be illuminated flexibly and as required. The highly efficient LED technology coupled with the opal cover provides maximum lighting comfort. As an individual floodlight or interconnected with the slave version, the innovative new generation of the XLED home success series is available in white, black, graphite and silver.

Spotlight with motion detector and fully swivelling LED panel in noble opal look
Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

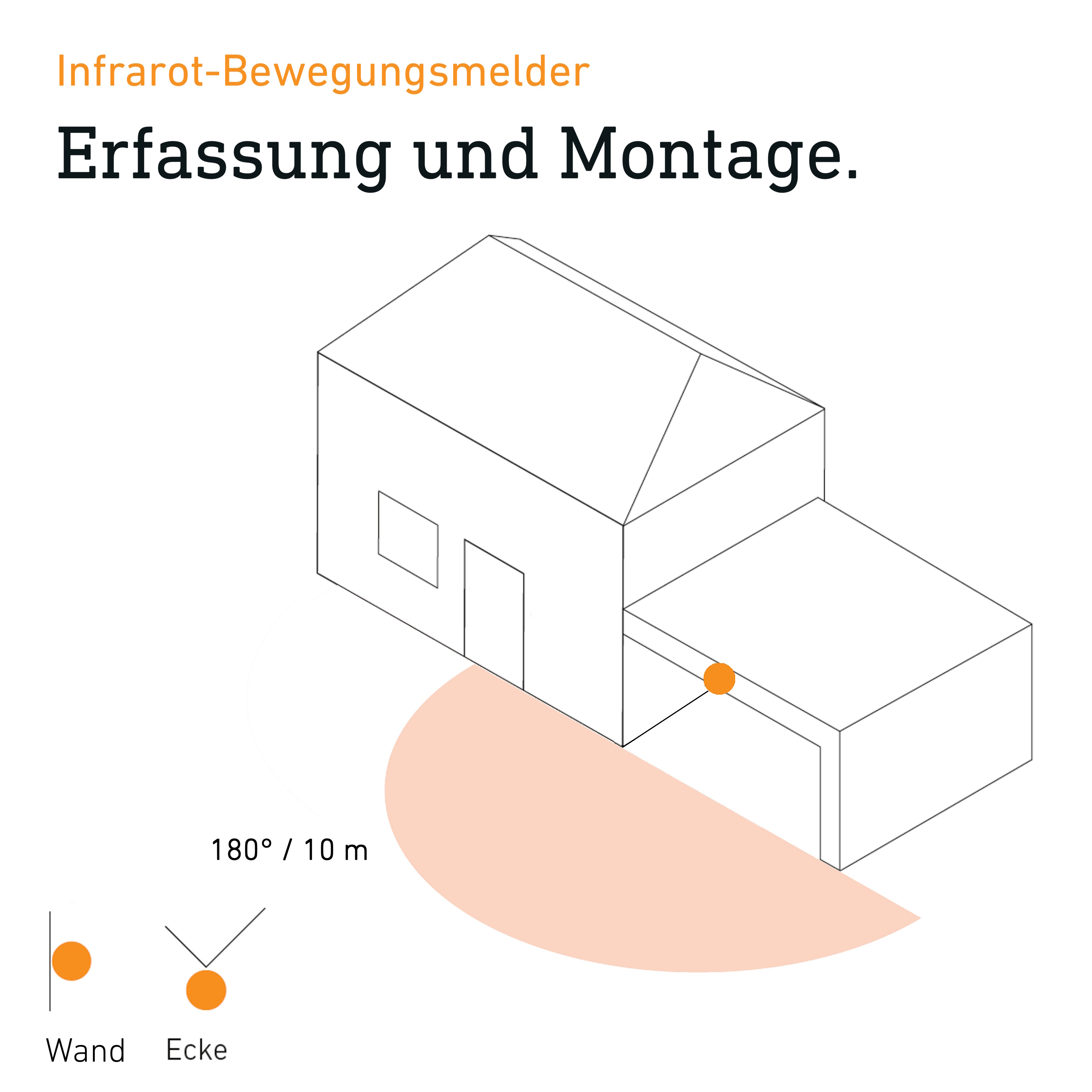

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement

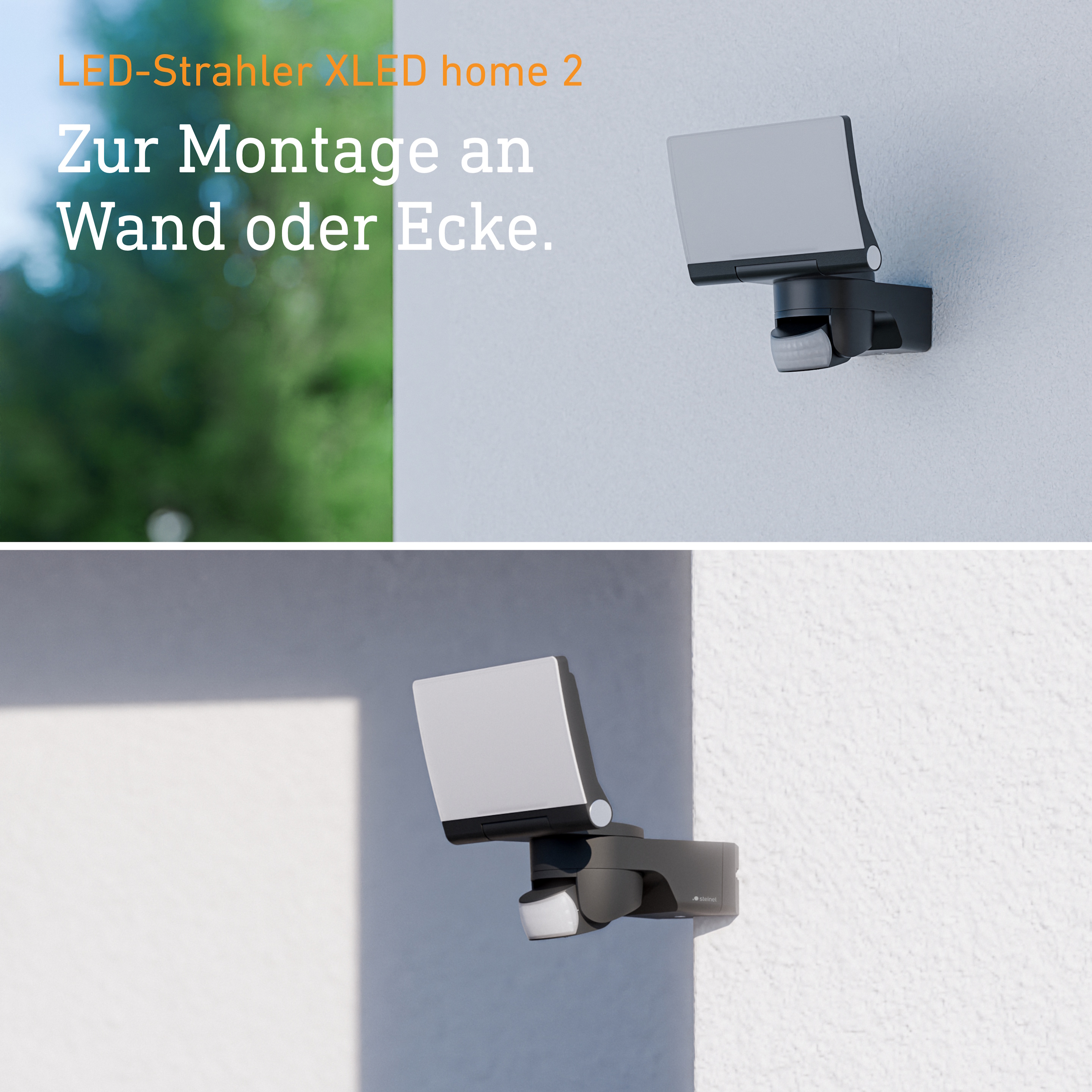

Optional corner wall bracket available for reliable and uninterrupted monitoring of an area in front of two house walls
Warm white light (3000 K) and long-life 13,7 W LEDs with 1550 lm, with an illumination of max. 150 sqm, max. 4m mounting height
Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel

E-number 924700188

Variants

Version Master

Colour Black

Luminous flux 1484 lm

Housing colour Black

Dimensions

Dimensions L × W × H 161 x 180 x 218 mm

PU1 net weight 0.5650

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 13,7 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 35 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 5 m (39 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,80 – 4,00 m

Optimal mounting height 2 m

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 1550 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system HCMC (High Conductive Magnesium Composite)

Soft light start No

Photobiological safety per EN 62471 Sonstige

Lifetime

LED lifetime max. °C 50000 h

LED lifetime L70B50 25°C > 60000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

Twilight setting teach No

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material HCMC

Cover material Plastic, opal

Mounting location wall corner

Application location Outdoors

Mounting type Surface wiring

Application room outdoors all round the building terrace / balcony courtyard & driveway

Colour black

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Light source

Cross-/up-selling

Accessories 21316,21314,21307

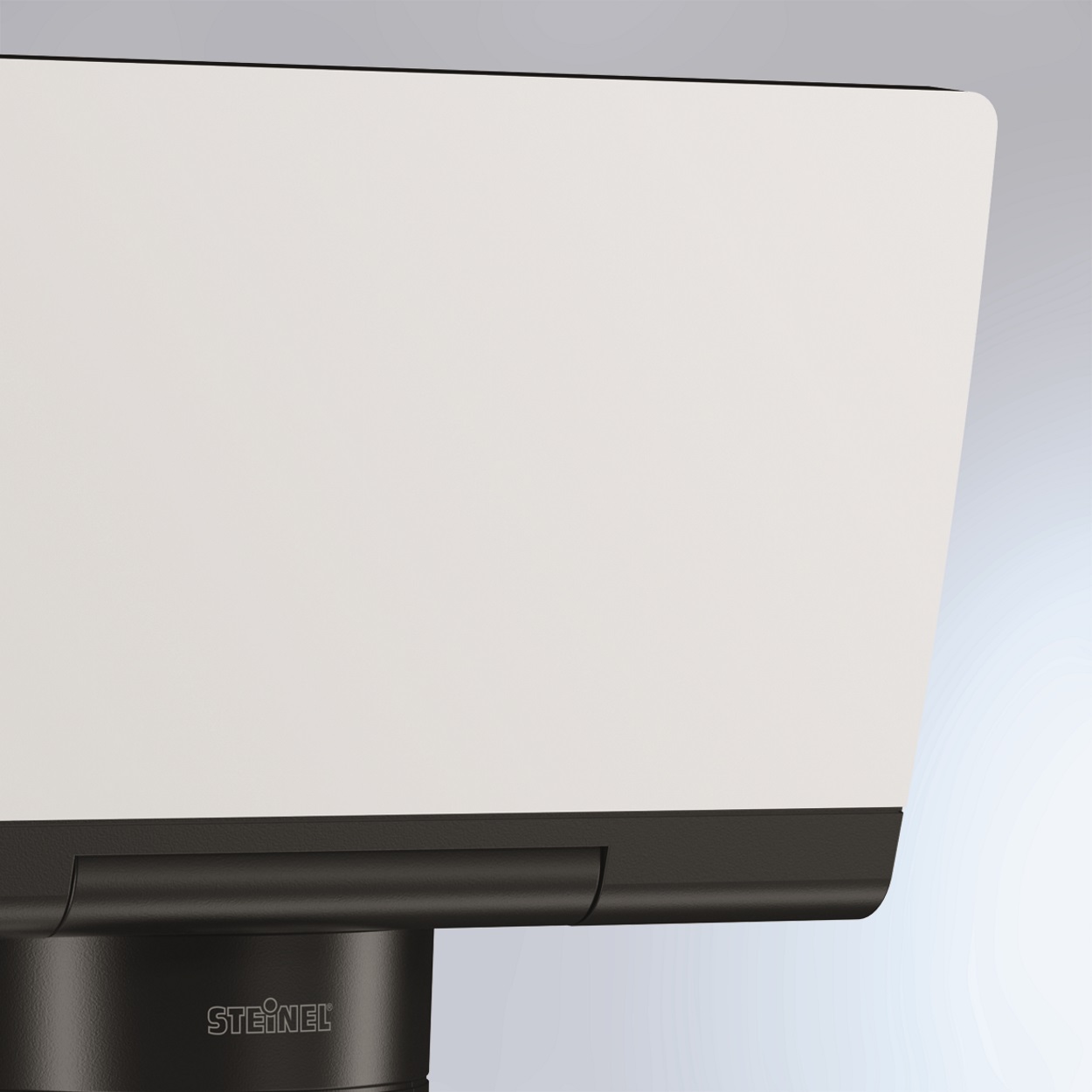

Including STEINEL LED system

HCMC cooling system

UV-resistant plastic

Colour rendering index Ra ≥80

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram

Data sheet LDT file (light distribution)
