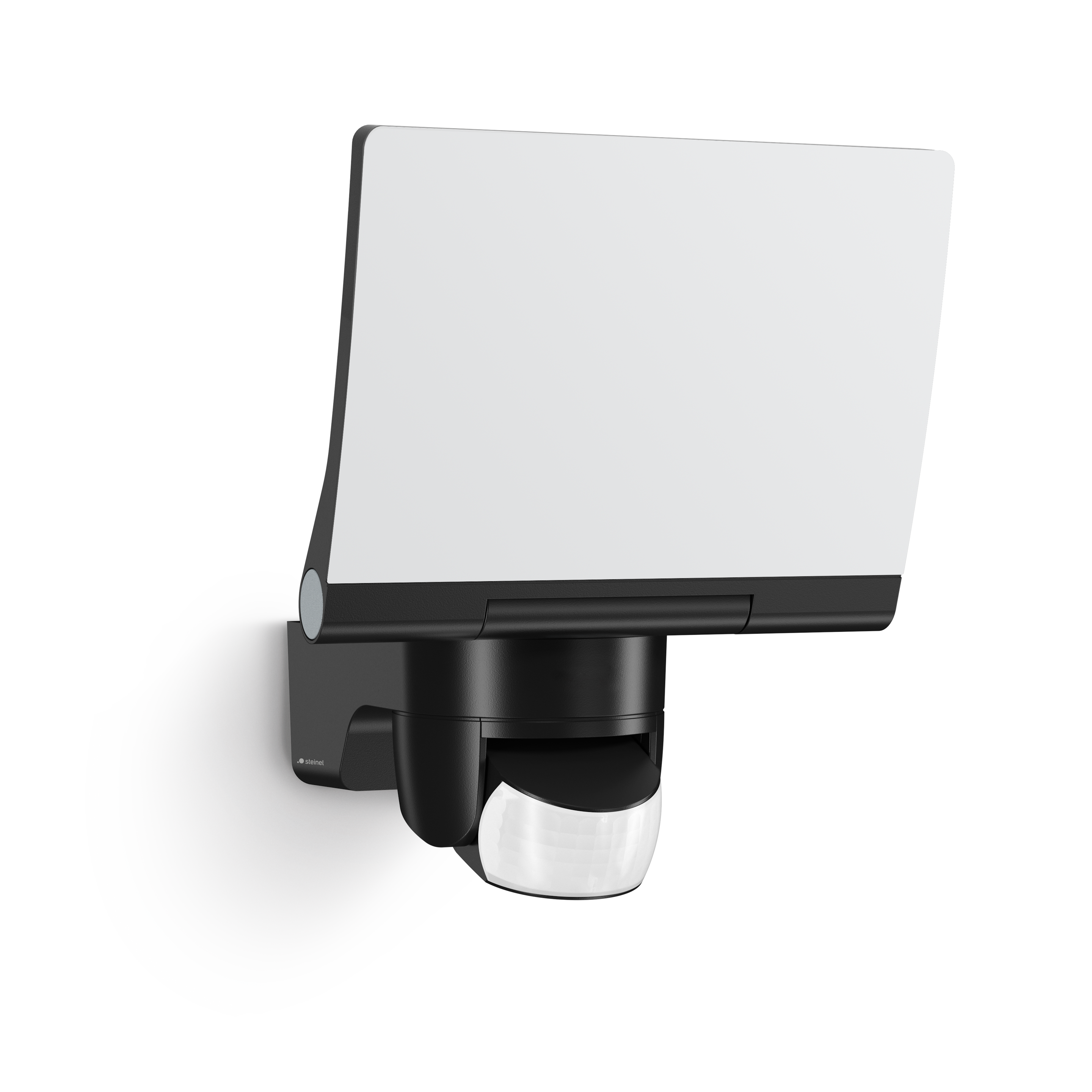

Steinel XLED home 2 XL S black

EAN-No. 4007841030049

ELDAS® no. 030049

Price: Please log in to see prices

Version

Master Slave

Colour

White Black

Luminous flux

1484 lm 2120 lm

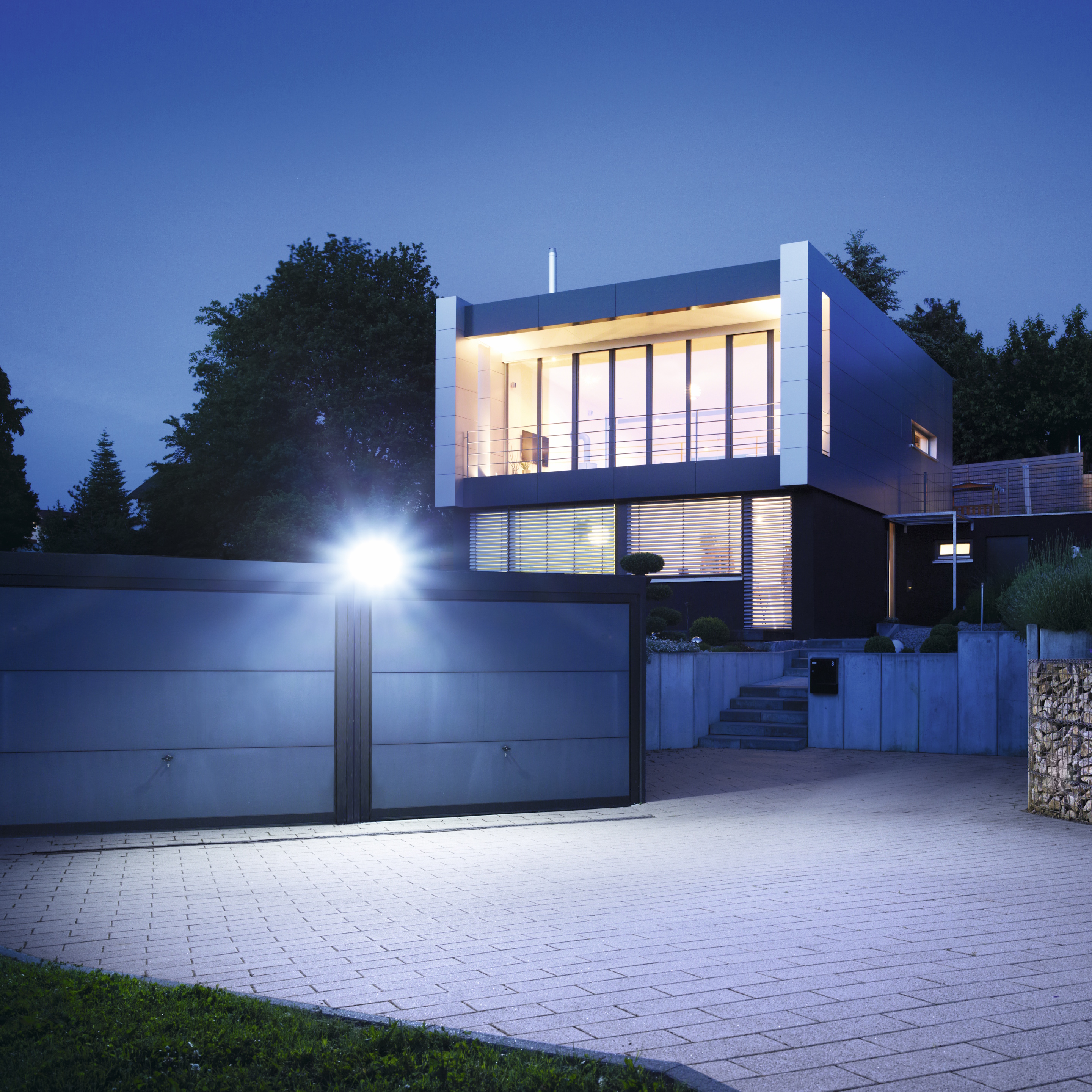

The powerful XLED home 2 XL S sensor-switched outdoor floodlight is the first choice for those who like it particularly bright or need to illuminate large areas. Innovative, highly efficient LEDs ensure the perfect illumination of driveways, courtyards and gardens. With an energy consumption of just 19,3 W. The XLED home 2 XL S is also a moving wonder. The fully swivelling LED panel ensures maximum flexibility. In combination with the opal cover, the floodlight ensures optimum lighting conditions around the home with a colour temperature of 3000 K.

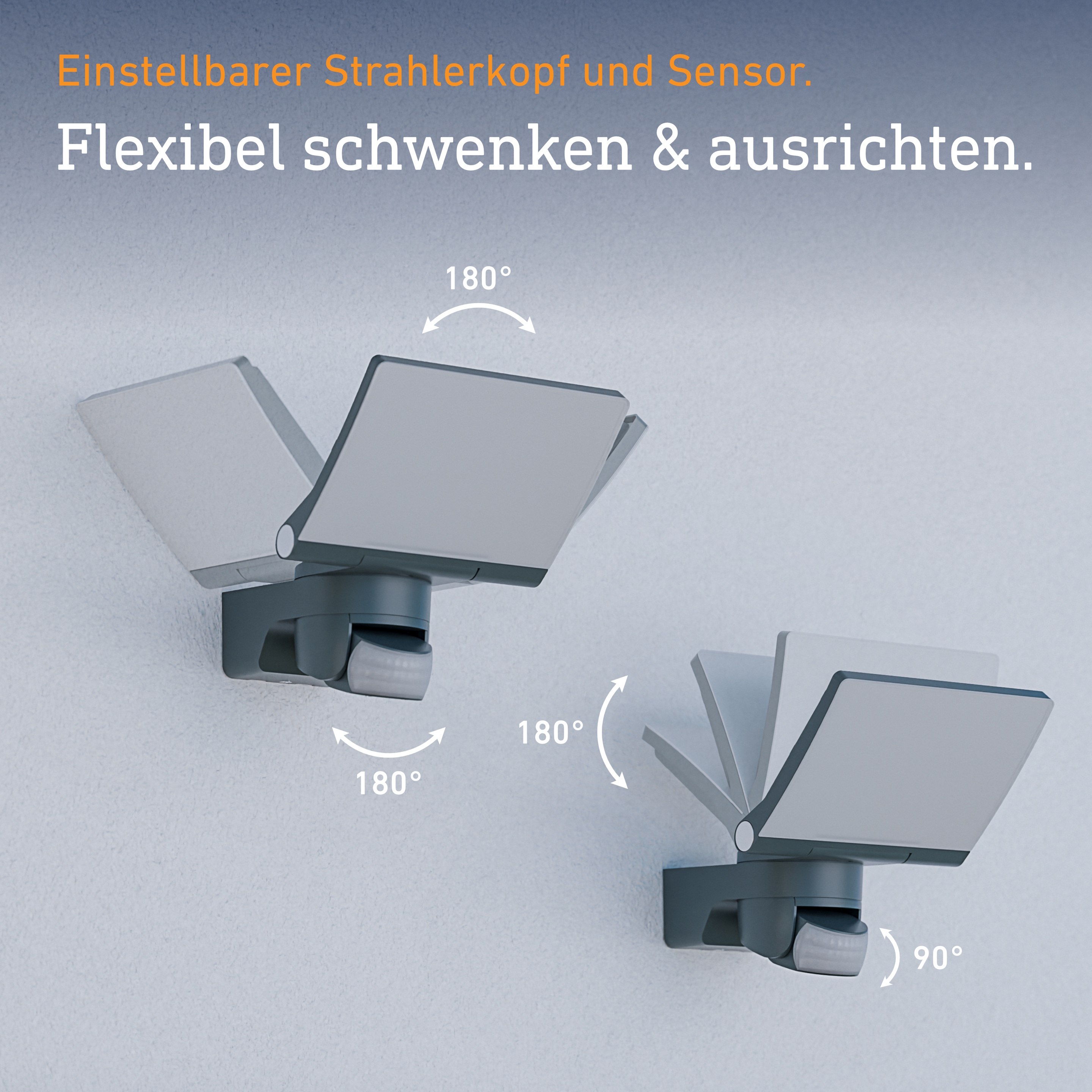

Spotlight with motion detector and fully swivelling LED panel in elegant opal look, ideal for illuminating larger areas such as driveways, patios or gardens
Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

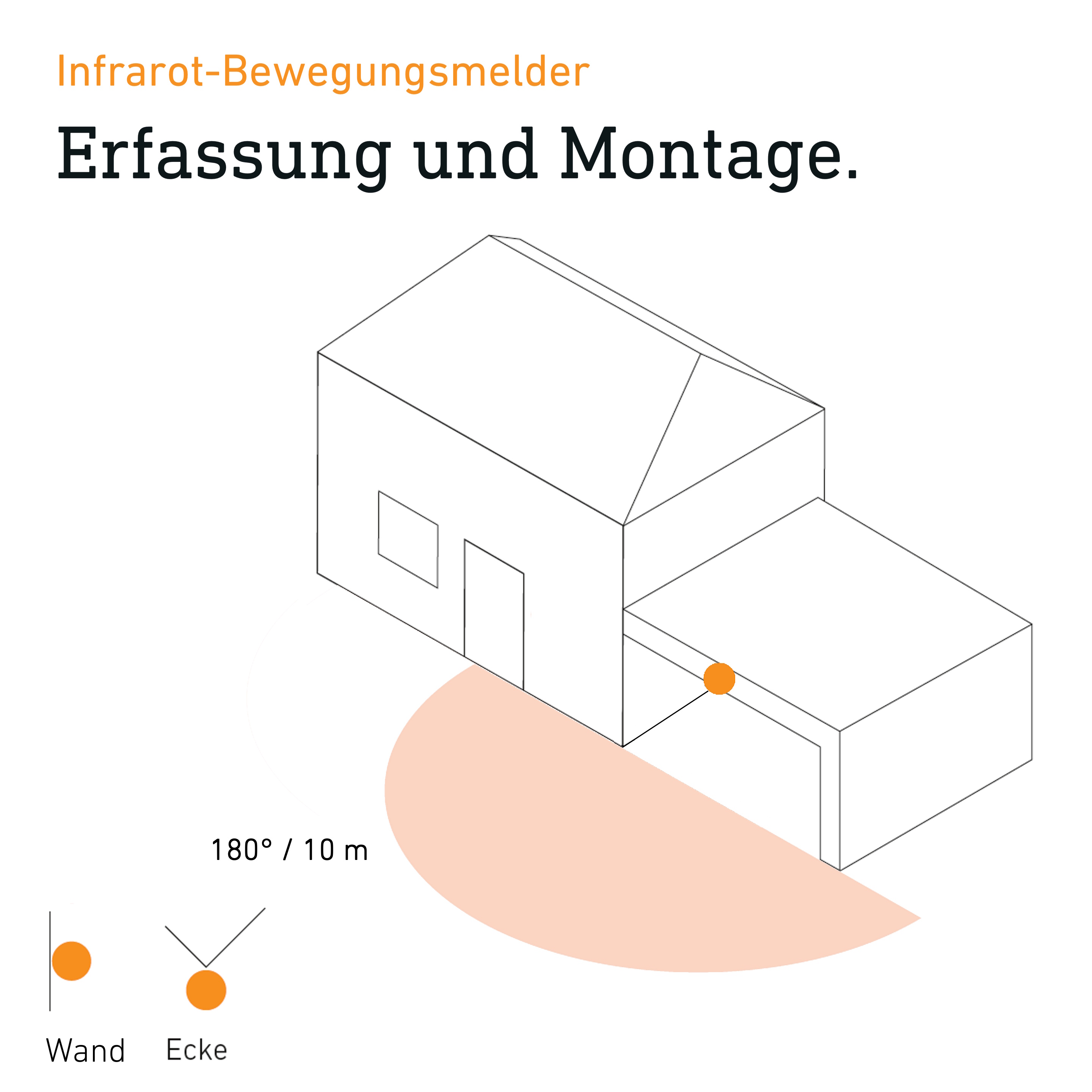

Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement

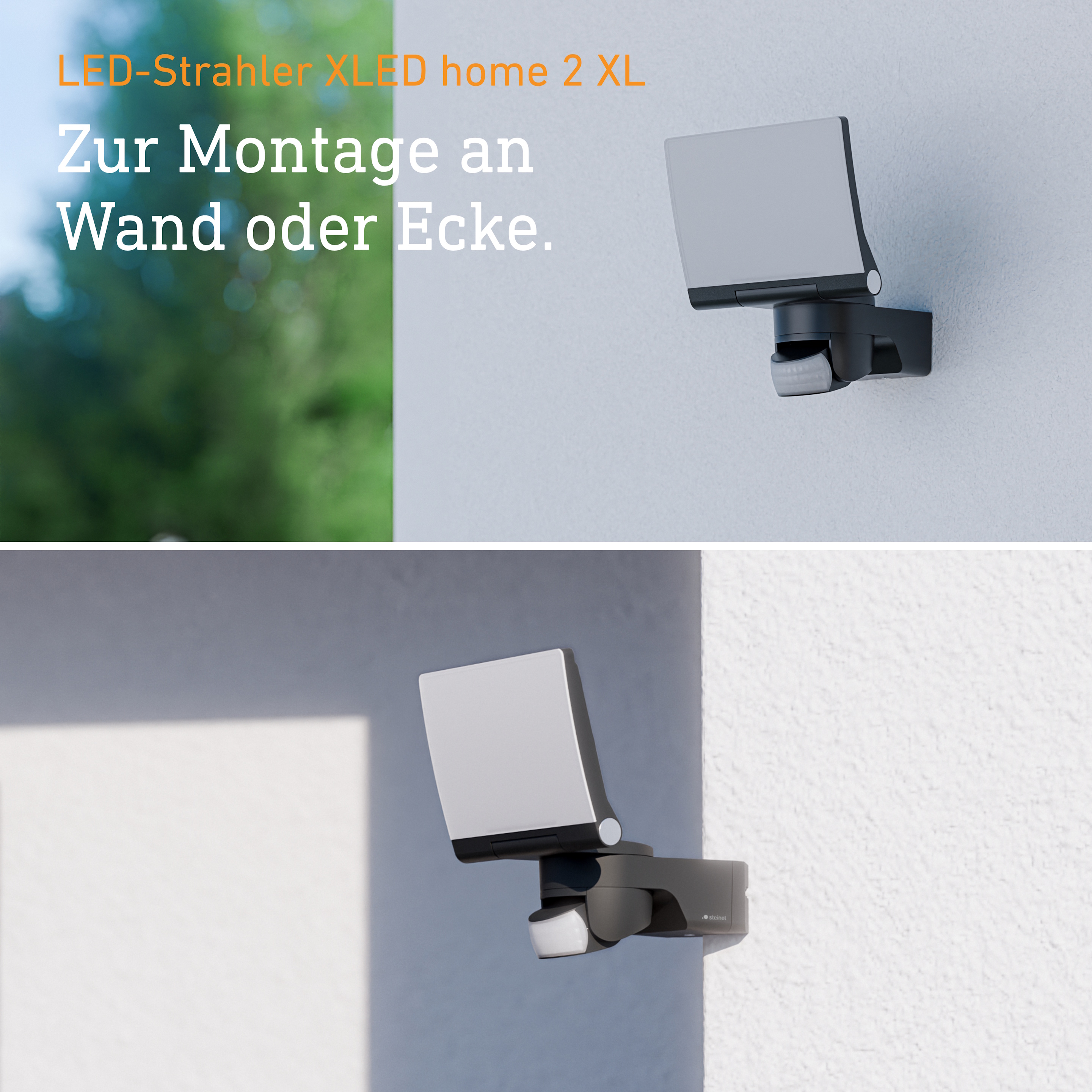

Optional corner wall bracket available for reliable and uninterrupted monitoring of an area in front of two house walls
Warm white light (3000 K) and long-life 19,3 W LEDs with 2124 lm, with an illumination of over 300 sqm, max. 4m mounting height
Incl. mounting accessories - plastic-free packaging

Identification

Manufacturer Steinel

E-number 924700183

Variants

Version Master

Colour Black

Luminous flux 2120 lm

Housing colour Black

Dimensions

Dimensions L × W × H 161 x 180 x 240 mm

PU1 net weight 0.6140

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 19,3 W

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 5 m (39 m²)

Tangential range r = 10 m (157 m²)

Mounting height 1,8 – 4 m

Optimal mounting height 2 m

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 2124 lm

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system HCMC (High Conductive Magnesium Composite)

Photobiological safety per EN 62471 Sonstige

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

Twilight setting teach No

Housing & material

Protection class (IP) IP44

Protection class II

Ambient temperature from -20 up to 40 °C

Housing material Plastic

Cover material Plastic, opal

Cover material (scope of delivery) sticker

Mounting location wall corner

Application location Outdoors

Mounting type Surface wiring

Application room outdoors all round the building terrace / balcony courtyard & driveway

Colour black

Scope of delivery & warranty

Manufacturer warranty 5 years

Certificates & EPREL

EPREL energy efficiency class E

EPREL category Light source

Cross-/up-selling

Accessories 21316

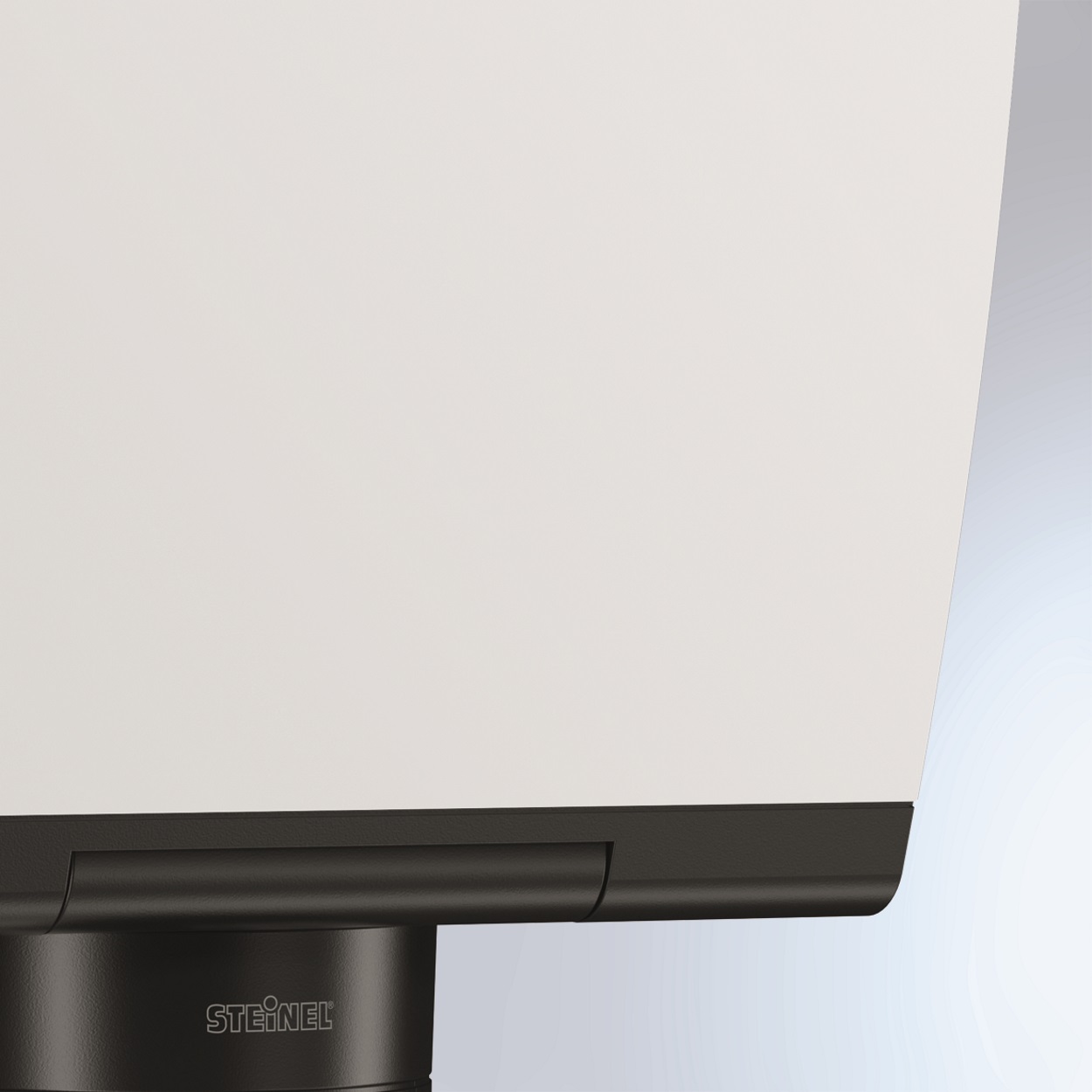

Including STEINEL LED system

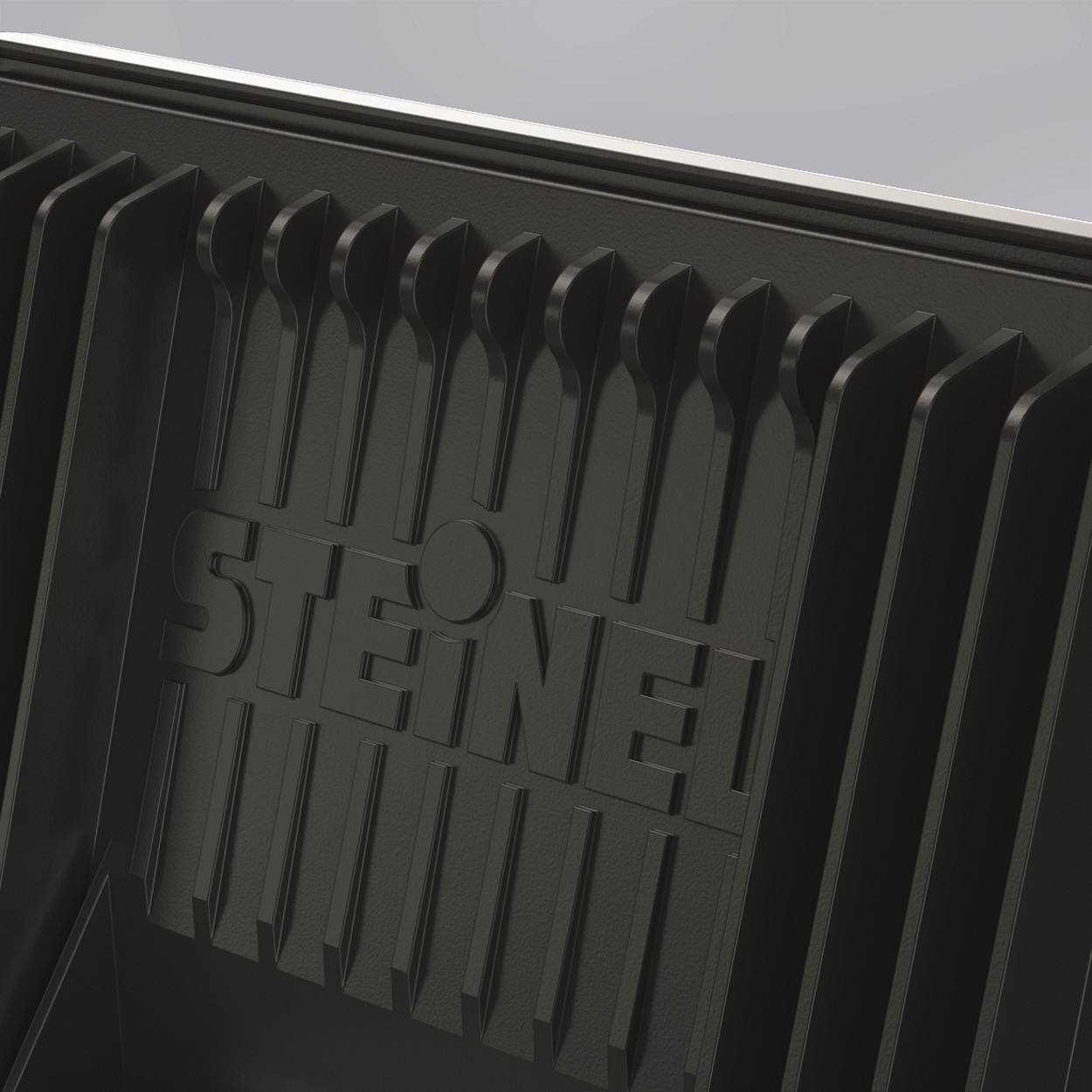

HCMC cooling system

UV-resistant plastic

Colour rendering index Ra ≥80

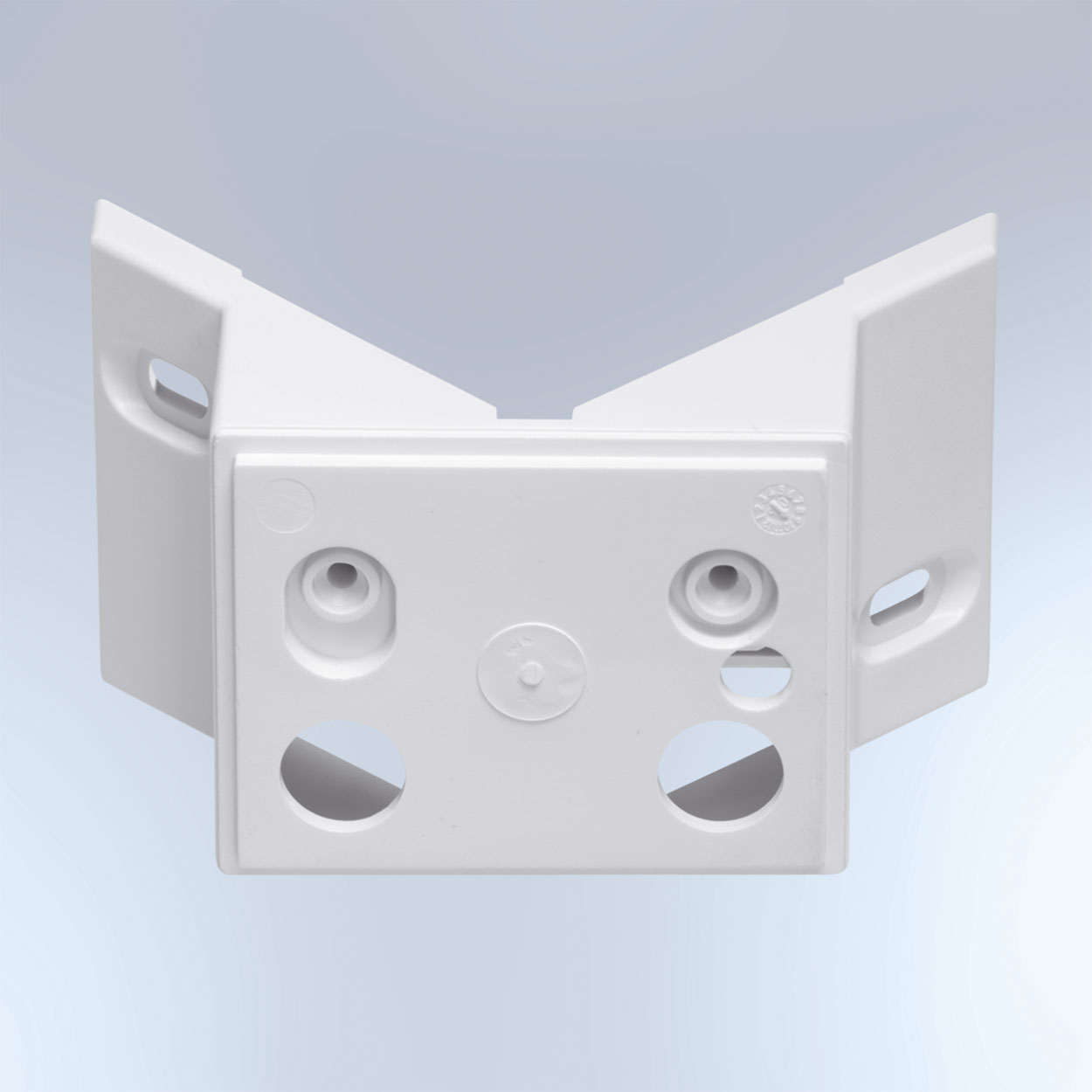

Optional corner wall mount bracket

Technical drawing

Sensor detection areas

Wiring diagram 1

Circuit diagram

Data sheet Drilling template

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse graphite

Item no. 053086

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse white

Item no. 055615

Corner wall mount XLED Home 2/ Protect/ Pro 240 black

Item no. 055875

Corner wall mount XLED Home 2/ Protect/ Pro 240/ PRO Expanse Silver

Item no. 053109
