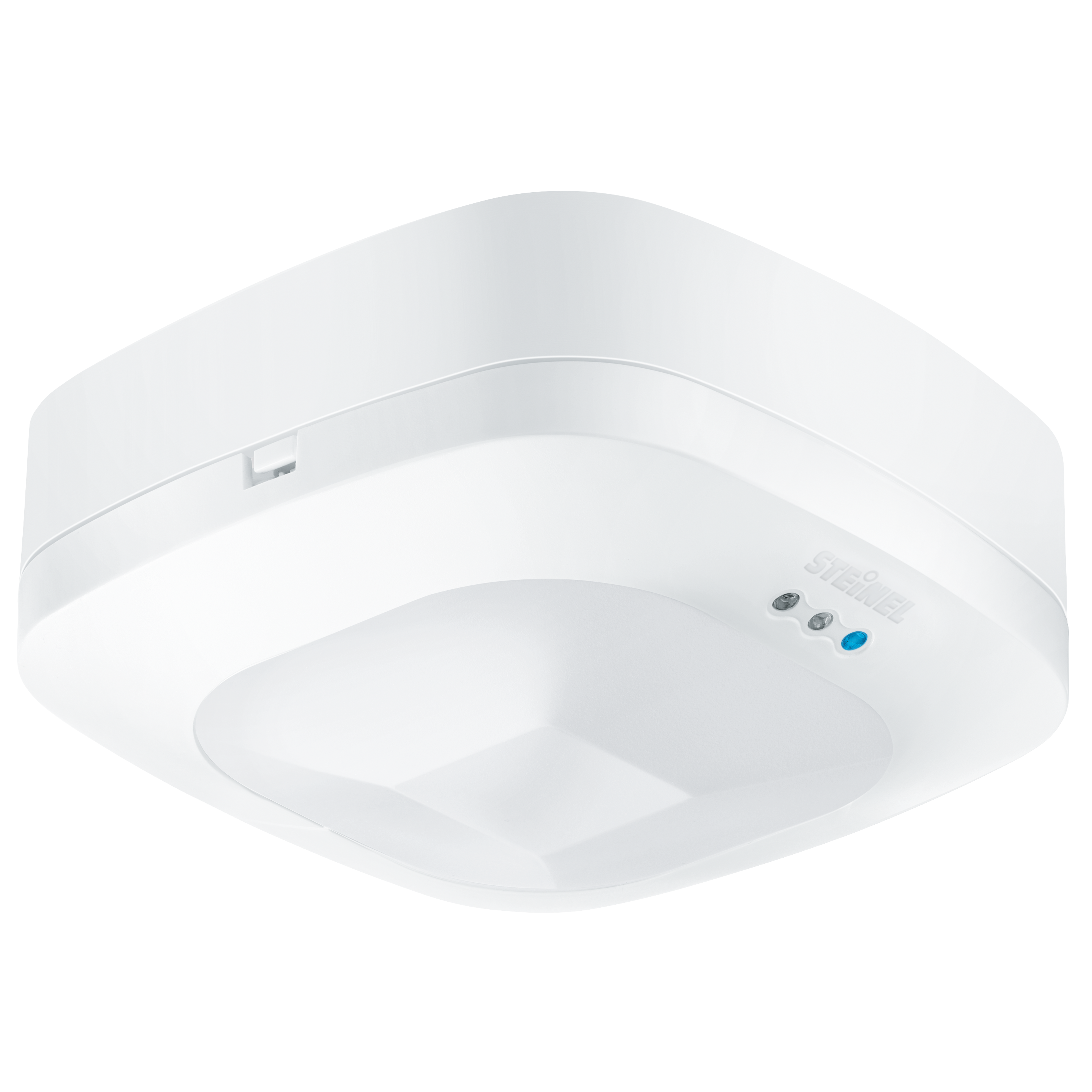

Steinel HF 360 COM1 - Surface wiring
EAN-No. 4007841751302
ELDAS® no. 751302
Price: Please log in to see prices
Version
Mounting type
Flush-mounted
Surface-mounted
STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535934605
Variants
Version
230V 1 channel
Mounting type
Surface-mounted
Dimensions
Dimensions L × W × H
51 x 120 x 120 mm
PU1 net weight
0.2390
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
1000 VA
Fluorescent lamps parallel-compensated
1000 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
Maximum inrush current
800 A
Sensor technology
Max. mounting height
3,50 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Range detail
1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.
Radial range
Ø 12 m (113 m²)
Tangential range
Ø 12 m (113 m²)
Mounting height
2,50 – 3,50 m
Optimal mounting height
2,8 m
Nevalux sensor technology
On / Off
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
30 s – 30 Min.
Base light function
No
Main light adjustable
No
Functions
Normal / test mode
Semi-/fully automatic
Pushbutton / switch mode
Manual ON / ON-OFF
Settings via
Remote control
DIP switches
Potentiometers
Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -25 up to 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
function room / ancillary room
kitchenette
stairwell
WC / washroom
Indoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Media & files
Wiring diagram 3 text
Master/slave interconnection circuit diagram
Cross-/up-selling
Accessories
13664,13684,13677,13669,12367,13686
Optional remote controls
Optional guard cage

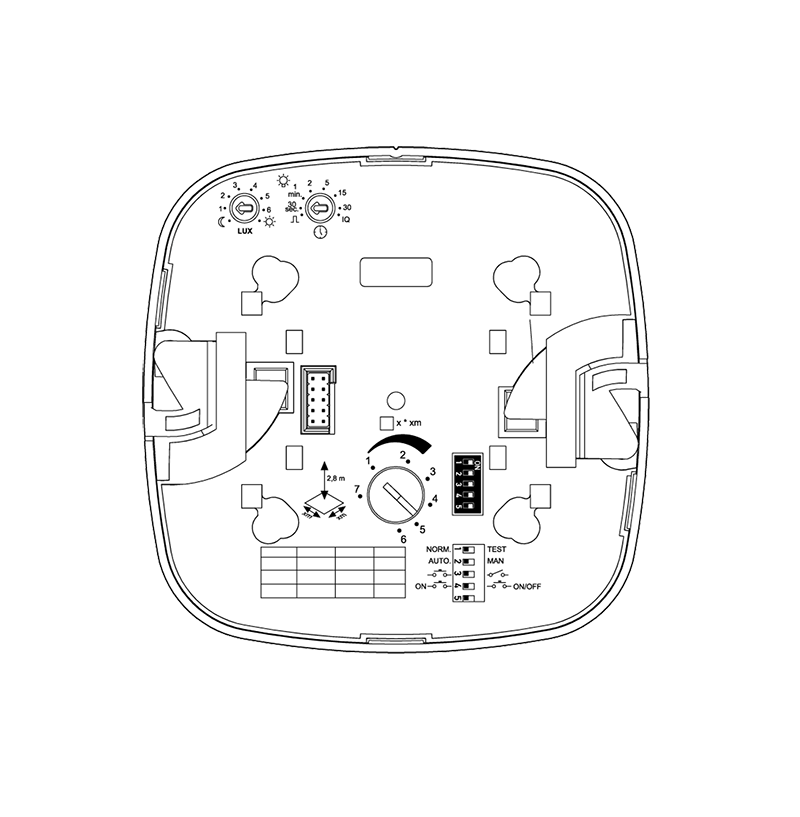

Technical drawing
Sensor detection range
Wiring diagram 1
Master circuit diagram
Wiring diagram 2
Master/master interconnection circuit diagram
