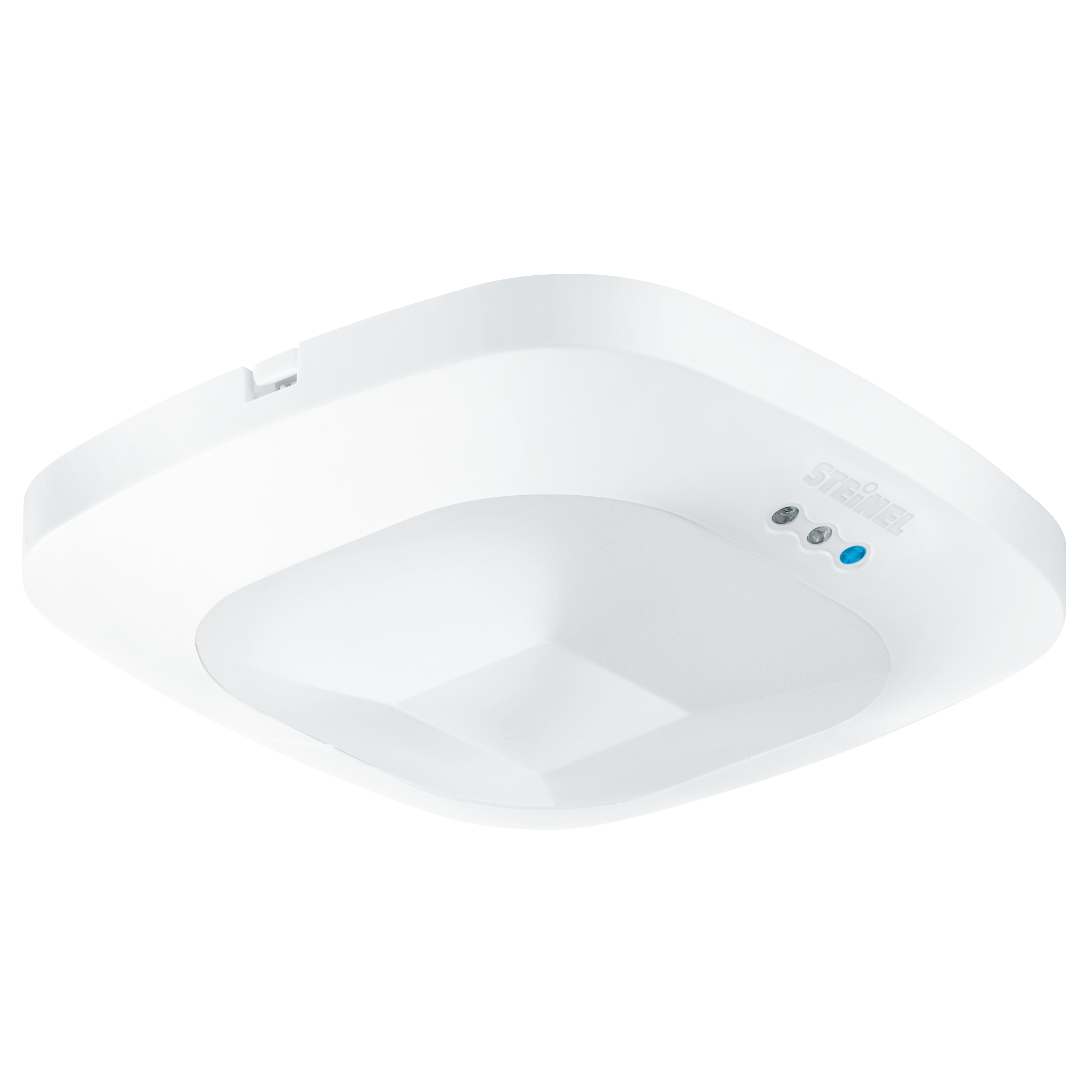

Steinel HF 360 DALI-2 Input Device - concealed
EAN-No. 4007841057480
ELDAS® no. 057480
Price: Please log in to see prices
Version
Mounting type
Flush-mounted
Surface-mounted
STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535932100
Variants
Version
DALI-2 Input Device
Mounting type
Flush-mounted
Dimensions
Dimensions L × W × H
56 x 120 x 120 mm
PU1 net weight
0.1080
Electrical
Mains connection
12 – 22,5 V
Supply voltage detail
DALI bus
Switching output 1 potential-free
No
Switching output 2 potential-free
No
Control output DALI
Addressable/slave
Max. current consumption per IEC 62386-101
42 mA
Typical current consumption at 16 V input voltage
8 mA
Max. current consumption at 10 V input voltage in regular operation
10 mA
Sensor technology
Max. mounting height
3,50 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Range detail
1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.
Radial range
Ø 12 m (113 m²)
Tangential range
Ø 12 m (113 m²)
Mounting height
2,50 – 3,5 m
Optimal mounting height
2,5 m
Nevalux sensor technology
DALI 2
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Cable
Number of DALI participants
5.0000
With bus coupler
Yes
Lighting technology
Soft light start
No
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Base light function
No
Main light adjustable
No
Settings via
Bus
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -25 up to 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
function room / ancillary room
kitchenette
stairwell
WC / washroom
Indoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
DALI-2
Cross-/up-selling
Accessories
13669,13677

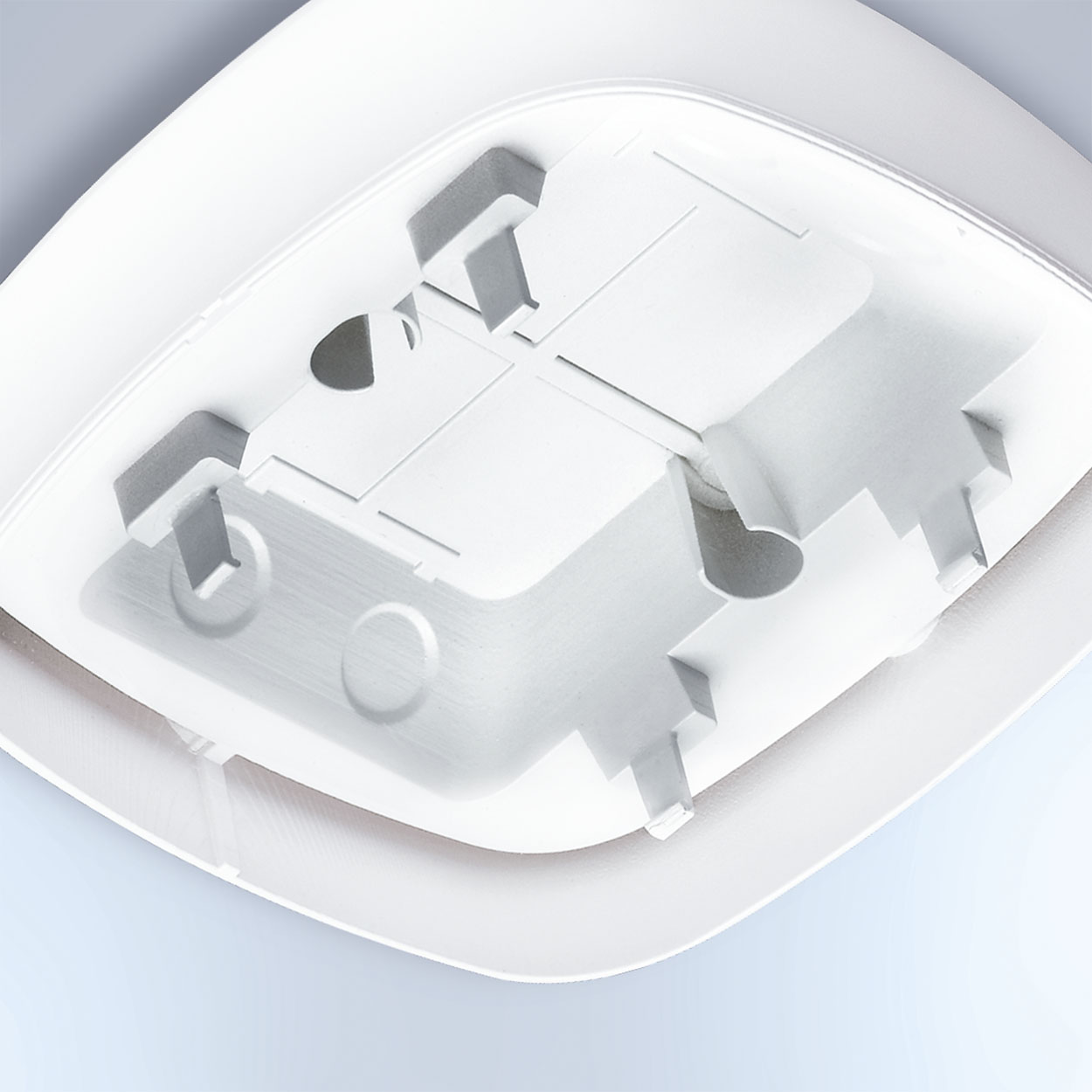

Optional surface-mounting adapter

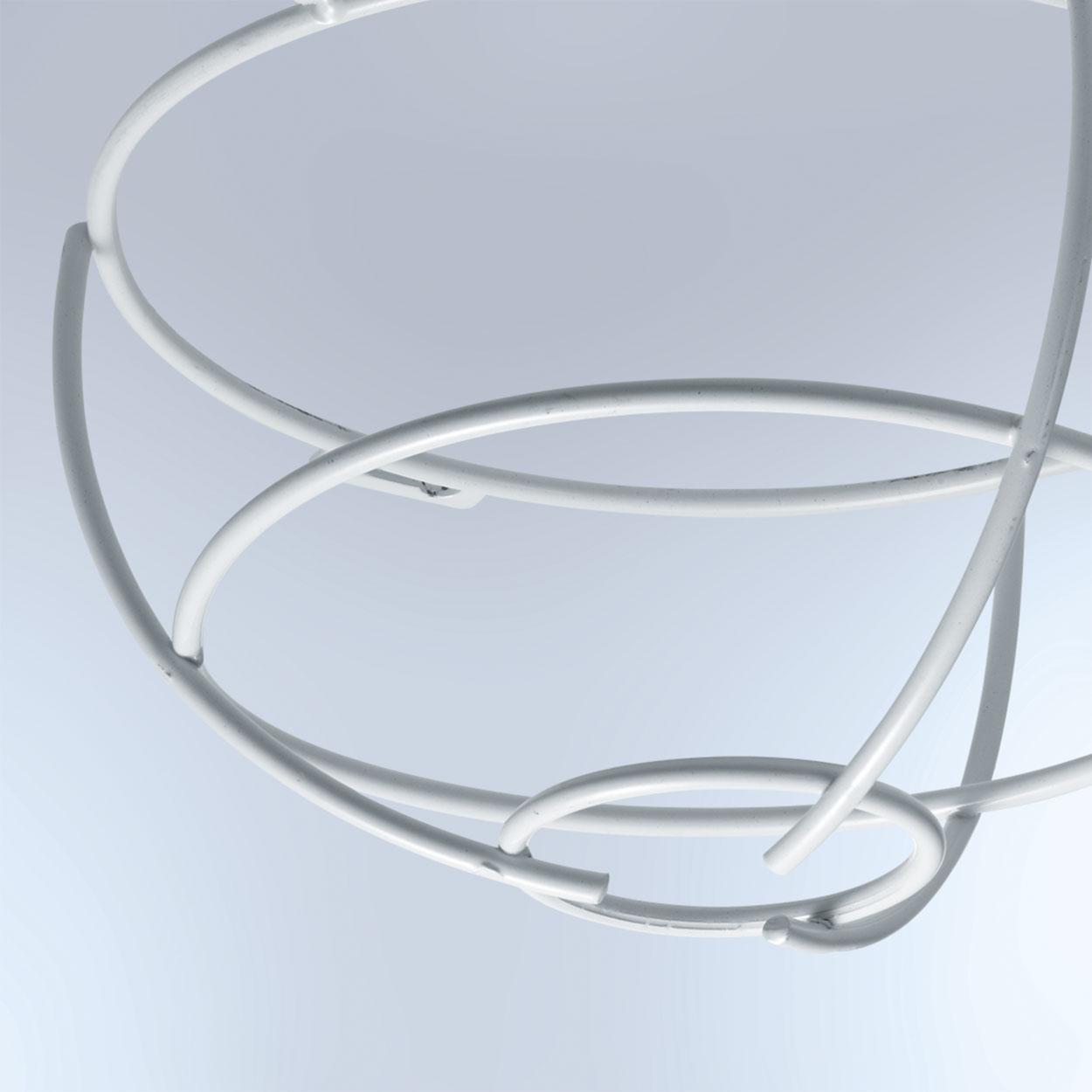

Optional guard cage

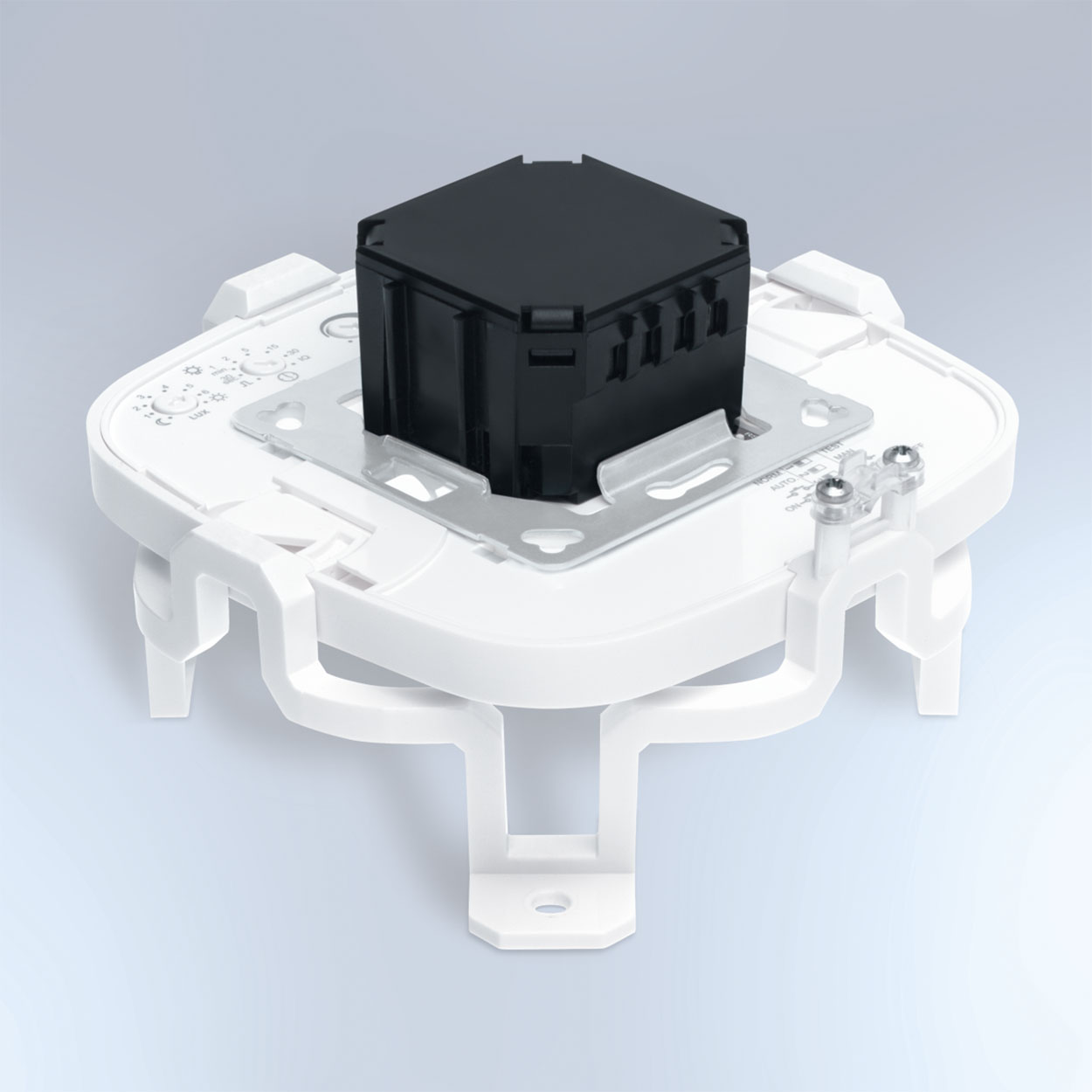

HF ceiling adapter for installation in suspended ceilings
