Identification
Version

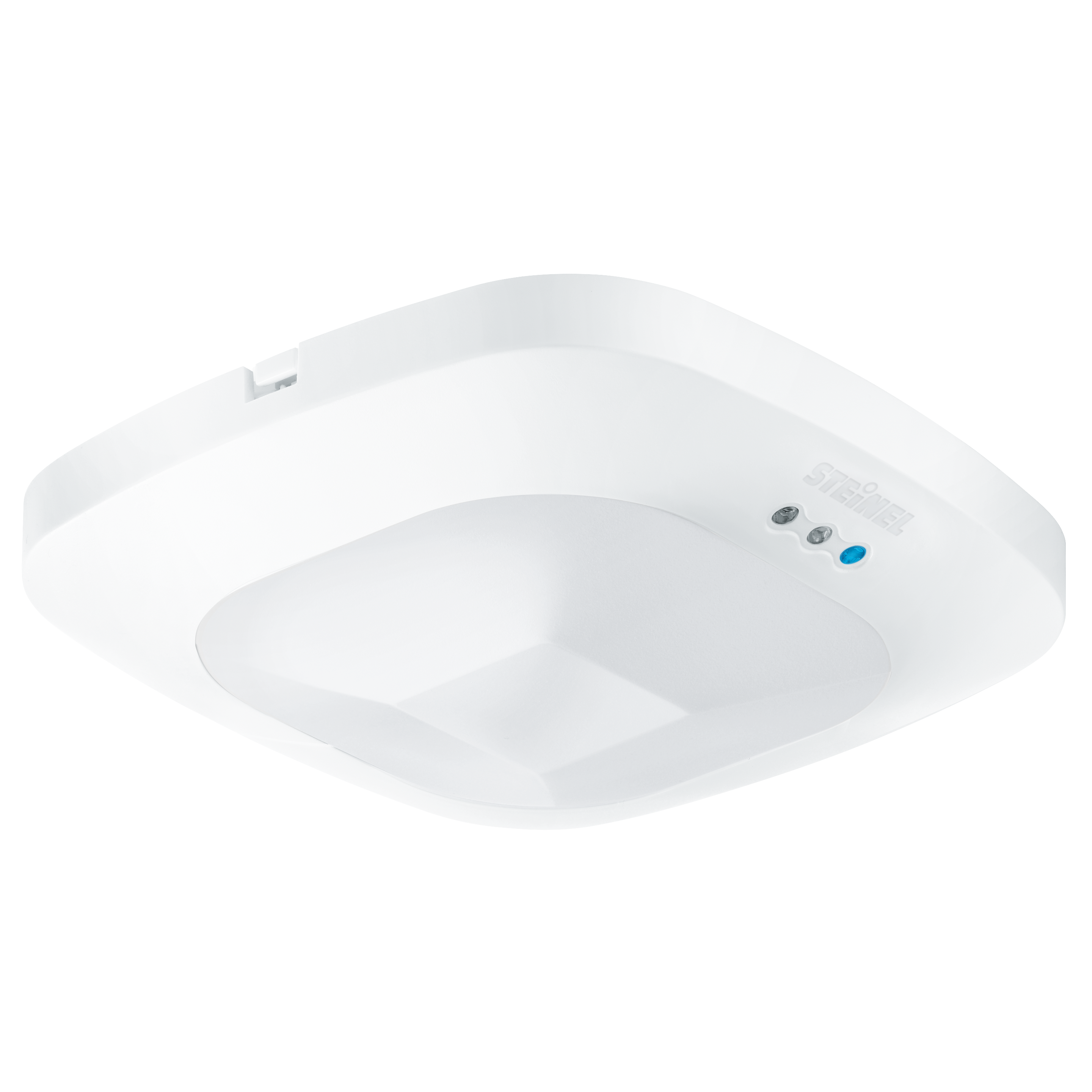

Presence detector
Manufacturer
Steinel
E-number
535934504
Variants
Version
DALI-2 Application Controller
Mounting type
Flush-mounted
Dimensions
Dimensions L × W × H
56 x 120 x 120 mm
PU1 net weight
0.1640
Electrical
Mains connection
230 V / 50 – 60 Hz
Control output DALI
Broadcast 2x12 electronic ballasts
Maximum inrush current
800 A
Sensor technology
Max. mounting height
3,50 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Range detail
1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.
Radial range
Ø 12 m (113 m²)
Tangential range
Ø 12 m (113 m²)
Mounting height
2,50 – 3,50 m
Optimal mounting height
2,8 m
Nevalux sensor technology
DALI 2
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Cable
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
30 s – 30 Min.
Base light function
Yes
Base light function time
1-60 min, all night
Main light adjustable
50 - 100 %
Functions
Normal / test mode
Semi-/fully automatic
Pushbutton / switch mode
Manual ON / ON-OFF
Constant-lighting control ON-OFF
Settings via
Remote control
DIP switches
Potentiometers
Smart Remote
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 60 %
Base light function percent from
10.0000
Base light function percent to
60.0000
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -25 up to 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
function room / ancillary room
kitchenette
stairwell
WC / washroom
Indoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
