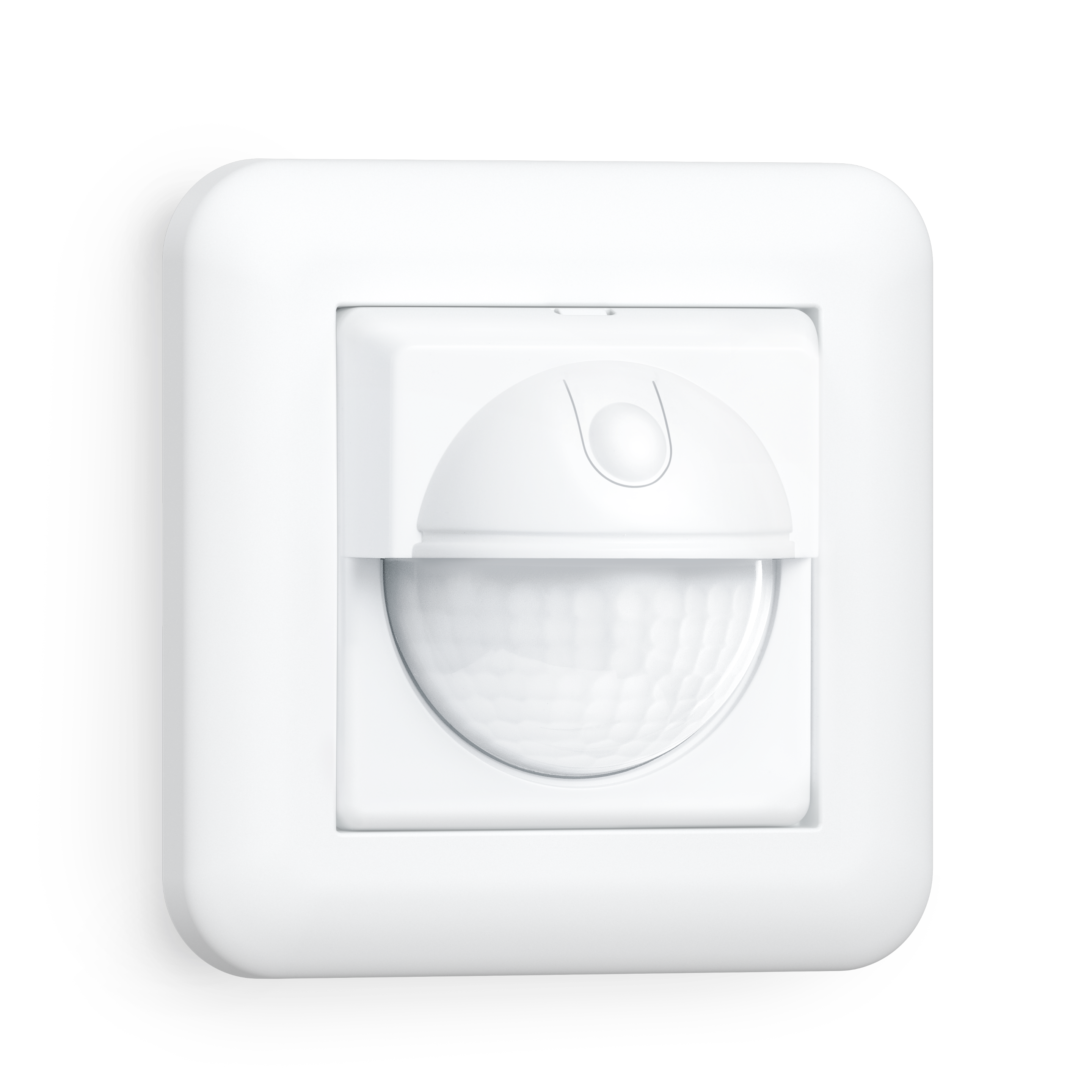

It is great when things simply work without great effort. As is the case with the IR 2180 UP ECO, which can be used to automate light in corridors, stairwells or WCs in next to no time. Simply exchange with the existing flush-mounted switch. Works every time - whether as a 2-wire or 3-wire installation. Switches all lamp types. The built-in 180° infrared sensor impresses with a reach of up to 8 m. And thanks to the integrated button, manual switching is possible at any time.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535944060
Variants
Colour
White
Dimensions
Dimensions L × W × H
57 x 81 x 81 mm
PU1 net weight
0.1130
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Fluorescent lamps ECG
150 W
Fluorescent lamps uncompensated
150 VA
Fluorescent lamps series-compensated
150 VA
Switching output 1 low-voltage halogen lamps
200 VA
LED lamps < 2 W
40 W
LED lamps > 2 W < 8 W
100 W
LED lamps > 8 W
160 W
Capacitive load in µF
132 µF
Sensor technology
Max. mounting height
2,20 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 2 m (6 m²)
Tangential range
r = 8 m (101 m²)
Switching zones
96 switching zones
Mounting height
1,10 – 2,2 m
Optimal mounting height
1,1 m
Nevalux sensor technology
On / Off
Connectivity
Networking
No
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 30 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Ambient temperature
from 0 up to 40 °C
Housing material
Plastic
Cover material
Plastic, structured
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
corridor / aisle
function room / ancillary room
kitchenette
stairwell
WC / washroom
Indoors
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Media & files
Wiring diagram 3 text
Circuit diagram for interconnecting several sensors
Certificates & EPREL
Certificates
VDE

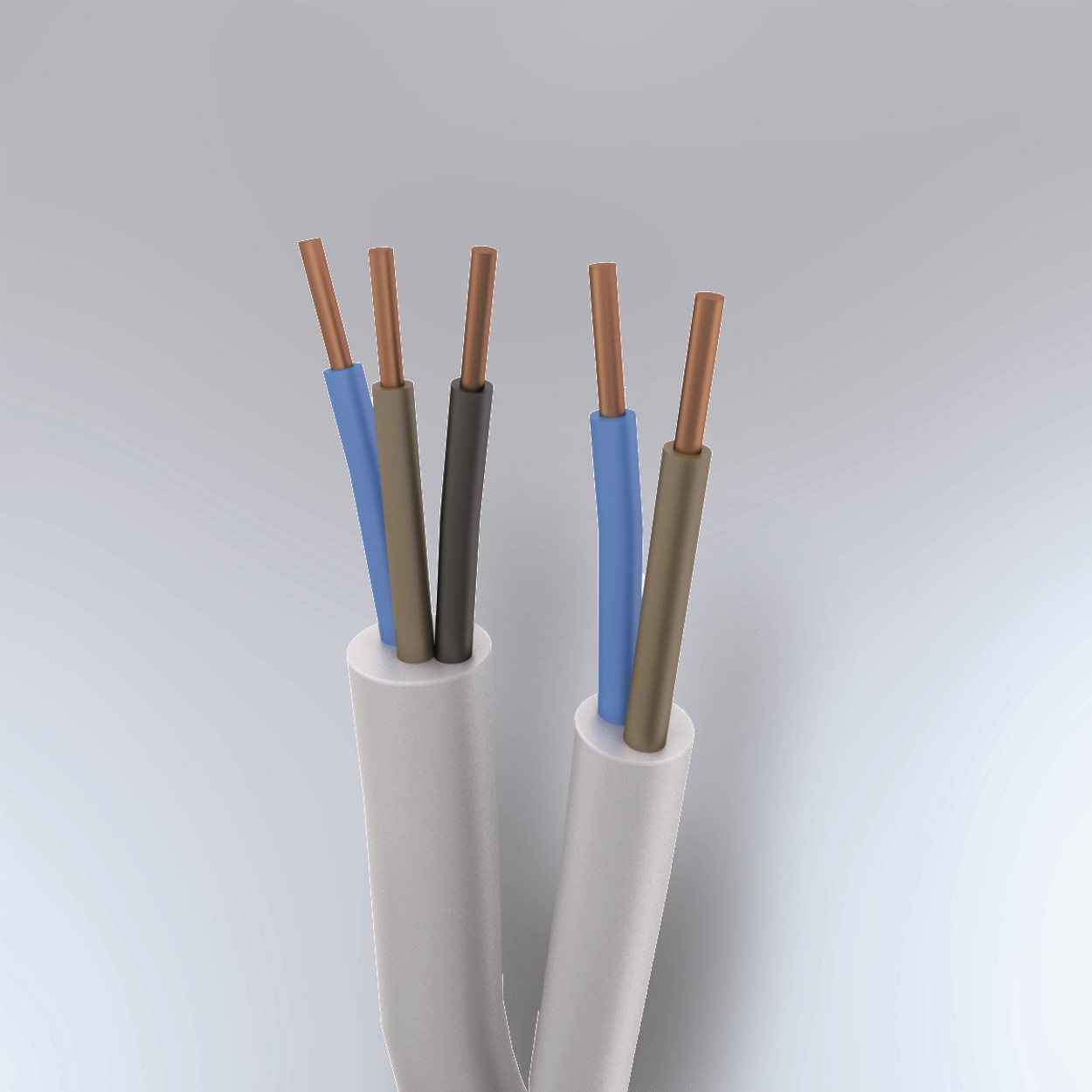

2 or 3-wire installation
Technical drawing
Sensor detection areas
Wiring diagram 1
2-wire circuit diagram
Wiring diagram 2
3-wire circuit diagram
