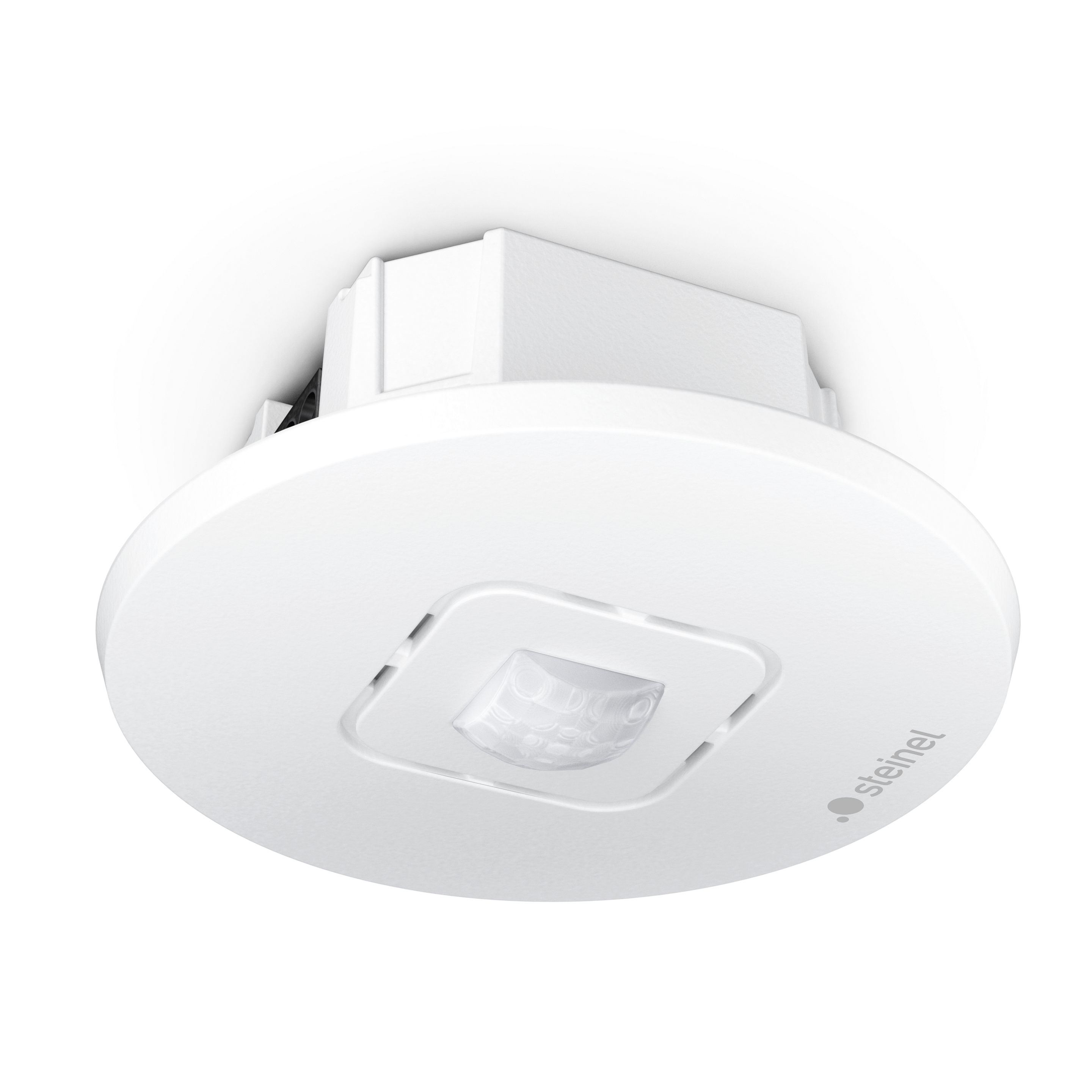

Steinel IR Micro Office 6m DALI-2 APC - concealed

EAN-No. 4007841067151

ELDAS® no. 067151

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Demanded by architects and planners, made by STEINEL. The micro-precision lens measures just 15 x 15 mm. The 360° infrared presence detector covers 36 m². As a DALI-2 single master application controller, it controls up to 20 DALI devices in broadcast mode. It therefore offers optimum light management for individual room solutions, including constant light control. Settings and networking are easily realised via Bluetooth Mesh. This is our sensor in the DALI APC for simple light management in small individual offices. We have focussed on the standard functions and offer a product without frills. The IR Micro Office DALI APC is the perfect introduction to DALI lighting management.

Perfectly suited for small rooms such as individual offices
Light management, e.g. constant light control, light scenes, semi-/full automatic control
Broadcast control of up to 20 dimmable DALI luminaires
Cover caps for detection limitation simply snap into place included
Commissioning and setting via STEINEL Connect app

Identification

Version Presence detector

Manufacturer Steinel

E-number 535900035

Variants

Mounting type Flush-mounted

Dimensions

Dimensions Ø × H 85 x 37 mm

PU1 net weight 0.0790

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 1x20 electronic ballasts

Maximum inrush current 10 A

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Switching zones 168 switching zones

Mounting height 2 – 5 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology BT SIG Mesh, DALI 2

Connectivity

Networking Yes

Networking via Bluetooth Mesh

Number of DALI participants 20.0000

With bus coupler No

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 10s-60 min all night Brightness-controlled OFF

Main light adjustable 0 - 100 %

Functions Semi-/fully automatic Lighting scenario Manual ON / ON-OFF Normal / test mode Neighbouring group function TouchDIM function Motions sensor Constant-lighting control Light sensor Adjustable fade time when switching on and off Constant-lighting control ON-OFF Presence function Presence detector logic

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 0 – 100 %

Base light function percent from 0.0000

Base light function percent to 100.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Housing material Plastic

Cover material without cover

Cover material (scope of delivery) shrouds

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors one-person office function room / ancillary room conference room / meeting room duty room recreation room kitchenette

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Cross-/up-selling

Accessories 27098,27099

Up-selling 27098,27099

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
