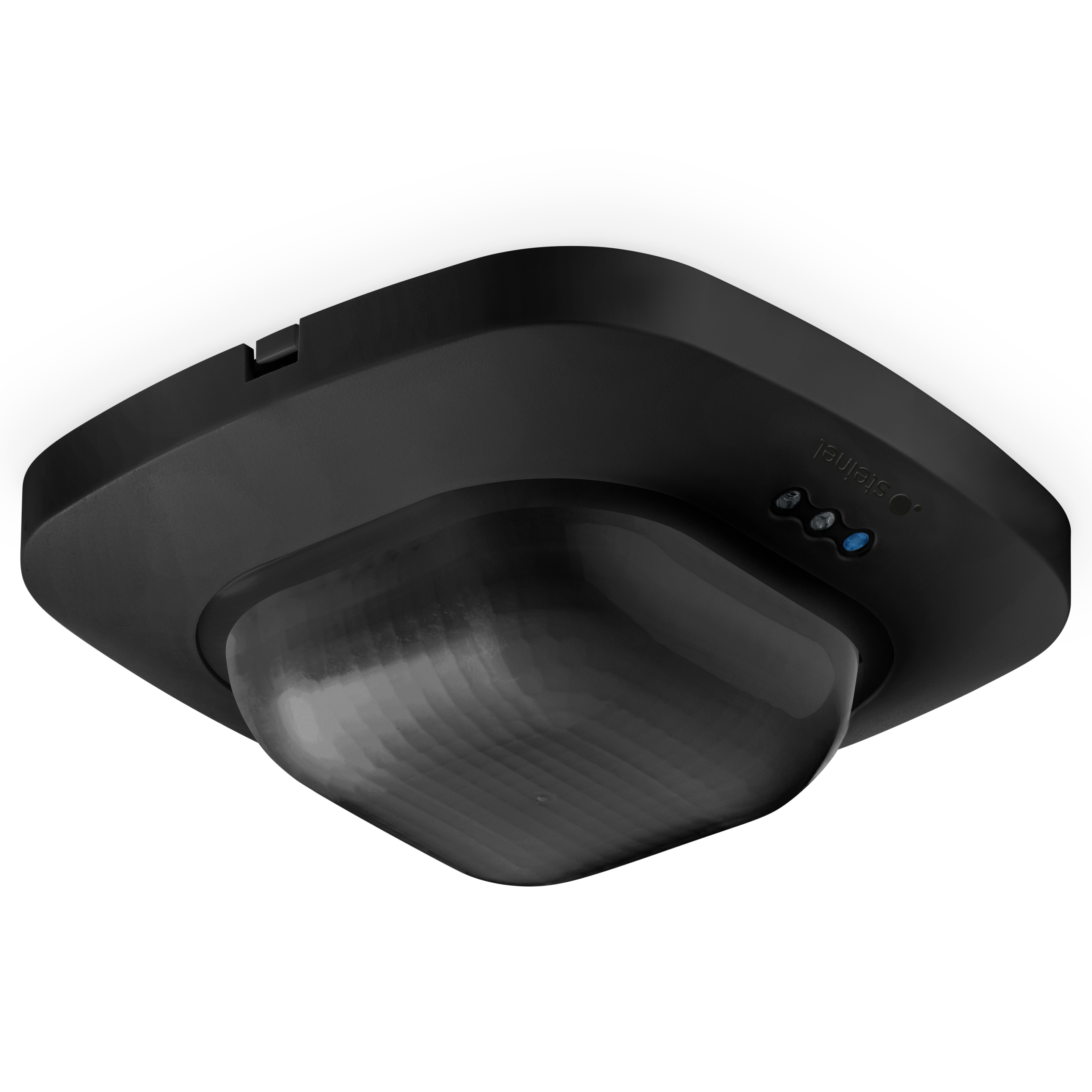

Steinel IR Quattro HD 24m KNX - concealed black

EAN-No. 4007841068622

ELDAS® no. 068622

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device 230V 1 channel 230V 2 channels

Colour

White Black

Mounting type

Flush-mounted Surface-mounted

When it's a matter of intelligent building automation, presence detectors with extremely good detection performance are a must. IR Quattro HD KNX leaves absolutely no questions unanswered: 4,800 switching zones in the square detection footprint of 64 m² – which is mechanically scalable without any loss of quality whatsoever – more or less completely rule out inadvertent triggering or blind spots. This is the ultimate in high-resolution quality and a dream come true for architects, properly owners and users alike.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535918132

Variants

Version KNX

Colour Black

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 69 x 120 x 120 mm

PU1 net weight 0.1310

Electrical

Supply voltage detail KNX bus

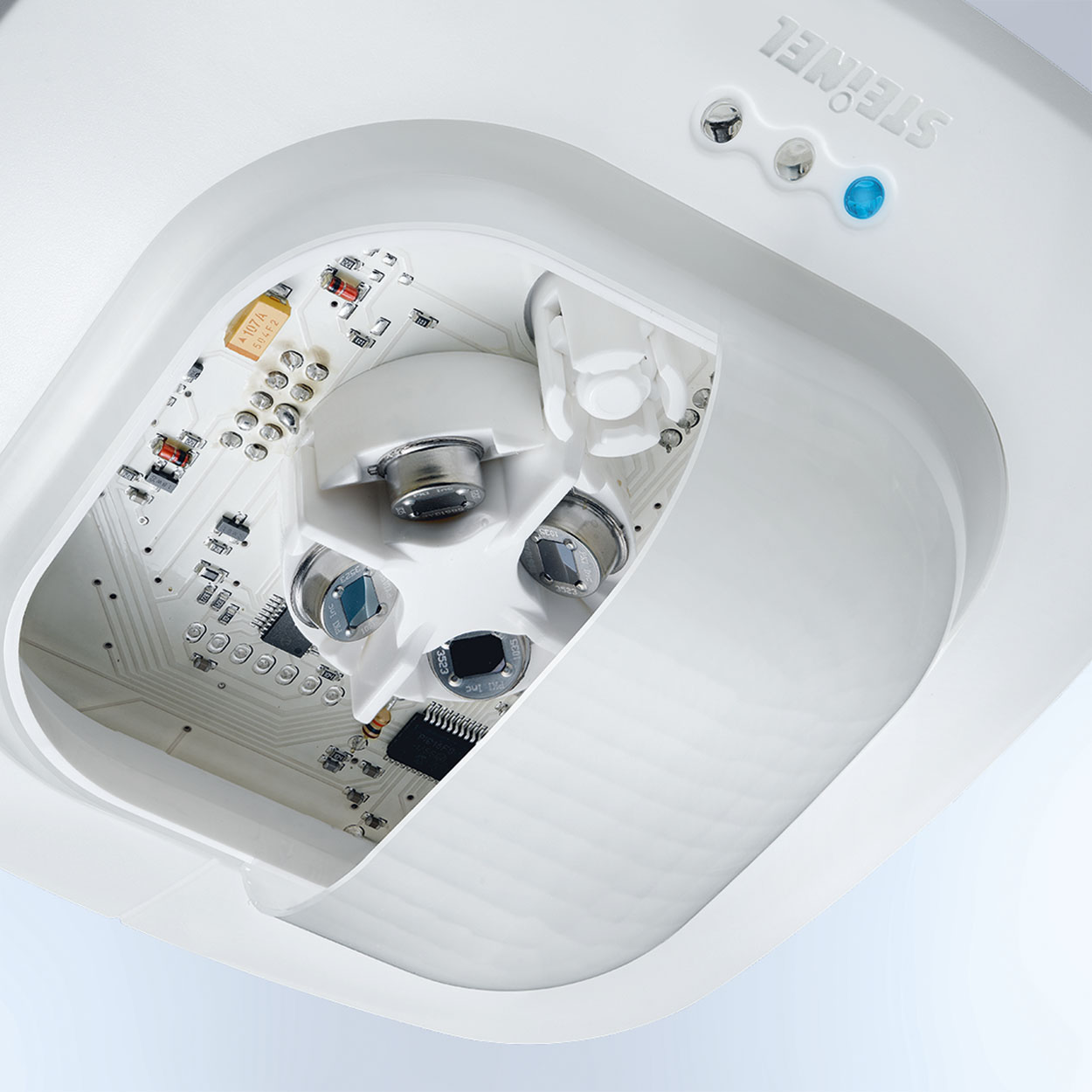

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Detection planes 13

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 10 s – 1092 Min.

Base light function Yes

Base light function time Permanently ON 1-255 min all night

Main light adjustable 0 - 100 %

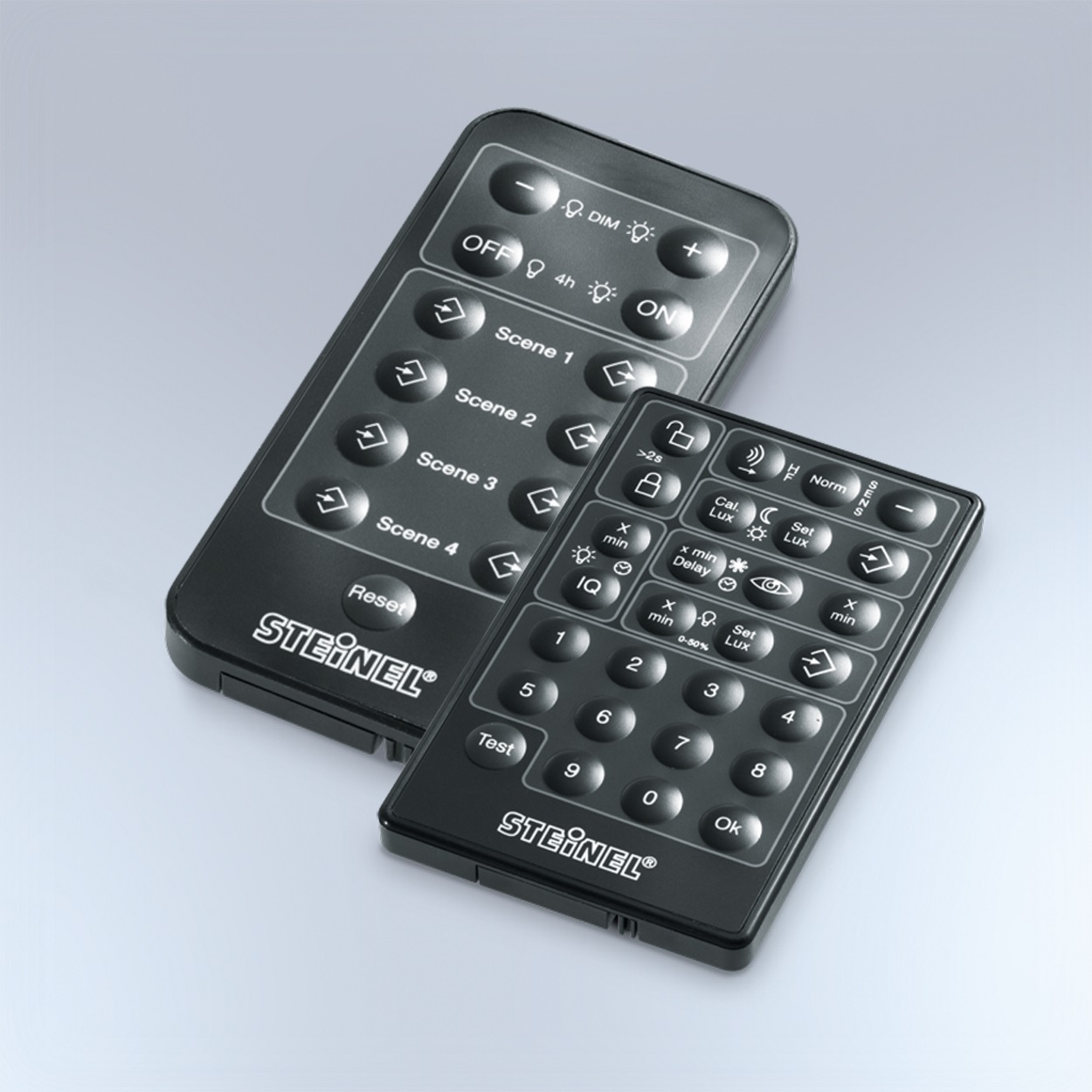

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP20

Protection class II

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room classroom lecture hall open-plan office high-bay warehouse production facilities conference room / meeting room duty room recreation room changing room sports hall reception / lobby multi-storey / underground car park Indoors

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=667e7a94938@steinel&rand=8f517ad90d64d52ae9ca42c95fc9bf88&lang=2&force=true&download=true&omitPreview=true
