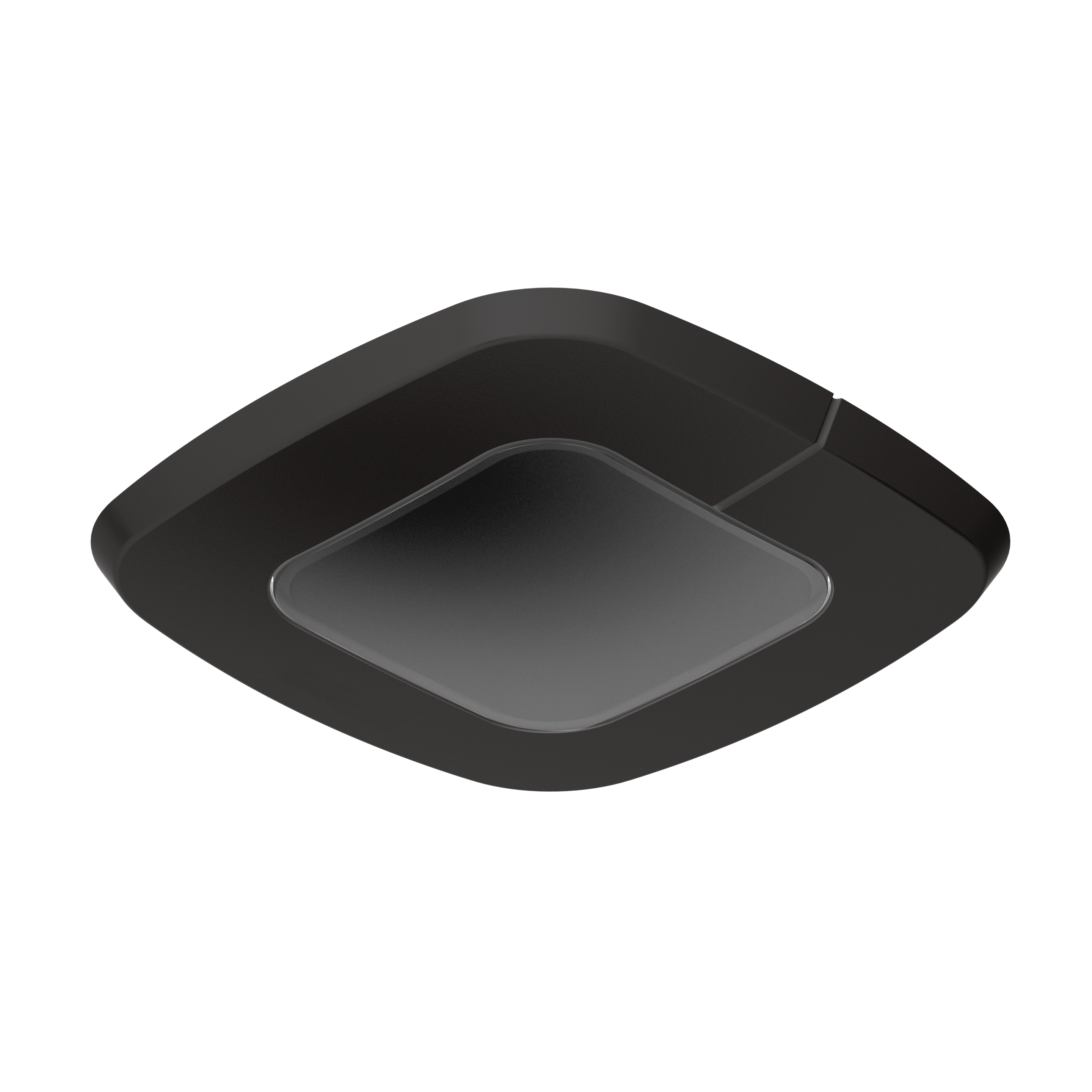

Steinel IR Quattro SLIM XS 4m KNX - square black

EAN-No. 4007841082260

ELDAS® no. 082260

Version

KNX 230V 1 channel DALI-2

Colour

White Black

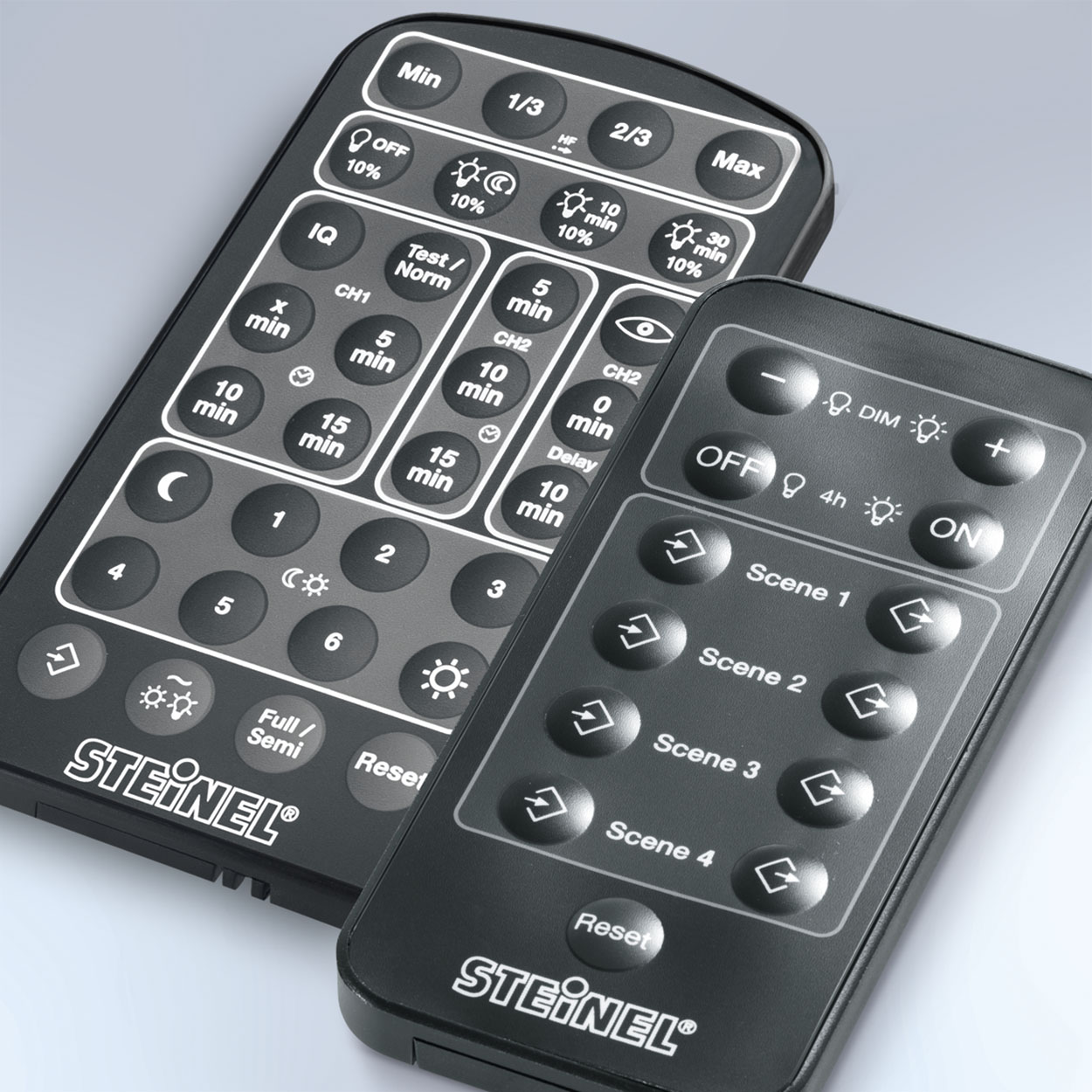

By popular demand. The extra-flat IR Quattro SLIM XS presence detector virtually disappears into the wall or ceiling. Thanks to the new and practical flush-mounted box format, it forms a strikingly unobtrusive symbiosis with the office environment and can now be installed in any commercially available flush-mounted box. In short: our flattest presence detector just pretends not to be there at all - and yet is absolutely present when it matters. Adjustment via remote control or Smart Remote. Round aperture is additionally enclosed.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535918137

Variants

Version KNX

Colour Black

Dimensions

Dimensions L × W × H 49 x 80 x 80 mm

PU1 net weight 0.0620

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

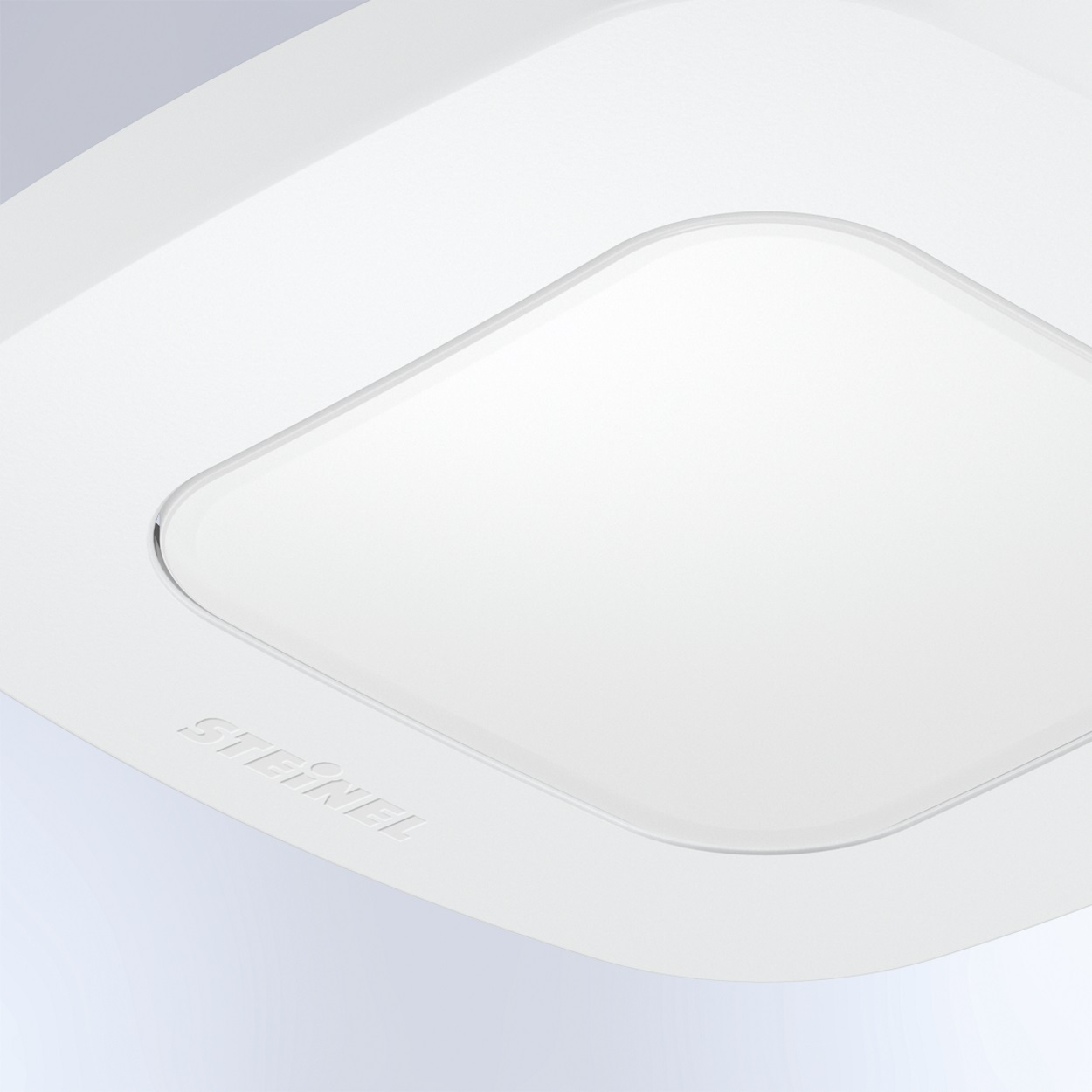

Range detail Retina lens and hexagonal Fresnel structure

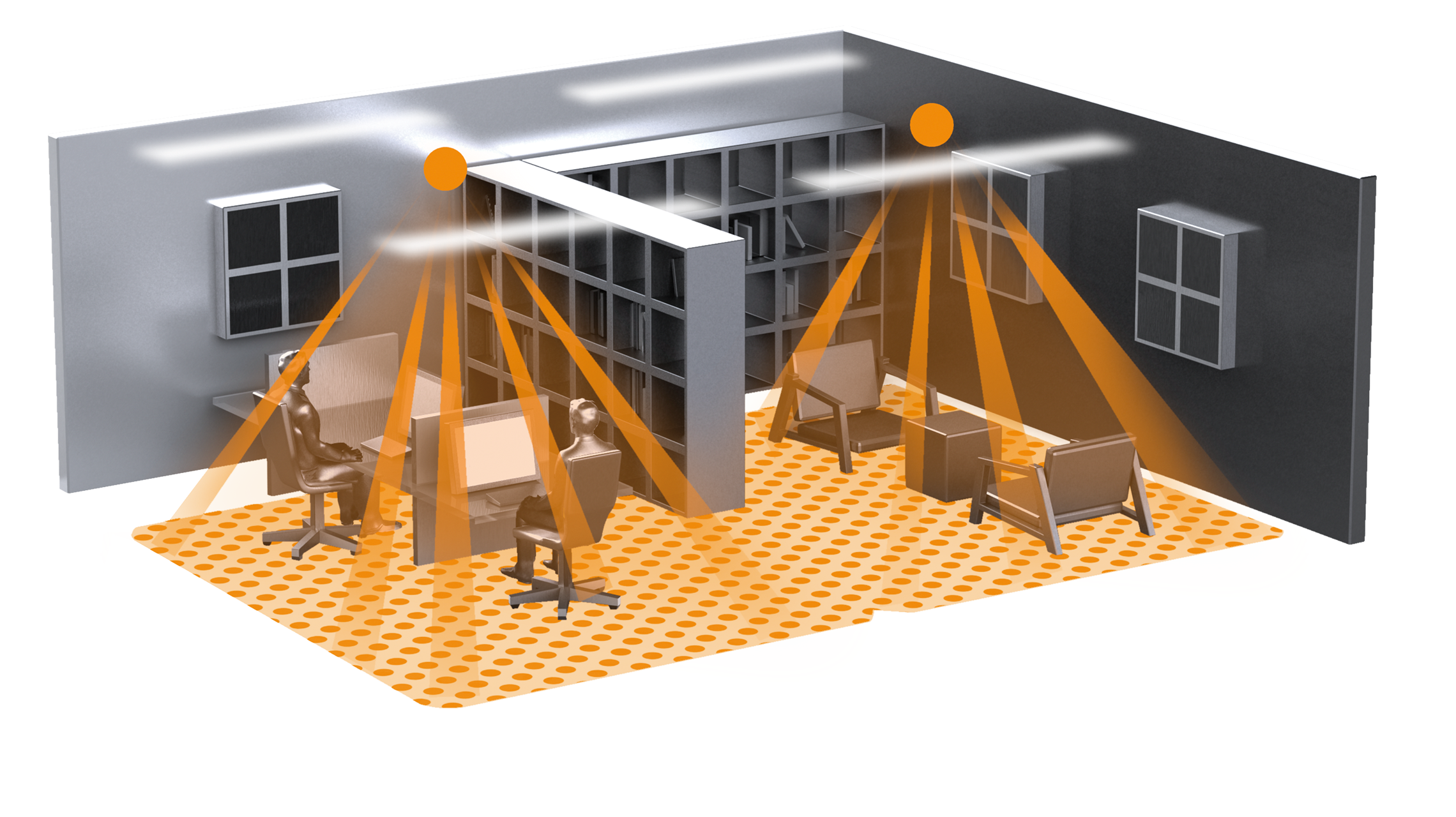

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 60 s – 255 Min.

Base light function Yes

Base light function time Permanently ON 1-255 min all night

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room one-person office hotel room care room function room / ancillary room WC / washroom Indoors

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=d913ba195870@steinel&rand=ec9c93b8c24965ad39c606242a6f3207&lang=2&force=true&download=true&omitPreview=true

Extremely slim overall height
