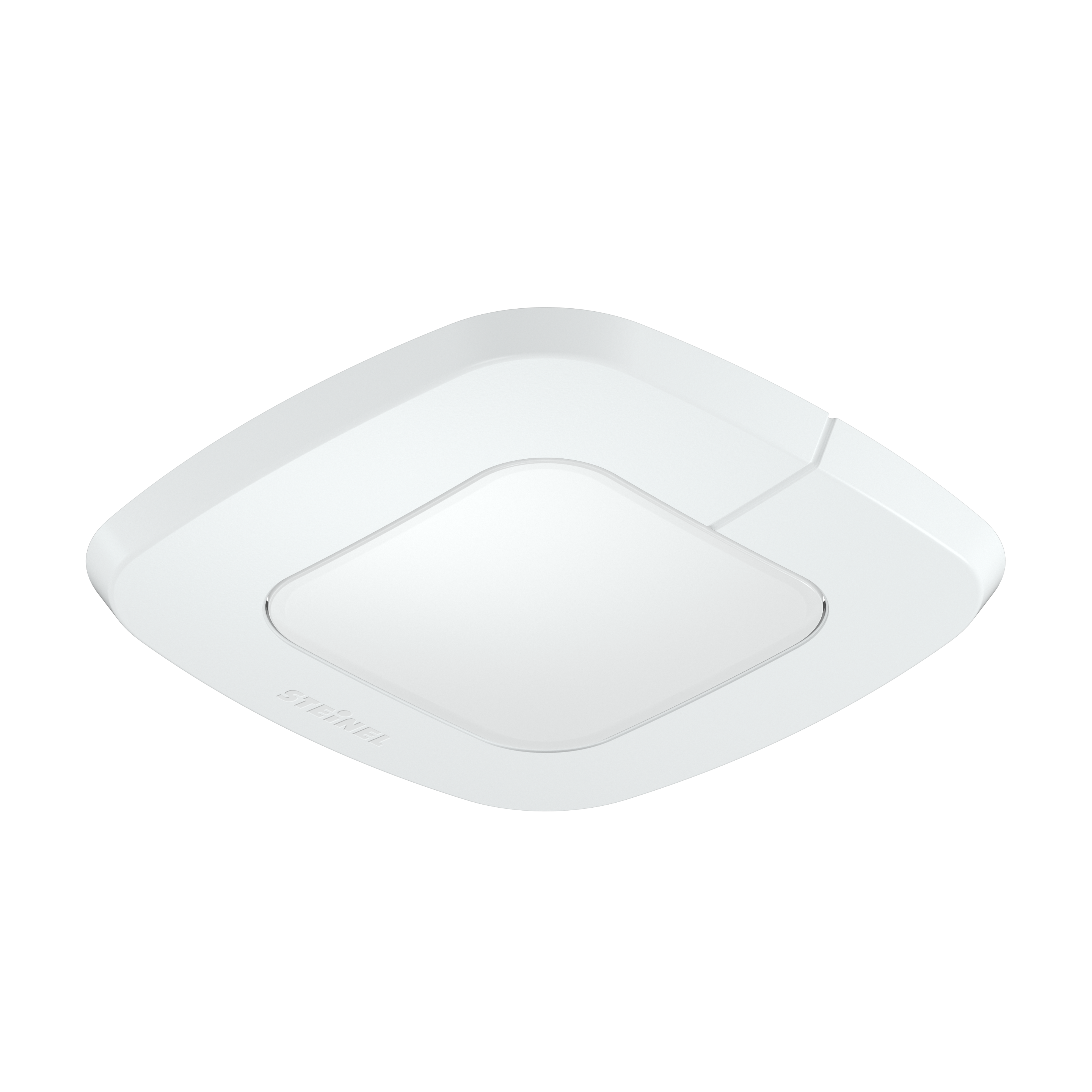

Steinel IR Quattro SLIM XS 4m KNX - square white

EAN-No. 4007841058500

ELDAS® no. 058500

Version

KNX 230V 1 channel DALI-2

Colour

White Black

Due to popular demand. The extra slim IR Quattro SLIM XS presence detector virtually disappears in the wall or ceiling. Thanks to the new and practical concealed box format it forms a remarkably unobtrusive symbiosis with the office environment and can now be installed in any standard concealed box. In short: our slimmest presence detector would seem to be pretending it wasn't even there - and yet is absolutely present when it matters.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535935808

Variants

Version KNX

Colour White

Dimensions

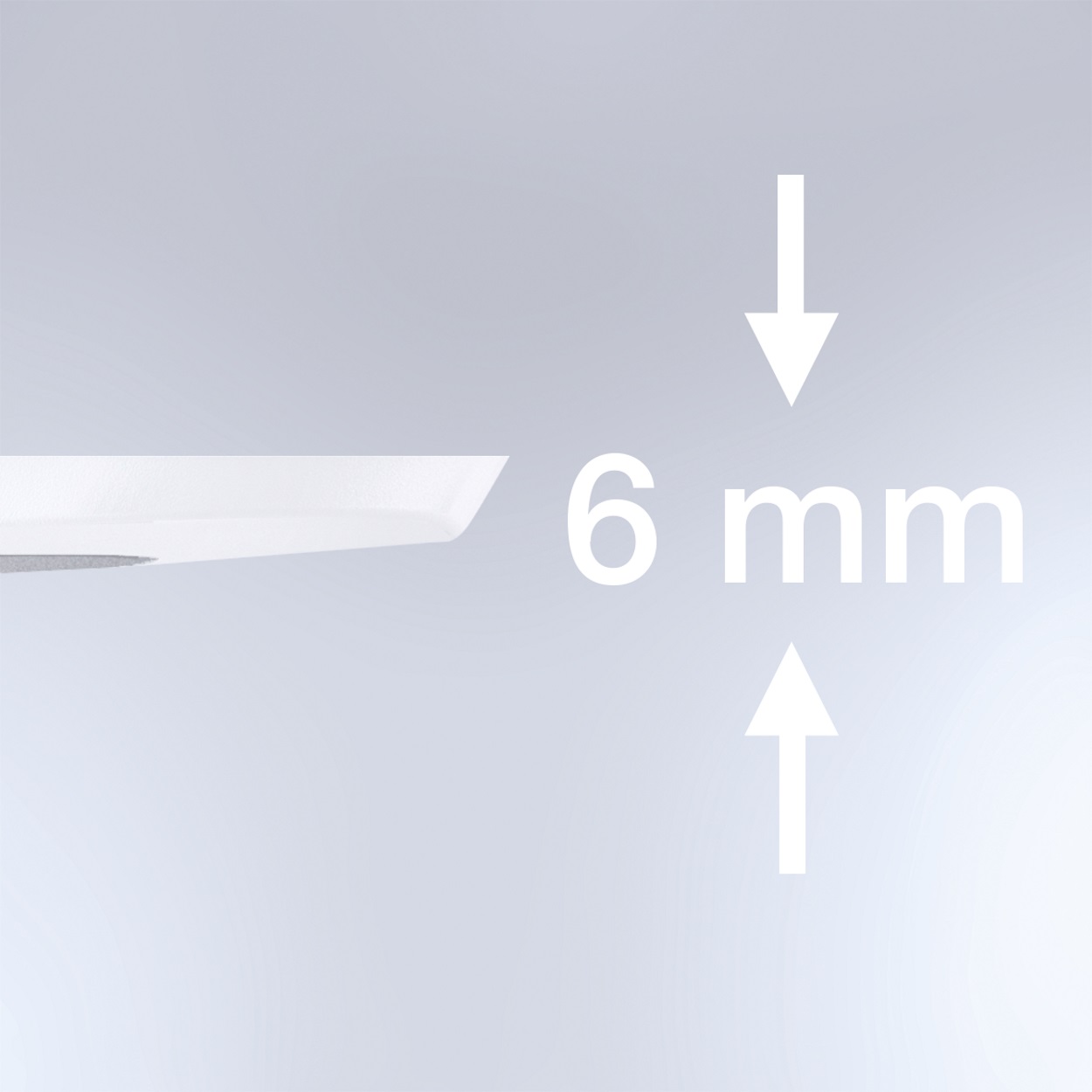

Dimensions L × W × H 49 x 80 x 80 mm

PU1 net weight 0.0620

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

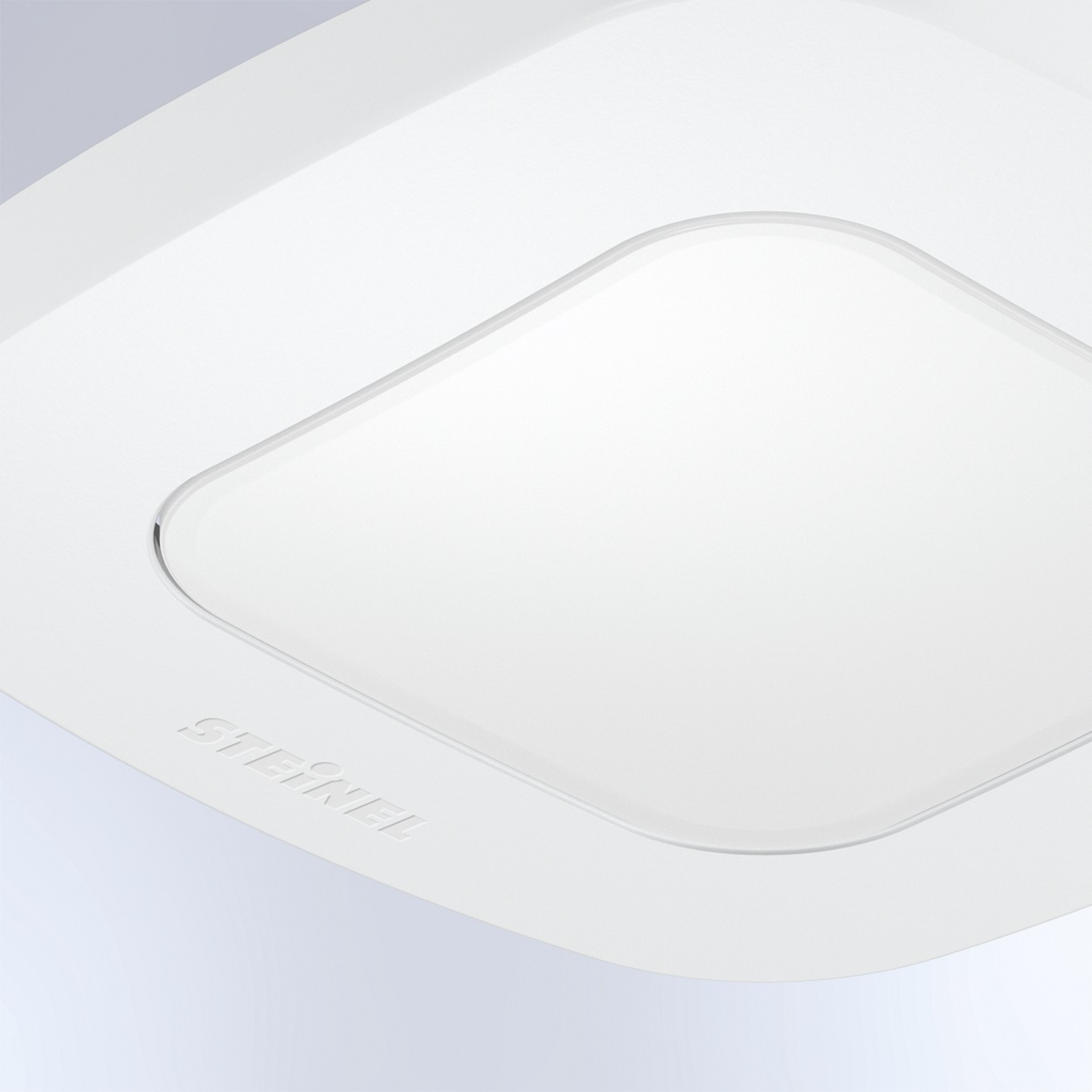

Range detail Retina lens and hexagonal Fresnel structure

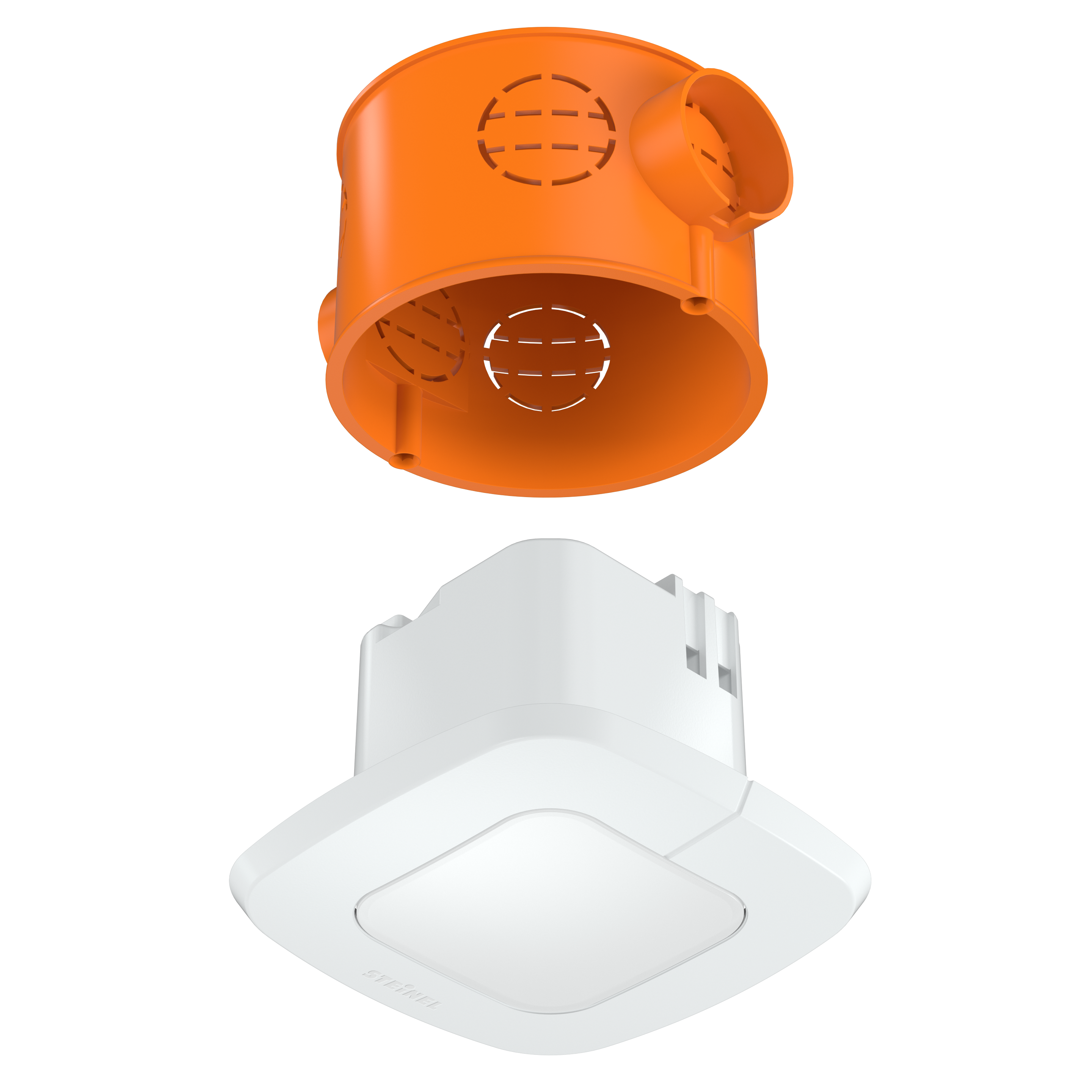

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 60 s – 255 Min.

Base light function Yes

Base light function time Permanently ON 1-255 min all night

Main light adjustable 0 - 100 %

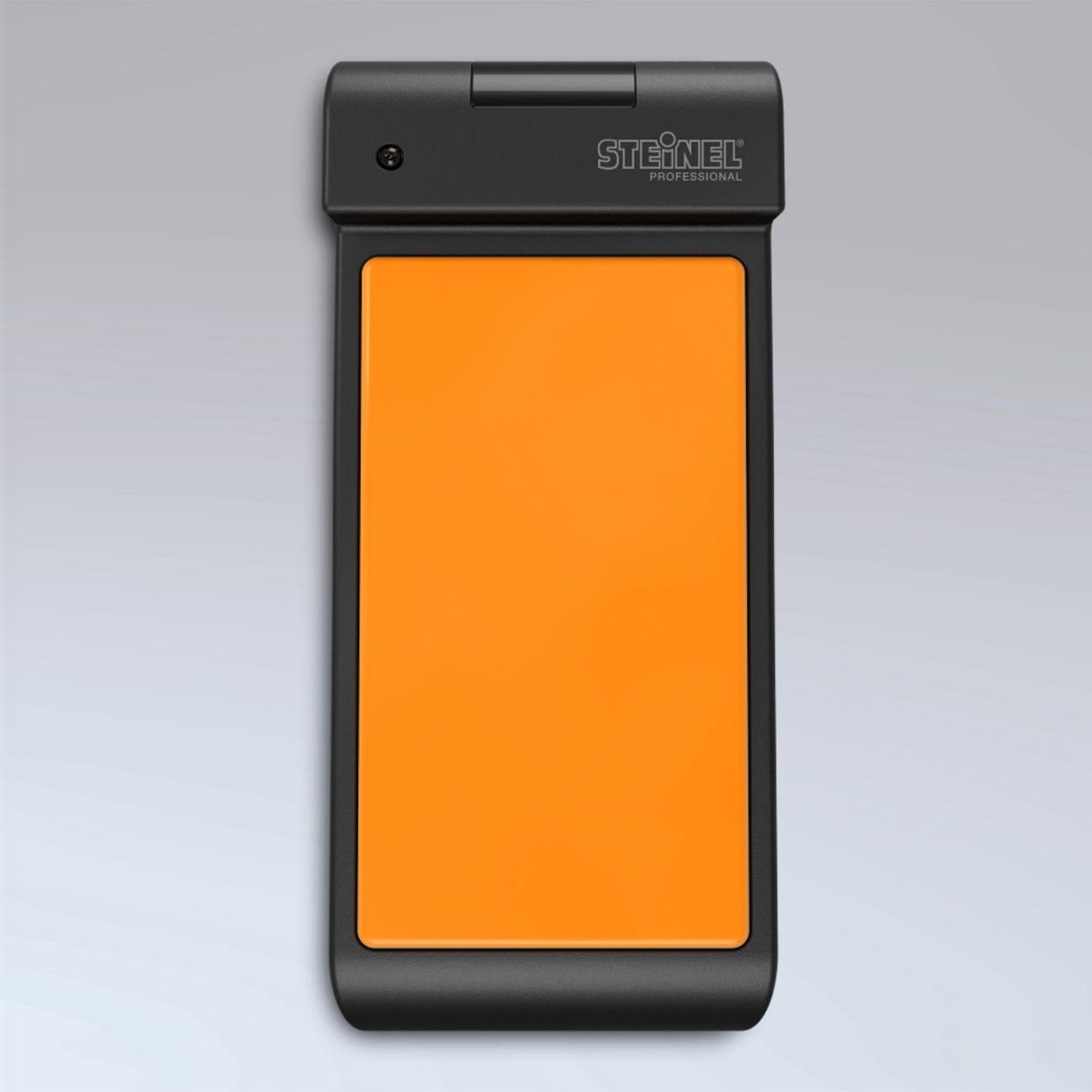

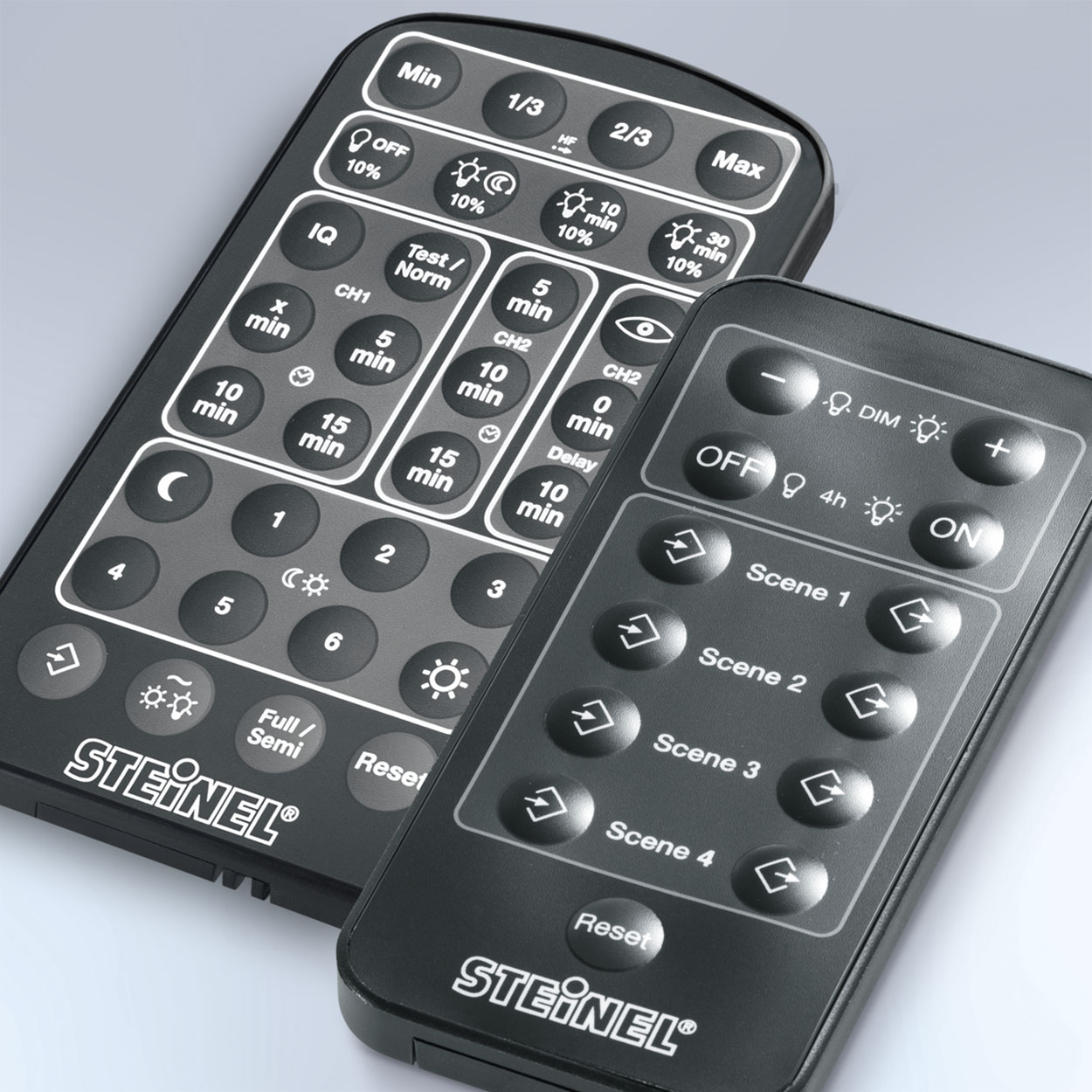

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

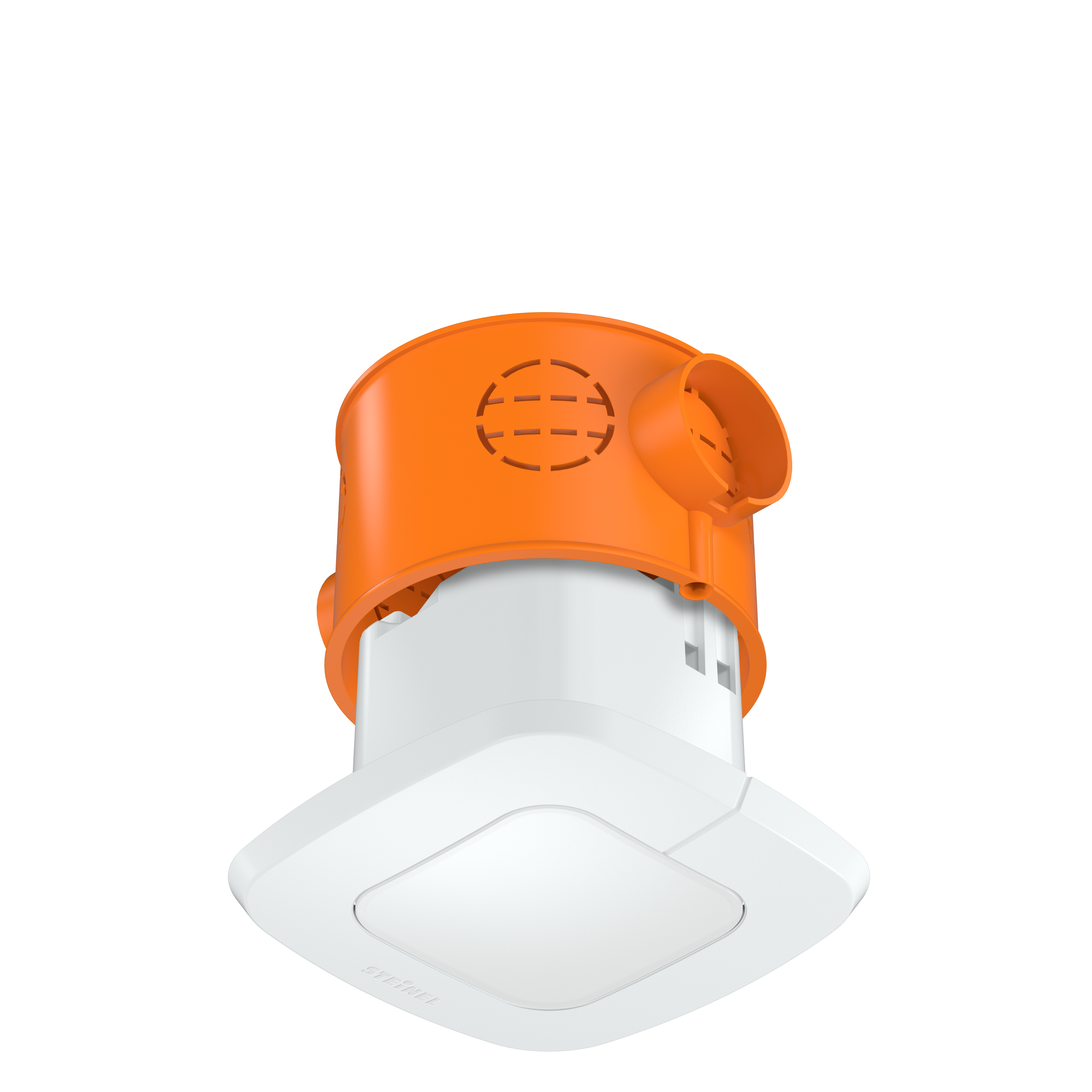

Mounting type Concealed wiring

Material Plastic

Application room one-person office hotel room care room function room / ancillary room WC / washroom Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=d913ba195870@steinel&rand=ec9c93b8c24965ad39c606242a6f3207&lang=2&force=true&download=true&omitPreview=true
