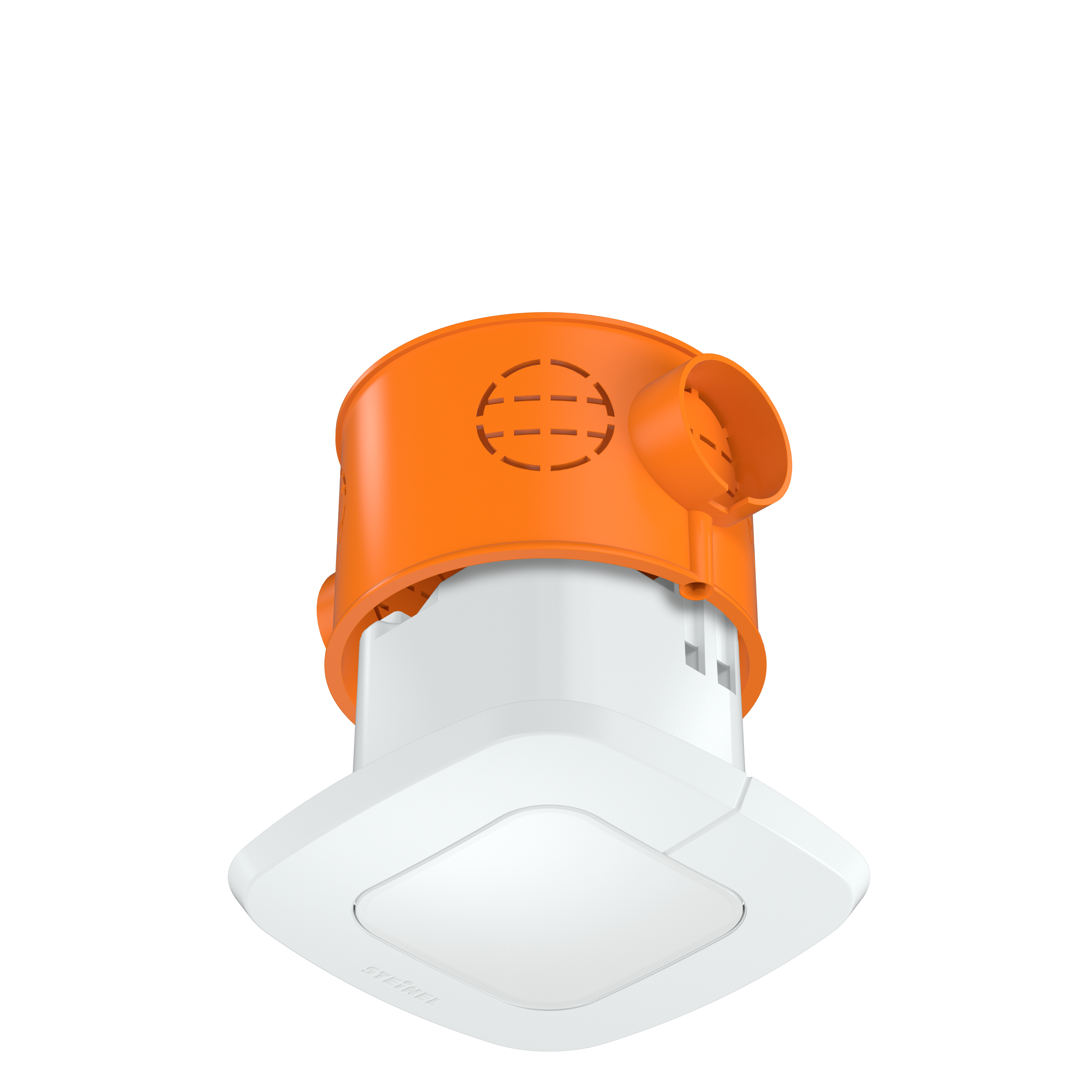

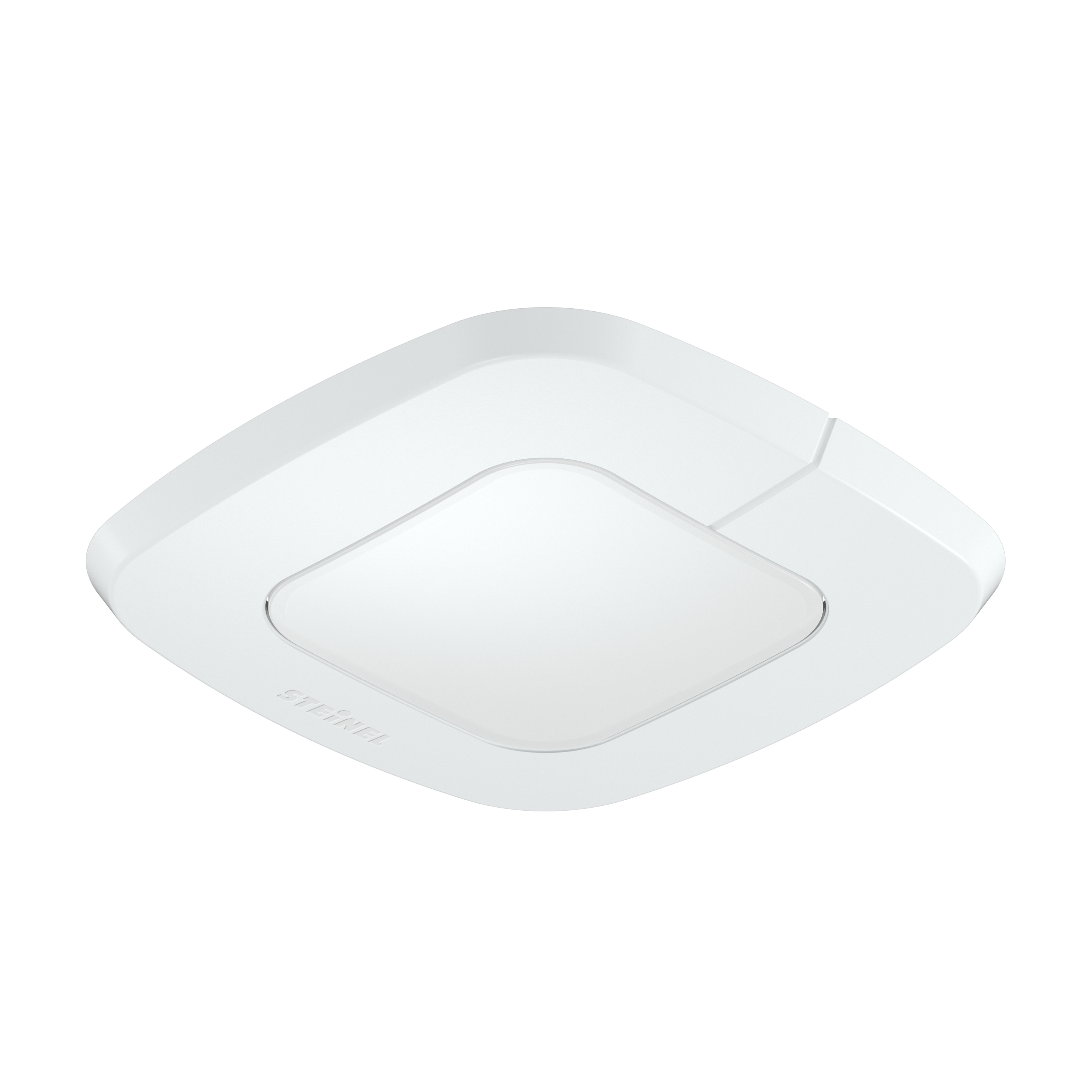

Steinel IR Quattro SLIM XS 4m DALI-2 Input Device - square

EAN-No. 4007841057510

ELDAS® no. 057510

Version

KNX 230V 1 channel DALI-2

Colour

White Black

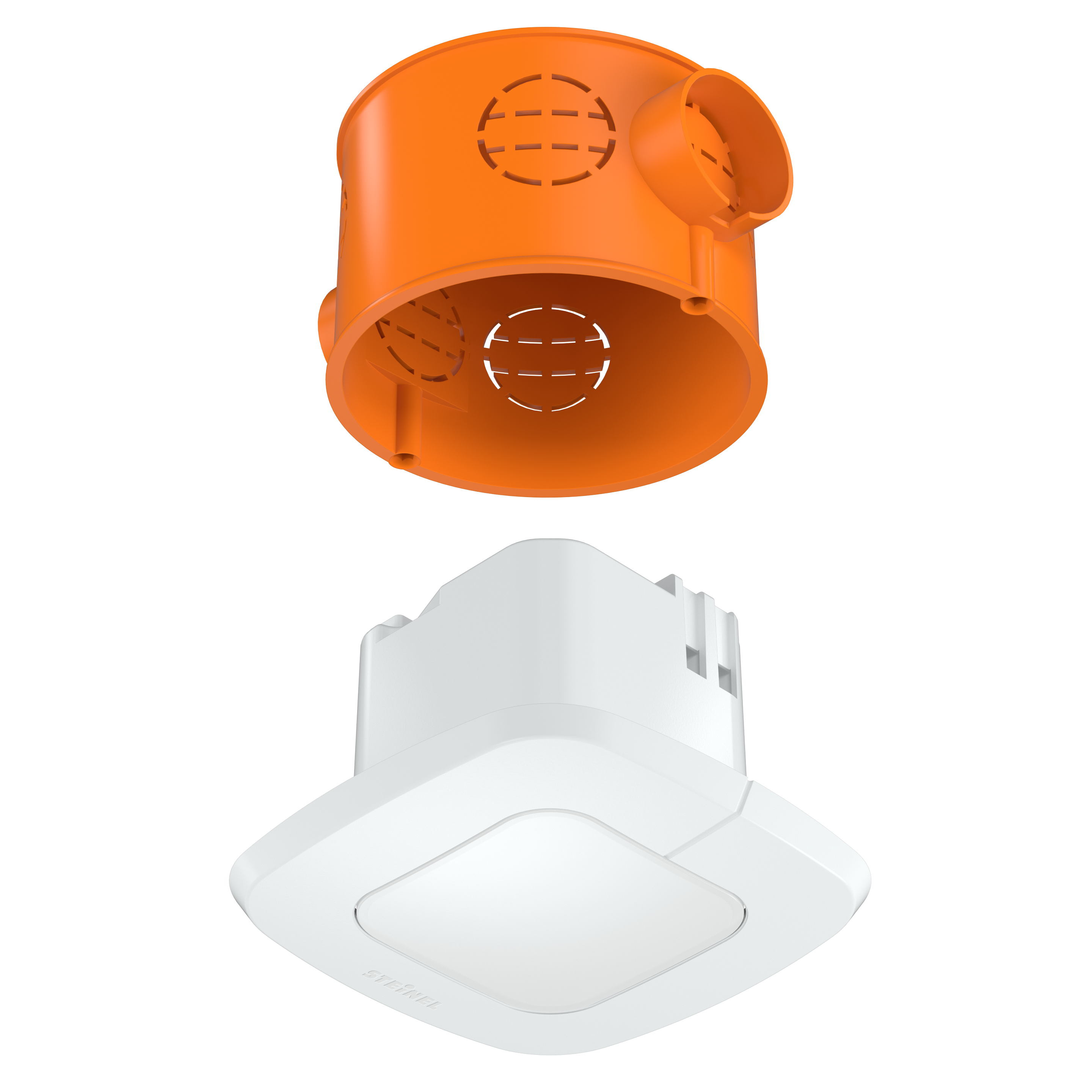

Due to popular demand. The extra slim IR Quattro SLIM XS presence detector virtually disappears in the wall or ceiling. Thanks to the new and practical concealed box format it forms a remarkably unobtrusive symbiosis with the office environment and can now be installed in any standard concealed box. In short: our slimmest presence detector would seem to be pretending it wasn't even there - and yet is absolutely present when it matters. To be prepared for any situation, a round SLIM XS is also available.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535932400

Variants

Version DALI-2

Colour White

Dimensions

Dimensions L × W × H 50 x 80 x 80 mm

PU1 net weight 0.0430

Electrical

Mains connection 16 V

Supply voltage detail DALI bus

Switching output 2 potential-free No

Control output DALI Addressable/slave

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 71 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 408 switching zones

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 2.0000

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room one-person office hotel room care room function room / ancillary room WC / washroom Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Cross-/up-selling

Accessories 12367

Extremely slim overall height

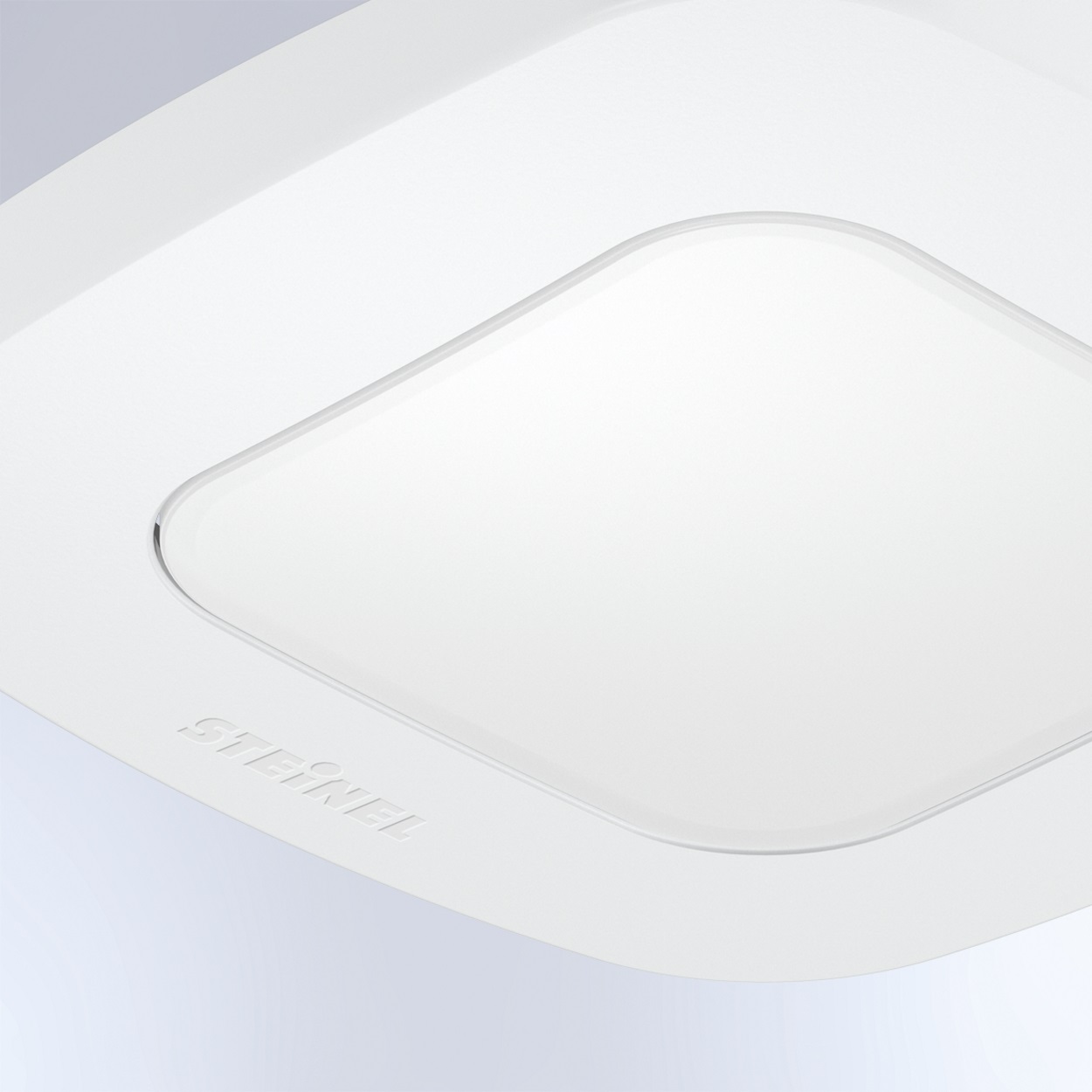

High-quality retina lens

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151
