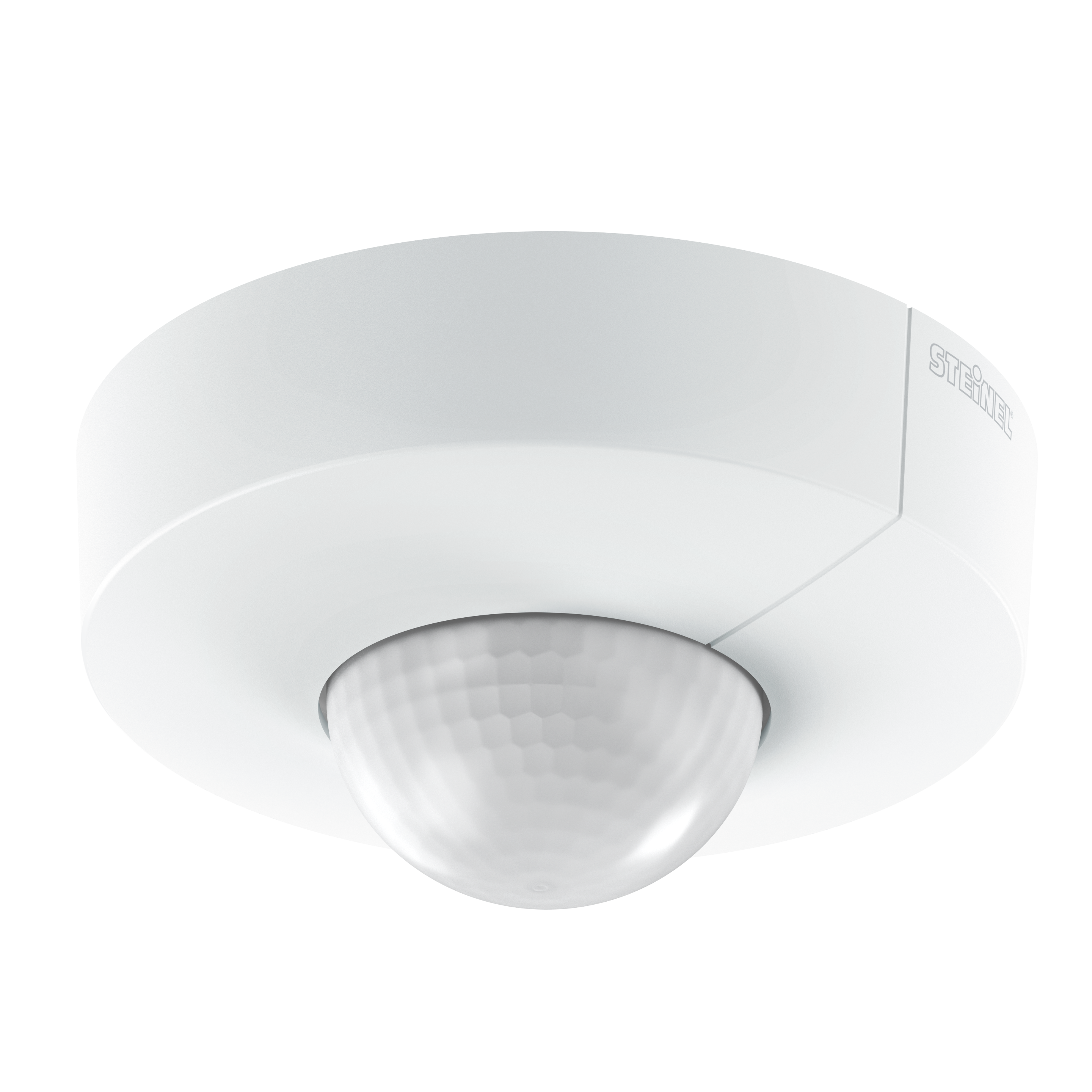

Steinel IS 3360 DALI-2 APC - surface, rd.

EAN-No. 4007841033507

ELDAS® no. 033507

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Colour

White Black

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for presence detectors with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.

Identification

Version Motion and Presence Detector

Manufacturer Steinel

E-number 535943006

Variants

Version DALI-2 Application Controller

Colour White

Mounting height Mounting height 2.5 to 4 metres

Shape Round

Dimensions

Dimensions Ø × H 126 x 65 mm

PU1 net weight 0.1710

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 40 m (1257 m²)

Switching zones 1416 switching zones

Mounting height 2,50 – 4,00 m

Presence range Ø 3 m (7 m²)

Optimal mounting height 2,8 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable, 4h

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 1-30 min all night

Main light adjustable 50 - 100 %

Functions Normal / test mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Outdoors Indoors

Mounting type Surface wiring

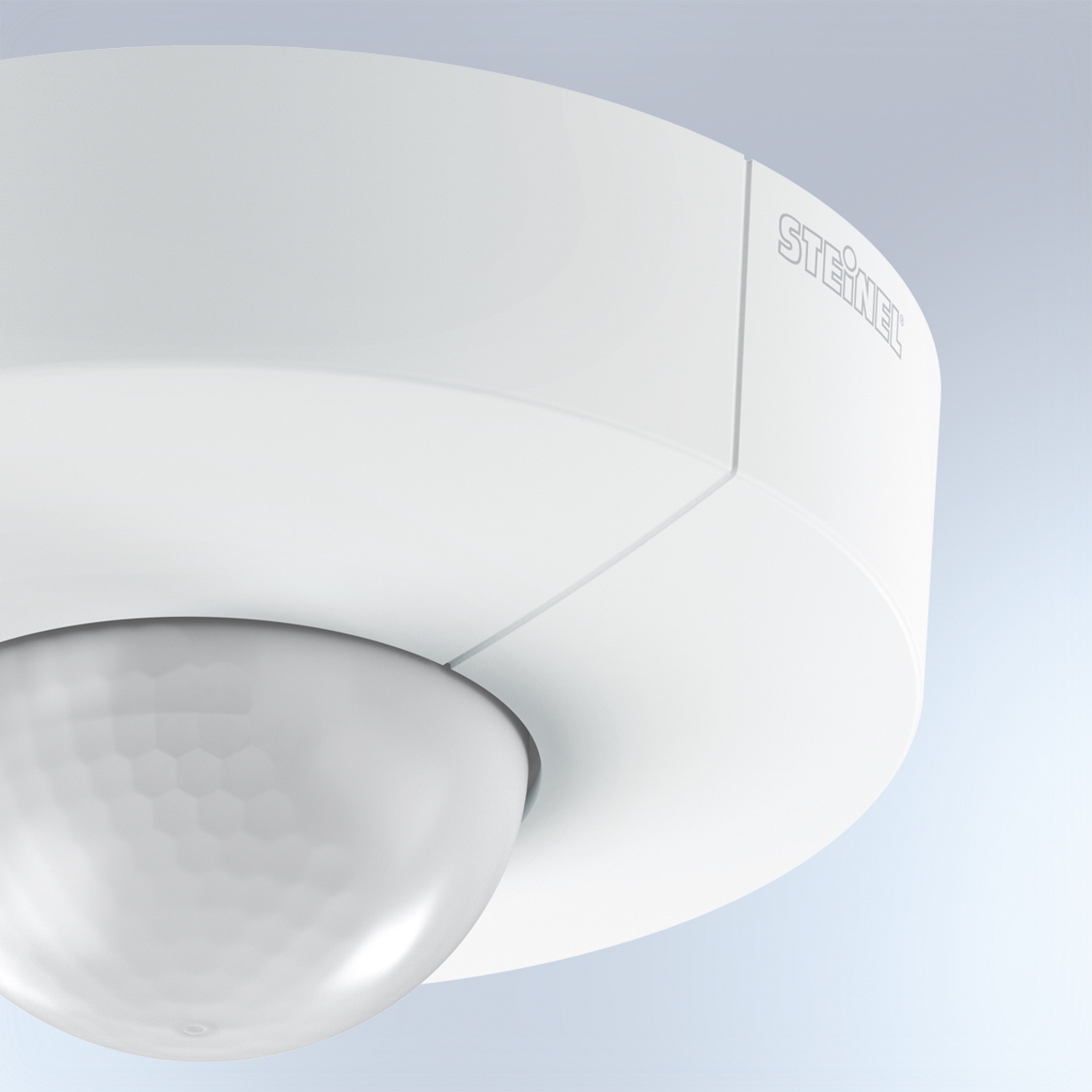

Material Plastic

Application room production facilities recreation room changing room function room / ancillary room sports hall reception / lobby stairwell WC / washroom multi-storey / underground car park outdoors warehouse Indoors

Colour white

RAL colour 9003
