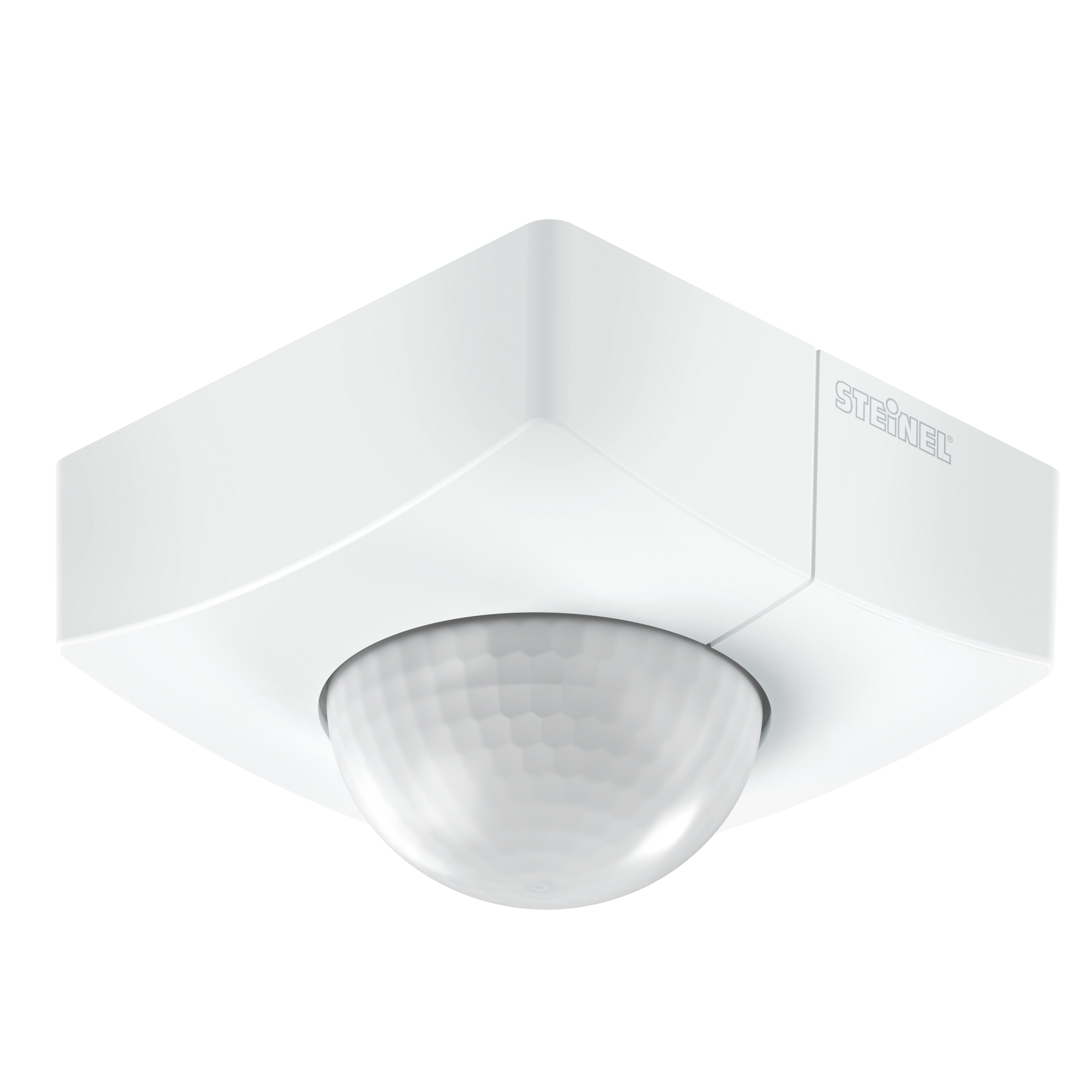

Steinel IS 3360 MX Highbay DALI-2 APC - surface, sq.
EAN-No. 4007841010577
ELDAS® no. 010577
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Colour
White
Black
Mounting height
Mounting height 2.5 to 4 metres
Mounting height 4 to 14 metres
Shape
Angular
Round
The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535946406
Variants
Version
DALI-2 Application Controller
Colour
White
Mounting height
Mounting height 4 to 14 metres
Shape
Angular
Dimensions
Dimensions L × W × H
65 x 95 x 95 mm
PU1 net weight
0.1640
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Control output DALI
Broadcast 1x30 electronic ballasts
Sensor technology
Max. mounting height
14,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 14 m (154 m²)
Tangential range
Ø 36 m (1018 m²)
Switching zones
1416 switching zones
Mounting height
4,00 – 14,00 m
Optimal mounting height
12 m
Nevalux sensor technology
DALI 2
Connectivity
Networking
Yes
Type of networking
Master/slave
Networking via
Cable
Lighting technology
Soft light start
Yes
Continuous light
selectable, 4h
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Base light function
Yes
Base light function time
1-30 min
all night
Main light adjustable
50 - 100 %
Functions
Normal / test mode
Manual ON / ON-OFF
Constant-lighting control ON-OFF
Settings via
Remote control
Potentiometers
Smart Remote
With remote control
No
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Base light function percent from
10.0000
Base light function percent to
50.0000
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Housing material
Plastic
Cover material
Plastic, opal
Cover material (scope of delivery)
shrouds
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
high-bay warehouse
sports hall
Indoors
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
Certificates
DALI-2
Cross-/up-selling
Accessories
12367,13686,13685,21693

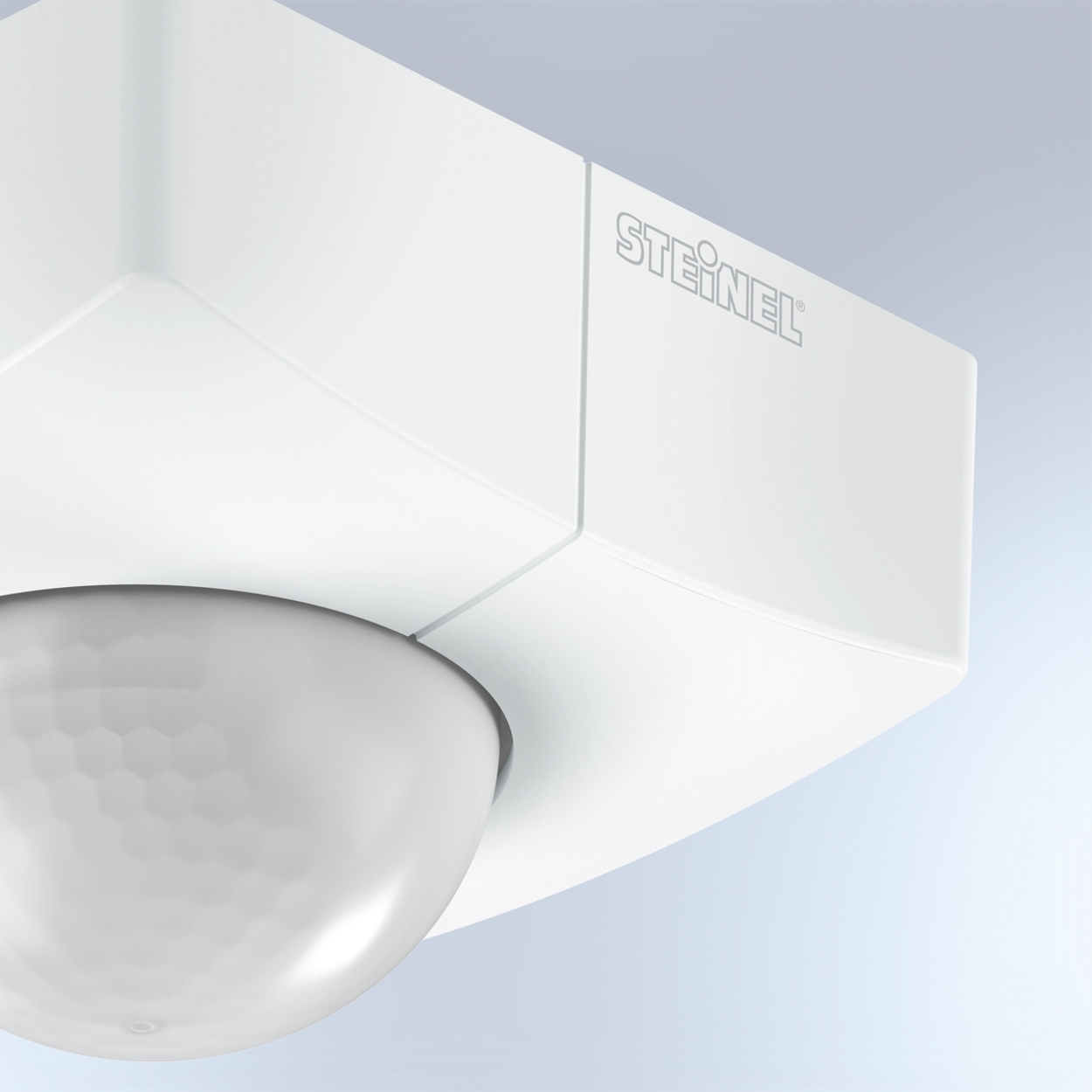

UV-resistant plastic

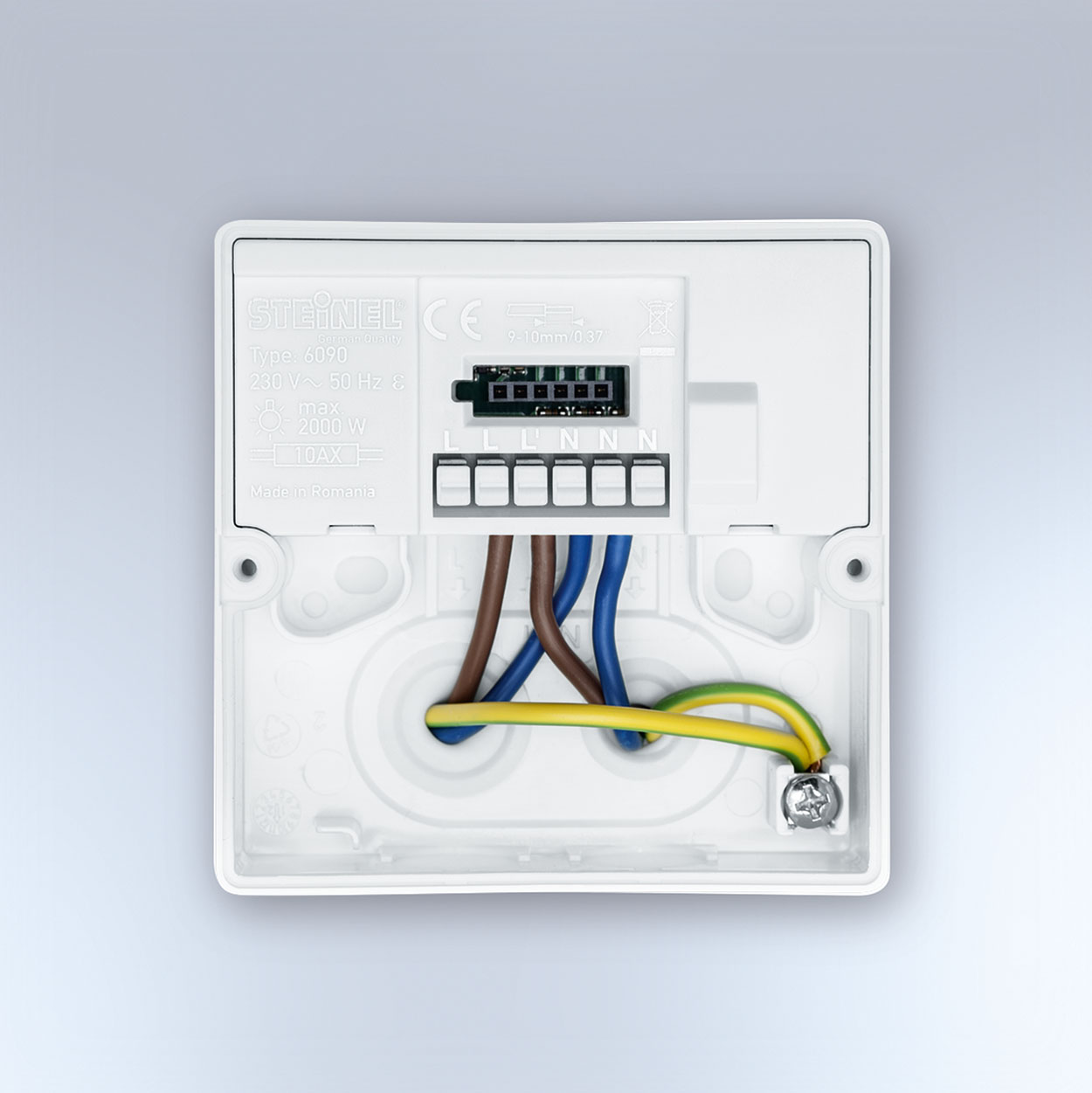

Large terminal compartment
Optional remote controls
Technical drawing
Sensor detection range
Wiring diagram 1
Master circuit diagram
Wiring diagram 2
Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD
