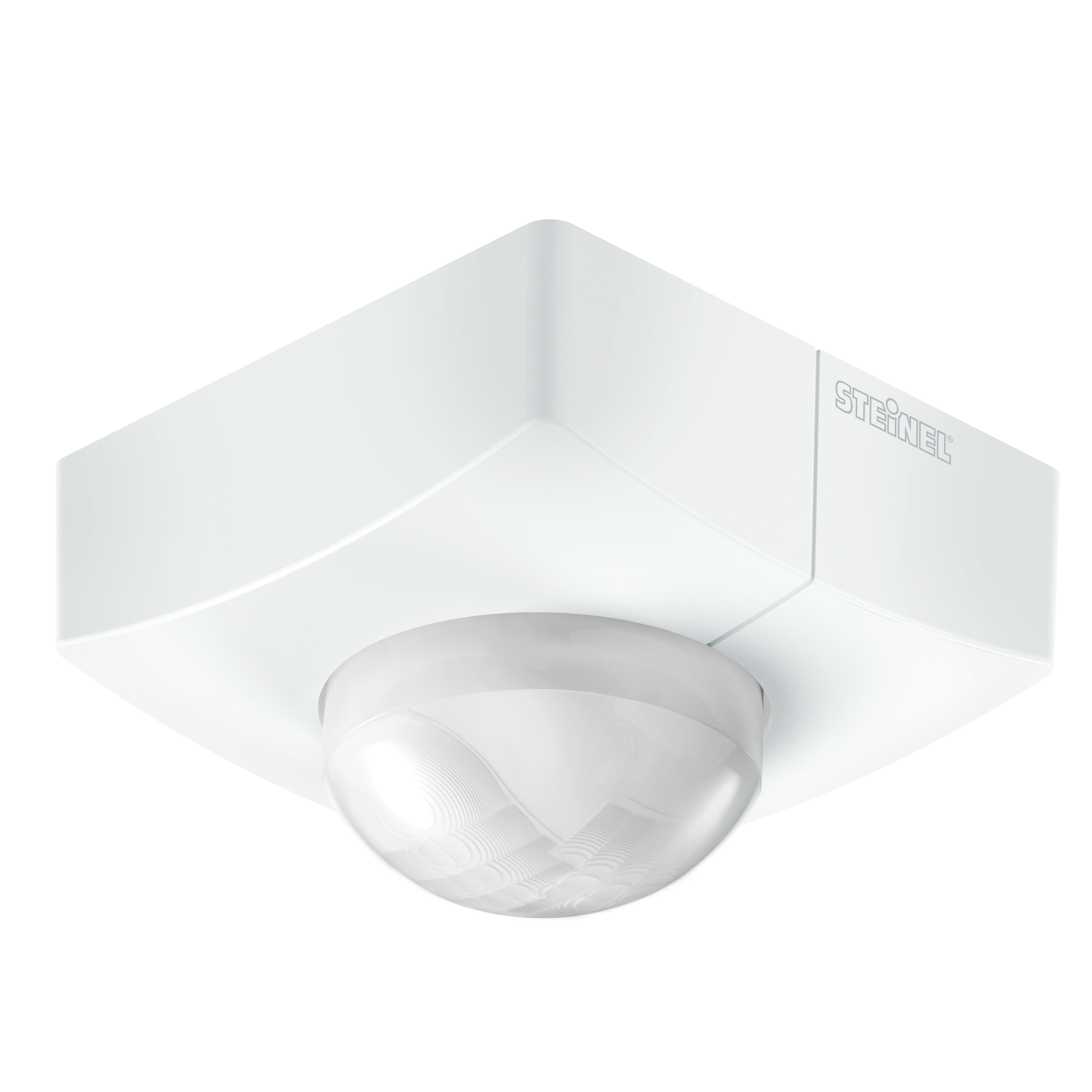

Steinel IS 345 MX Highbay DALI-2 APC - surface, sq.

EAN-No. 4007841010591

ELDAS® no. 010591

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

High-bay warehouses often have narrow aisles and high ceilings. Too high for most sensors. We have just the right solution: the IS 345 MX Highbay infrared motion detector was specially developed for mounting at heights of up to 14 m and for precision detection between narrow aisles. Perched up there, it gives you surveillance quality at the highest level, literally. So in the future, you can confidently set your sights higher when it comes to sensor systems! Available in surface-mounted and concealed installation versions, and naturally compatible with the standard interfaces.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535941466

Variants

Version DALI-2 Application Controller

Mounting type Surface-mounted

Mounting height Mounting height 4 to 14 metres

Shape Angular

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

PU1 net weight 0.1650

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

Sensor technology

Max. mounting height 16,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 30 x 4 m (120 m²)

Tangential range 30 x 4 m (120 m²)

Switching zones 280 switching zones

Mounting height 4,00 – 16,00 m

Optimal mounting height 12 m

Nevalux sensor technology DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable, 4h

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 1-30 min all night

Main light adjustable 50 - 100 %

Functions Normal / test mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10.0000

Base light function percent to 50.0000

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room high-bay warehouse Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Cross-/up-selling

Accessories 12367,13686,13685,21693

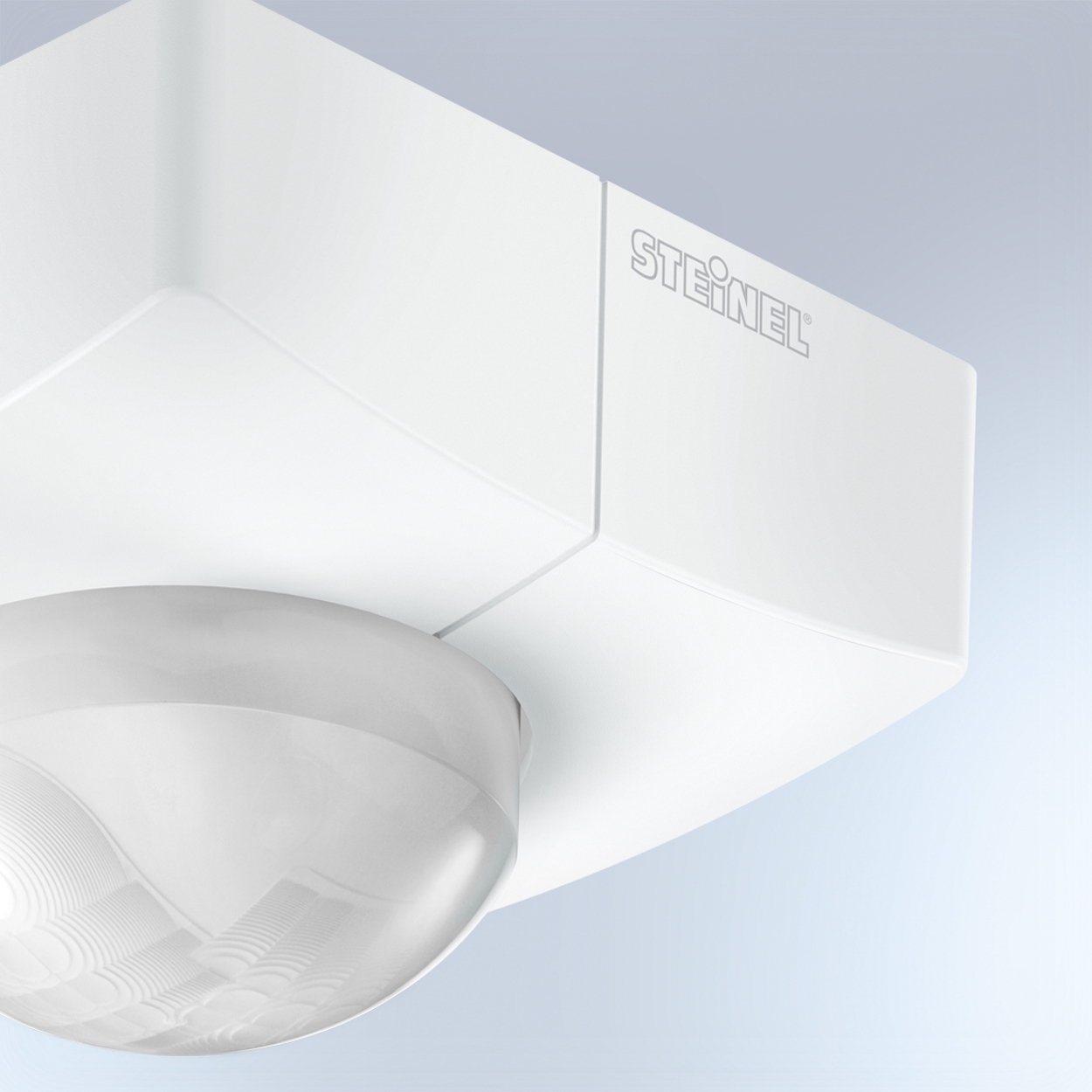

UV-resistant plastic

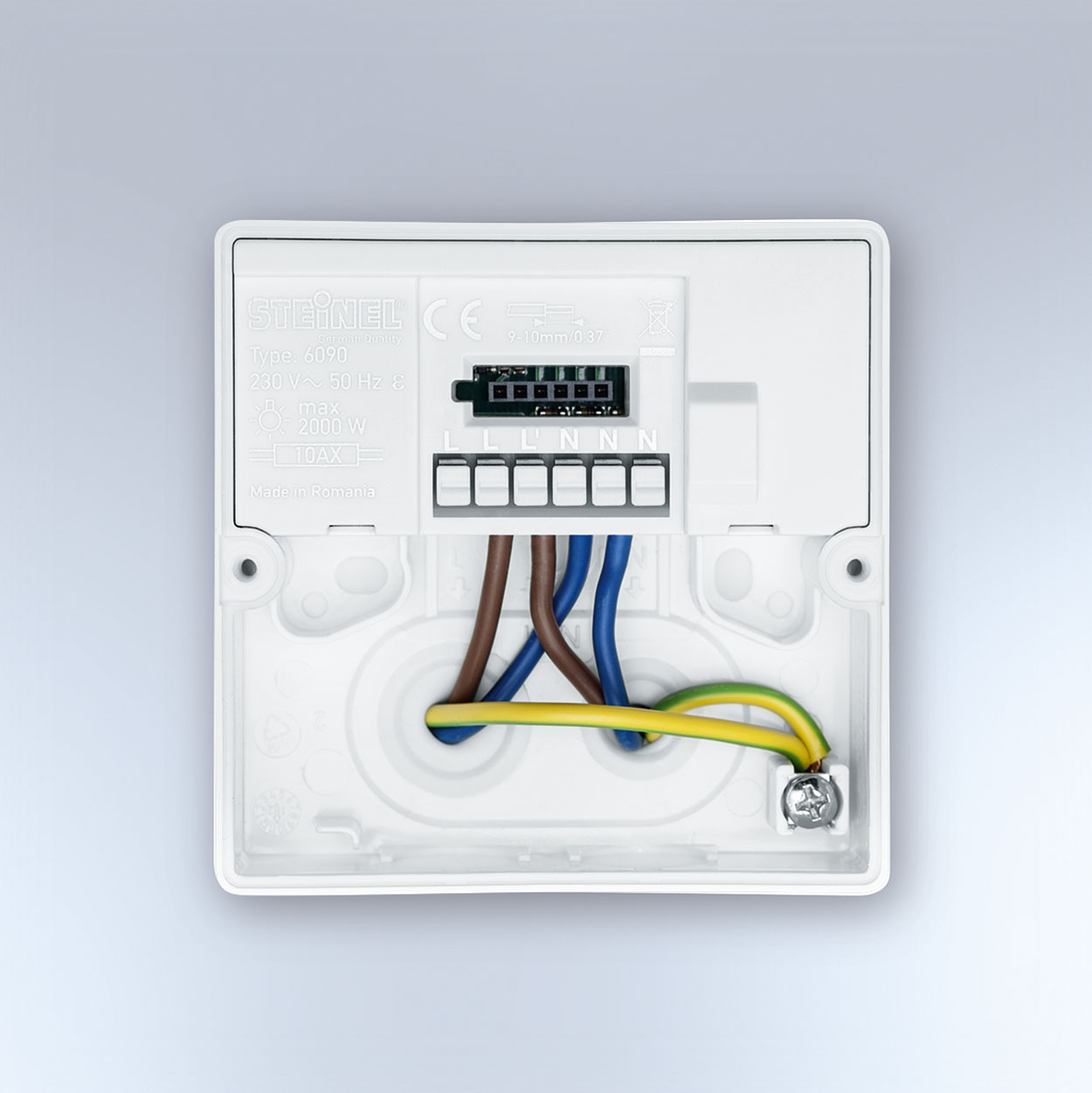

Large terminal compartment

Optional remote controls

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Circuit diagram for interconnecting DALI-2 APC with DALI-2 IPD

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410

User remote control RC5

Item no. 592806

Black cover for IR-sensors surface, sq.

Item no. 056711
