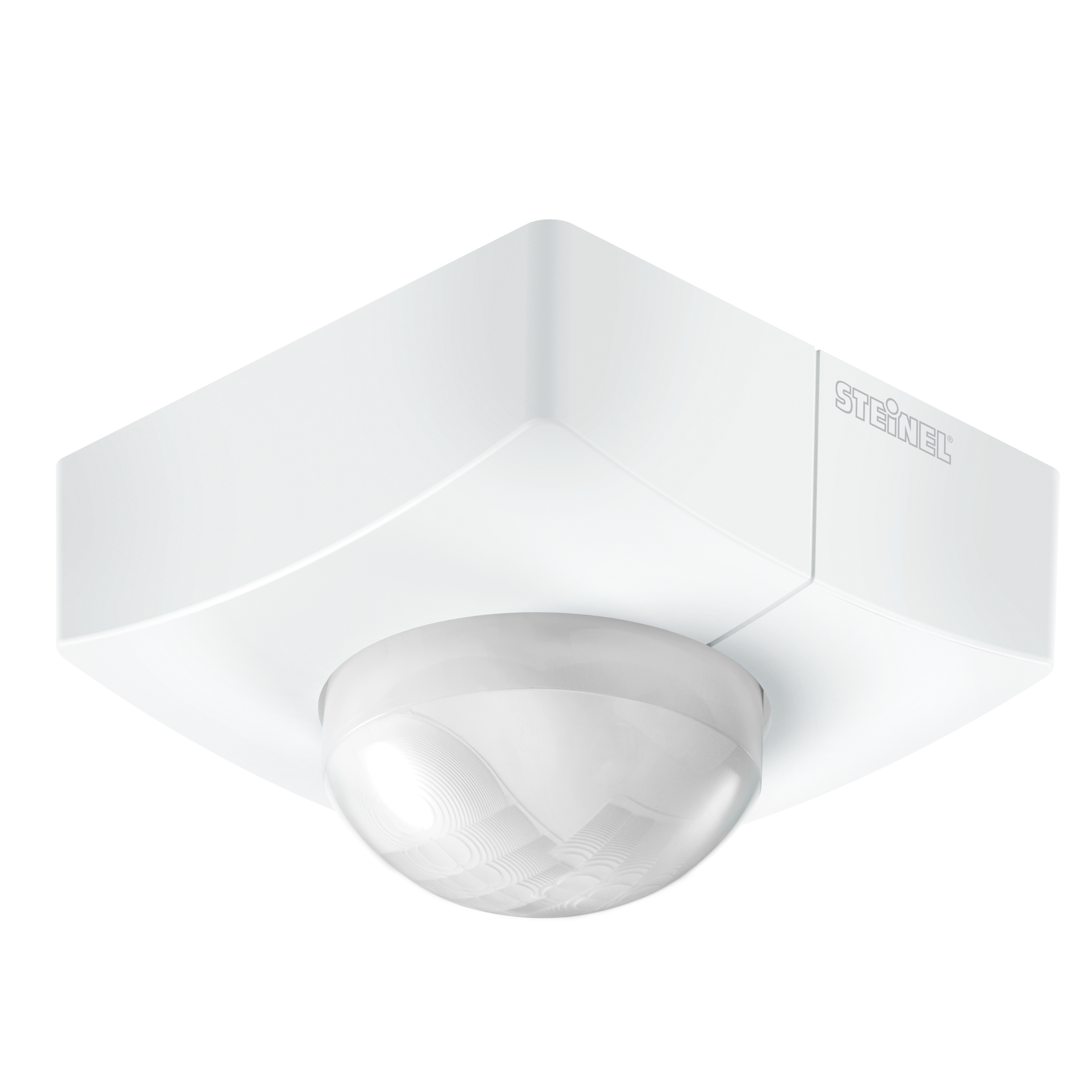

Steinel IS 345 MX Highbay PF - surface, sq.

EAN-No. 4007841010522

ELDAS® no. 010522

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Mounting type

Flush-mounted Surface-mounted

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

High-bay warehouses often have narrow aisles and high ceilings. Too high for most sensors. We have just the right solution: the IS 345 MX Highbay infrared motion detector was specially developed for mounting at heights of up to 14 m and for precision detection between narrow aisles. Perched up there, it gives you surveillance quality at the highest level, literally. So in the future, you can confidently set your sights higher when it comes to sensor systems! Available in surface-mounted and concealed installation versions, and naturally compatible with the standard interfaces.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535941467

Variants

Version PF (Potential Free)

Mounting type Surface-mounted

Mounting height Mounting height 4 to 14 metres

Shape Angular

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

PU1 net weight 0.1790

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Maximum inrush current 110 A

Sensor technology

Max. mounting height 16,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 30 x 4 m (120 m²)

Tangential range 30 x 4 m (120 m²)

Switching zones 280 switching zones

Mounting height 4,00 – 16,00 m

Optimal mounting height 12 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Manual ON / ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room high-bay warehouse Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Cross-/up-selling

Accessories 12367,13686,21693

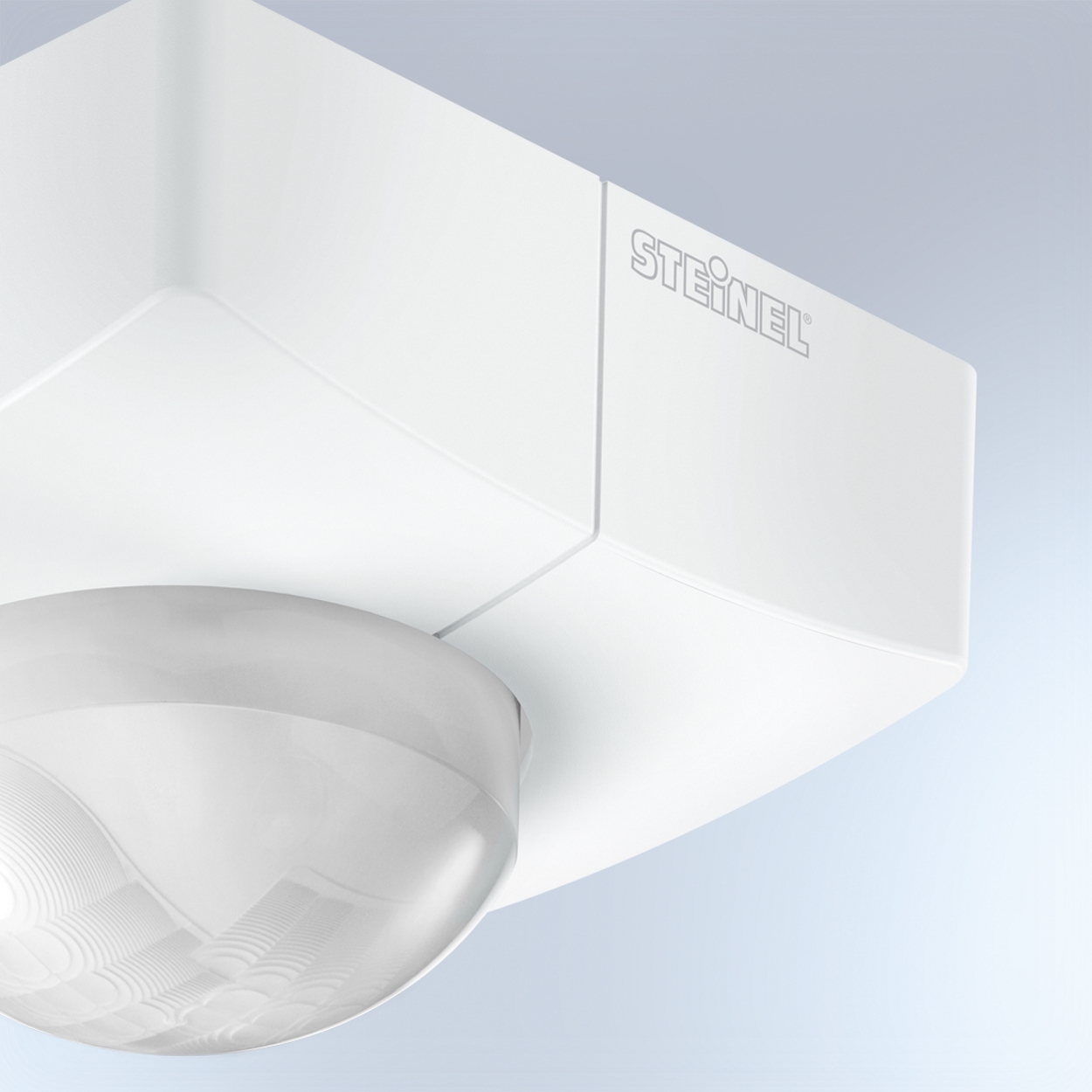

UV-resistant plastic

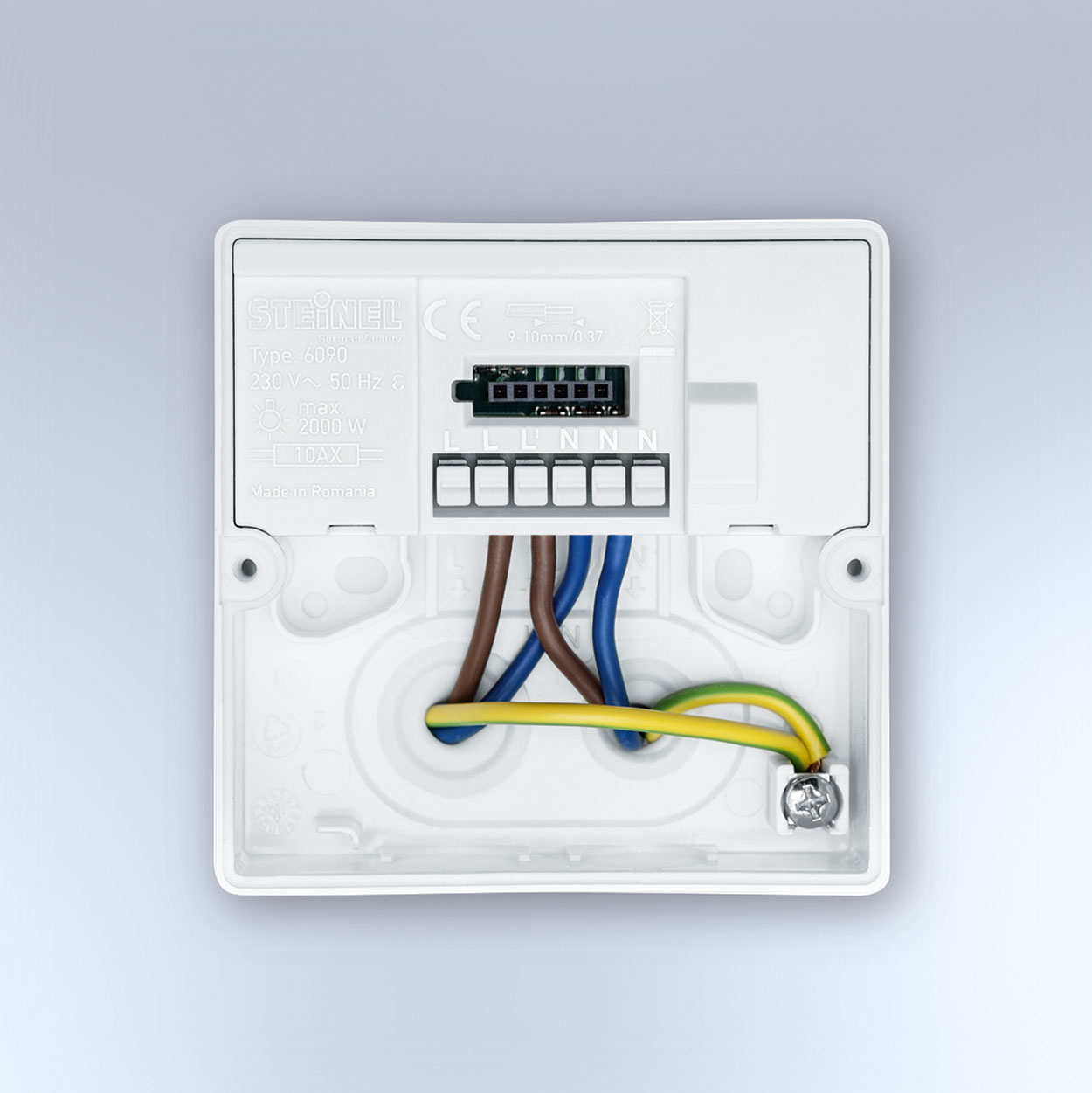

Large terminal compartment

Optional remote controls

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Data sheet Declaration of conformity

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410

Black cover for IR-sensors surface, sq.

Item no. 056711
