Identification
Version

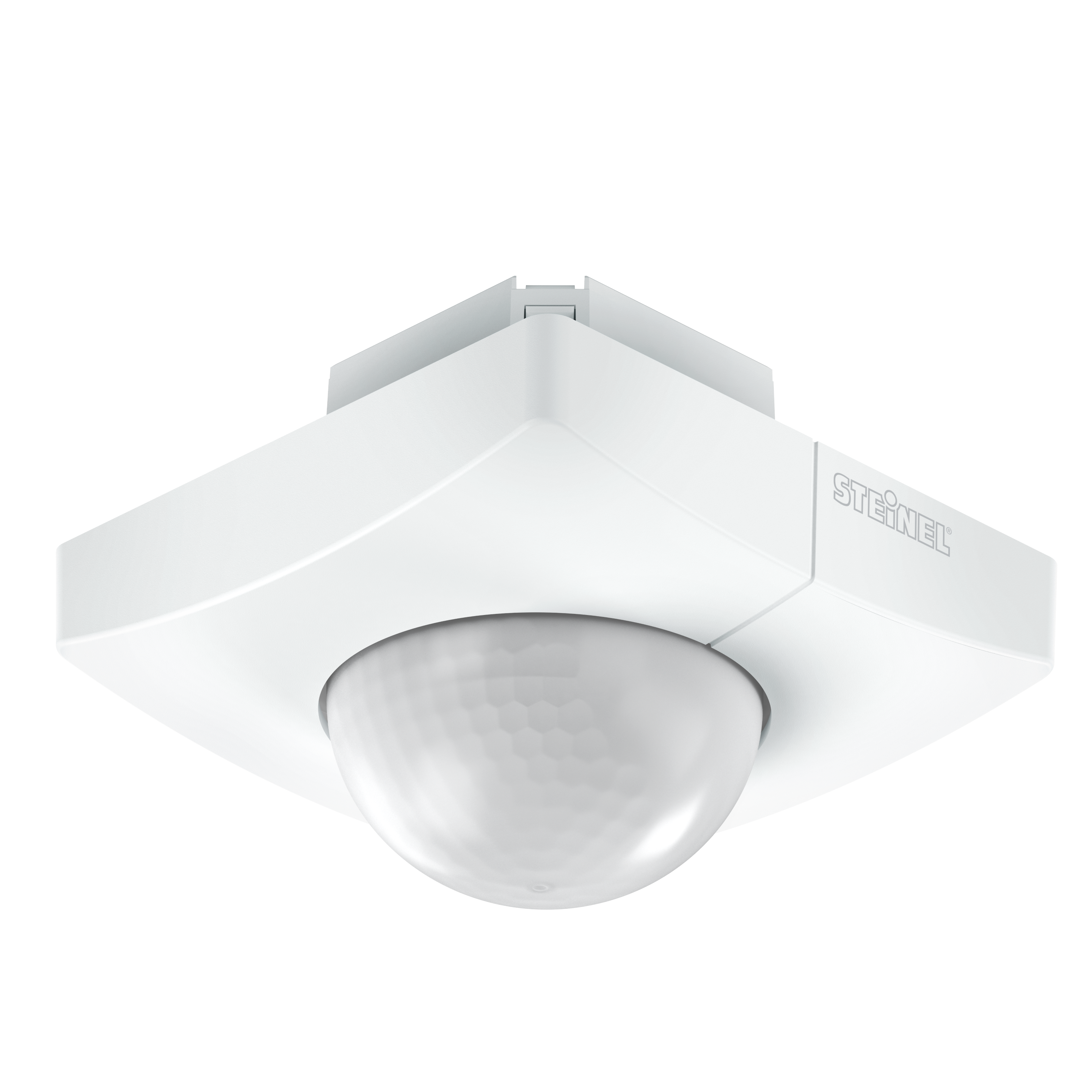

Motion detectors
Manufacturer
Steinel
E-number
535941265
Variants
Version
PF (Potential Free)
Mounting type
Flush-mounted
Mounting height
Mounting height 2.5 to 4 metres
Shape
Angular
Dimensions
Dimensions L × W × H
78 x 94 x 94 mm
PU1 net weight
0.1550
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
400 VA
Fluorescent lamps parallel-compensated
400 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
Maximum inrush current
110 A
Sensor technology
Max. mounting height
5,00 m
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
45 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
12 x 6 m (72 m²)
Tangential range
23 x 6 m (138 m²)
Switching zones
280 switching zones
Mounting height
2,50 – 5,00 m
Optimal mounting height
2,8 m
Nevalux sensor technology
On / Off
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable, 4h
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Base light function
No
Main light adjustable
No
Functions
Normal / test mode
Manual ON / ON-OFF
Settings via
Remote control
Potentiometers
Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material

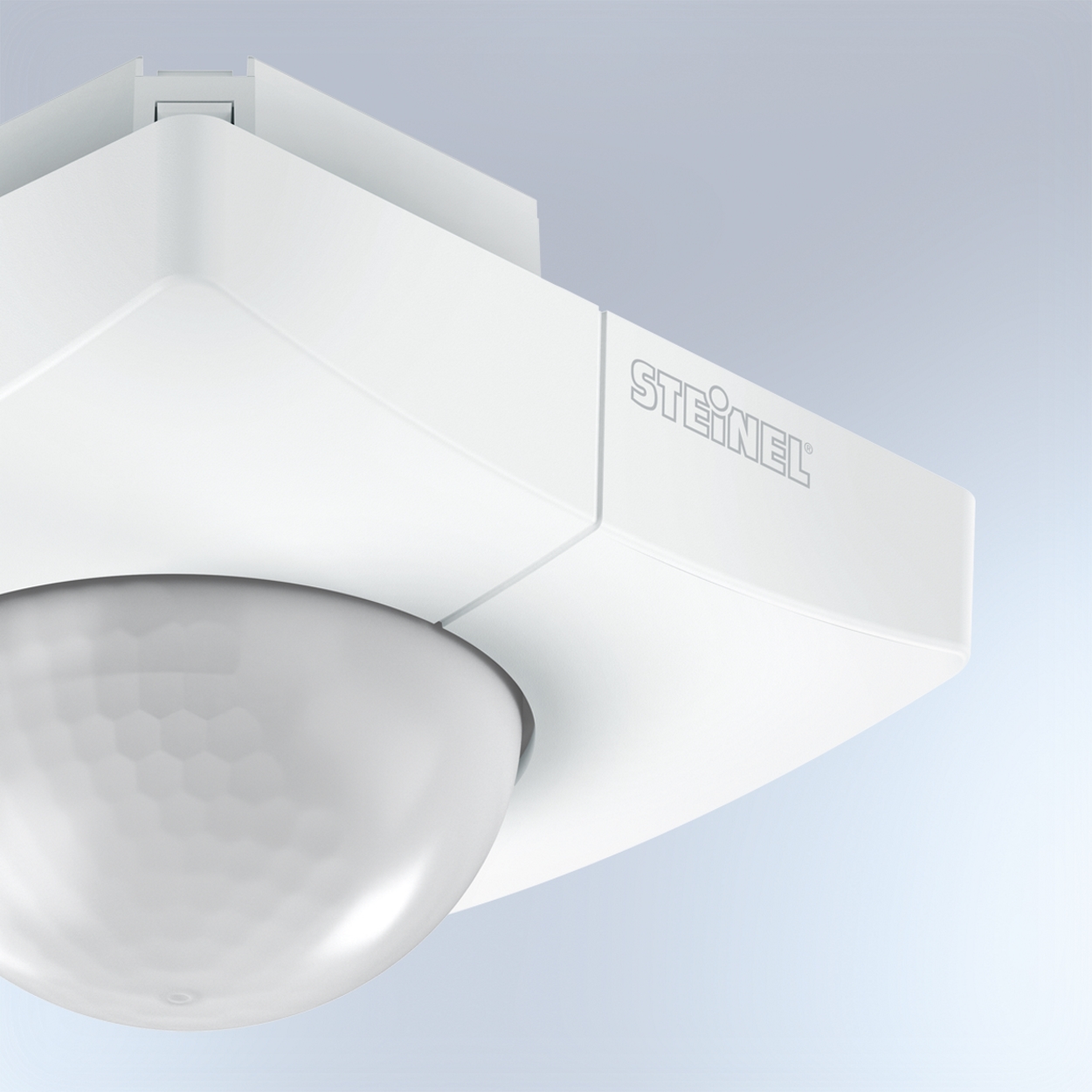

Plastic
Application room
corridor / aisle
multi-storey / underground car park
Indoors
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
