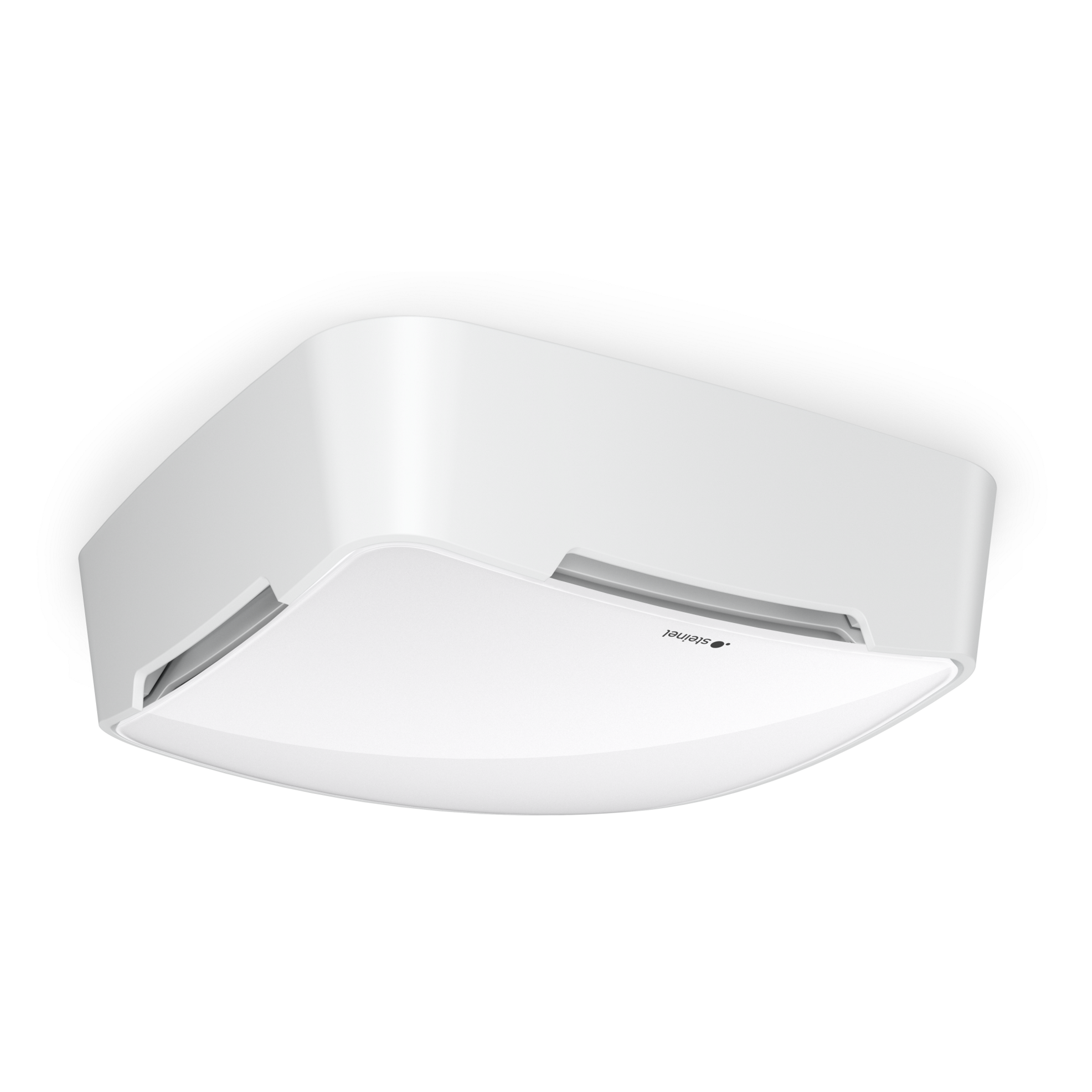

Steinel Multisensor True Presence IP - surface

EAN-No. 4007841081850

ELDAS® no. 081850

Price: Please log in to see prices

Version

KNX IP (REST API, MQTT, BacNet) DALI-2 Input Device (Slave) Bluetooth Input Device (Slave) KNX Aerosol

Mounting type

Flush-mounted Surface-mounted

8 senses for intelligent buildings, for measurably healthy indoor air. With the Multisensor True Presence® IP, human presence, brightness, room temperature, humidity, air pressure, volatile organic compounds (VOC), CO2 and the prevailing noise level can be determined. In addition, information about a possible risk of infection is derived from the determined values. Result: more health, more safety, more efficiency and more comfort.

In our product portfolio of presence detectors with the most detection sizes
Focus application: school, office

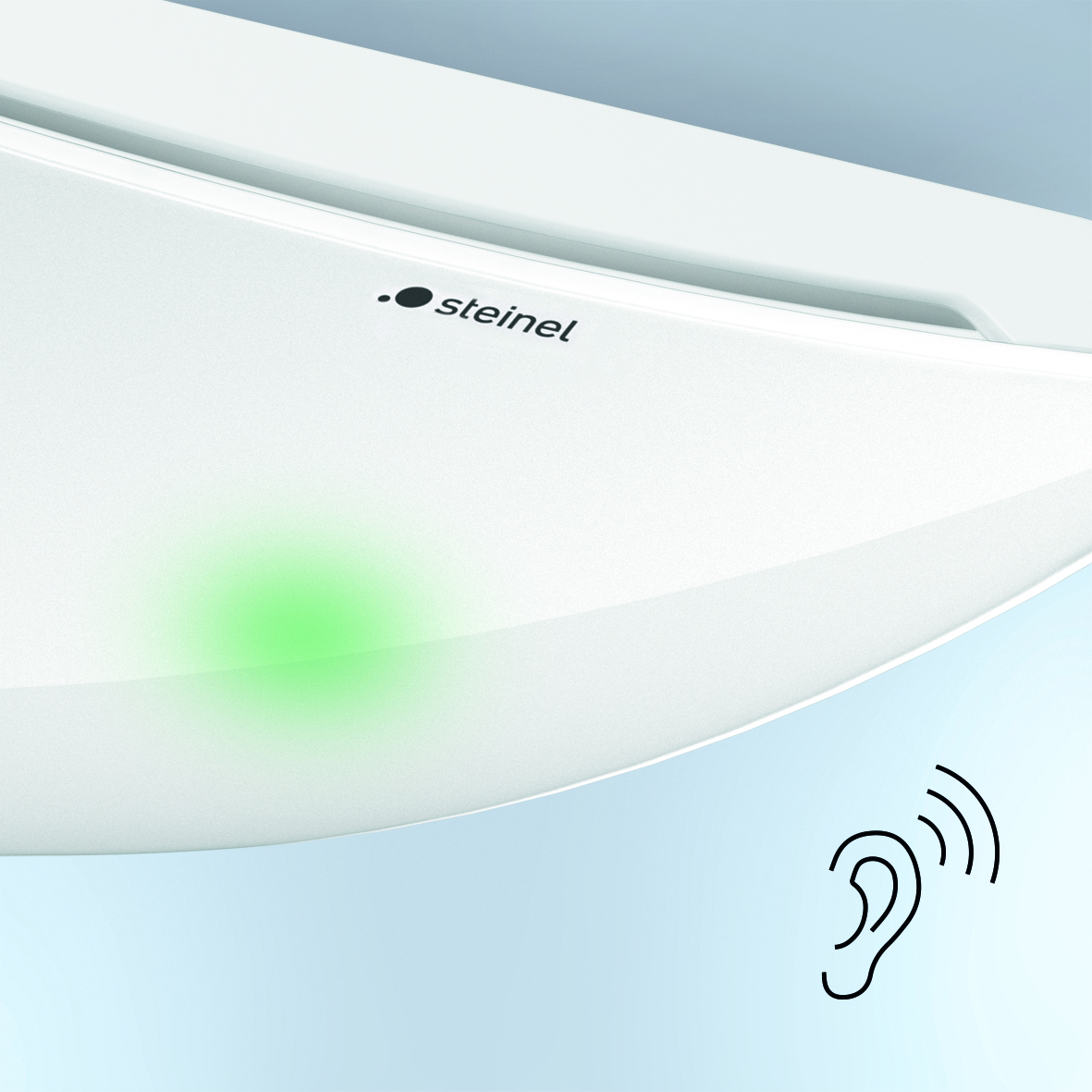

Easy-to-install plug-in system with magnetic connection, integrated RBG LED traffic light and signal tone for visualising the room climate
Digitally adjustable detection of true presence in award-winning design
Measurement of brightness, temperature, humidity, CO2, VOC, air pressure, noise level
Interface-dependent additional calculated values such as infection risk

Identification

Version Presence detector

Manufacturer Steinel

E-number 535900049

Variants

Version IP (REST API, MQTT, BacNet)

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 142 x 142 x 45 mm

PU1 net weight 0.2550

Electrical

Own consumption 1 W

Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 12,00 m

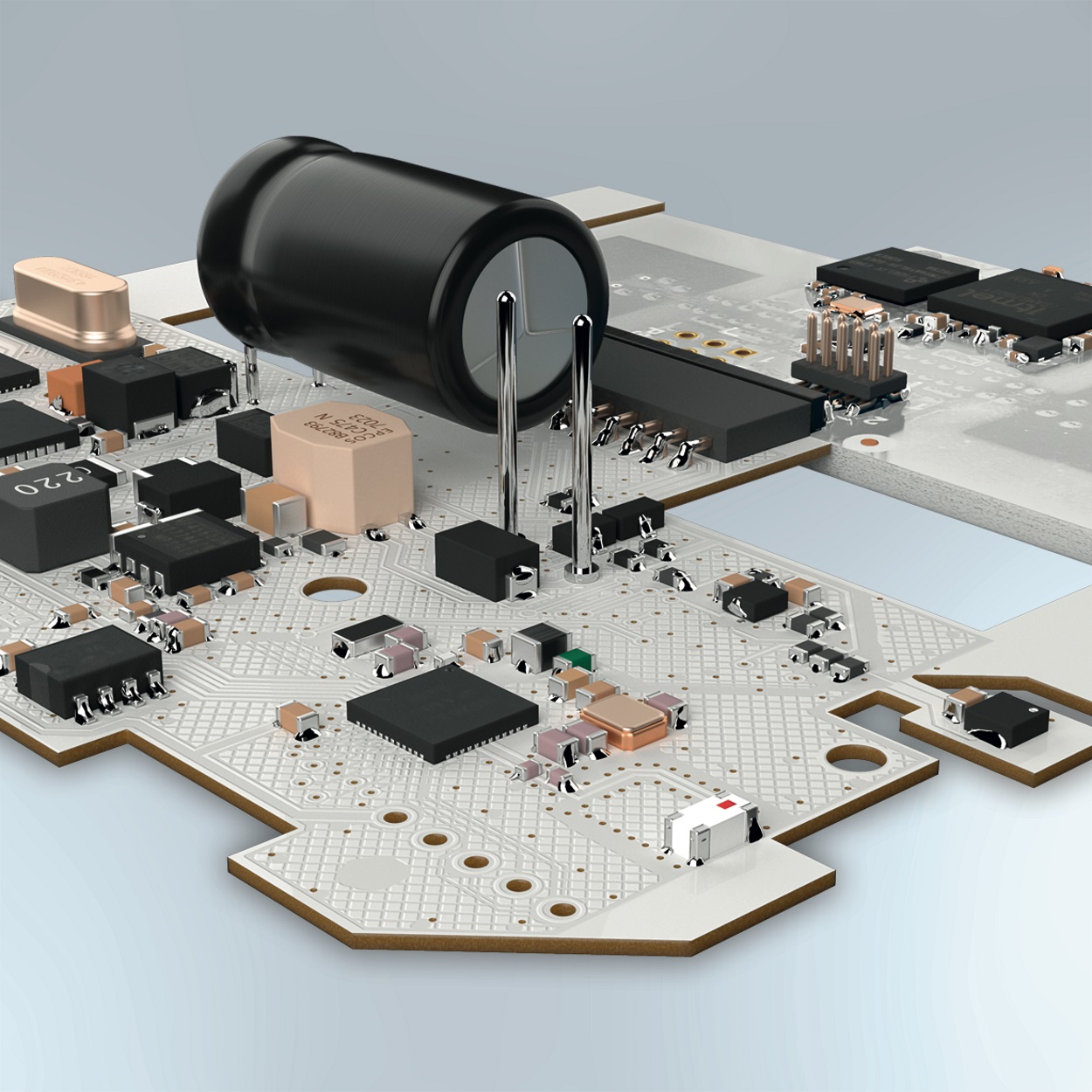

Sensor technology High frequency

Transmission power < 10 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2 – 12 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, IP / IT

Connectivity

Networking Yes

Networking via Bluetooth Mesh

With bus coupler Yes

Lighting technology

Continuous light selectable

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Main light adjustable Yes

Functions Motions sensor Light sensor

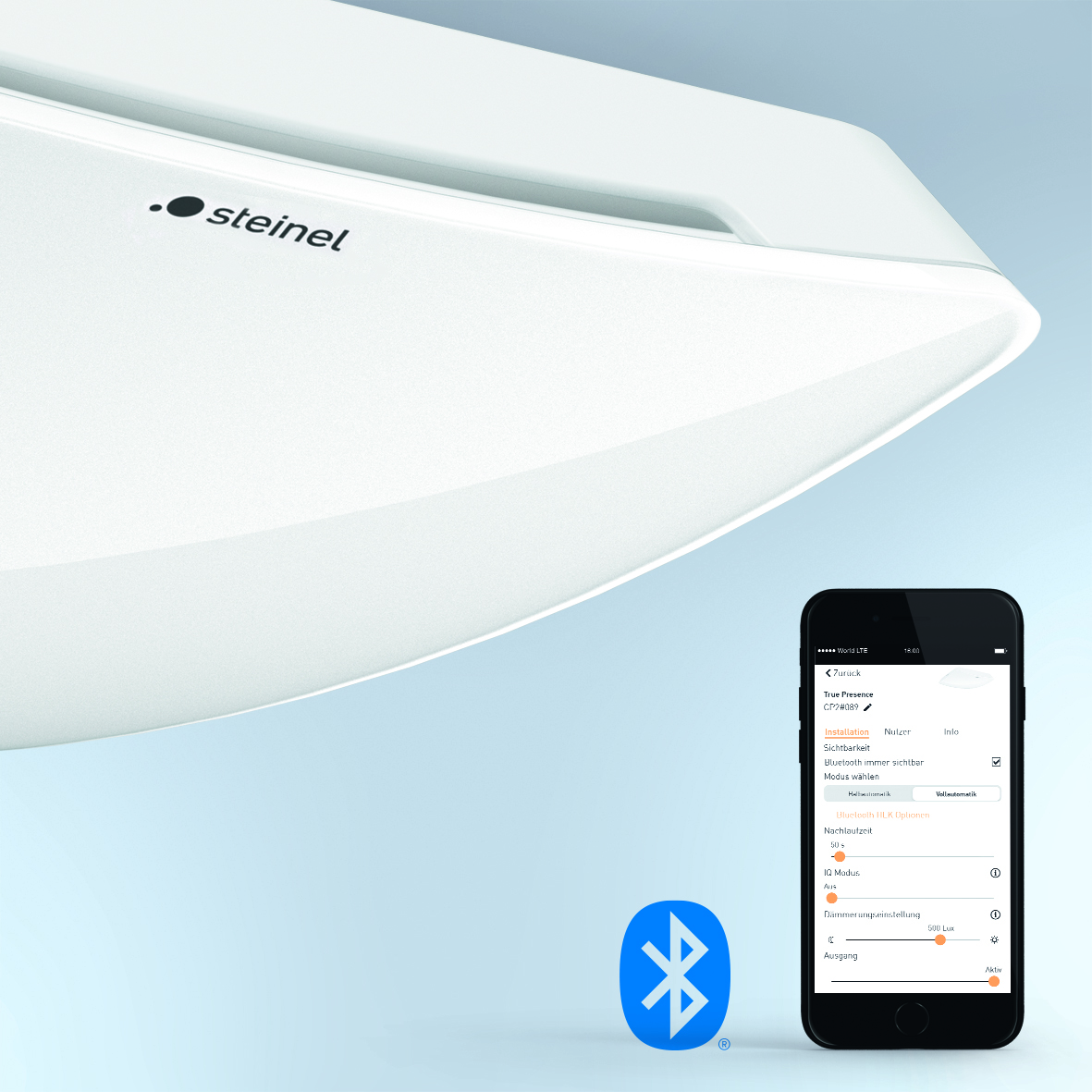

Settings via Bluetooth Mesh Web-Interface

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 50 °C

Housing material Plastic

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room open-plan office hotel room classroom conference room / meeting room

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing

KNX description https://pim.steinel.de/admin/ImageServer.php?ID=0ee56a193683@steinel&rand=cdf6b1fbea74677fae6f38950421724e&lang=2&force=true&download=true&omitPreview=true

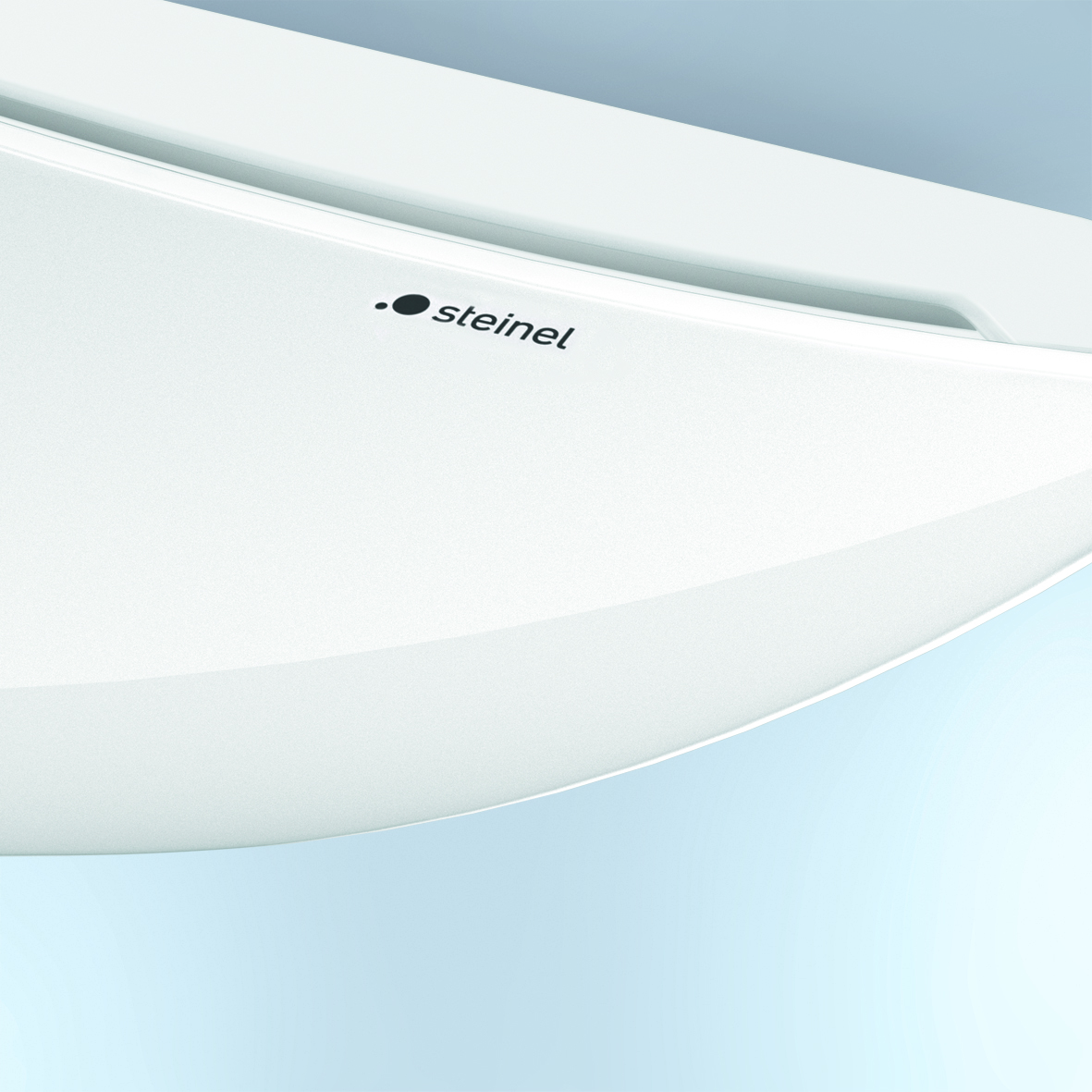

UV-resistant plastic
