Steinel sensIQ S COM1 - black

EAN-No. 4007841034979

ELDAS® no. 034979

Version

KNX 230V 1 channel

Colour

White Anthracite Black

Handsome addition! The sensIQ S is just as perfect in form and functional diversity as its larger role model. A look that architects like. This designer motion detector was developed specifically for wall mounting though. Being altogether more compact that its big brother, the sensIQ S nestles up against the facade, perfectly harmonising with modern, purist architecture. Its inner values are spectacular too because it comes with the same highly intelligent features and setting options as the sensIQ.

Identification

Version Motion detectors

Type of accessory Corner adapter

Manufacturer Steinel

E-number 535940640

Variants

Version 230V 1 channel

Colour Black

Dimensions

Dimensions L × W × H 128 x 114 x 74 mm

PU1 net weight 0.2000

Electrical

Mains connection 100 – 240 V / 50 – 60 Hz

Fluorescent lamps ECG 600 W

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 50.0000

Maximum inrush current 800 A

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 300 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Switching zones 1360 switching zones

Mounting height 2 – 5 m

Optimal mounting height 2 m

Nevalux sensor technology On / Off

Connectivity

Networking Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Application location Outdoors Indoors

Mounting type Surface wiring

Material Plastic

Scope of delivery & warranty

Corner wall bracket included Yes

Media & files

Wiring diagram 3 text Connection using two-circuit switch for manual and automatic operation

Wiring diagram 4 text Circuit diagram Connection via a changeover switch for continuous and automatic operation

Certificates & EPREL

Certificates VDE

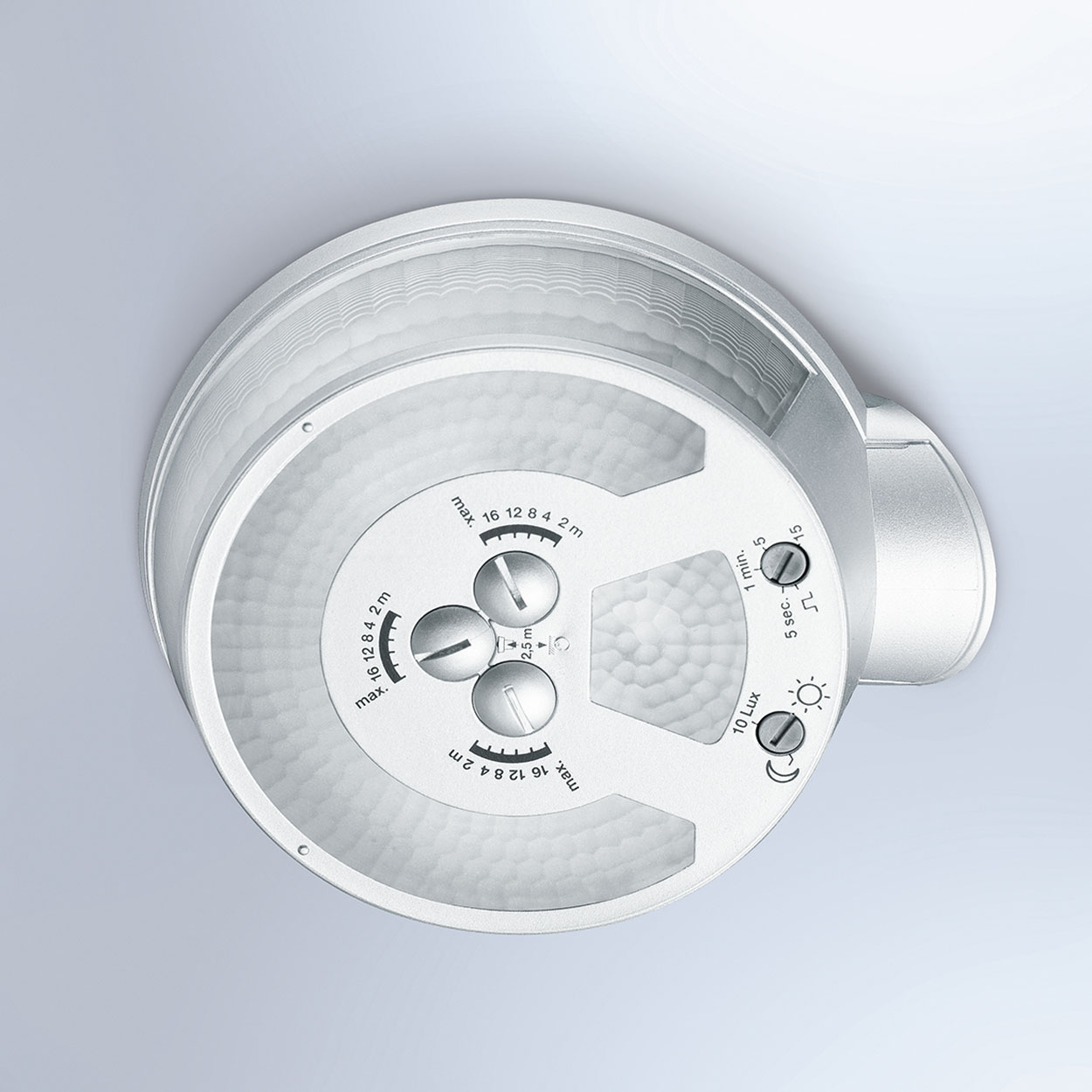

4x pyro system

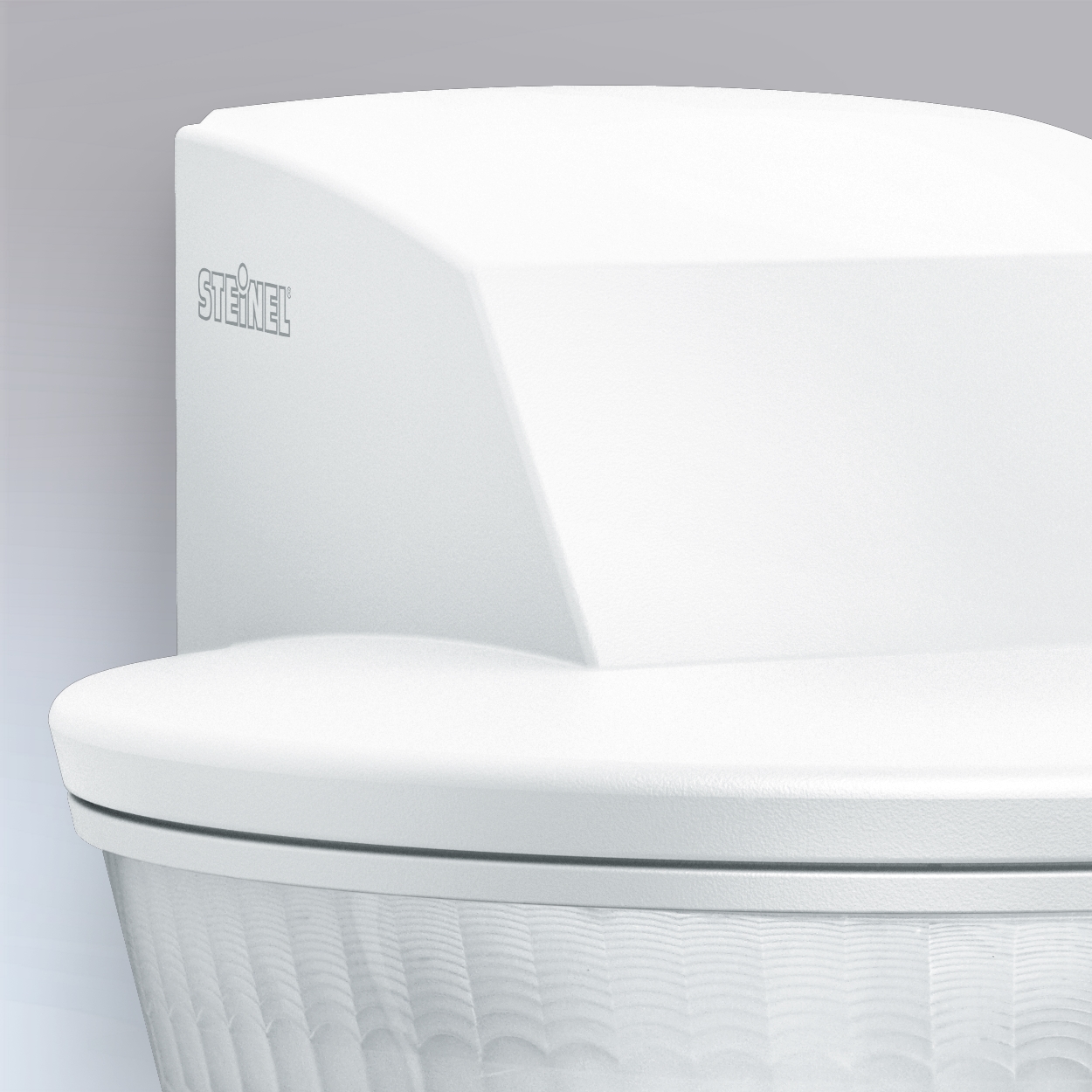

UV-resistant plastic

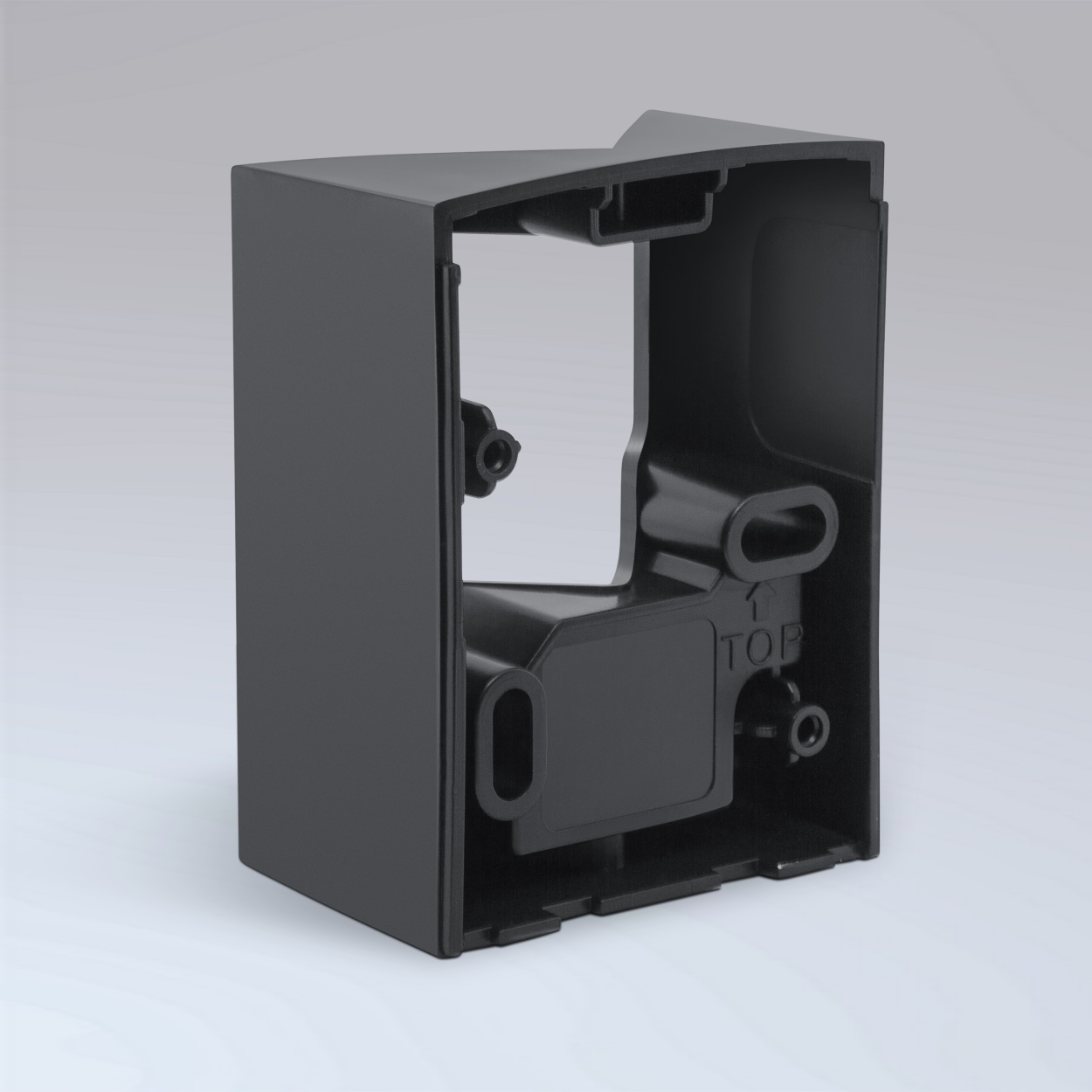

Including corner wall mount

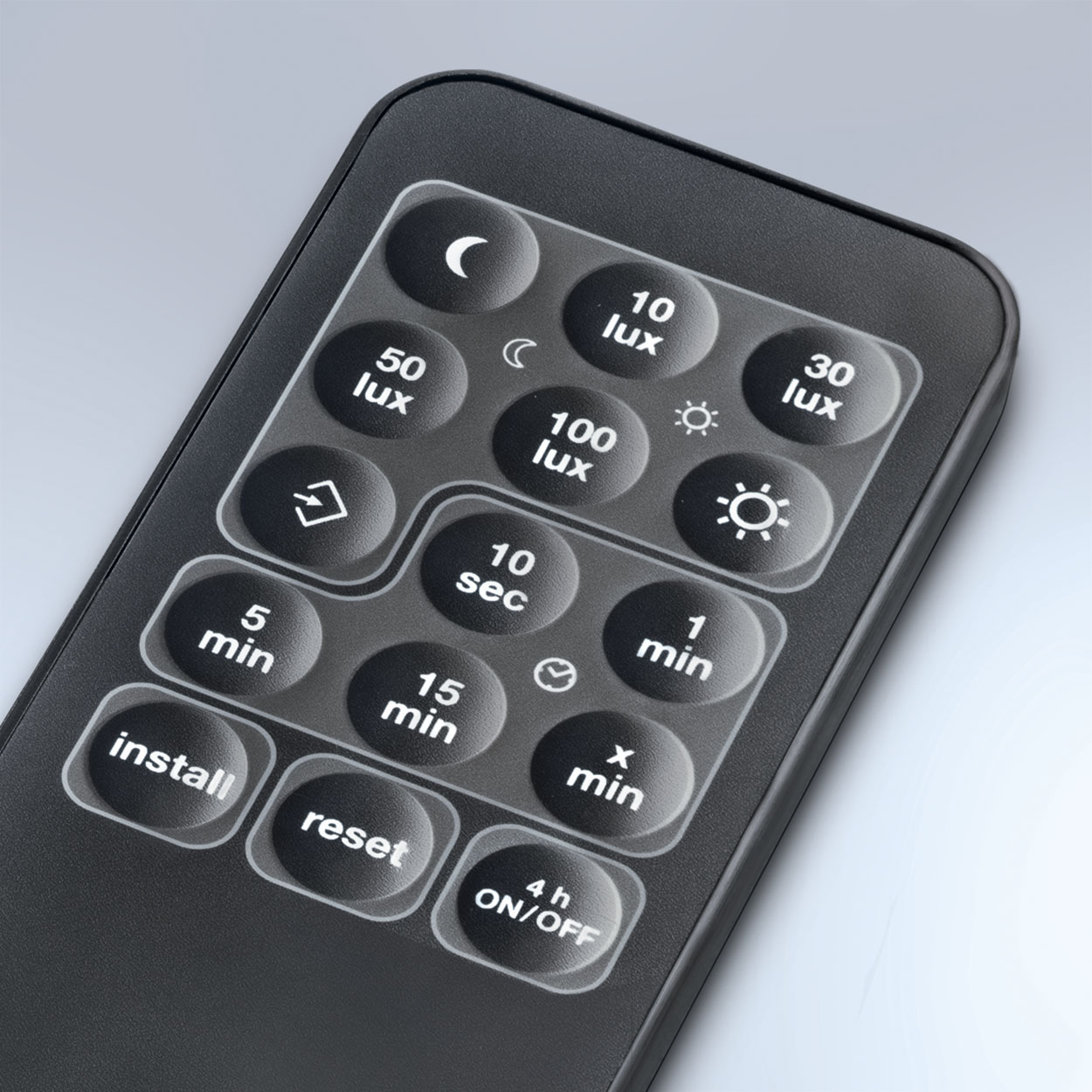

Remote control RC9 included

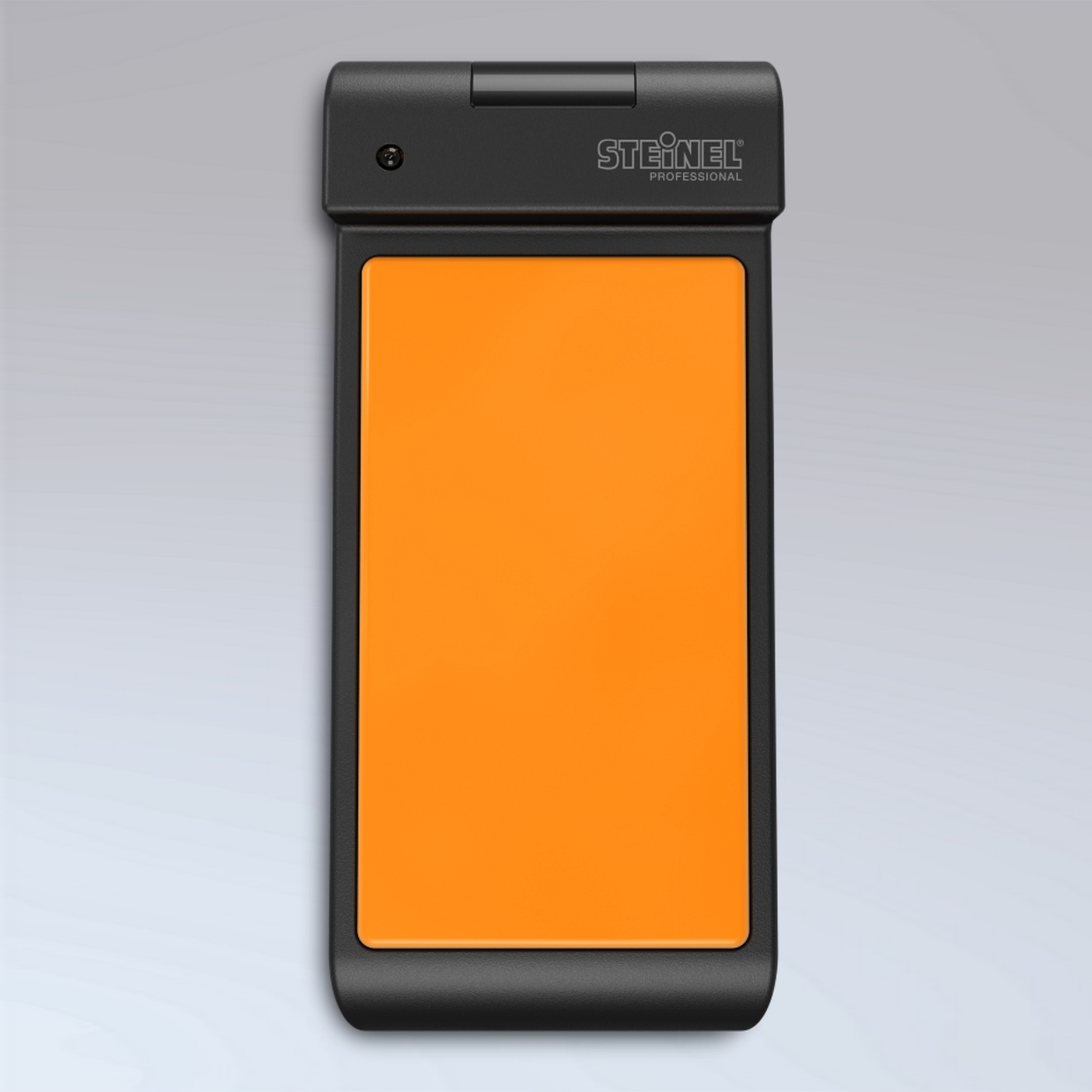

Smart Remote remote control optional

Technical drawing

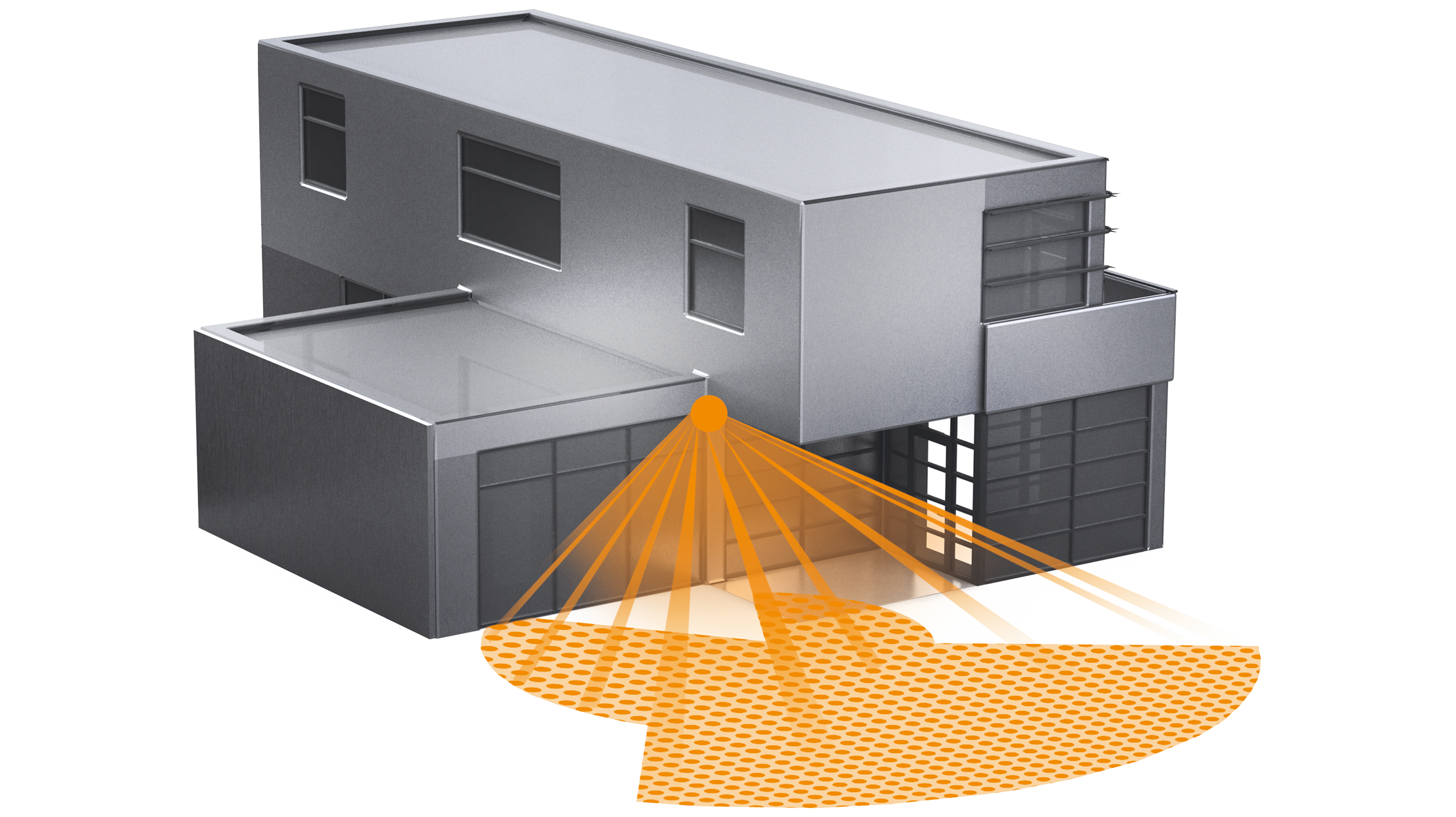

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor

Data sheet User manual Declaration of conformity Drilling template Product brochure

Fernbedienung RC9

Item no. 4007841007638

Remote control Smart Remote

Item no. 009151
