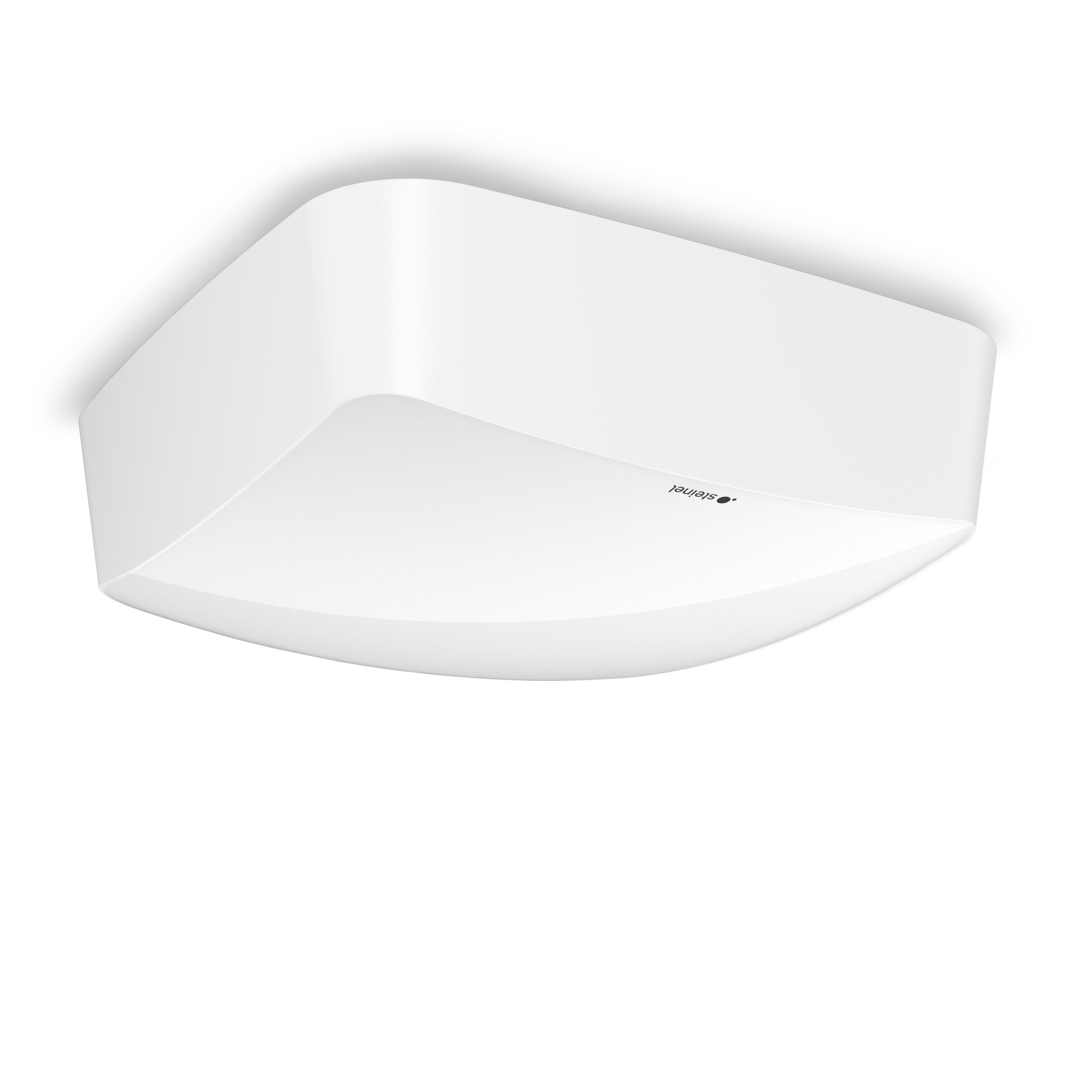

Steinel True Presence COM1 - surface white

EAN-No. 4007841057916

ELDAS® no. 057916

Price: Please log in to see prices

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535936302

Variants

Version 230V COM1

Colour White

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 45 x 123 x 123 mm

PU1 net weight 0.2740

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 1000 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Own consumption 1 W

Switching output 1 number of LED/fluorescent lamps 8.0000

Switching output 1 potential-free No

Maximum inrush current 800 A

Sensor technology

Max. mounting height 12,00 m

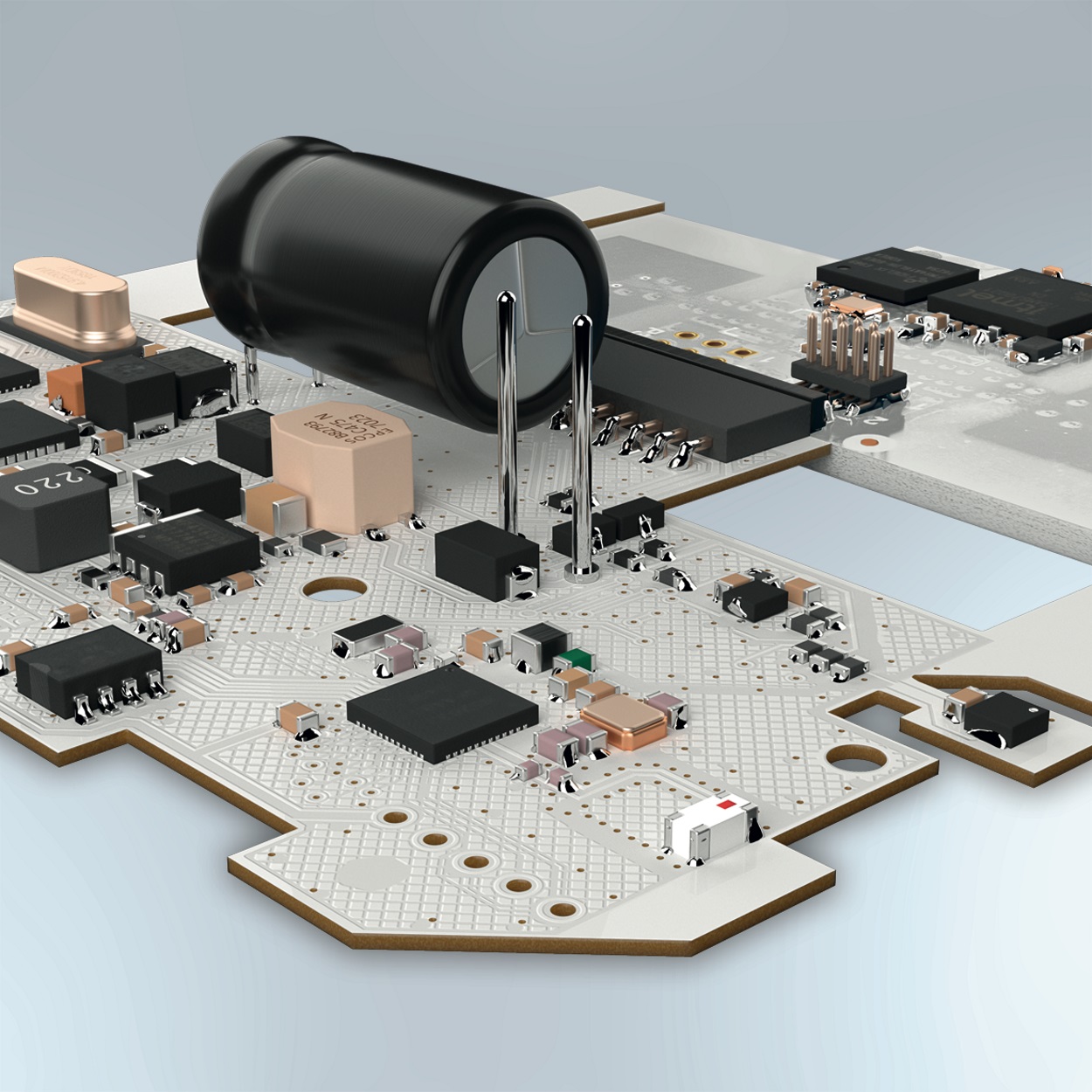

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, On / Off

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Bluetooth

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 20 s – 60 Min.

Base light function No

Main light adjustable No

Functions Group parameterisation Semi-/fully automatic Lighting scenario Manual ON / ON-OFF Neighbouring group function Normal / test mode

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors

Colour white

RAL colour 9003
