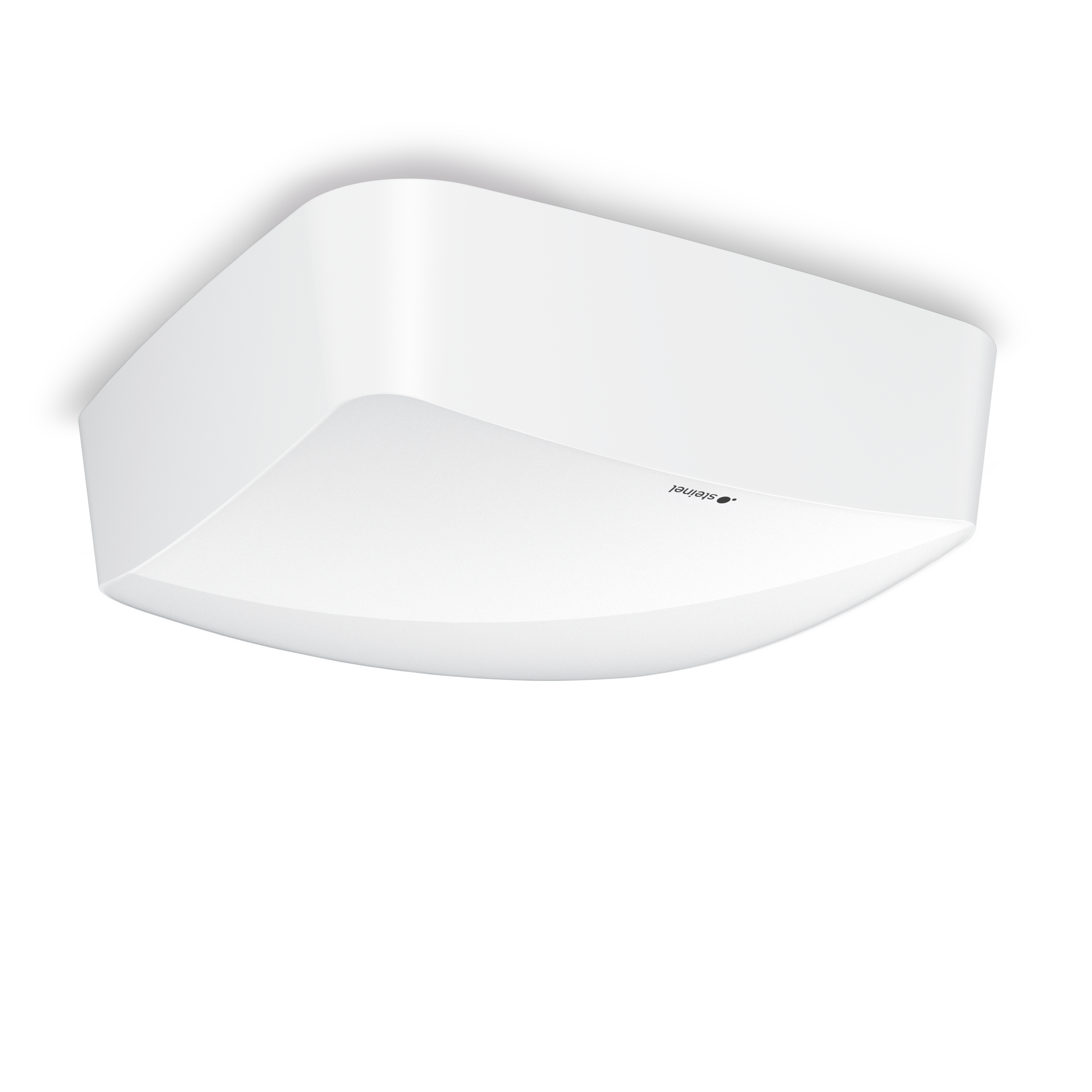

Steinel True Presence DALI-2 APC - surface

EAN-No. 4007841057954

ELDAS® no. 057954

Price: Please log in to see prices

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535936502

Variants

Version DALI-2 Application Controller

Colour White

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 45 x 123 x 123 mm

PU1 net weight 0.2700

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 64 electronic ballasts / Addressable

Sensor technology

Max. mounting height 12,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Bluetooth DALI bus

Number of DALI participants 64.0000

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 20 s – 60 Min.

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 10 - 100 %

Functions Selecting programmed lighting scenarios Semi-/fully automatic Constant-lighting control ON-OFF Lighting scenario Manual ON / ON-OFF Neighbouring group function Normal / test mode TouchDIM function

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 3 – 90 %

Base light function percent from 3.0000

Base light function percent to 90.0000

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

UV-resistant plastic

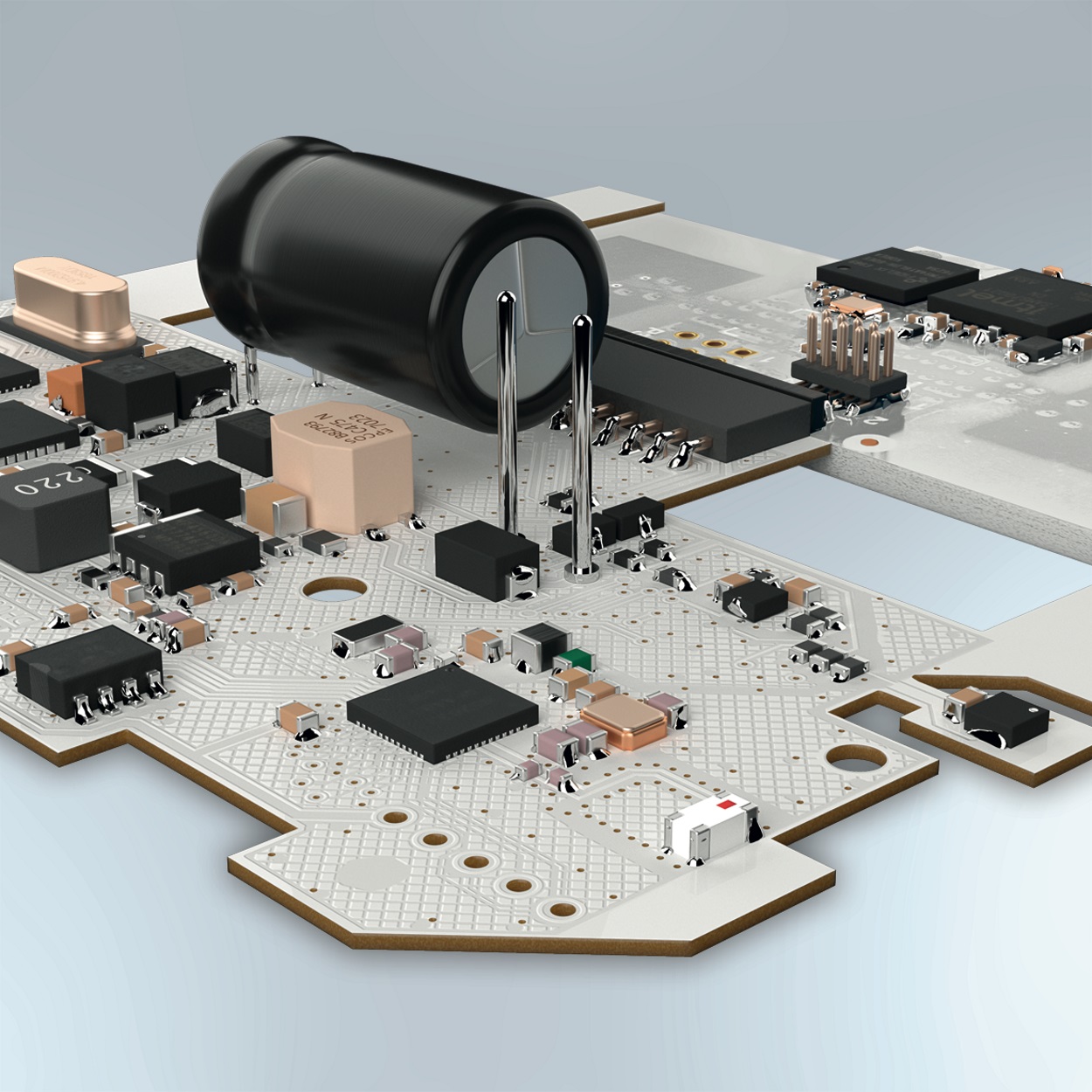

Digital high frequency sensor

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity
