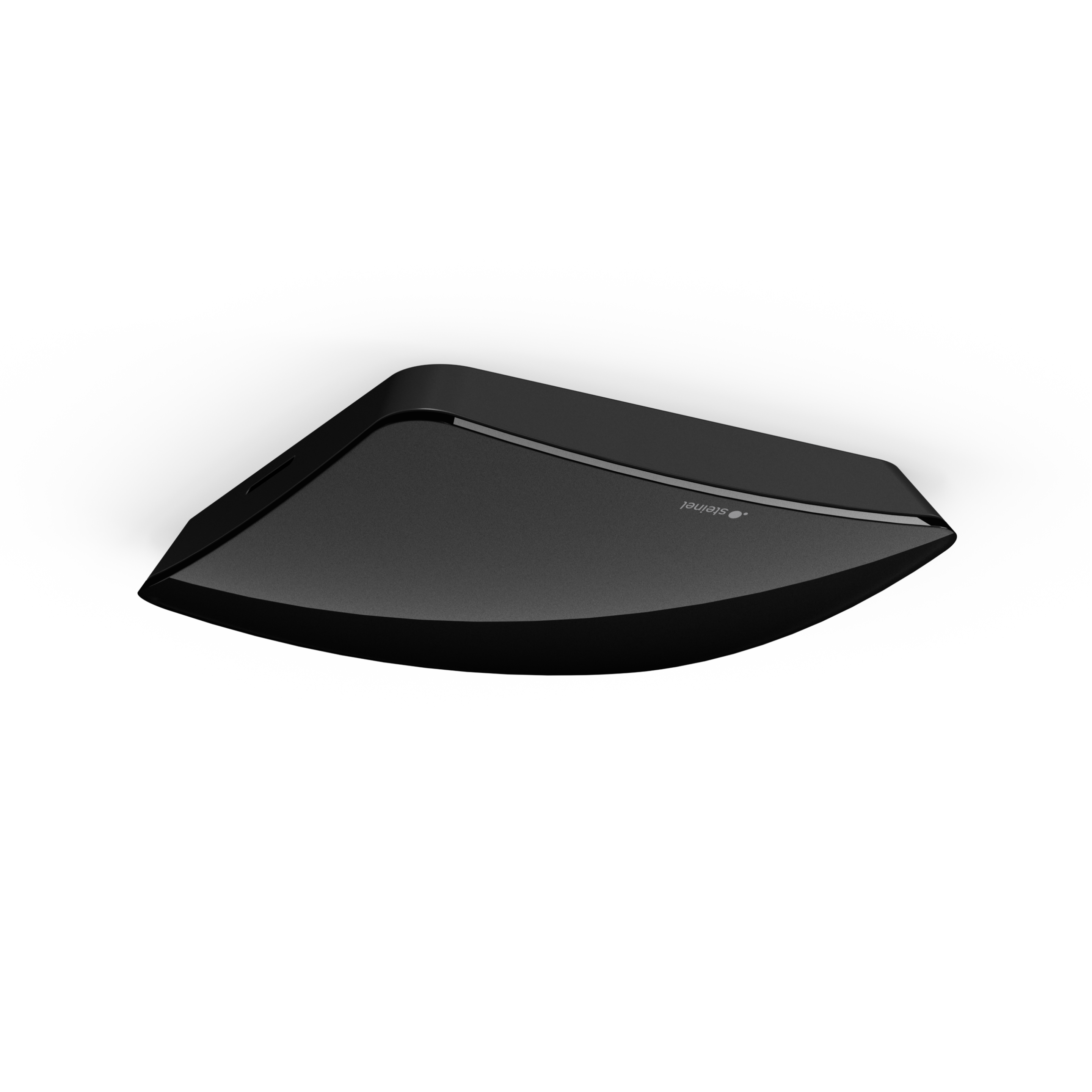

Steinel True Presence KNX - concealed black

EAN-No. 4007841068516

ELDAS® no. 068516

Price: Please log in to see prices

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Looking forward follows looking up. true presence® was developed to be the first true presence detector. It reliably indicates if a person is in the room or not. This means that reliable absence detection is possible for the first time. This information allows the reliable activation and deactivation of lighting without the need for stay ON times and without any waste of electricity. The detailed knowledge concerning presence and absence results in numerous other applications that can be very valuable for building management. This sets a new standard in advanced building automation.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535918134

Variants

Version KNX

Colour Black

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 32 x 103 x 103 mm

PU1 net weight 0.1020

Sensor technology

Max. mounting height 12,00 m

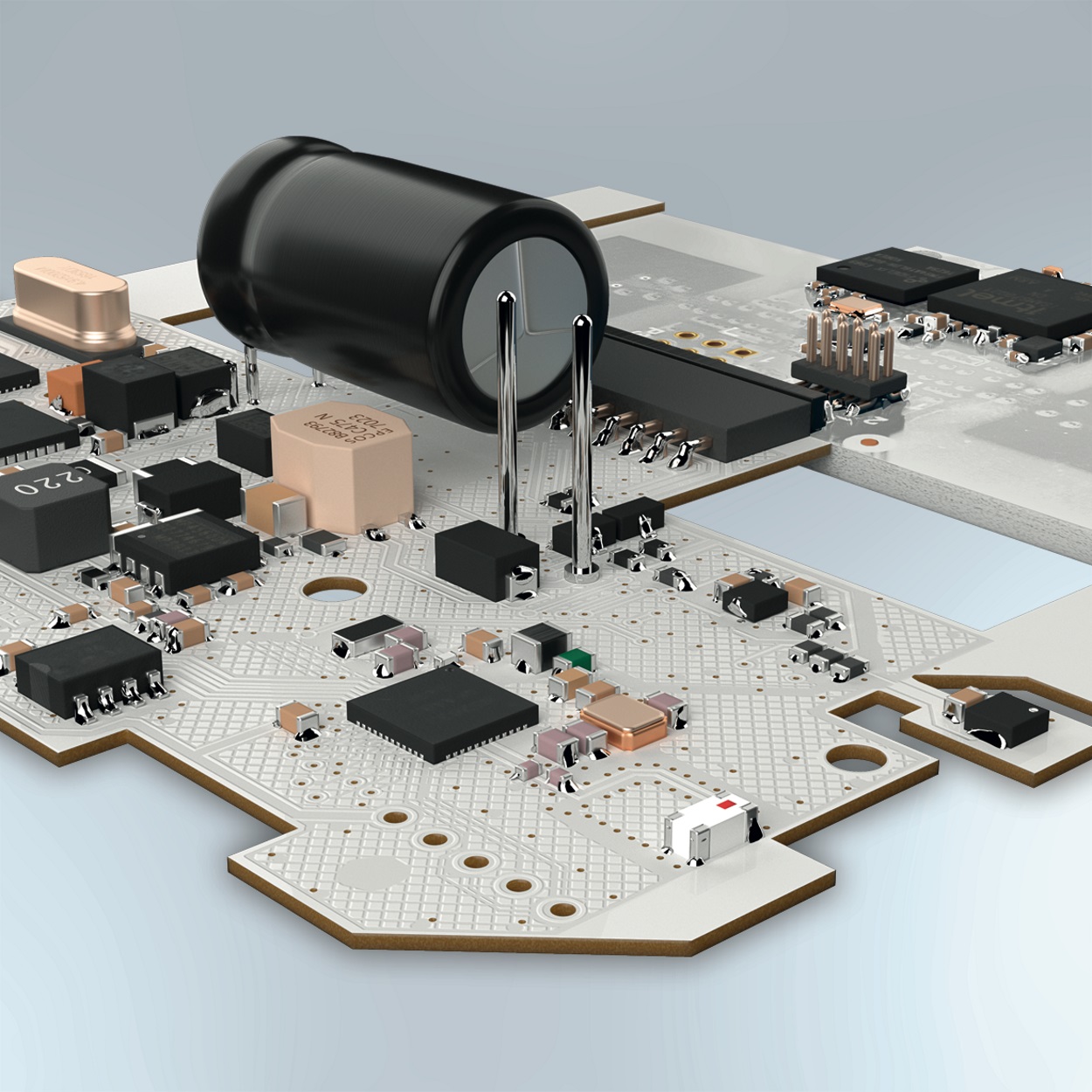

Sensor technology High frequency

Transmission power < 1 mW

HF technology 7,2 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

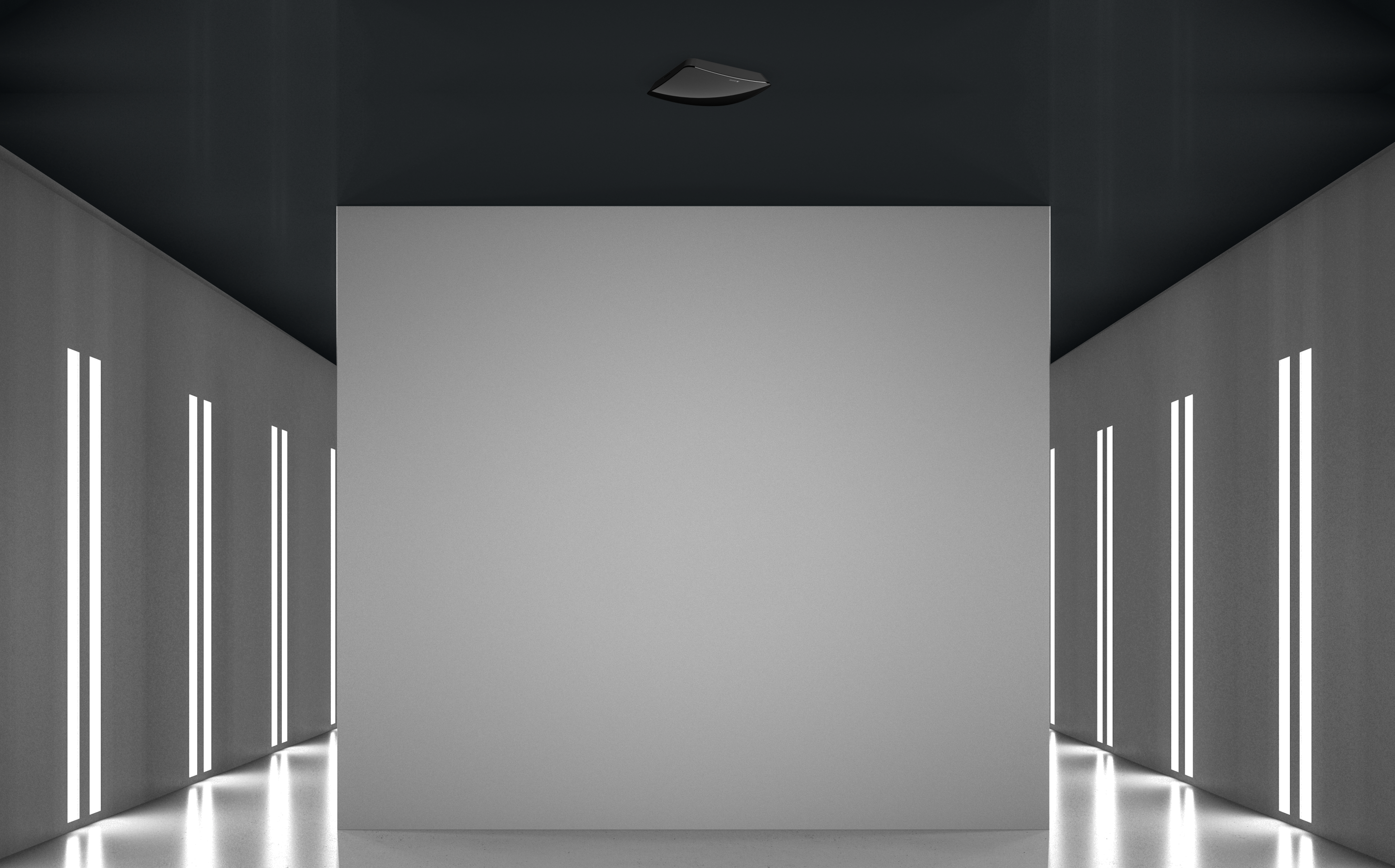

Radial range Ø 15 m (177 m²)

Tangential range Ø 15 m (177 m²)

Mounting height 2,00 – 12,00 m

Presence range Ø 15 m (177 m²)

True Presence range Ø 9 m (64 m²)

Optimal mounting height 2,8 m

Max. mounting height True Presence detection 4,00 m

Nevalux sensor technology BT Open Mesh, KNX

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Basic light level function HVAC output Light output 4x Humidity output Presence output Day / night function Dewpoint Temperature output Logic gate

With bus coupler Yes

Lighting technology

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch No

Time setting 30 s – 1092 Min.

Main light adjustable 0 - 100 %

Settings via ETS software Bluetooth Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

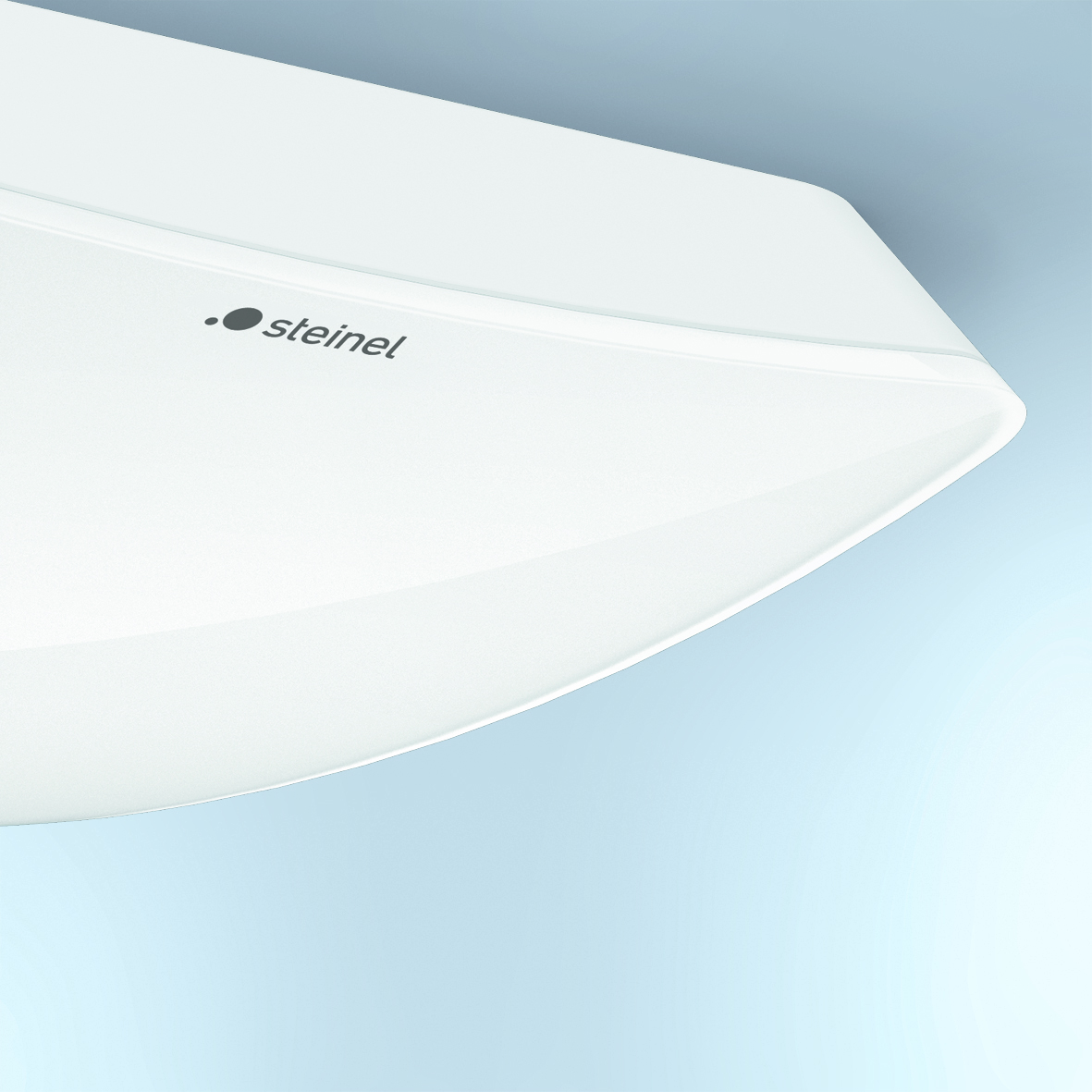

Material Plastic

Application room classroom lecture hall one-person office open-plan office high-bay warehouse production facilities conference room / meeting room hotel room care room duty room recreation room dining hall / staff restaurant changing room kitchenette sports hall reception / lobby WC / washroom warehouse Indoors

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No
