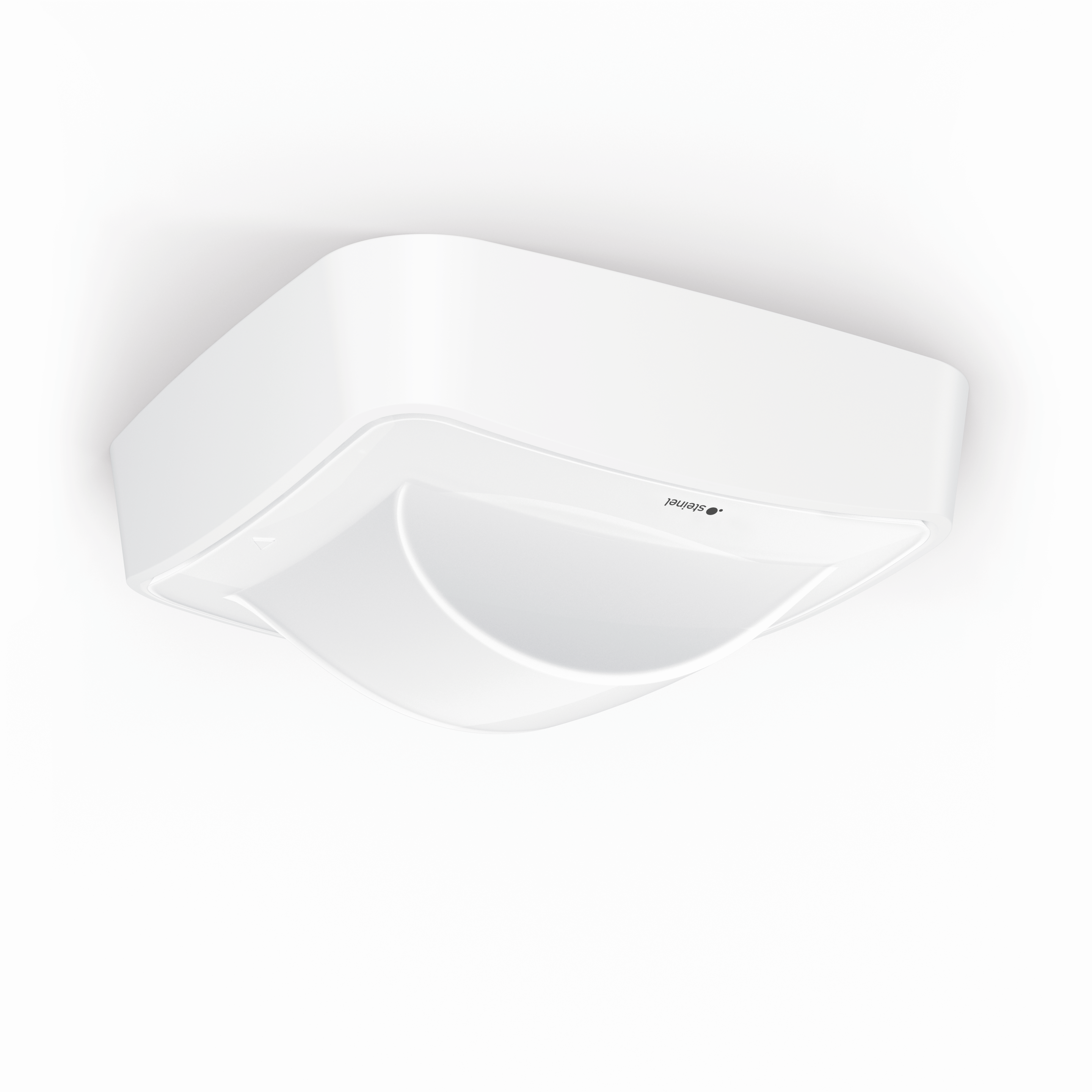

Nevalux Hallway COM1 - Aufputz

EAN-No. 4007841057978

ELDAS® no. 4007841057978

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Identification

Version Presence detector

Manufacturer Nevalux

E-number 535937002

Variants

Version 230V COM1

Colour White

Mounting type Surface-mounted

Dimensions

Dimensions L × W × H 62 x 123 x 123 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 1000 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Own consumption 1 W

Switching output 1 number of LED/fluorescent lamps 8.0000

Switching output 1 potential-free No

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 25 x 3 m (75 m²)

Tangential range 25 x 3 m (75 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology BT Open Mesh, On / Off

Connectivity

Networking Yes

Type of networking Master/master\nMaster/slave

Networking via Bluetooth

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 Min.

Base light function No

Main light adjustable No

Functions Group parameterisation\nSemi-/fully automatic\nLighting scenario\nManual ON / ON-OFF\nNeighbouring group function\nNormal / test mode

Settings via Bluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room Indoors\ncorridor / aisle

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No
