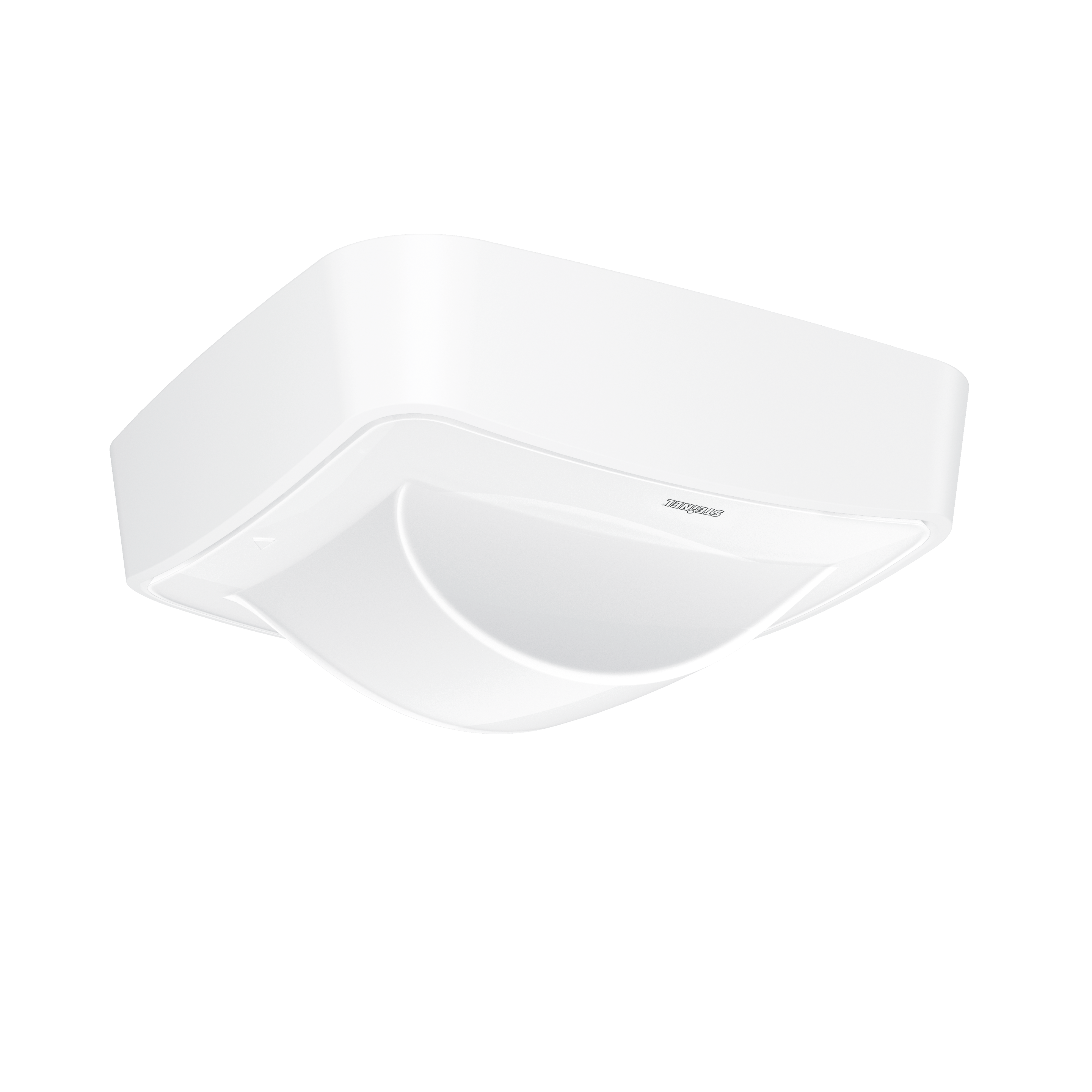

Nevalux Hallway KNX - Aufputz
EAN-No. 4007841064488
ELDAS® no. 4007841064488
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Colour
White
Black
Mounting type
Identification
Variant
KNX - Surface wiring
Version
Presence detector
Manufacturer
Nevalux
E-number
535937420
Variants
Version
KNX
Colour
White
Mounting type
Surface-mounted
Dimensions
Dimensions L × W × H
62 x 123 x 123 mm
Electrical
Supply voltage detail
KNX bus
FIL_2_PRO interfaces
KNX
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2 – 4 m
Optimal mounting height
2,8 m
Nevalux sensor technology
BT Open Mesh, KNX
FIL_4_PRO sensor technology
High frequency
Connectivity
Networking
Yes
Type of networking
Master/master, Master/slave
KNX functions
Comfort, Photo-cell controller, Individual pyro evaluation, Basic light level function, Light level, HVAC output, Constant-lighting control, Light output 4x, Presence output, Day / night function, Dewpoint, Logic gate
With bus coupler
Yes
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
10 – 1000 lx
Time setting
10 sec – 1092 min
Base light function
Yes
Settings via
ETS software, Bluetooth, Bus
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
Indoors, corridor / aisle
