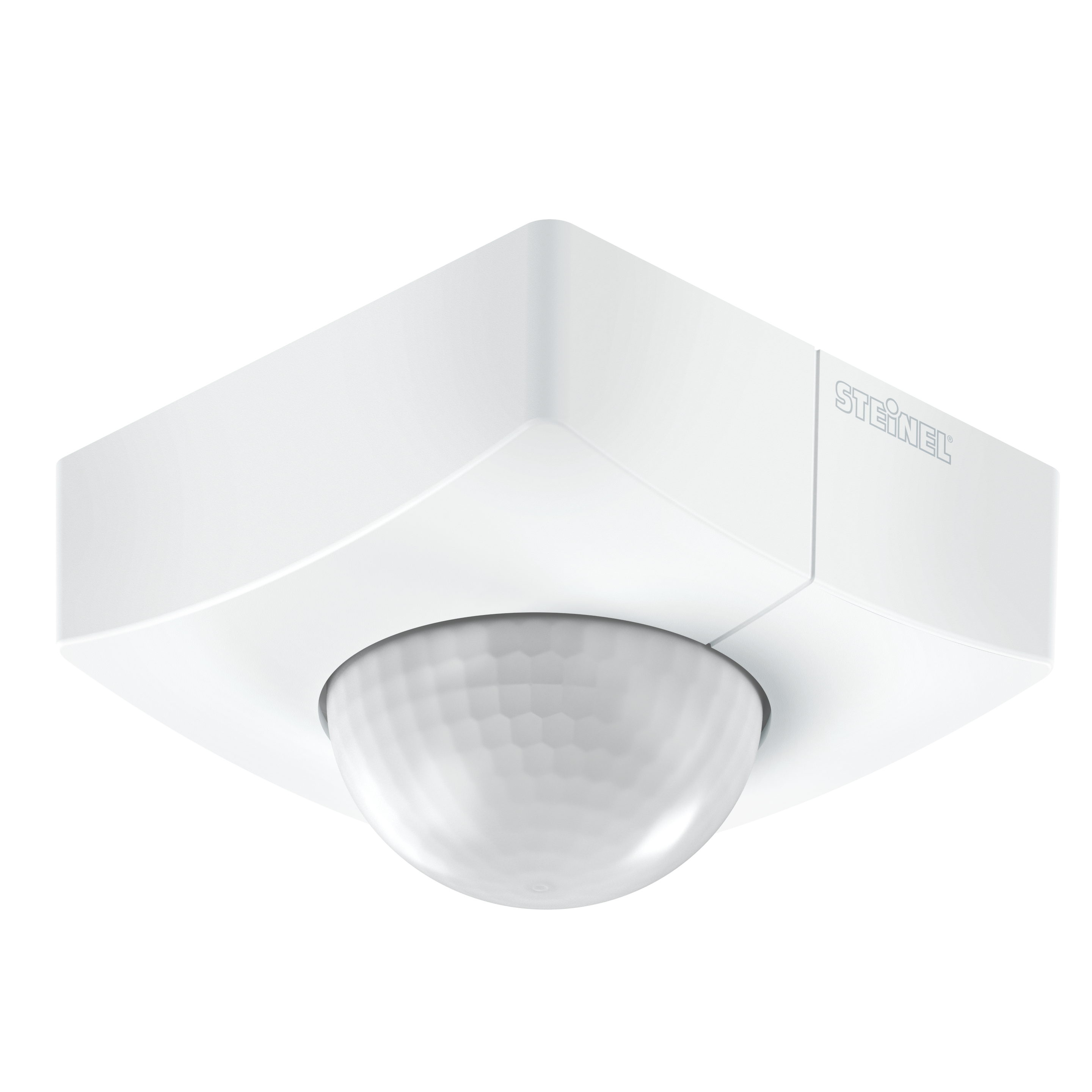

Steinel IS 3360 MX Highbay KNX - surface, sq.

EAN-No. 4007841058364

ELDAS® no. 058364

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller KNX DALI-2 Input Device COM1 PF (Potential Free)

Colour

White Black

Mounting height

Mounting height 2.5 to 4 metres Mounting height 4 to 14 metres

Shape

Angular Round

The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.

Identification

Version Motion detectors

Manufacturer Steinel

E-number 535946408

Variants

Version KNX

Colour White

Mounting height Mounting height 4 to 14 metres

Shape Angular

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

PU1 net weight 0.1550

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 14,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 14 m (154 m²)

Tangential range Ø 36 m (1018 m²)

Switching zones 1416 switching zones

Mounting height 4,00 – 14,00 m

Optimal mounting height 12 m

Nevalux sensor technology KNX

Connectivity

Networking Yes

Type of networking Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 2x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Main light adjustable 0 - 100 %

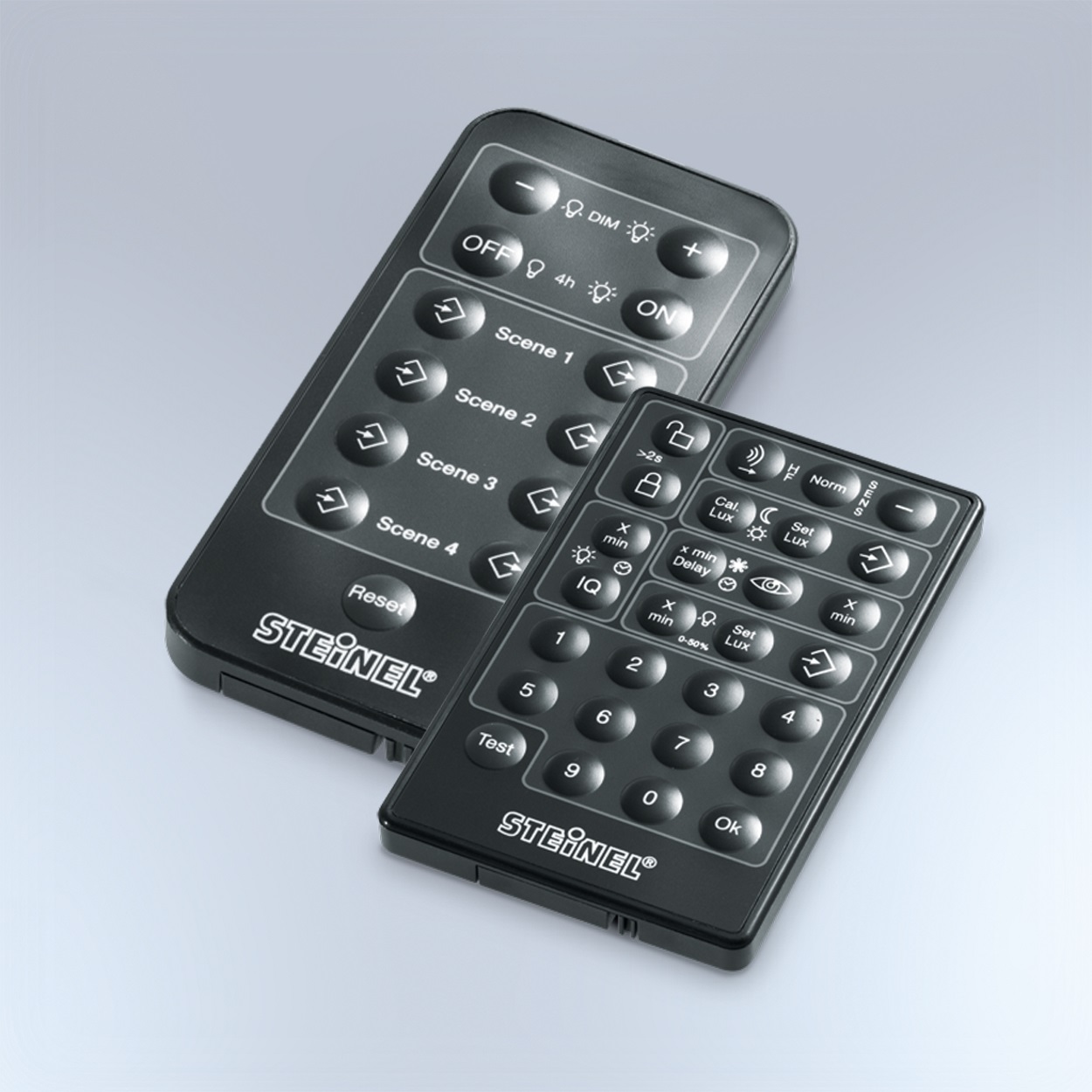

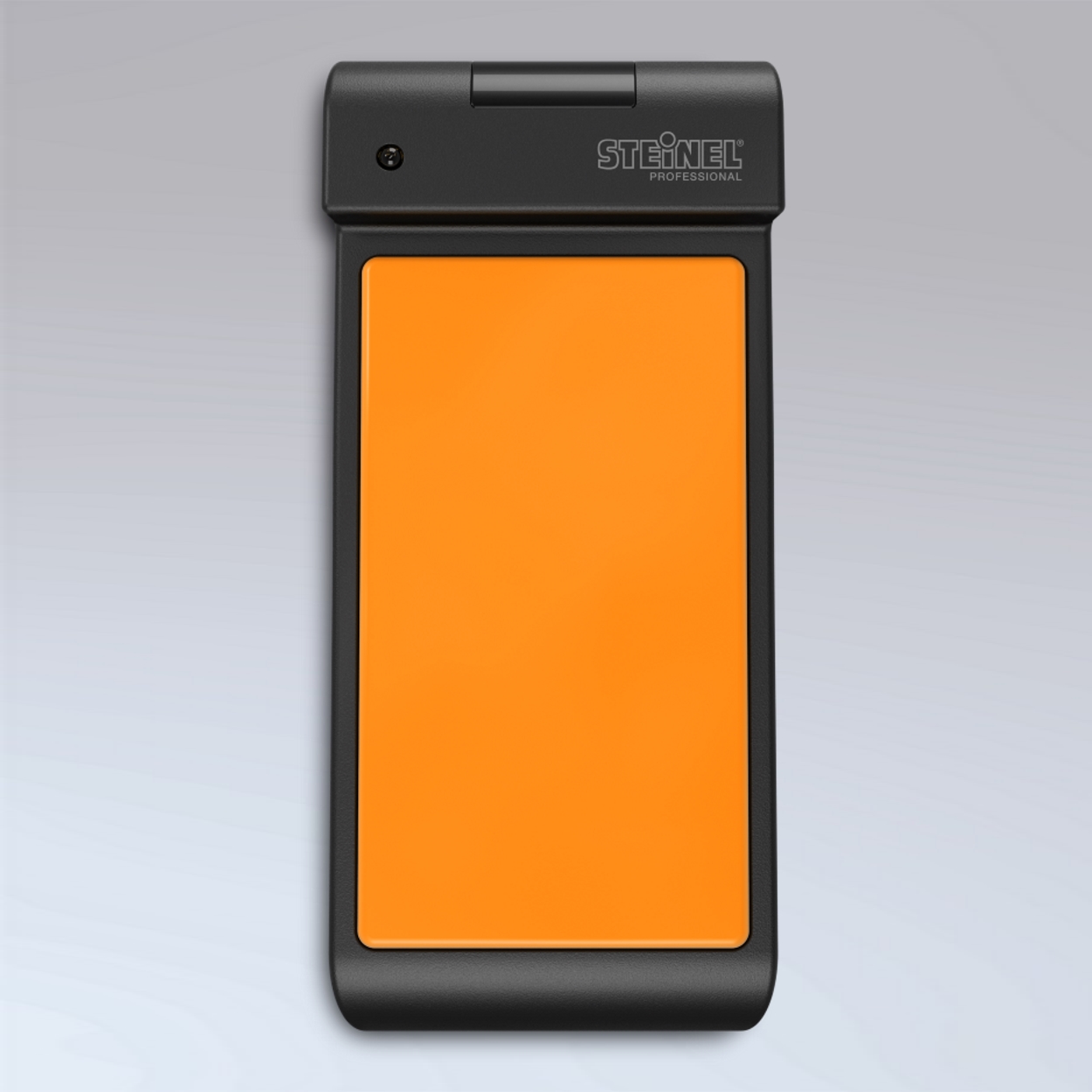

Settings via ETS software Remote control Bus Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

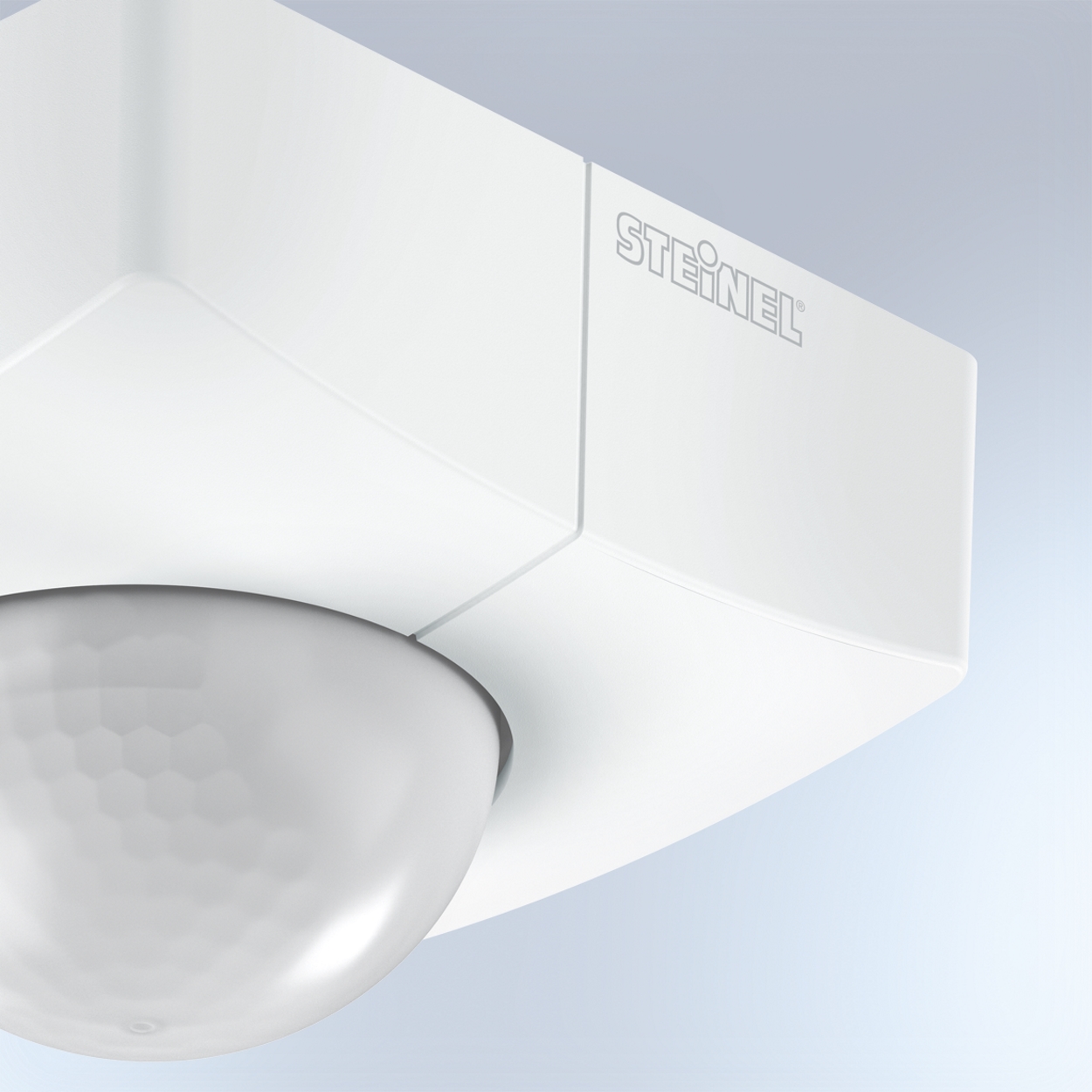

Housing material Plastic

Cover material Plastic, opal

Cover material (scope of delivery) shrouds

Mounting location ceiling

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room high-bay warehouse sports hall Indoors

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Texts & marketing
