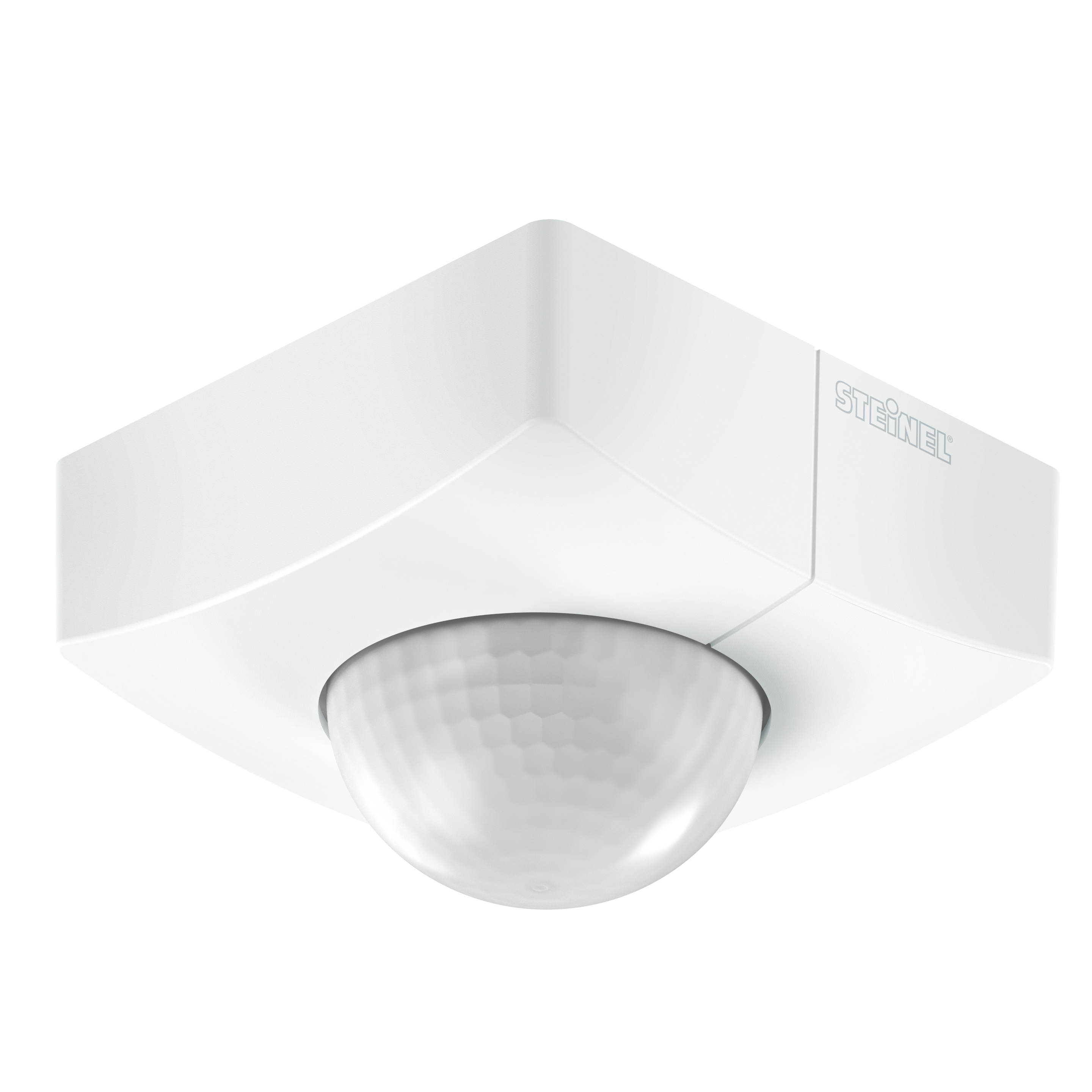

Steinel IS 3360 MX Highbay PF - surface, sq.
EAN-No. 4007841033583
ELDAS® no. 033583
Price: Please log in to see prices
Manufacturer
Steinel
Nevalux
Version
Colour
White
Black
Mounting height
Mounting height 2.5 to 4 metres
Mounting height 4 to 14 metres
Shape
Angular
Round
The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.
Identification
Version
Motion detectors
Manufacturer
Steinel
E-number
535946407
Variants
Version
PF (Potential Free)
Colour
White
Mounting height
Mounting height 4 to 14 metres
Shape
Angular
Dimensions
Dimensions L × W × H
65 x 95 x 95 mm
PU1 net weight
0.1790
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
2000 W
Fluorescent lamps ECG
1500 W
Fluorescent lamps uncompensated
1000 VA
Fluorescent lamps series-compensated
400 VA
Fluorescent lamps parallel-compensated
400 VA
Switching output 1 low-voltage halogen lamps
2000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
300 W
LED lamps > 8 W
600 W
Capacitive load in µF
176 µF
Maximum inrush current
110 A
Sensor technology
Max. mounting height
14,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 14 m (154 m²)
Tangential range
Ø 36 m (1018 m²)
Switching zones
1416 switching zones
Mounting height
4,00 – 14,00 m
Optimal mounting height
12 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable, 4h
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 1000 lx
Time setting
5 s – 15 Min.
Base light function
No
Main light adjustable
No
Functions
Normal / test mode
Manual ON / ON-OFF
Settings via
Remote control
Potentiometers
Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Housing material
Plastic
Cover material
Plastic, opal
Cover material (scope of delivery)
shrouds
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
high-bay warehouse
sports hall
Indoors
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Cross-/up-selling
Accessories
12367,13686,21693

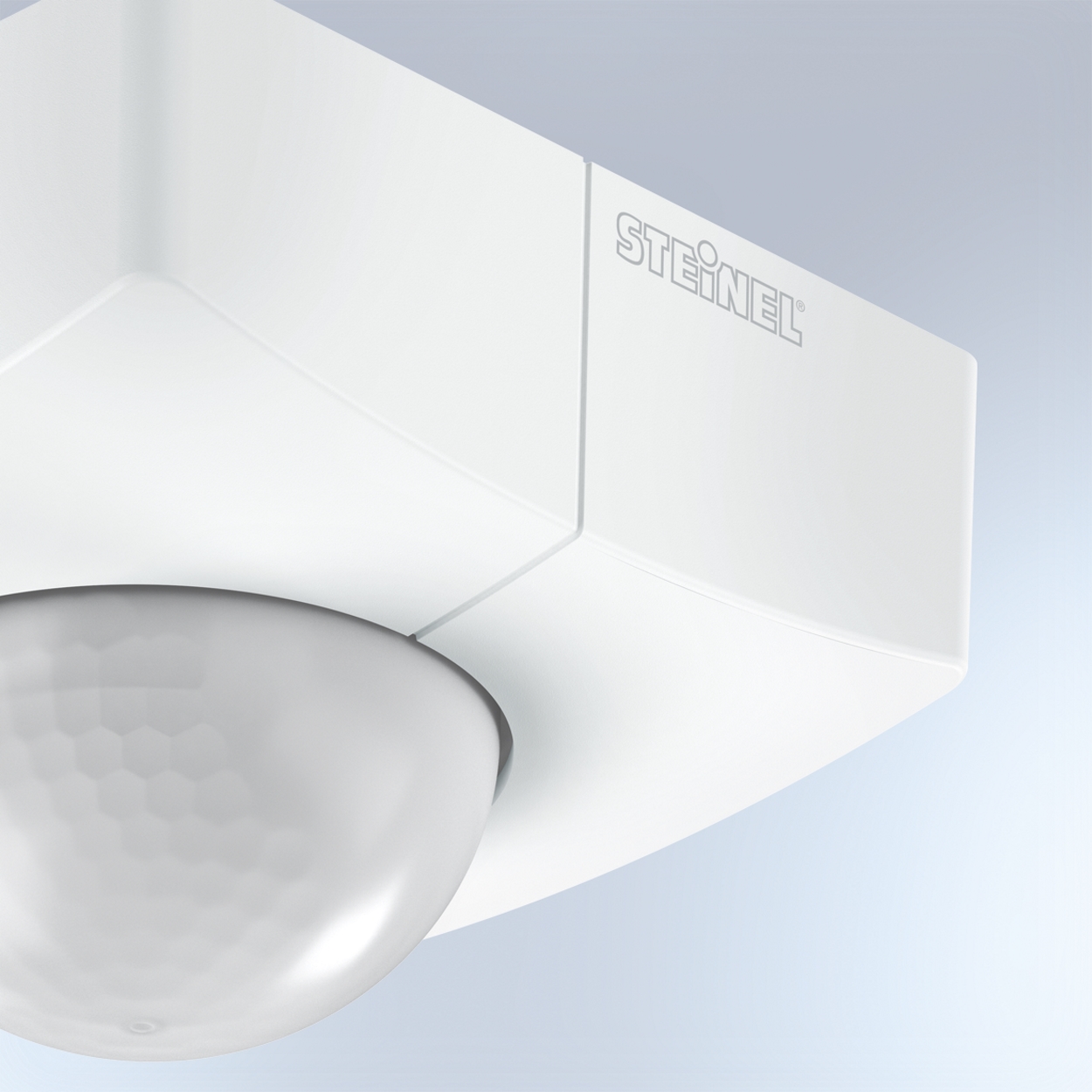

UV-resistant plastic
Large terminal compartment
Optional remote controls
Technical drawing
Sensor detection range
Wiring diagram 1
Master circuit diagram
