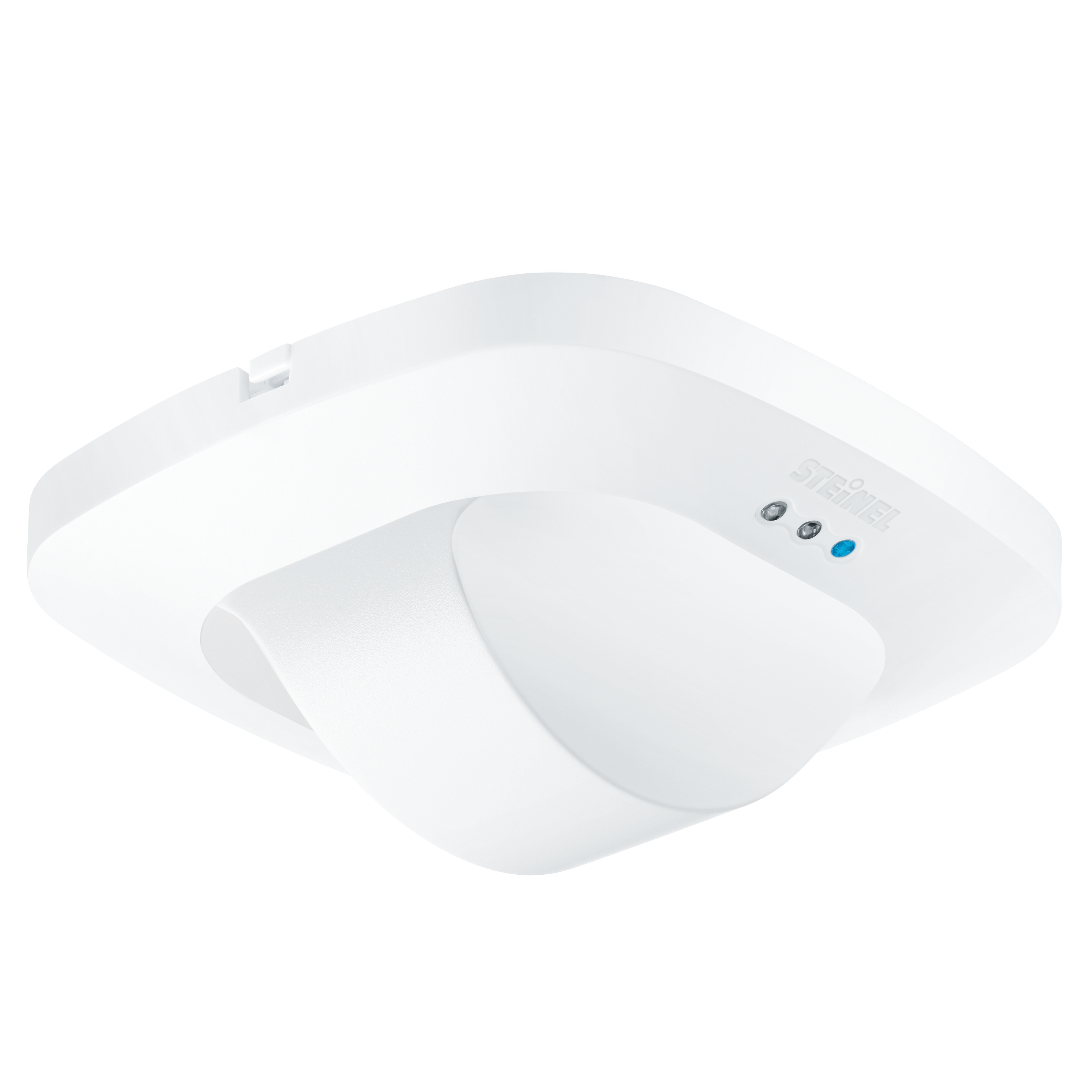

Steinel Dual HF COM1 - in-ceiling installation

EAN-No. 4007841079482

ELDAS® no. 079482

Price: Please log in to see prices

Manufacturer

Steinel Nevalux

Version

KNX DALI-2 Input Device 230V 1 channel DALI

Mounting type

Flush-mounted Surface-mounted

The Dual HF corridor sensor works with high-frequency technology that's particularly advanced. The system is fitted with 2 sensors, with each covering one corridor direction. Both of them together cover a good 20 metres in walking direction - for complete and reliable detection without blind spots. Tangential reach is deliberately limited to corridor width so as to avoid detecting movements behind closed doors, for instance.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535930810

Dimensions

Dimensions L × W × H 122 x 120 x 120 mm

PU1 net weight 0.2360

Electrical

Mains connection 230 V / 50 – 60 Hz

Maximum inrush current 800 A

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,50 – 3,50 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Networking quantity

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room corridor / aisle Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Cross-/up-selling

Accessories 13664,13677,12367,13684,13686

Optional remote controls

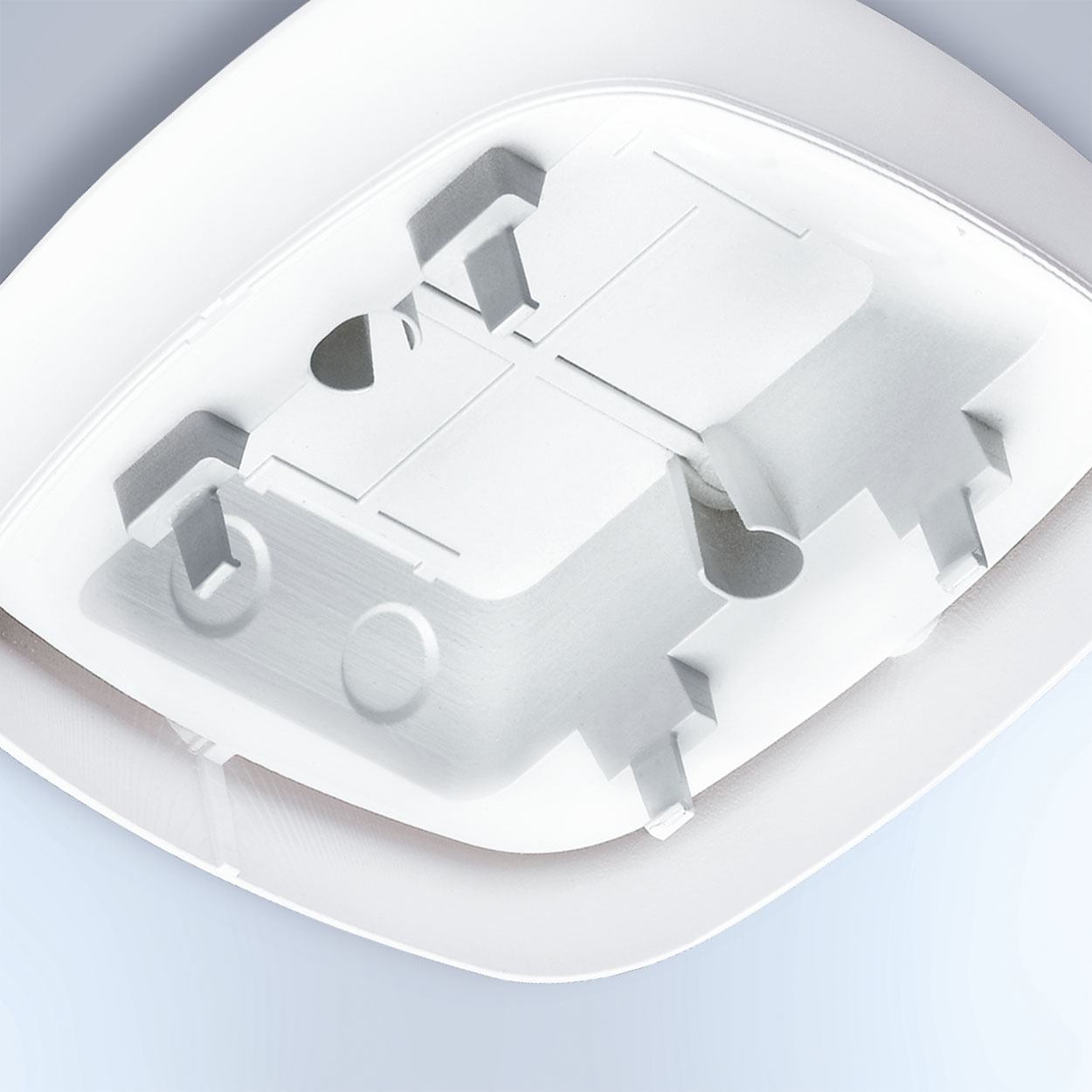

Optional surface-mounting adapter

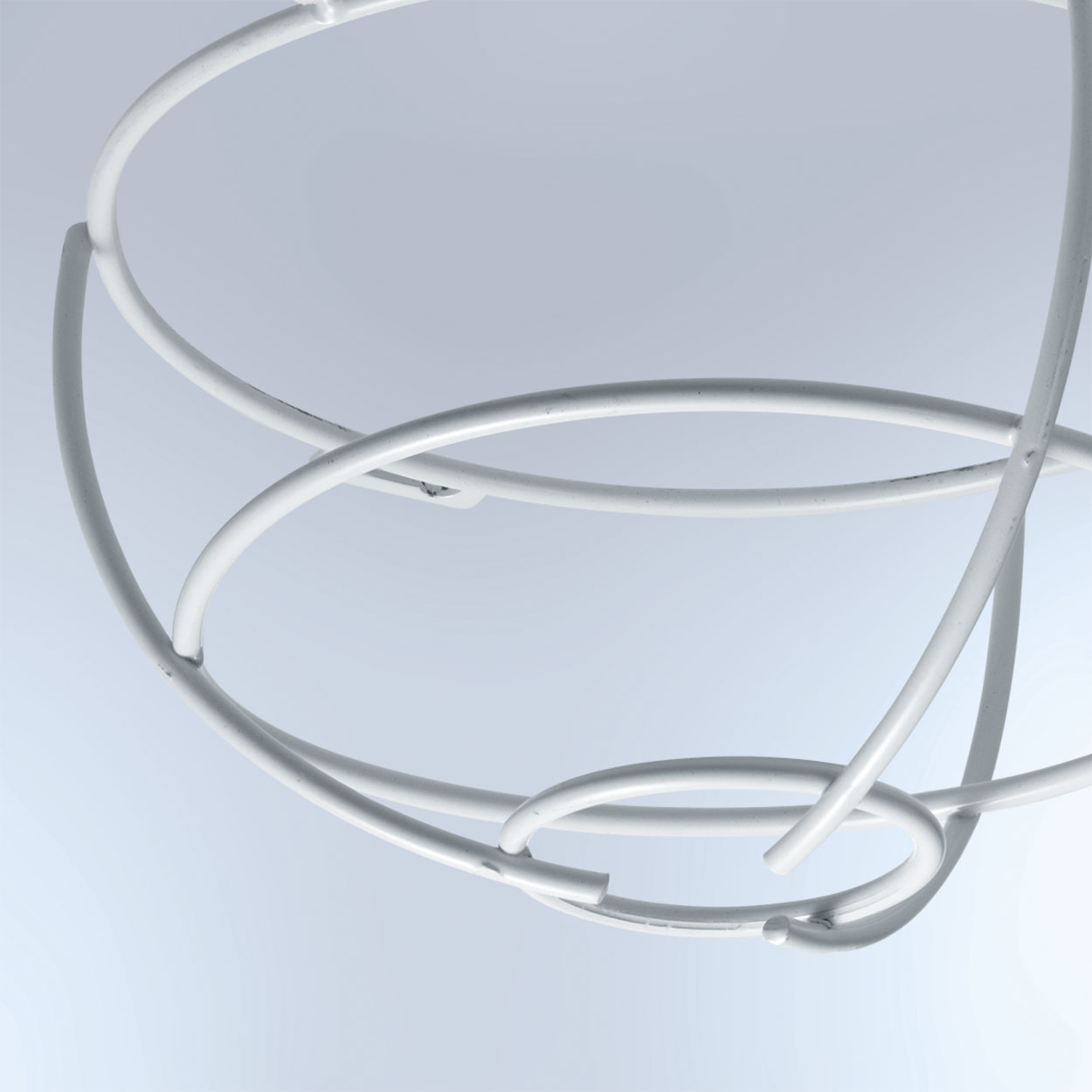

Optional guard cage

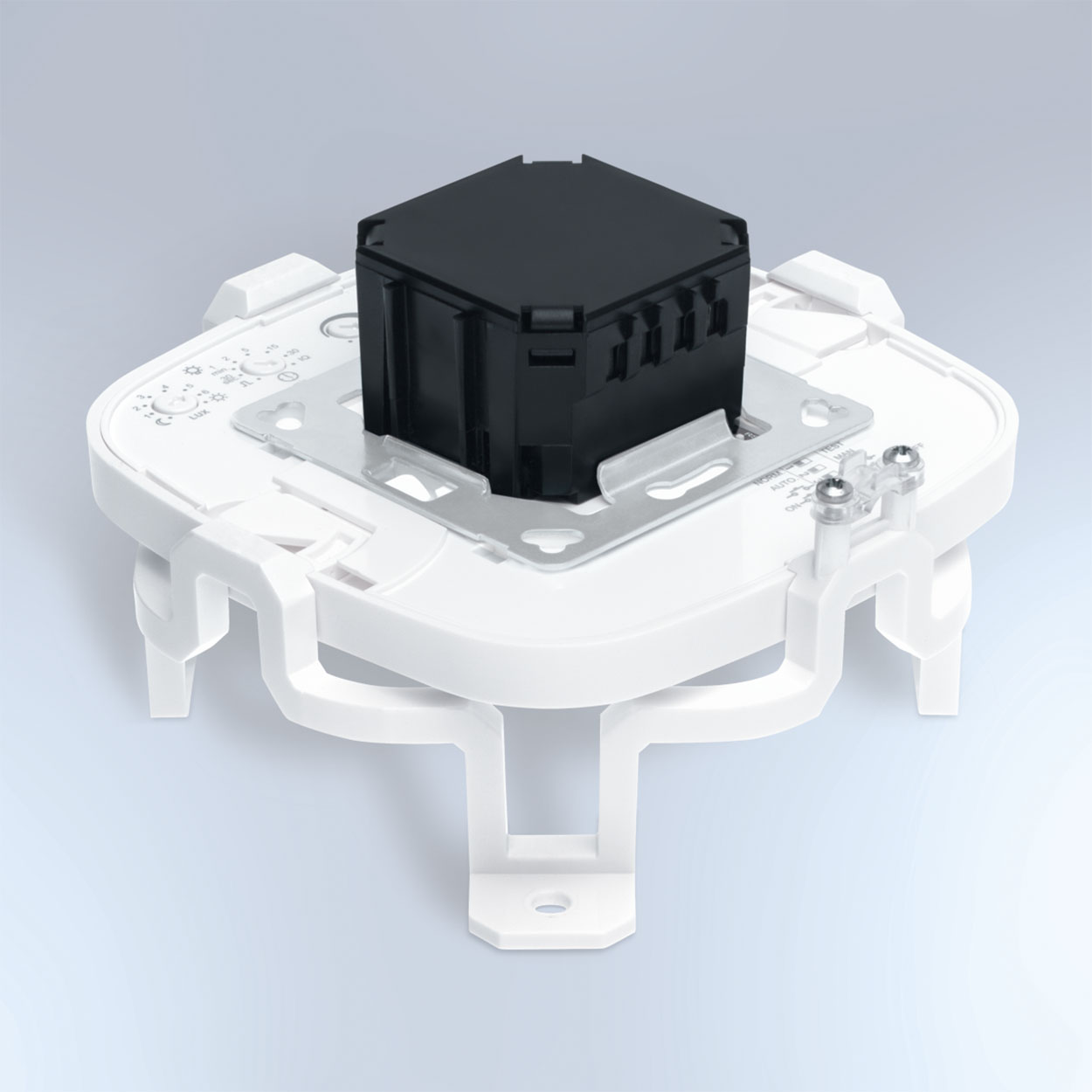

HF ceiling adapter for installation in suspended ceilings

Technical drawing

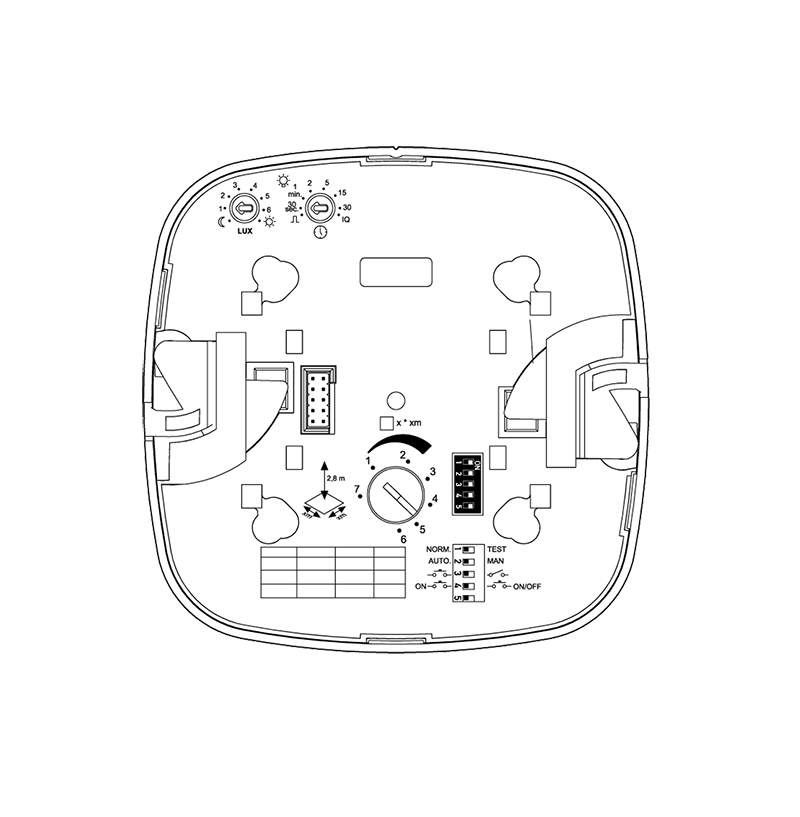

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet Declaration of conformity

Control PRO guard cage

Item no. 003036

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410
