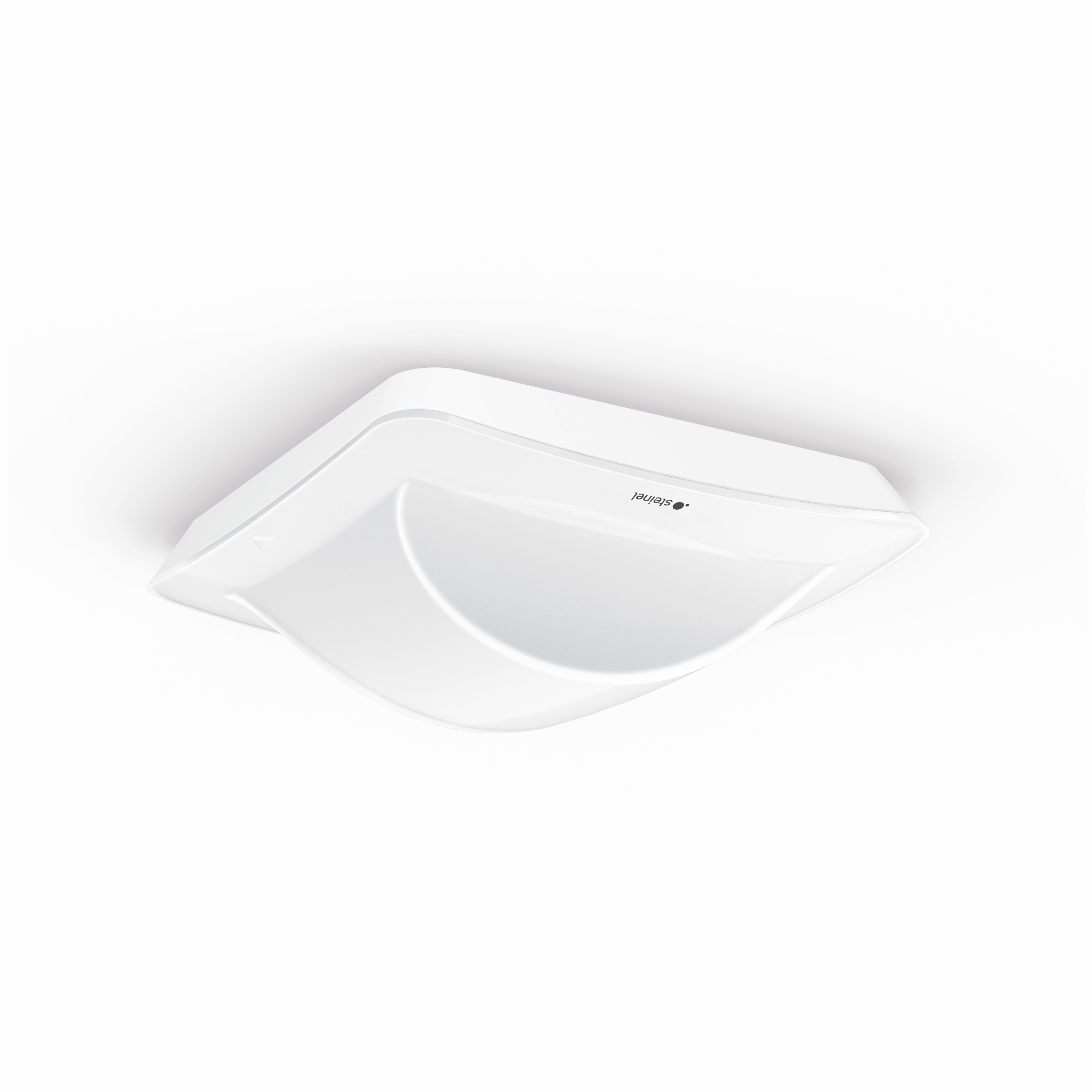

Steinel Hallway DALI-2 APC - concealed

EAN-No. 4007841058029

ELDAS® no. 058029

Manufacturer

Steinel Nevalux

Version

DALI-2 Application Controller 230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535937502

Variants

Version DALI-2 Application Controller

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 67 x 103 x 103 mm

PU1 net weight 0.1840

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Supply voltage detail max. 64 users

Control output DALI Addressable / broadcast 64 electronic ballasts

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 25 x 3 m (75 m²)

Tangential range 25 x 3 m (75 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Nevalux sensor technology BT Open Mesh, DALI 2

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Bluetooth DALI bus

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 Min.

Base light function Yes

Base light function time 10 min, all day all night

Main light adjustable 50 - 100 %

Functions Semi-/fully automatic Constant-lighting control Lighting scenario Master/slave override Neighbouring group function TouchDIM function Normal / test mode Pushbutton / switch mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Bluetooth

With remote control No

Twilight setting teach No

Base light function in percent 10 – 90 %

Base light function percent from 10.0000

Base light function percent to 90.0000

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors corridor / aisle

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

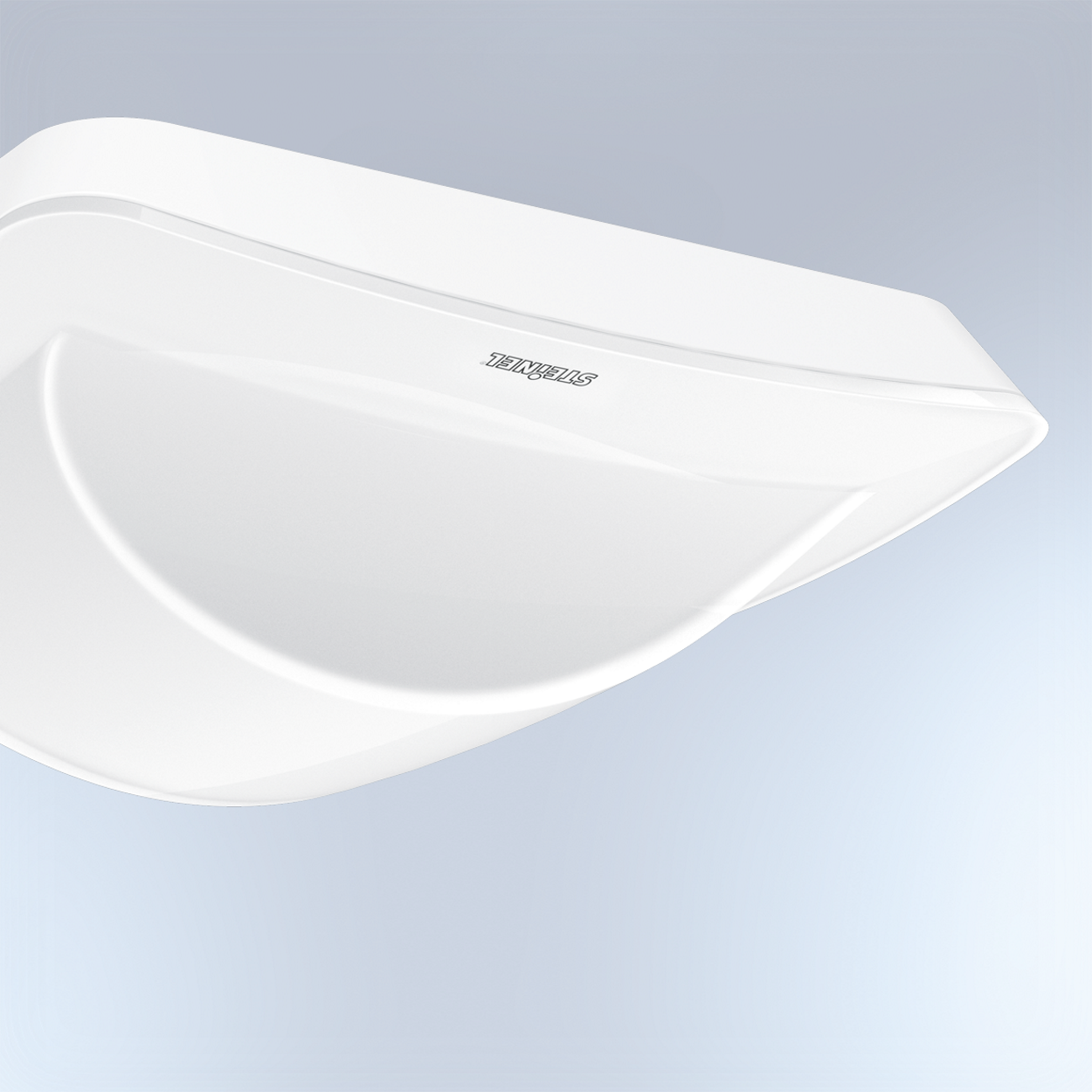

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
