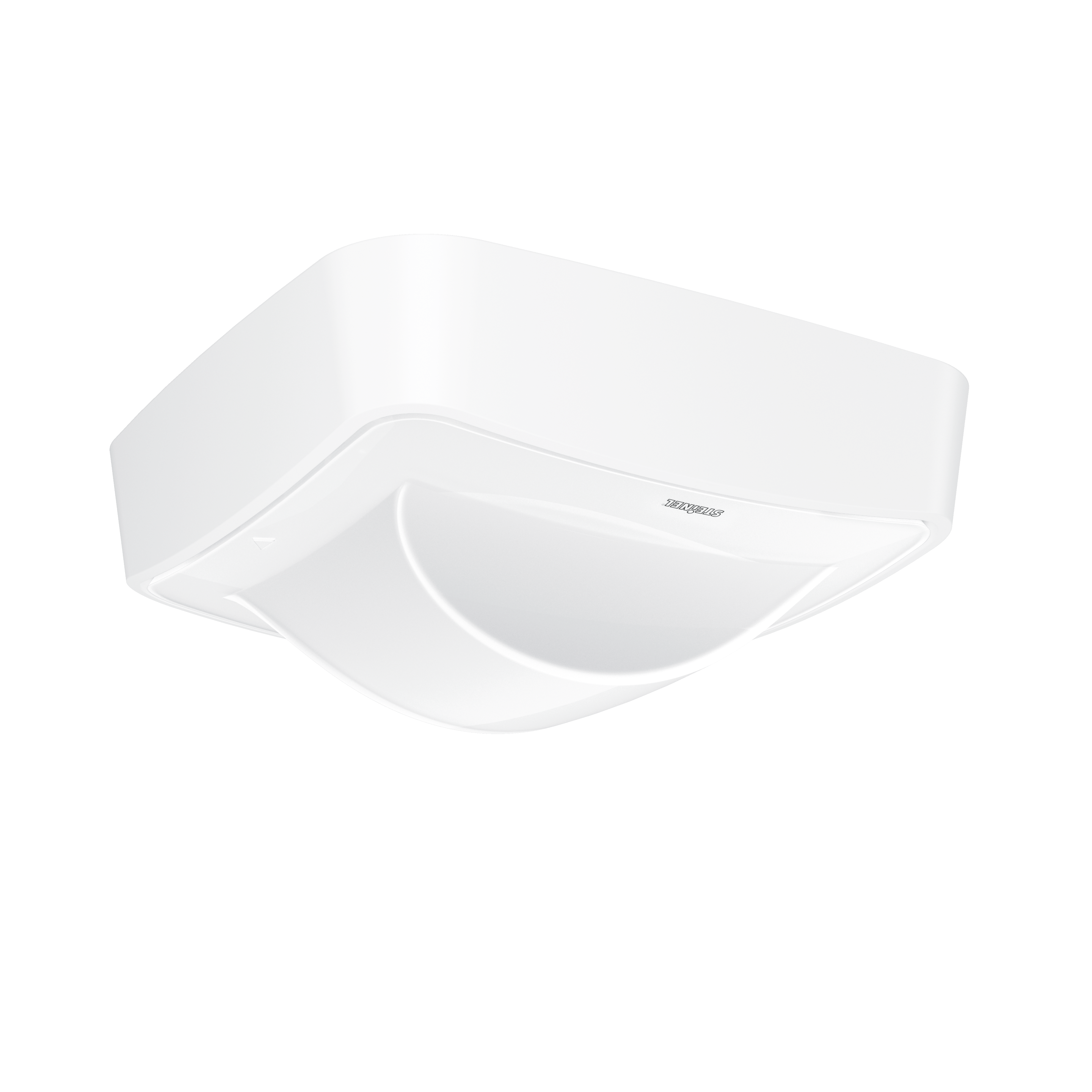

Steinel Hallway COM1 - Surface wiring
EAN-No. 4007841086329
ELDAS® no. 086329
Price: Please log in to see prices
Version
Colour
White
Black
Mounting type
Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.
- Perfect radial detection with a range of up to 25 m, ideal for long corridors and hallways
- Customisable range that can be set individually in both direc
- Control PRO II design for a modern and functional look that enables versatile applications
- Bluetooth technology for simple connection and control via Bluetooth
- Multiple interfaces, compatible with COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD
- External light measurement required for black sensors that can be integrated via Bluetooth or KNX
Identification
Version
Presence detector
Manufacturer
Steinel
E-number
535903120
Variants
Version
230V COM1
Colour
White
Mounting type
Surface-mounted
Dimensions
Dimensions L × W × H
62 x 123 x 123 mm
PU1 net weight
0.2880
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Switching output 1 resistive
2000 W
Switching output 1 low-voltage halogen lamps
2000 VA
Own consumption
1 W
Switching output 1 number of LED/fluorescent lamps
8.0000
Switching output 1 potential-free
No
Maximum inrush current
800 A
Sensor technology
Max. mounting height
4,00 m
Sensor technology
High frequency
Transmission power
< 1 mW
HF technology
5,8 GHz
With motion detector
Yes
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
25 x 3 m (75 m²)
Tangential range
25 x 3 m (75 m²)
Mounting height
2 – 4 m
Optimal mounting height
2,8 m
Nevalux sensor technology
BT Open Mesh, On / Off
Connectivity
Networking
Yes
Networking via
Bluetooth Mesh
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
10 s – 60 Min.
Base light function
No
Main light adjustable
Yes
Functions
Group parameterisation
Semi-/fully automatic
Lighting scenario
Manual ON / ON-OFF
Neighbouring group function
Normal / test mode
Settings via
Bluetooth Mesh
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Application room
Indoors
corridor / aisle
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
UV-resistant plastic
Interconnectable and adjustable via Bluetooth
Technical drawing

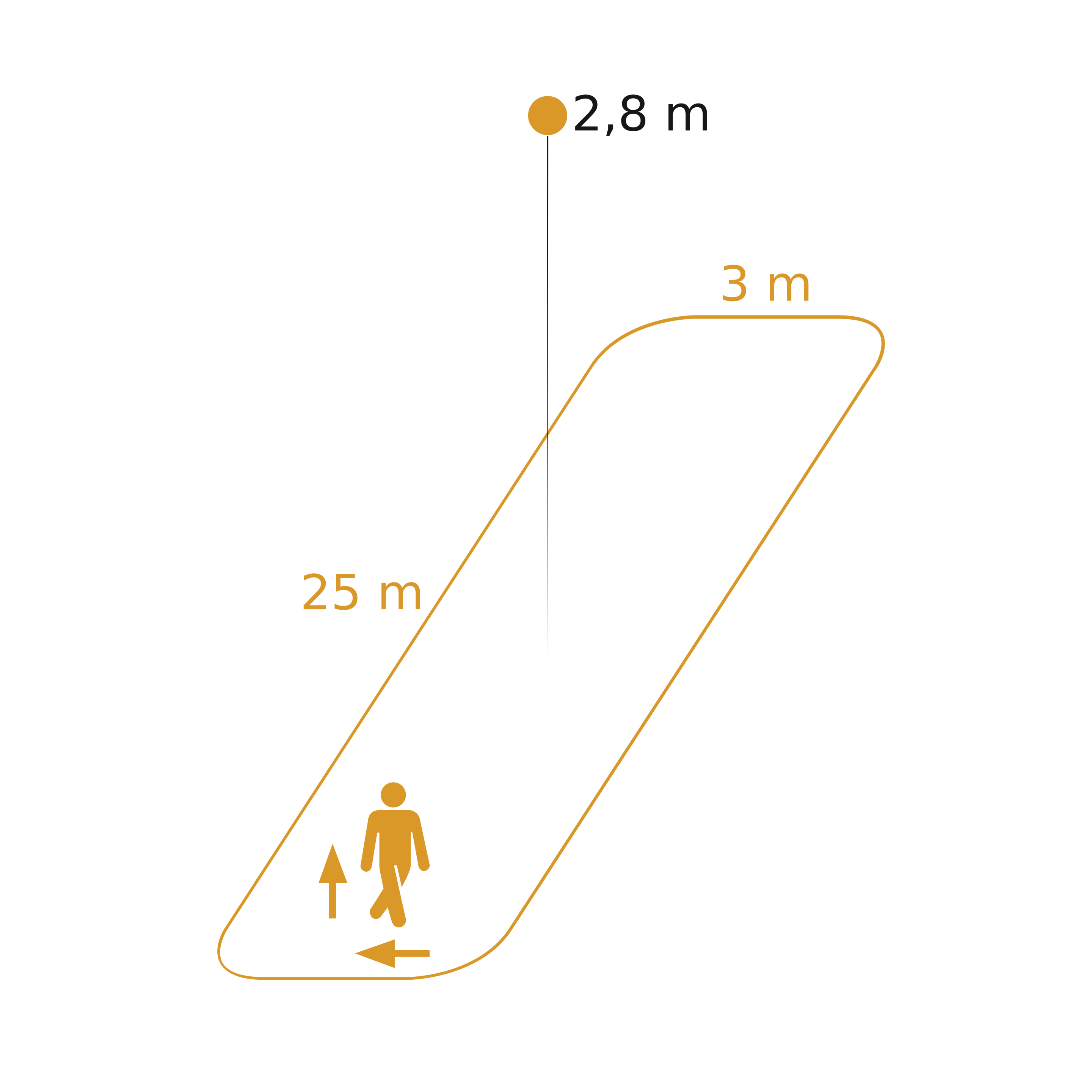

Sensor detection range
Wiring diagram 1
Master circuit diagram
