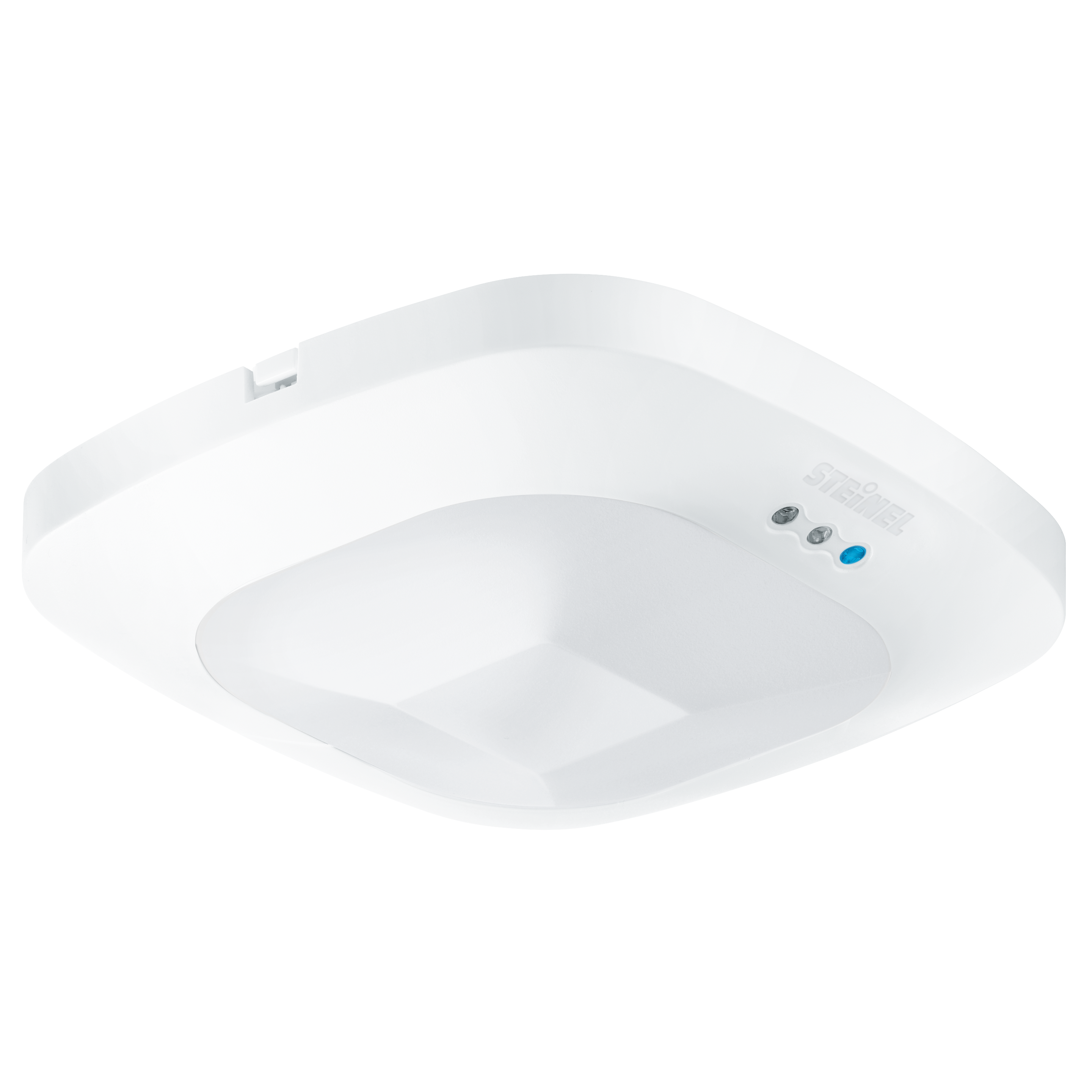

Steinel HF 360 COM1 - in-ceiling installation

EAN-No. 4007841079512

ELDAS® no. 079512

Version

DALI-2 Application Controller KNX DALI-2 Input Device 230V 1 channel 230V 2 channels

Mounting type

Flush-mounted Surface-mounted

STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.

Identification

Version Presence detector

Manufacturer Steinel

E-number 535930710

Dimensions

Dimensions L × W × H 94 x 120 x 120 mm

PU1 net weight 0.1850

Electrical

Mains connection 230 V / 50 – 60 Hz

Maximum inrush current 800 A

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,50 – 3,50 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room function room / ancillary room kitchenette stairwell WC / washroom Indoors

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Media & files

Wiring diagram 3 text Master/slave interconnection circuit diagram

Cross-/up-selling

Accessories 13664,13677,12367,13684,13686

Optional remote controls

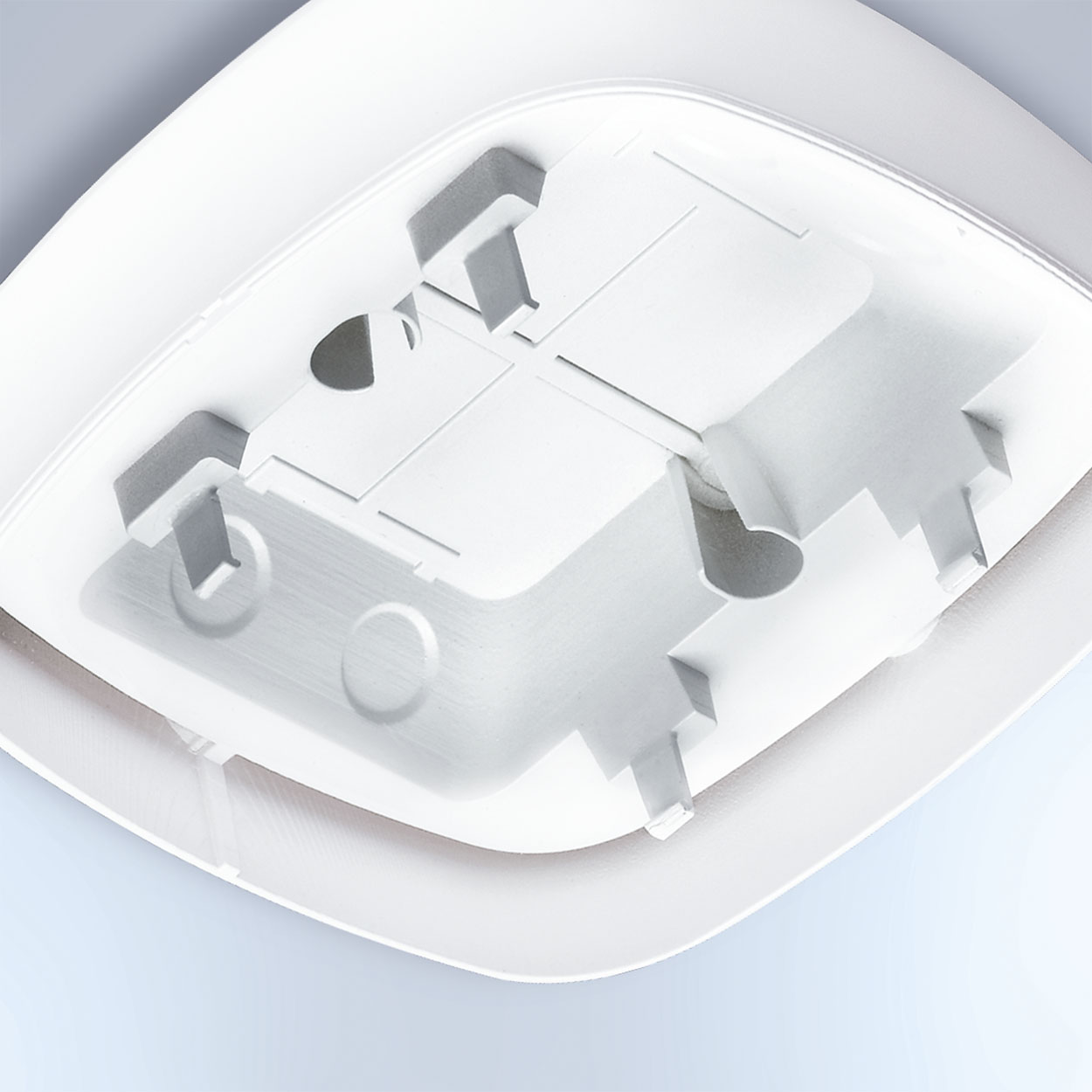

Optional surface-mounting adapter

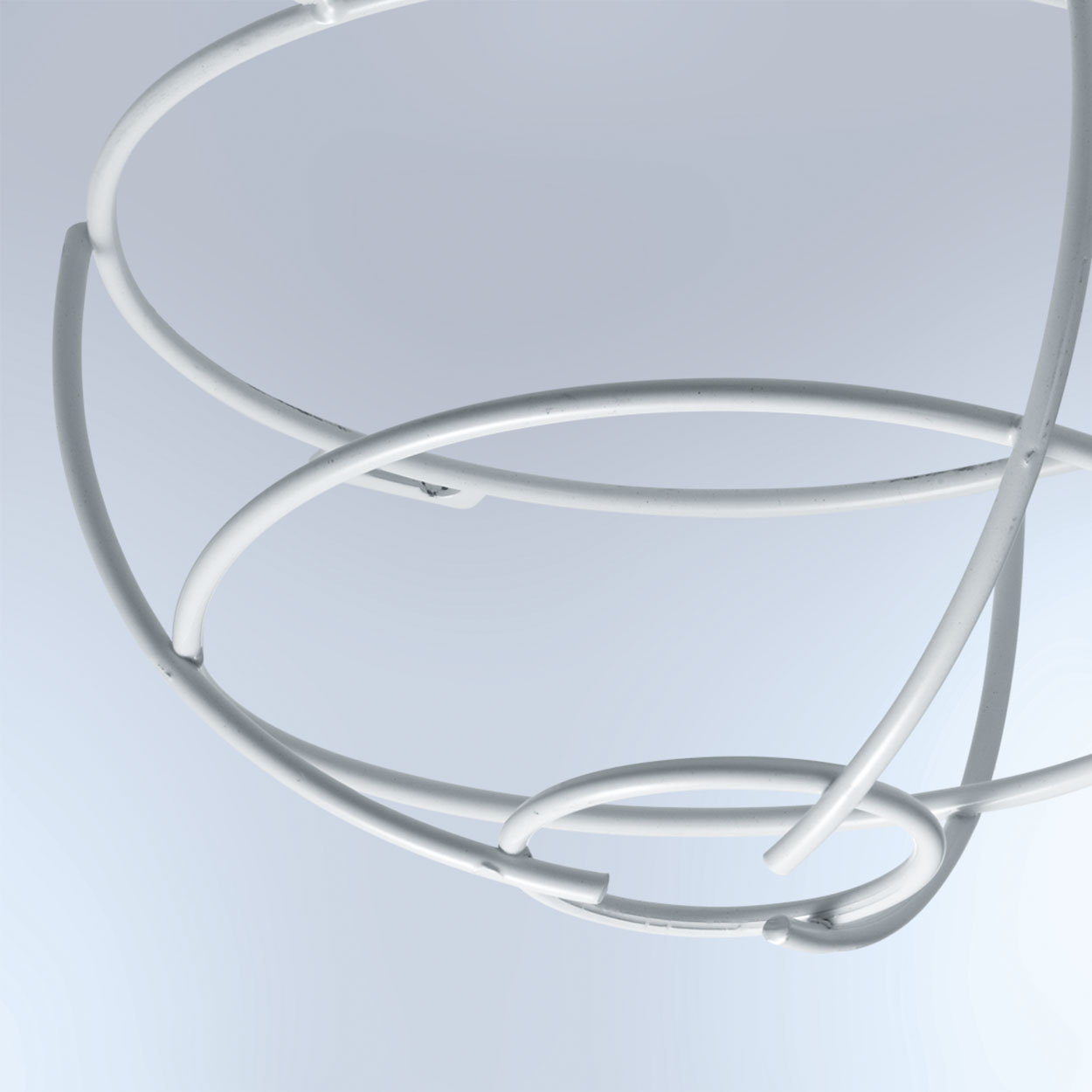

Optional guard cage

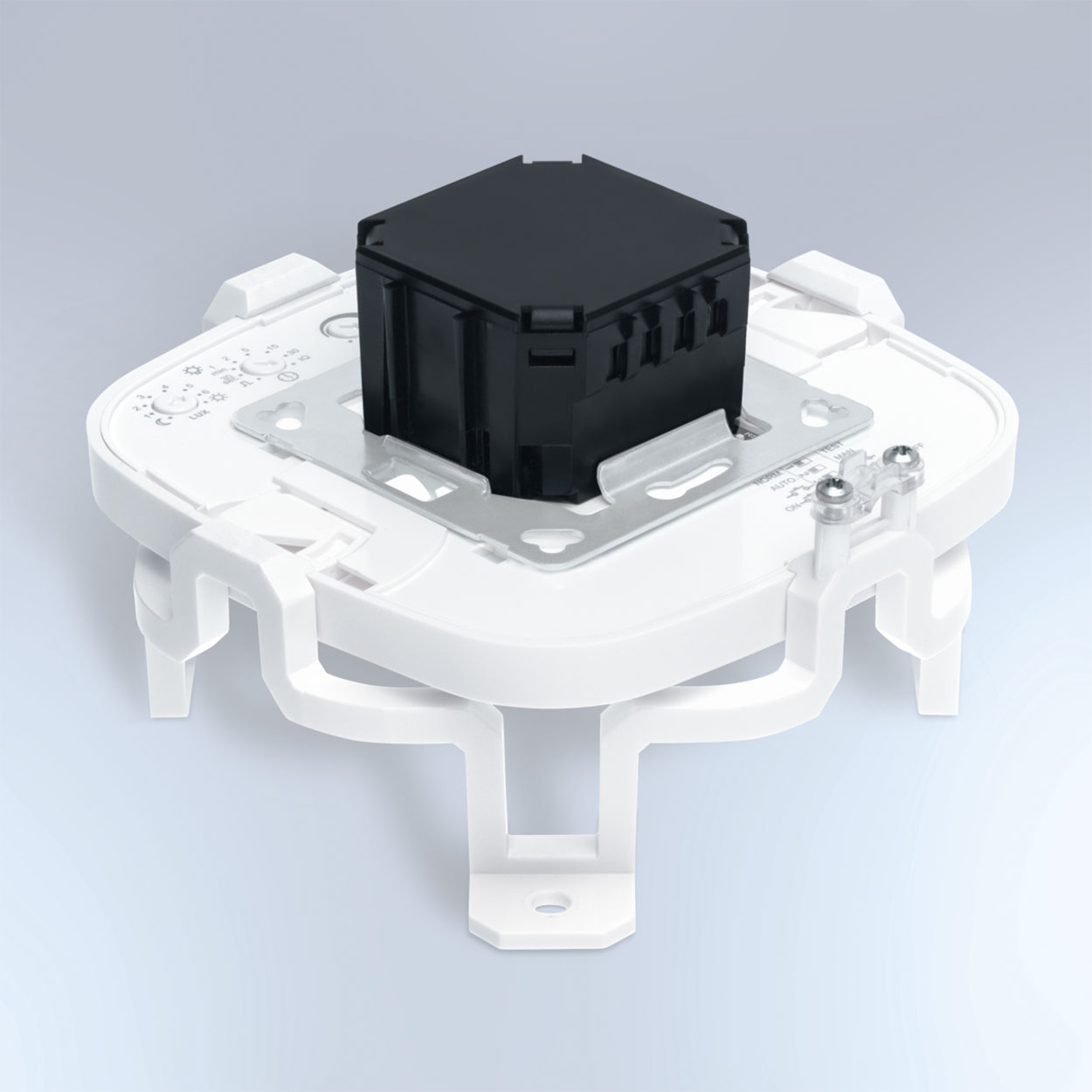

HF ceiling adapter for installation in suspended ceilings

Technical drawing

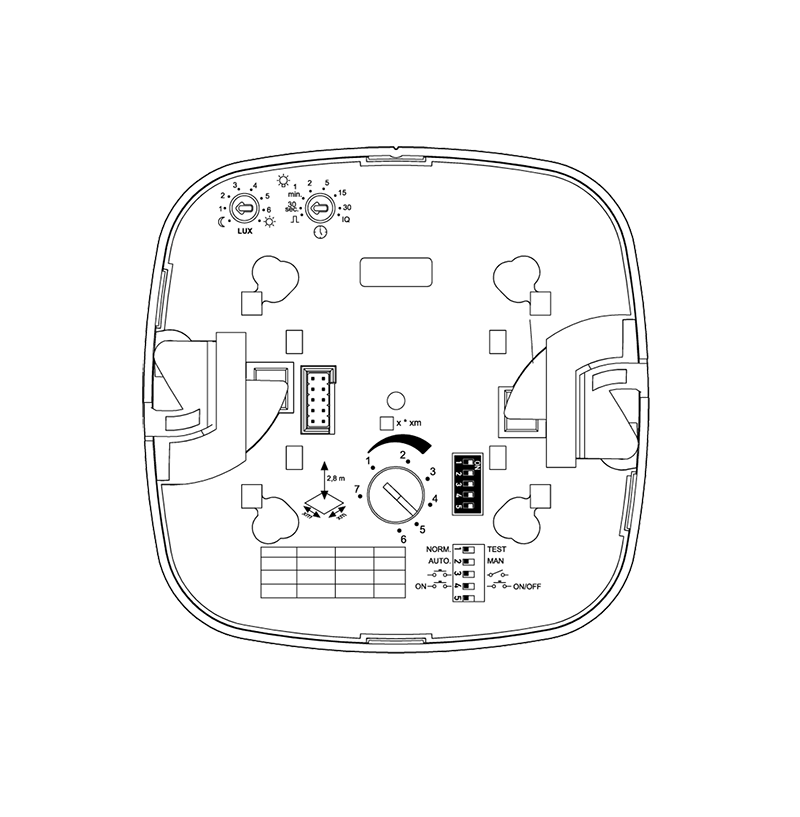

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity

Control PRO guard cage
